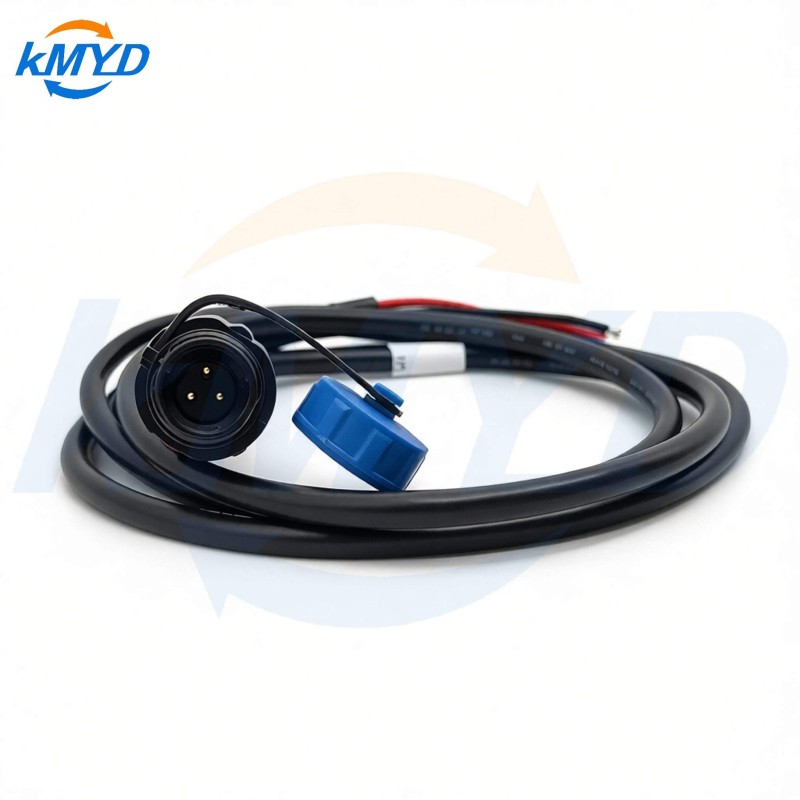

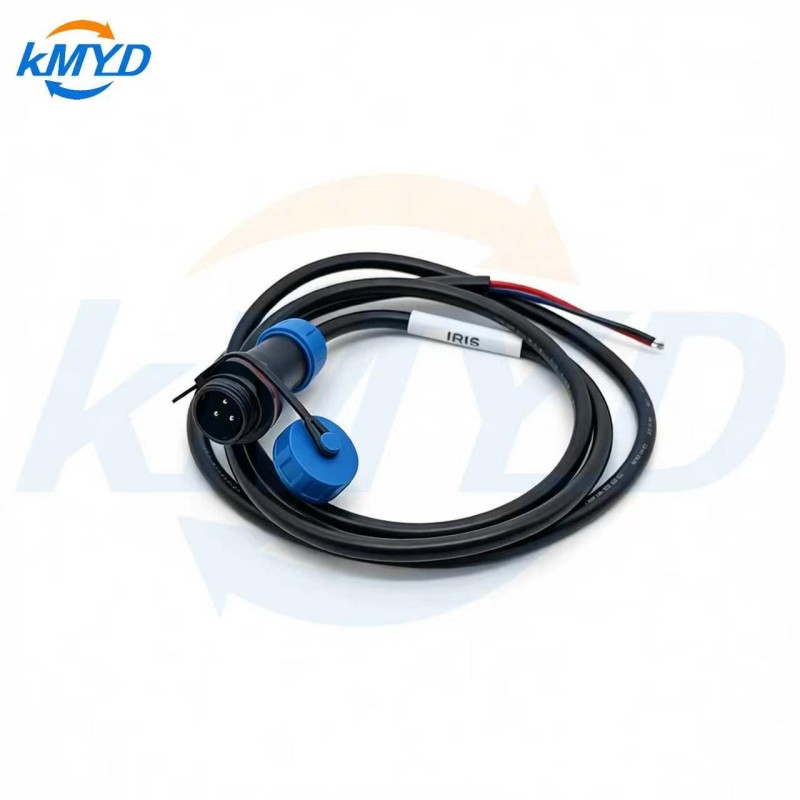

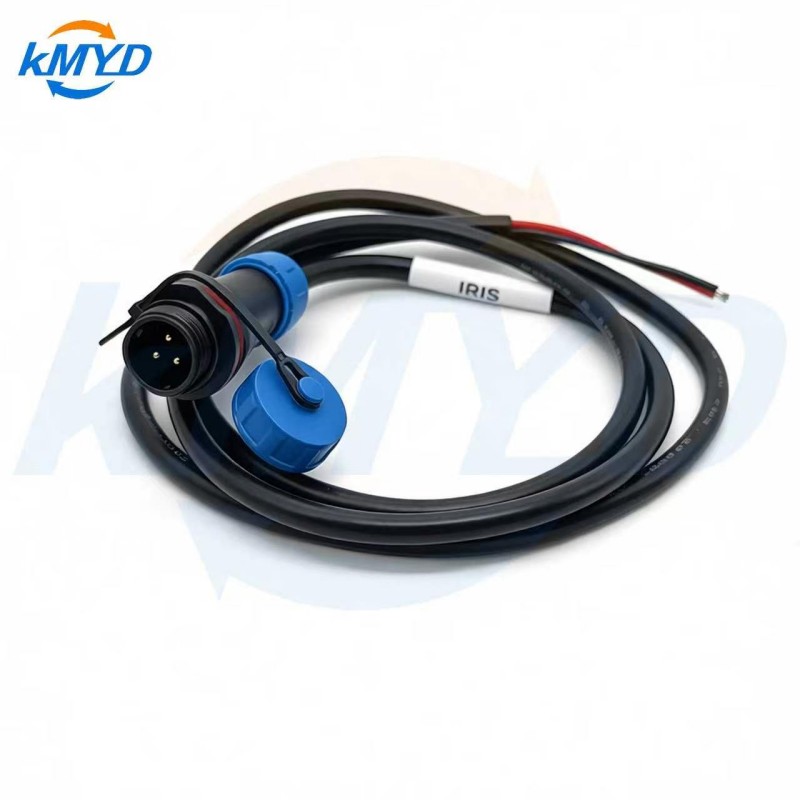

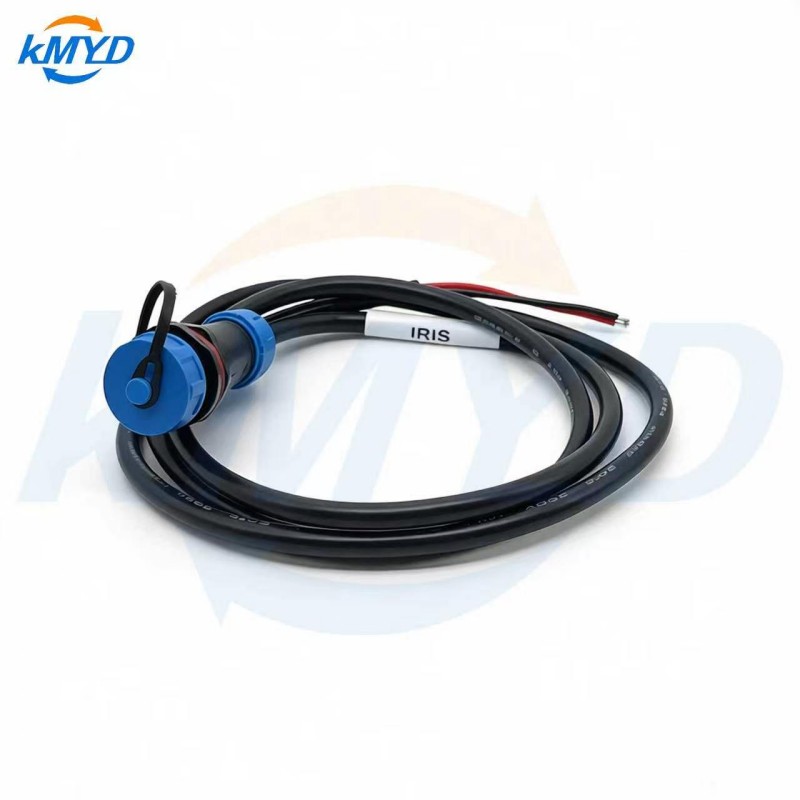

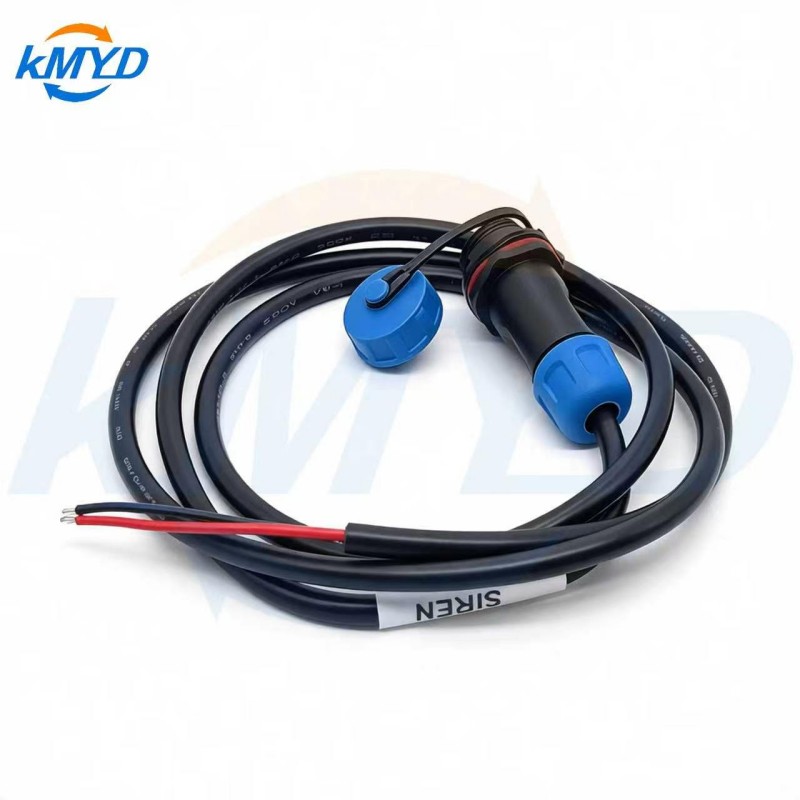

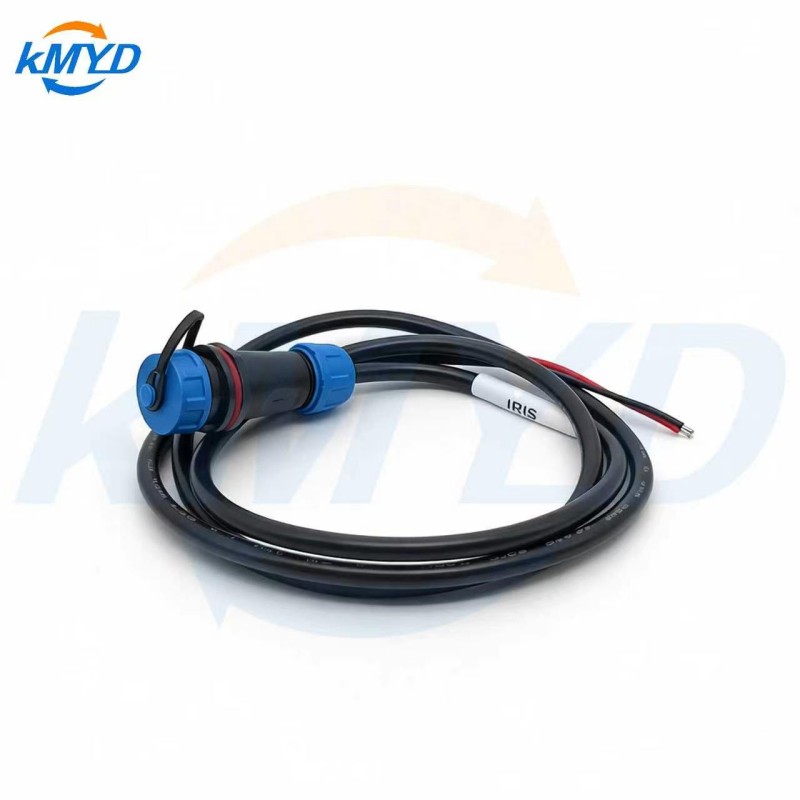

SP13 3 Pin Male Cable Connector with 20AWG PVC Cable

The SP13 3 Pin Male Cable Connector is designed for reliable electrical connections in industrial and outdoor environments. Combined with a durable 20AWG PVC cable, this cable assembly provides stable power and signal transmission while maintaining flexibility and easy installation.

Construction and Locking Design

Featuring a compact circular connector design and secure threaded locking structure, the SP13 connector ensures a firm connection and helps prevent loosening caused by vibration or movement. The waterproof construction provides enhanced protection against moisture and dust, making it suitable for applications requiring dependable performance under challenging conditions.

Key Selection Considerations

• Pin Configuration: 3-pin male design for straightforward power or signal wiring in compact spaces.
• Cable Type: 20AWG PVC cable offers good flexibility, durability, and reliable conductivity for moderate-current applications.
• Environmental Protection: Waterproof circular structure suits industrial and outdoor installations where moisture or dust exposure is expected.
• Connection Stability: Secure locking mechanism maintains long-term connection integrity under vibration or movement.
• Customization: Cable length, wiring, and connector specifications can be adapted to match your application requirements.

Application Suitability

This SP13 cable assembly is appropriate for industrial automation, sensor systems, LED lighting, security equipment, and electronic devices that require a compact, waterproof 3-pin connection. It is not intended for high-current power distribution or applications demanding extreme mechanical strength beyond the rated specification.

Factory Capabilities and Quality Assurance

Manufactured by Shenzhen Meiyadi Technology Co., Ltd., a professional connector and cable assembly manufacturer with years of industry experience. Our factory integrates R&D, mold development, precision manufacturing, injection molding, cable assembly, and quality inspection, providing complete solutions from design to mass production.

With advanced production equipment and strict quality control processes, Meiyadi performs comprehensive testing including waterproof testing, electrical performance testing, insertion and withdrawal force testing, and dimensional inspection to ensure product reliability.

Supporting OEM/ODM customization, we provide flexible solutions for global customers in industrial automation, sensors, LED lighting, security systems, and electronic equipment industries. With stable production capacity, professional engineering support, and reliable quality assurance, Meiyadi is committed to becoming your trusted connector manufacturing partner.

Inquiry Information Checklist

To receive an accurate quotation and sample arrangement, please provide the following details:

• Required cable length and any special wiring requirements
• Mating connector type (female socket or panel mount) and pinout
• Operating environment (indoor/outdoor, temperature range, exposure to chemicals)
• Electrical load (current and voltage) for the application
• Order quantity and target delivery schedule

For related connector options, review the 12G Series Circular Connectors or consult the LD20/SP20 Industrial Flange Connector Dimensions and Specs for alternative mounting configurations.
