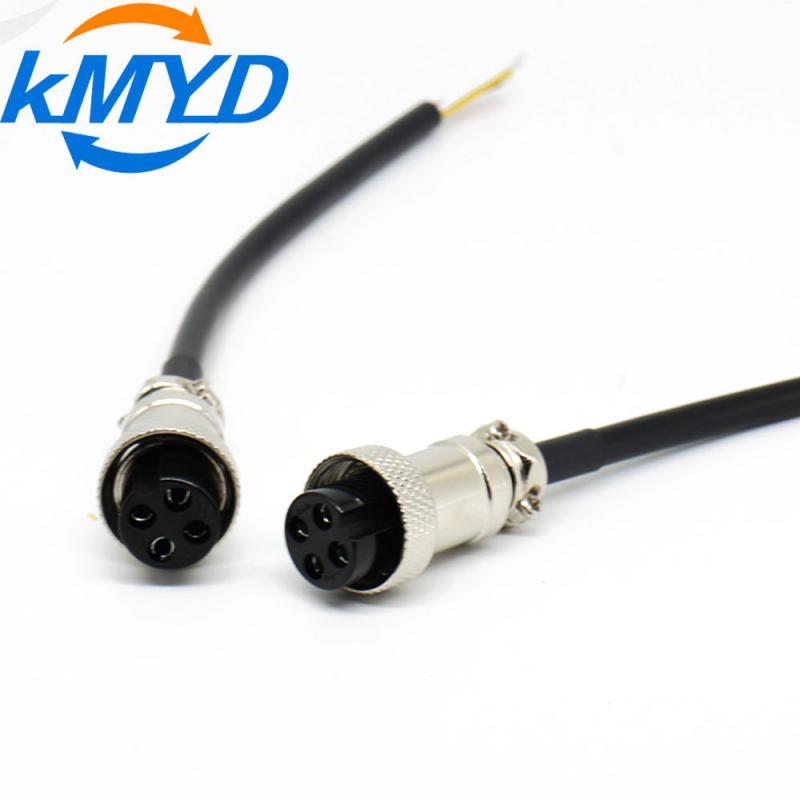

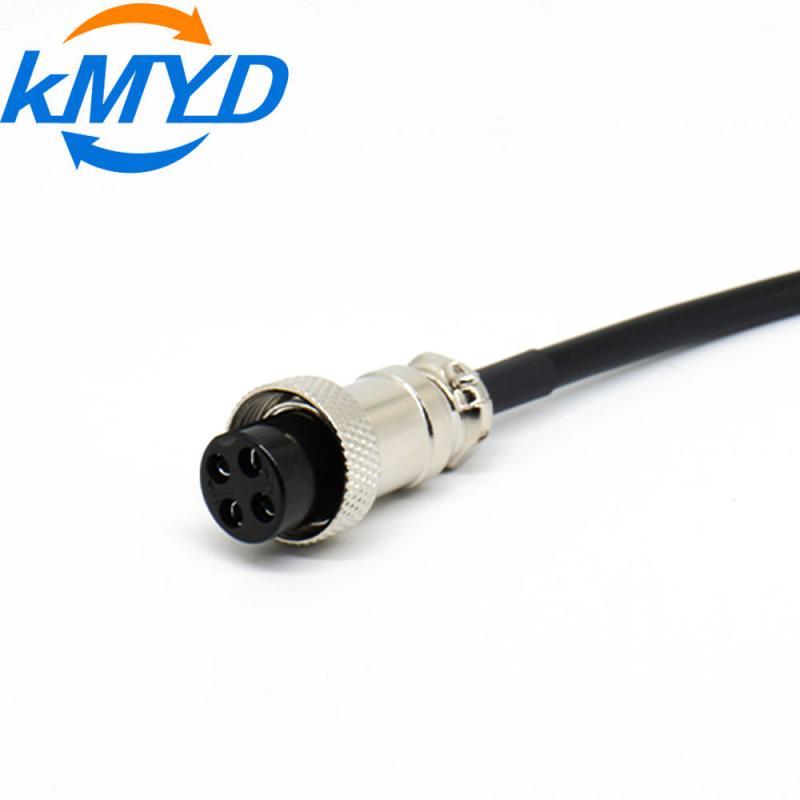

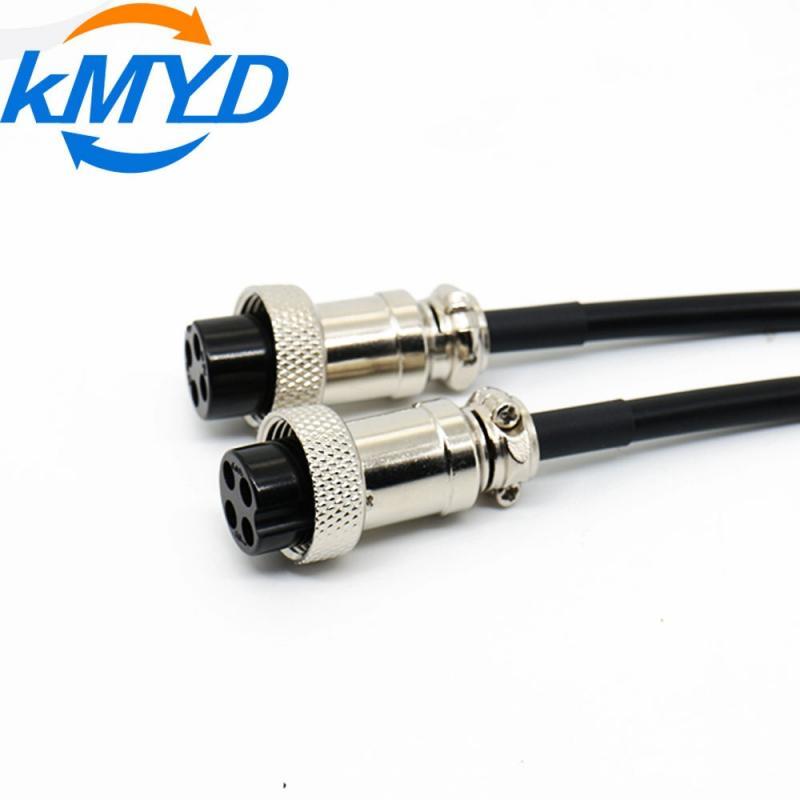

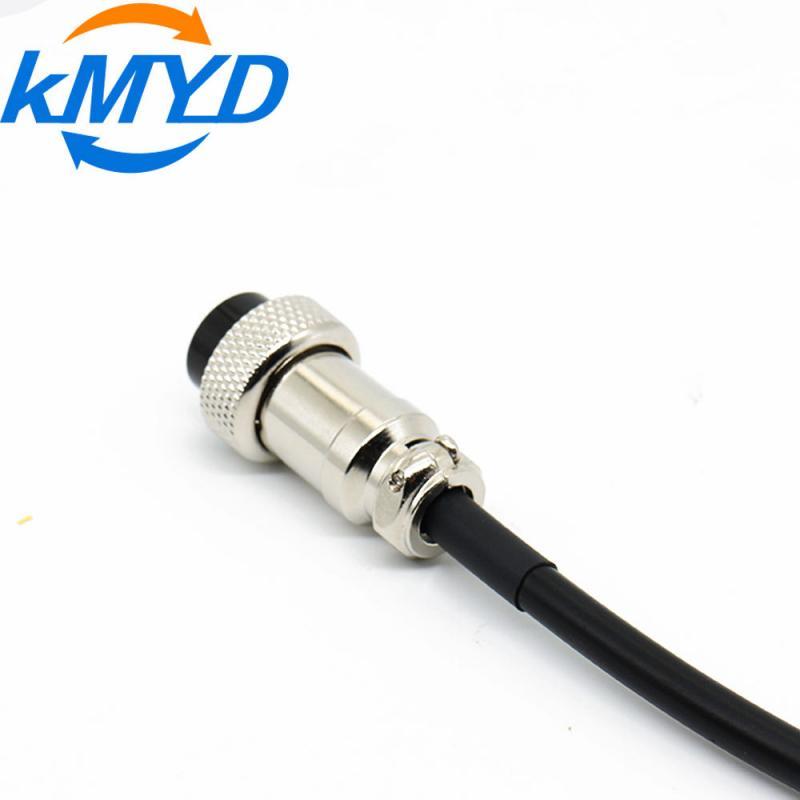

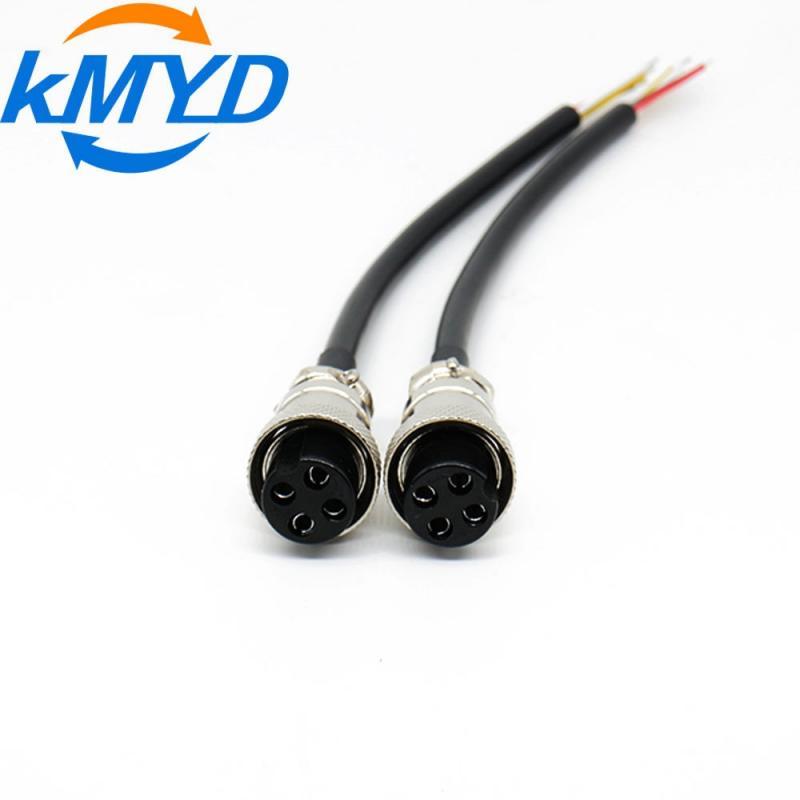

GX16 Aviation Female Connector with Custom Cable Assembly

This solution combines a GX16 female aviation connector with a factory-assembled cable, providing a production-ready connection system for industrial equipment. It is designed for buyers who need consistent wiring quality and reduced assembly time rather than managing separate components and manual termination.

Zinc Alloy Housing for Mechanical and Electrical Stability

The connector housing is constructed from zinc alloy with nickel plating, offering greater structural stability and wear resistance compared with plastic alternatives. This material choice supports repeated plugging cycles without deformation and provides good vibration resistance for demanding operating environments.

The metal housing also contributes to electromagnetic shielding, which helps reduce signal interference in electronic systems. For applications where mechanical robustness and signal integrity are priorities, this construction provides a practical foundation.

Custom Cable Assembly Options

Customization is a central feature of this product. The cable assembly can be adapted to match specific installation and performance requirements, including:

• Cable length tailored to the equipment layout
• Wire gauge options such as 22 AWG or other specifications
• Pin configurations from 2-pin to 4-pin and beyond
• Cable jacket materials selected for indoor or outdoor use
• Shielded or unshielded cable structures
• Pin assignment and connector orientation adjustments
• Overmolding and strain relief solutions

These options allow equipment designers to integrate the connector directly into their systems without additional wiring work, reducing assembly time and the risk of wiring errors during production.

Why Factory-Assembled Cable Solutions Reduce Field Failures

Connection failures in industrial applications are frequently traced to inconsistent field wiring rather than the connector itself. A factory-assembled GX16 cable solution helps minimize common issues such as wiring errors, incorrect pin mapping, weak solder joints, and installation inconsistency. The result is a more reliable and production-friendly connection system.

GX16 Connector Structure for Industrial Reliability

The GX16 series is recognized for its durable metal housing, secure threaded locking mechanism, and stable electrical contact performance. These characteristics make it suitable for applications that involve vibration and repeated operation. When combined with a customized cable assembly, it becomes a dependable connectivity solution for industrial equipment.

Typical Applications

This connector and cable assembly is commonly used in industrial automation equipment, control cabinets, robotics and motion control devices, industrial monitoring systems, signal and power transmission equipment, testing and measurement devices, and smart manufacturing machinery. Its flexible cable configuration supports both standard and project-specific requirements.

Factory Capabilities and Quality Control

As a manufacturer with over 15 years of experience in aviation connectors and cable assemblies, we provide direct factory manufacturing with full process control. Our in-house capabilities include connector mold development, CNC machining, injection molding, terminal stamping and plating, cable preparation, soldering and overmolding assembly, and electrical and mechanical testing laboratories.

Each GX16 cable assembly undergoes continuity and pin mapping testing, pull-force and cable durability testing, connector locking inspection, insulation resistance verification, and final structural and appearance inspection before shipment.

OEM and ODM Customization Support

We support flexible industrial customization, including cable length and wire specification changes, shielded cable solutions, connector pin configuration adjustments, logo printing and labeling, and customized packaging for OEM projects. Engineering support is available from prototype sampling through large-scale production.

Inquiry Checklist

To receive an accurate quotation and engineering review, please provide the following details:

• Required pin count and pinout or wiring diagram
• Cable length and outside diameter
• Wire gauge and conductor material
• Electrical load (current and voltage)
• Operating environment (indoor, outdoor, temperature range)
• Connector orientation and mounting requirements
• Order quantity and target delivery schedule

Contact us for technical consultation, sample support, and OEM/ODM engineering service for your GX16 aviation connector and cable assembly project.
