Precision Stamped Connector Parts for Stable Contact

SF Series Aviation Connectors Specifications and Performance Data

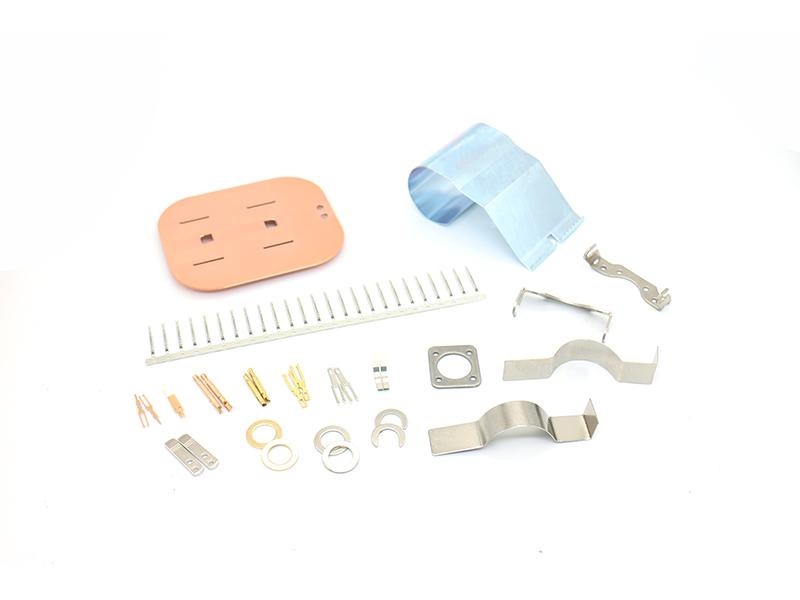

What Are Connector Stamped Parts?

Connector stamped parts are precision-formed metal components used inside connectors to establish and maintain electrical contact. This category includes contact springs, terminal bases, and other conduction-related elements produced through high-speed stamping processes. Because stamping supports repeatable tooling and tight dimensional control, these parts are well suited to mass production while delivering consistent connection performance across large volumes.

Why Stamped Parts Matter in Connector Design

For engineers and procurement teams, the choice between stamped and machined contact components affects cost, lead time, and mechanical consistency. Stamped parts offer several practical advantages:

• Repeatability: A single die produces identical parts, reducing variation in contact geometry.
• Scalability: High-volume runs lower per-unit cost without sacrificing dimensional stability.
• Material efficiency: Stamping minimizes waste compared to subtractive machining.
• Spring performance: Contact springs formed from strip material retain predictable deflection and force characteristics.

Typical Applications and Selection Considerations

Stamped contact springs and terminal bases appear in circular aviation connectors, rectangular industrial connectors, and signal or power transmission assemblies. When evaluating stamped parts for your application, confirm the following before ordering:

• Base material grade and plating (for example, gold or tin over copper alloy).
• Contact force and deflection range required by the mating cycle.
• Operating temperature and environmental exposure.
• Dimensional drawing or pinout for the mating connector.

If a specific parameter is not listed in the available documentation, request the manufacturer's drawing or test report before finalizing the design.

How to Specify Stamped Parts for Your Connector

To receive an accurate match, provide the connector series, pin count, contact diameter, and the required current or voltage rating. Include a drawing or sample if available. This helps confirm that the stamped contact spring or terminal base will fit the housing and meet your electrical and mechanical requirements.

For related guidance on contact components used in signal and power transmission, see Industrial Connectors Stamped Pins for Signal and Power Transmission. If you are working with circular aviation connectors, review the Aviation Plug Connectors catalog to compare housing and contact options.

To discuss your specific stamped part requirements, contact our engineering team with your drawing, material preference, and target production volume.
