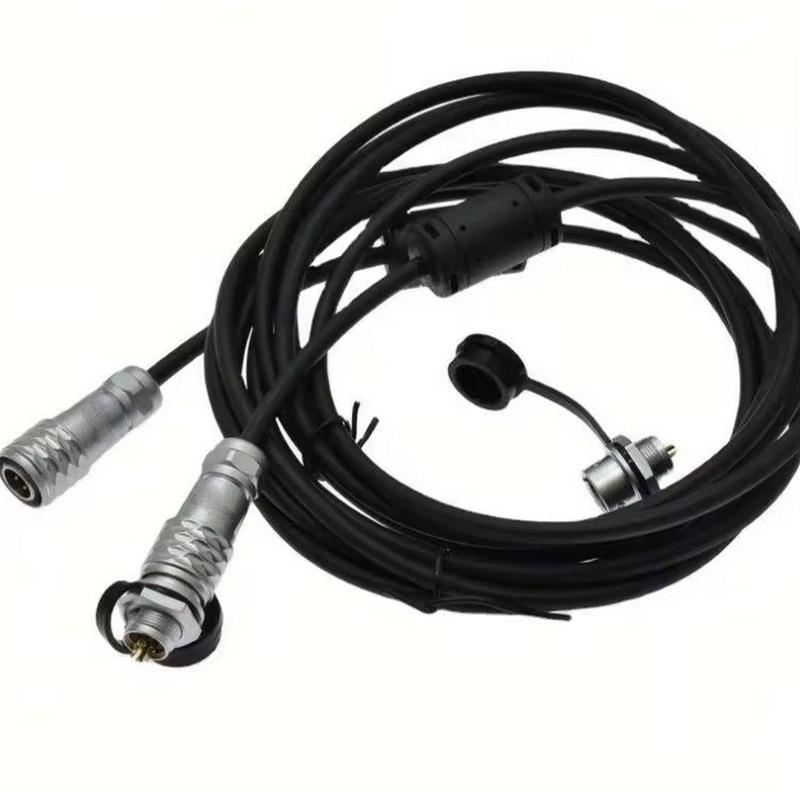

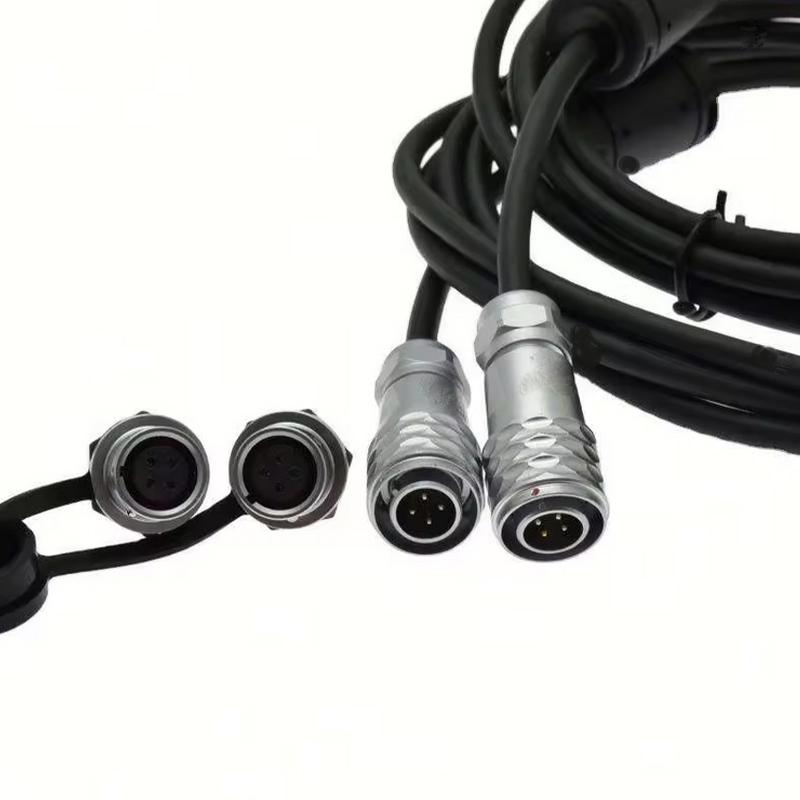

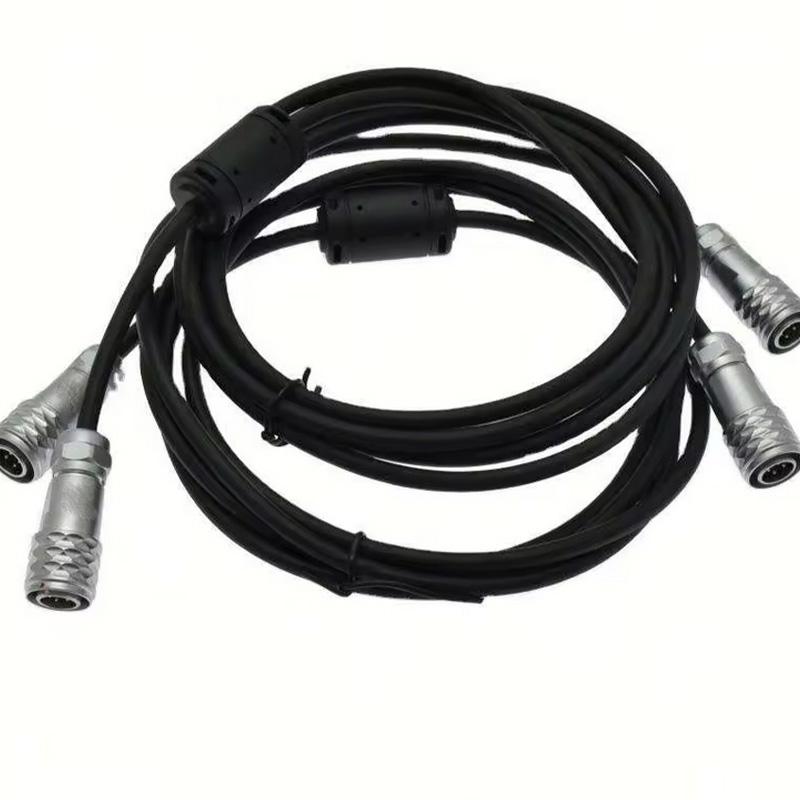

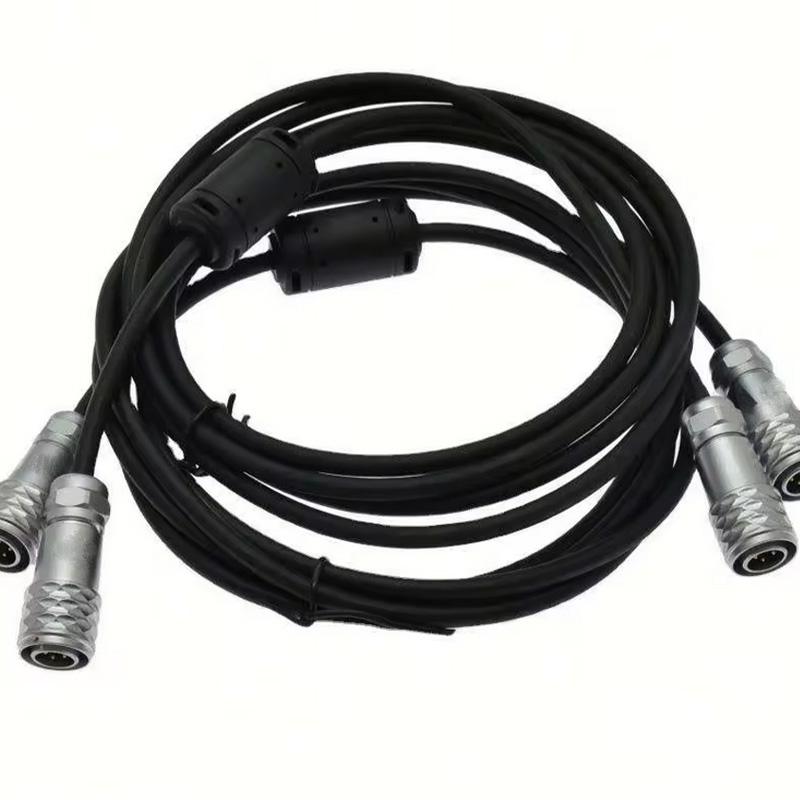

Waterproof SF12 Connector with Customized Cable

The Waterproof SF12 Connector with Customized Cable is a compact circular connection solution designed for stable signal and low-power transmission in industrial and electronic systems. With its lightweight structure and precision contact design, the SF12 series provides reliable performance in environments where space is limited but connection stability is critical.

Supplied as a customized cable assembly, this connector reduces on-site wiring workload and ensures consistent electrical performance from production to final installation.

Compact Waterproof Design for Stable Performance

The SF12 connector is engineered for applications requiring a small footprint and reliable sealing performance. Its threaded locking structure ensures secure mating, while the waterproof design helps maintain stable operation in harsh environments.

Key advantages include:

• Compact SF12 size for space-saving installation
• Waterproof and dustproof sealing performance
• Stable signal transmission for industrial use
• Secure locking structure to prevent loosening
• Durable housing for long-term operation
• Suitable for repeated connection cycles

Customized Cable Assembly Solution

This product is delivered as a fully customized cable connector solution, allowing adaptation to different equipment and installation requirements. Customization options include:

• Custom cable length based on system layout
• PVC, PUR, or silicone cable material options
• Different wire gauges for signal or low-power use
• Shielded cable for interference-sensitive applications
• Straight or right-angle connector configurations
• Multi-core wiring and color customization
• OEM labeling and packaging support

This flexibility makes it suitable for both standard industrial production and project-based applications.

Typical Applications for SF12 Connector with Customized Cable

The Waterproof SF12 connector with customized cable is widely used in compact and precision equipment, including:

• Industrial automation systems
• Sensors and control devices
• LED lighting and display systems
• Testing and measurement equipment
• Small machinery and electronic devices
• Monitoring and communication systems

Manufacturing Strength - Precision for Compact Connectors

Our factory specializes in circular connectors and customized cable assemblies, with production processes designed to ensure consistent quality and stable performance. For compact connectors like the SF12 series, precision and assembly consistency are critical.

Our manufacturing advantages include:

• Integrated connector and cable assembly production
• Precision molding for stable mechanical fit
• Controlled wiring and termination processes
• Stable batch consistency for repeat orders
• Flexible OEM support for customized projects
• Efficient production and export capability

This ensures reliable supply for both standard products and customized engineering requirements.

Quality Assurance & Compliance

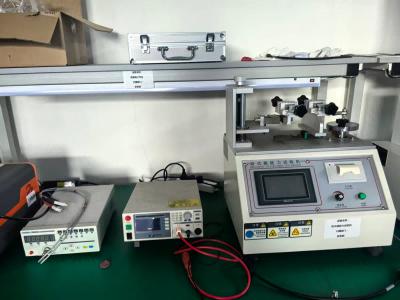

Each SF12 cable connector is tested to ensure stable performance in real-world applications. Quality control includes:

• Electrical continuity and insulation testing
• Contact resistance and signal stability testing
• Mechanical durability and mating cycle testing
• Cable termination strength inspection
• Dimensional and visual quality control

Products are manufactured under international standards:

• ISO9001 Quality Management System
• CE Certification
• RoHS Compliance

Reliable Compact Waterproof Connection Solution

The Waterproof SF12 Connector with Customized Cable provides a compact, flexible, and reliable connection solution for modern industrial and electronic systems. With strong customization capability and stable manufacturing quality, it is designed to support long-term use in demanding applications.

For selection guidance, consider the mating connector type, required pin configuration, cable length, and environmental sealing needs. For related compact circular connector options, review the 12G Series Circular Connectors or consult the SD20/SP20 Square Flange Connector Design and Installation Guide for alternative mounting styles.
