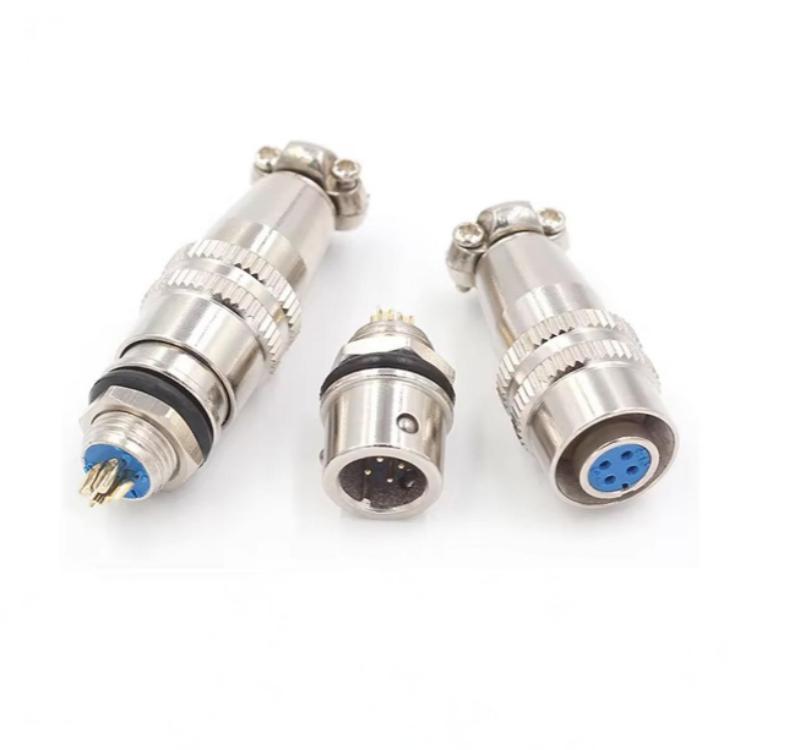

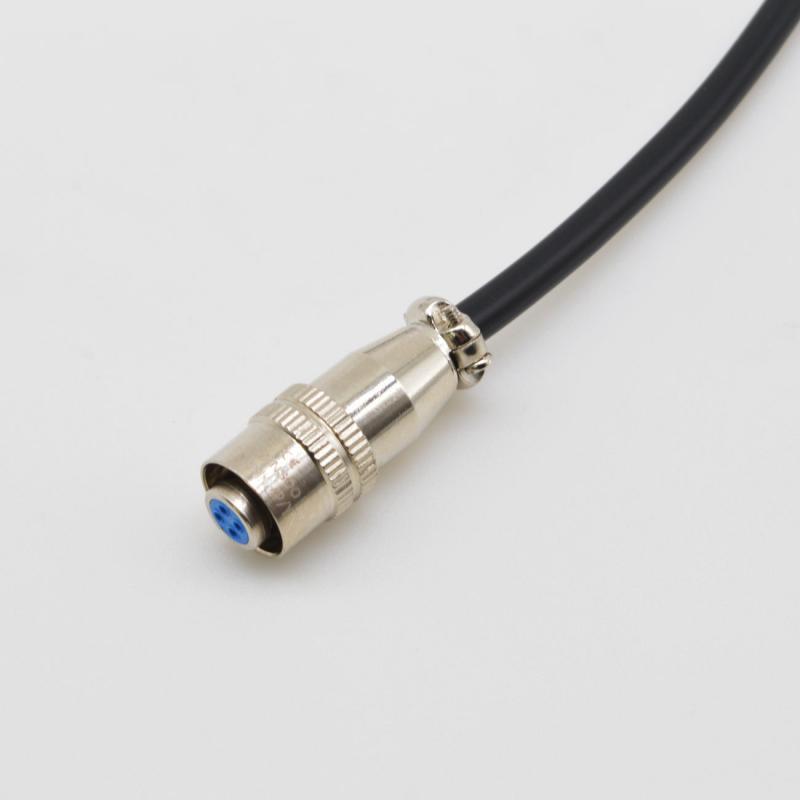

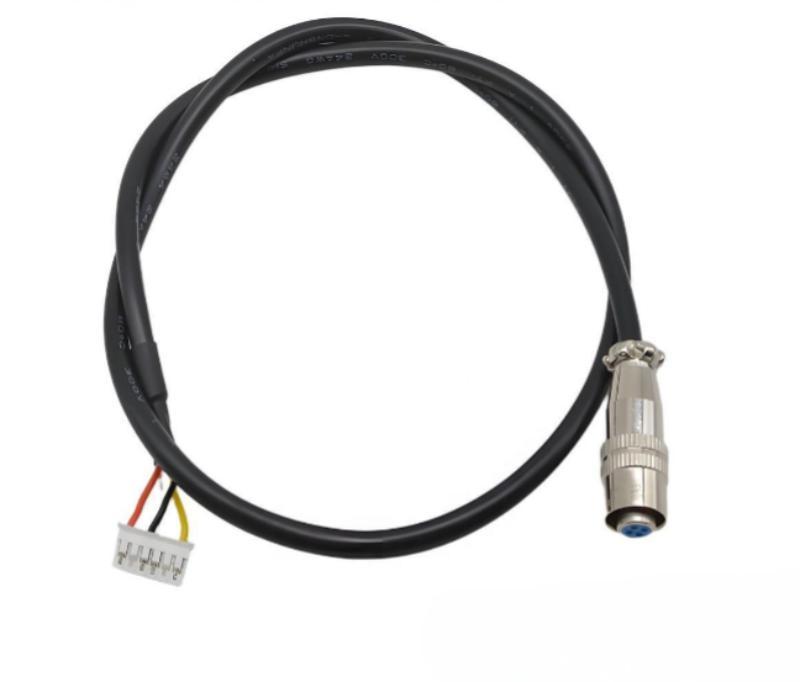

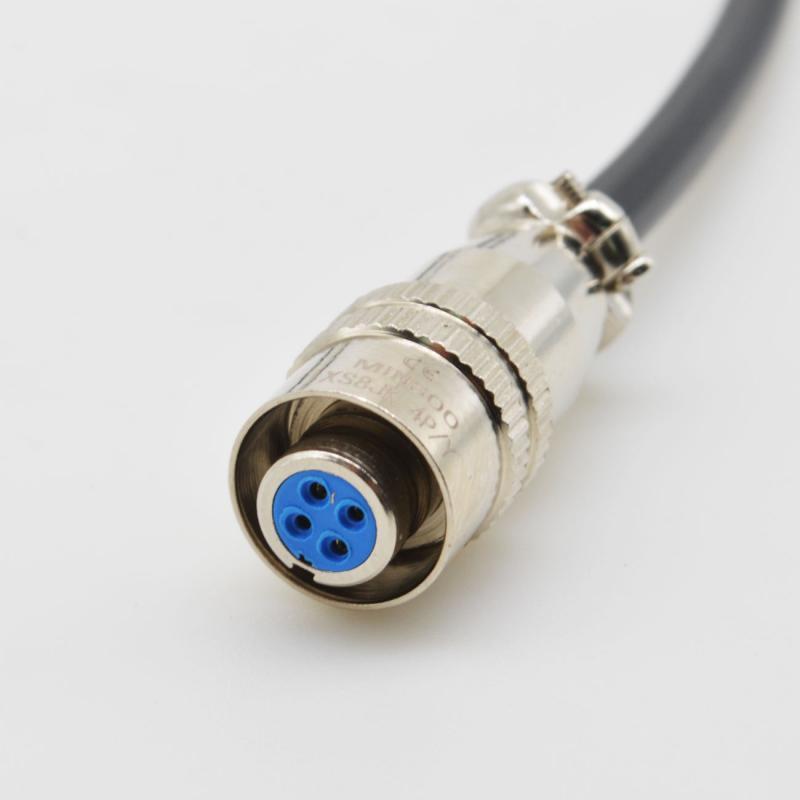

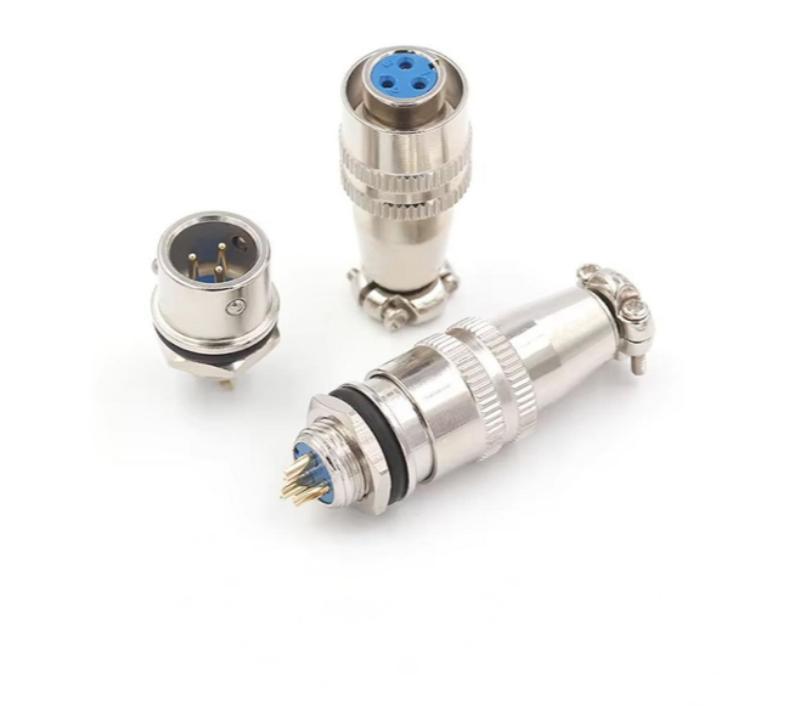

XS8 4-Core Pre-Wired Aviation Connector Overview

The XS8 4-core aviation connector is a pre-wired circular connector designed for compact industrial equipment that requires simplified multi-core connectivity. Its factory-attached cable eliminates field soldering and crimping, supporting faster installation in automation, sensing, and control applications.

Selection Considerations for the XS8 4-Core Connector

When evaluating the XS8 for your system, confirm the following before ordering:

• Mating interface: Verify the mating connector type and gender (male/female) required by your equipment.
• Core count and function: The 4-pin configuration supports simultaneous power and signal transmission; confirm your pin-to-wire mapping.
• Cable requirements: Specify cable length, wire gauge, and whether shielded or unshielded cable is needed.
• Environmental exposure: The IP67 rating suits dusty or wet locations; confirm your operating temperature range.

Construction and Installation Benefits

The XS8 features a nickel-plated brass housing and precision contacts for secure electrical performance. The pre-wired design reduces installation time and lowers the risk of wiring errors, making it suitable for production lines and on-site setups where efficiency matters.

Application Scope and Boundaries

The XS8 4-core connector is suited for:

• Compact industrial automation systems
• Sensor and monitoring devices
• Small machinery control units
• Robotics auxiliary modules
• Communication signal systems
• Embedded industrial electronics

It is not intended for high-current power distribution, high-vibration rotating equipment, or applications requiring repeated field re-termination. For those needs, confirm the electrical load and mechanical duty cycle with our engineering team.

Quality Assurance and Testing

Each XS8 cable-compatible connector is factory-tested for continuity, correct pin-to-wire mapping, cable pull strength, contact resistance stability, and locking reliability. These checks help ensure consistent performance between the connector and its attached cable.

Customization Options

We support OEM/ODM customization for the XS8 series, including cable length adjustment, wire gauge and material selection, shielded or unshielded cable, connector orientation, branding, and packaging. From sample development to mass production, we can adapt the assembly to your project requirements.

Inquiry Checklist

To receive an accurate quotation and technical recommendation, please provide:

• Mating connector type and gender
• Pinout or wiring diagram
• Cable length and outside diameter
• Conductor size and electrical load (current/voltage)
• Operating environment (temperature, moisture, chemicals)
• Order quantity and target delivery schedule

For related options, see Aviation Plug Connectors or review GX12 Aviation Connector Types and Core Count Options.

Factory Capability and Support

As a manufacturer with over 15 years of experience in circular connectors and cable assemblies, we provide integrated production including mold design, CNC machining, injection molding, terminal stamping, cable processing, assembly, and electrical testing. This in-house capability supports consistent quality for cable-compatible products.

For technical consultation, sample support, or customization inquiries, contact our team for XS8 4-core aviation connector solutions tailored to compact industrial applications.
