M8 3 Pin Female Connector Cable Assembly with Fuse Protection and PVC Jacke

Name: M8 3 Pin Female Connector Cable Assembly with Fuse Protection and PVC Jacke
Brand: KMYD
SKU: 2 - 8 Pin
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (11 reviews)

MOQ	>200
Price	$0.5 - $5.0
Number Of Cores	2 - 8 Pin
Contact Diameter(mm)	0.6mm/0.72mm/0.8mm/1.0mm
IP Rating	IP67
Shell Material	Nickel Plated Brass
Temperature Range	-25℃ ~ +85℃
Termination	Solder
Rated Current(A)	1A/3A
Rated Voltage(Ac.V)	125V/180V
Test Voltage(Ac.V)1Min	1000V
Insulation Resistance (MΩ)	1500MΩ
Contact Resistance (MΩ)	≤10MΩ
Certification	CE, RoHS,BASCI,ISO9001

Get Quote

+8619924482730

LD20/SP20 Industrial Flange Connector

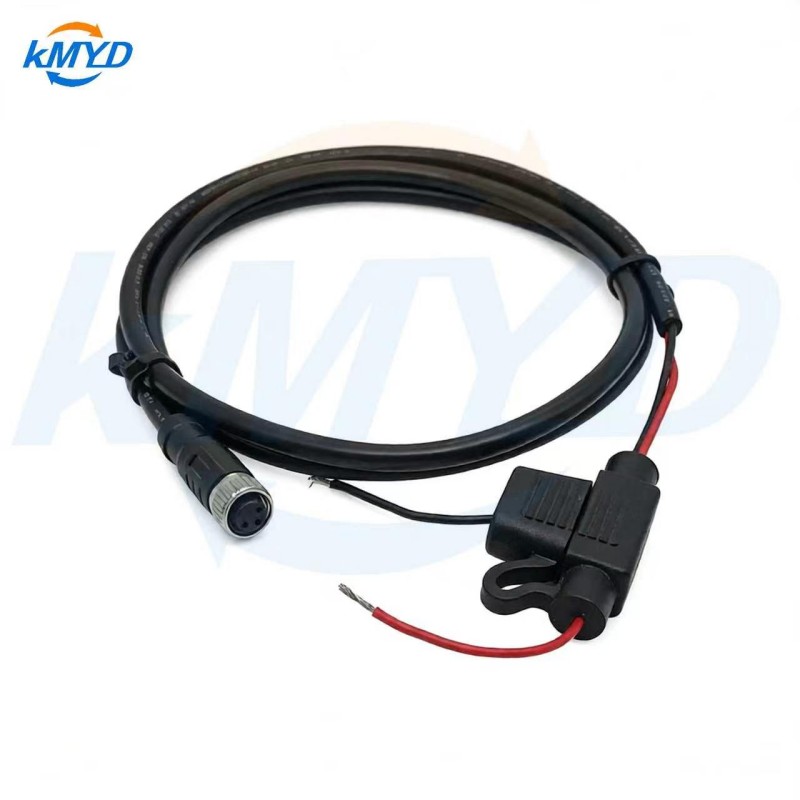

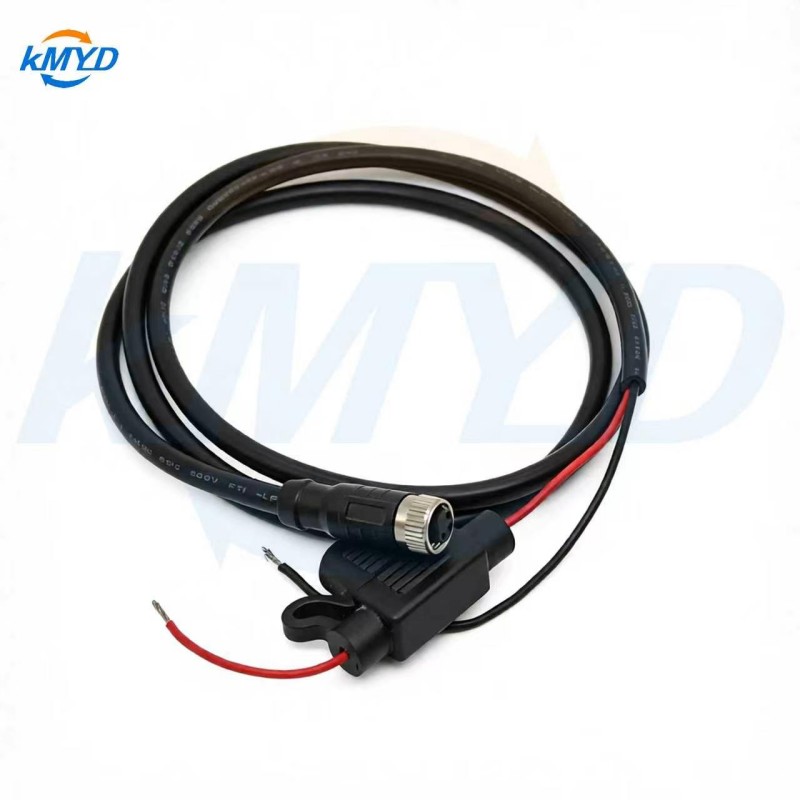

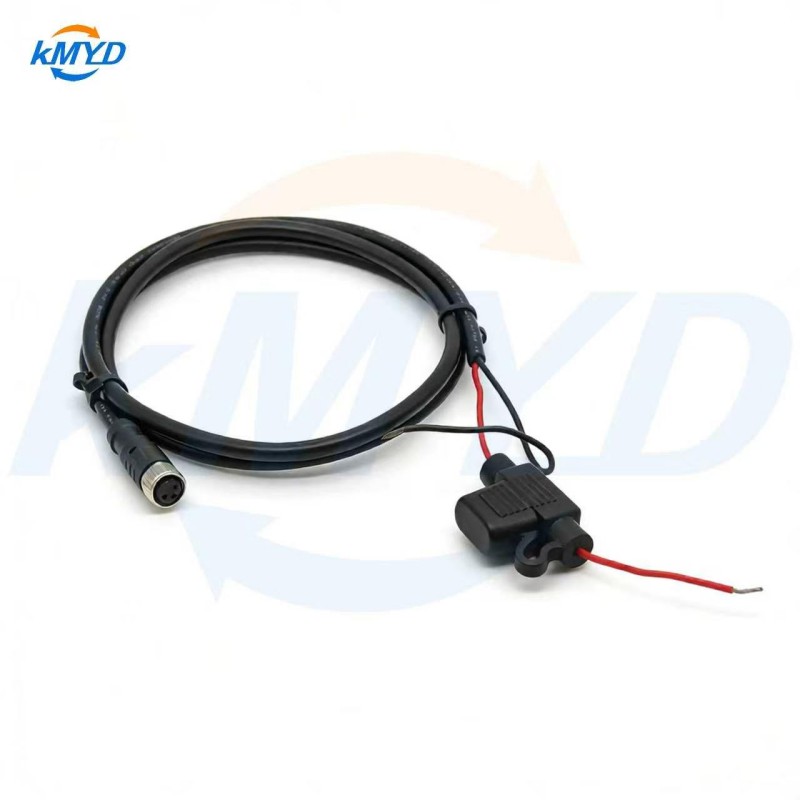

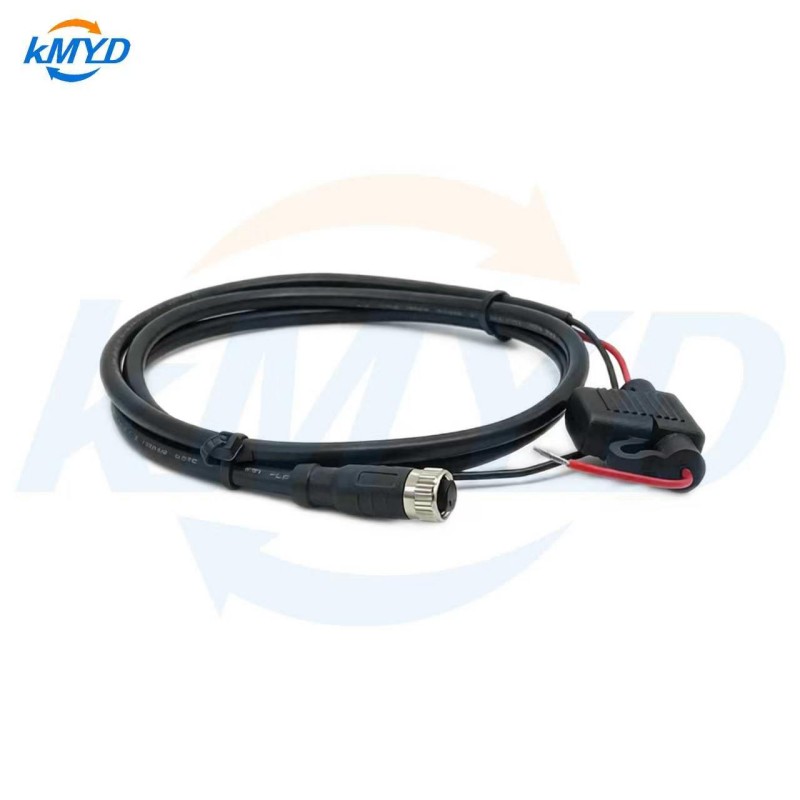

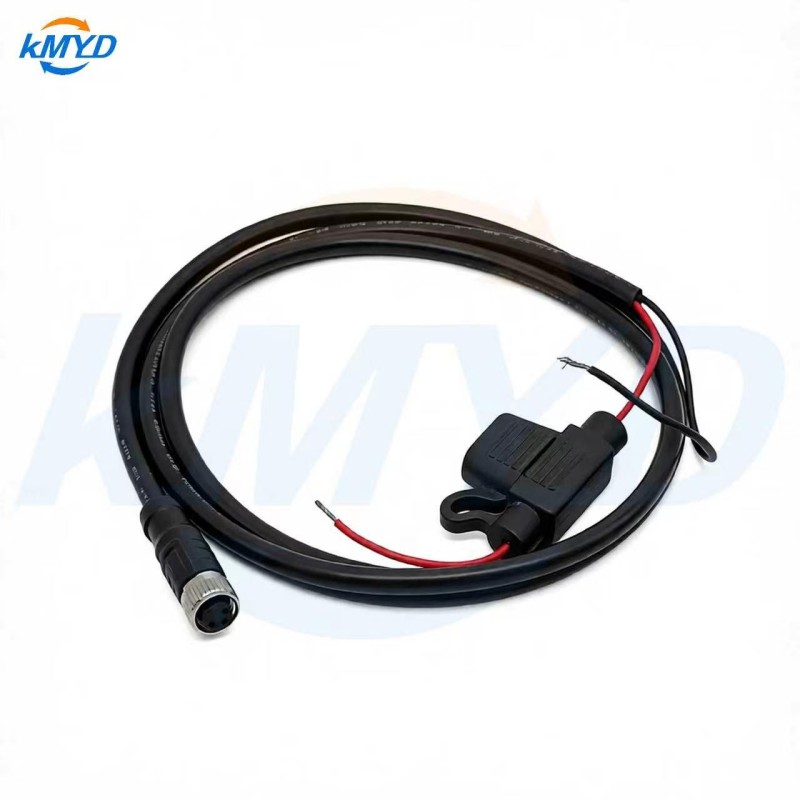

M8 3 Pin Female Connector Red Black Wire with PVC Jacket and Fuse Protection
The M8 3 Pin Female Connector Cable Assembly is designed for safe and reliable power connections in industrial equipment, electronic devices, and control systems. Featuring a compact M8 3 pin female connector with red and black power wires, this cable provides clear polarity identification and convenient installation.
Pin Female Connector Cable Assembly

Equipped with inline fuse protection, the cable helps safeguard connected devices against excessive current and improves overall system safety. The PVC jacket provides good flexibility, insulation performance, and protection for daily operation.

With a simple and practical design, this M8 power cable assembly is suitable for applications requiring secure power input, easy wiring, and additional circuit protection.

Product Features

M8 3 Pin Female Connector – Provides stable and reliable equipment connection.
Red & Black Wire Configuration – Enables quick identification of positive and negative wiring.
Fuse Protection Design – Adds an extra layer of electrical safety.
PVC Insulated Cable – Offers flexibility and protection during installation.
Compact Power Solution – Ideal for space-limited equipment applications.
OEM/ODM Customization – Cable length, wire specifications, connector options, and fuse ratings can be customized.

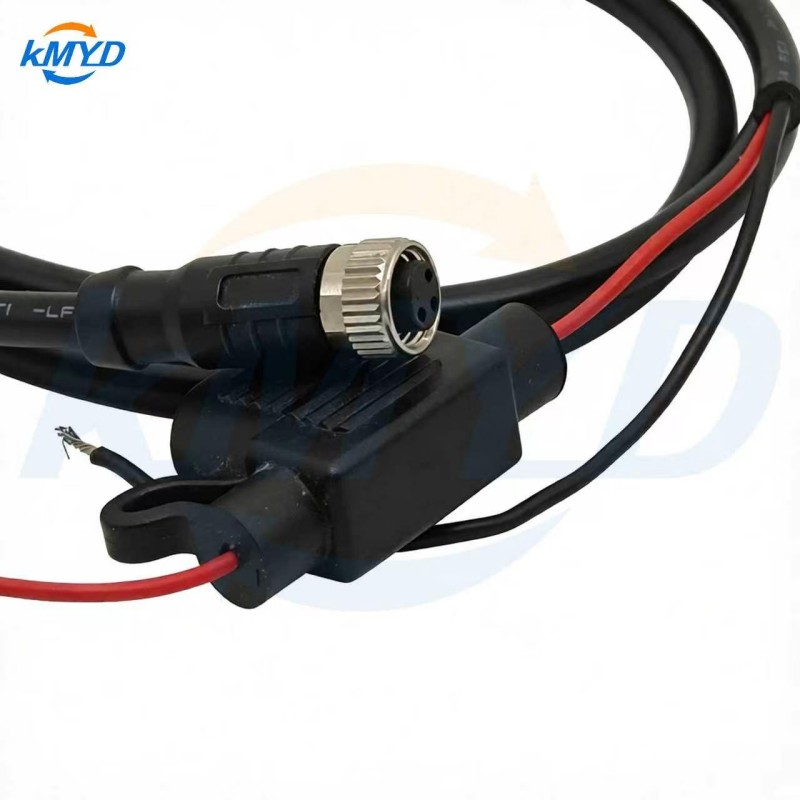

M8 Pin Female Connector Red Black

Applications

LED Lighting Systems
Industrial Control Equipment
Sensors and Electronic Devices
Automation Equipment
Power Supply Connections
Outdoor Electrical Applications

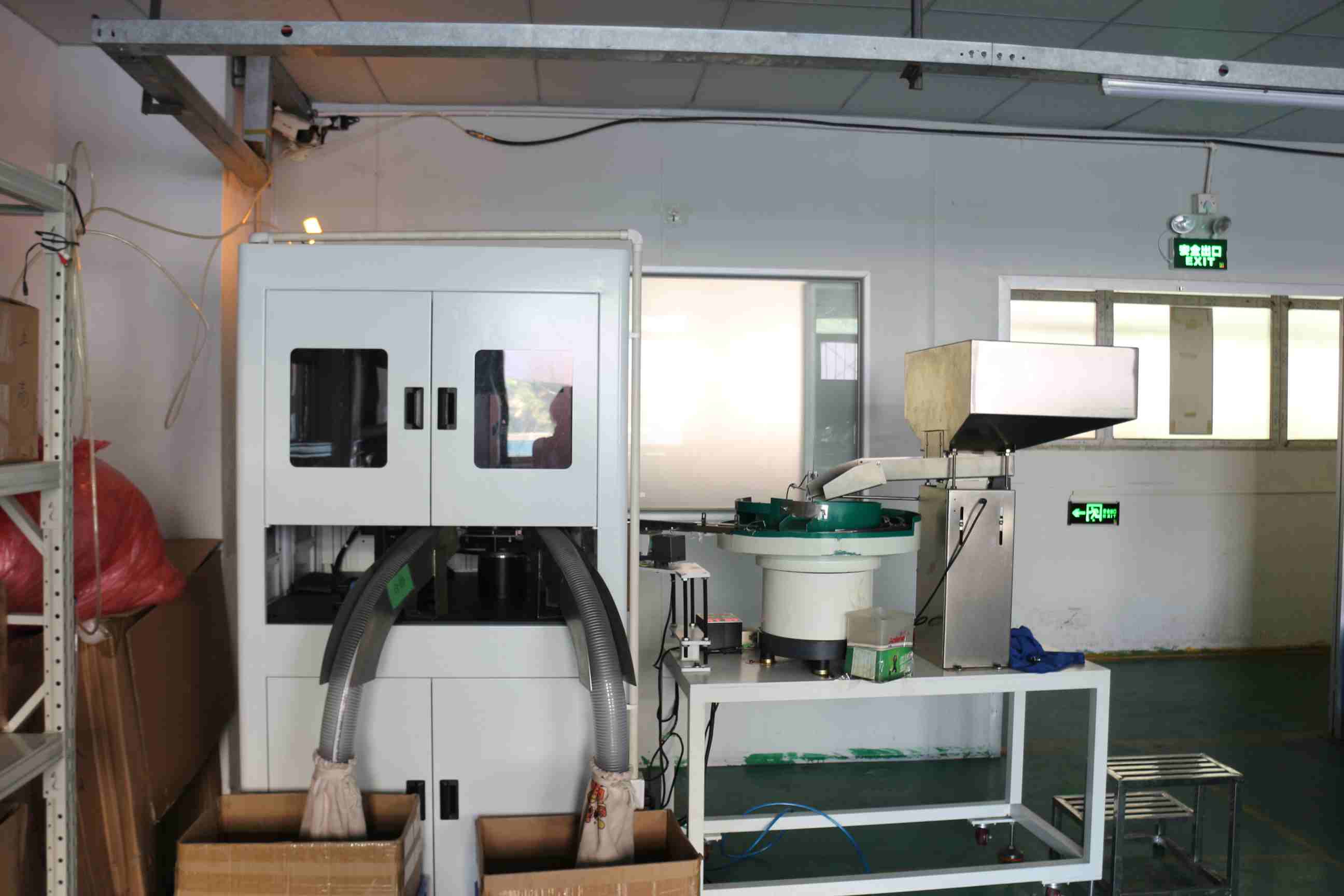

Factory Strength

Manufactured by Shenzhen Meiyadi Technology Co., Ltd., a professional connector and cable assembly manufacturer with more than 15 years of industry experience.
Pin Female Connector Red Black

Meiyadi specializes in waterproof connectors, industrial cable assemblies, and customized wiring solutions. Our factory integrates R&D, mold development, precision machining, injection molding, cable assembly, and quality inspection, providing complete production capabilities from design to mass production.
M8 pin female connector

With advanced testing equipment and strict quality management procedures, we ensure every cable assembly delivers reliable electrical performance, consistent quality, and long-term durability.

Through OEM/ODM customization, professional engineering support, and flexible manufacturing capabilities, Meiyadi provides dependable connection solutions for industrial automation, electronics, automotive, and other application fields.

Selection and Inquiry Guidance

When selecting this M8 3 pin female connector cable assembly, confirm the following requirements to ensure proper matching: the mating connector type and pinout, required cable length and conductor size, operating voltage and current load, environmental exposure (indoor or outdoor), and the desired fuse rating. Providing these details helps our engineering team recommend the correct configuration for your application. For related industrial connector options, please refer to our Aviation Plug Connectors or review the LD20/SP20 Industrial Flange Connector for alternative mounting and interface solutions.

GX12 Aviation Connector

M8 3 Pin Female Connector Red Black Wire with PVC Jacket and Fuse Protection – Technical Specifications

Item	Parameters
Number of Cores	2-8 Pin
Gender	Male/Female
Housing Material	Brass with Nickel Plated
Cores Material	Brass Plated with Silver/Gold
Insulator Material	PA66
Locking System	Screw Locking
Temperature Range	-30℃ to +85℃
Rated Current (A)	1A/3A
Rated Voltage (AC.V)	125V/180V
Test Voltage (AC.V) 1 Min	1500V
Insulation Resistance (MΩ)	1500 MΩ
Contact Resistance (MΩ)	≤10 MΩ
Termination	Solder
