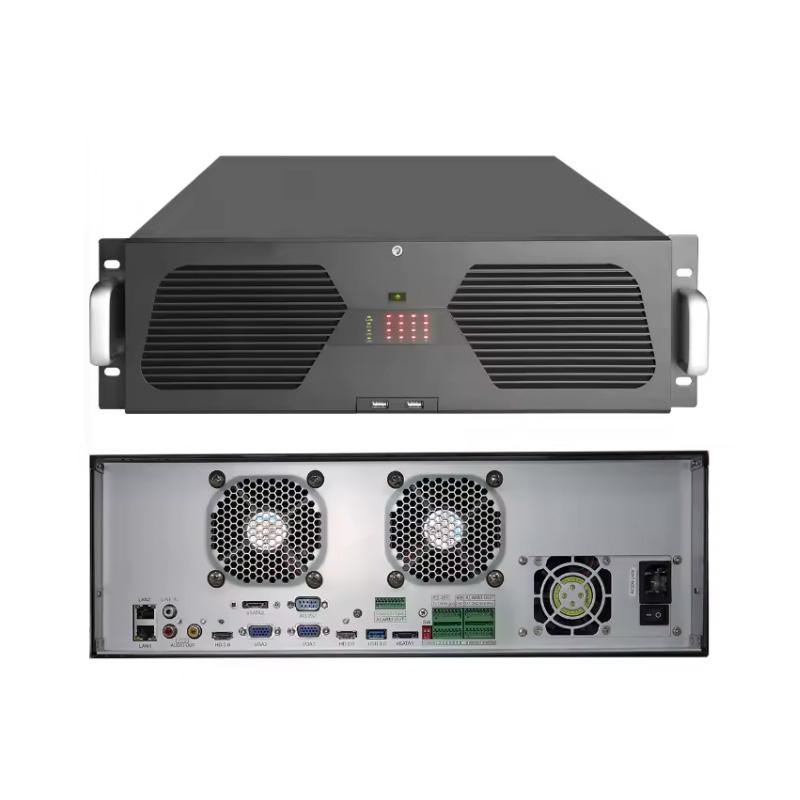

SP21 Waterproof Connectors in Network Video Recorder NVR Interfaces

Network video recorder (NVR) systems deployed in security centers, transportation hubs, and outdoor monitoring cabinets require dependable connectivity to manage high-definition video streams and maintain continuous data transmission across IP-based surveillance networks. SP21 waterproof connectors are integrated into NVR equipment interfaces to link network cameras, storage devices, power distribution units, and communication modules, delivering stable signal and power connections for uninterrupted monitoring operations.

Application Environment and Installation Requirements

NVR installations are frequently exposed to dust, humidity, and temperature fluctuations, particularly in outdoor cabinets and semi-enclosed security rooms. SP21 connectors address these conditions with a waterproof housing and secure locking mechanism that resists moisture ingress and prevents accidental disconnection. The connector's compact form factor supports space-constrained panel layouts, while its mating design enables straightforward field installation without specialized tooling, reducing setup time for system integrators.

Maintenance and System Expansion Benefits

SP21 connectors also simplify routine maintenance and system upgrades. When network cameras, hard drives, or communication modules require replacement or capacity expansion, the connector allows quick and secure reconnection, minimizing downtime during service operations. By maintaining consistent electrical contact and mechanical stability over repeated mating cycles, SP21 connectors contribute to improved system reliability, data integrity, and operational efficiency in modern network video recording applications.

For related guidance on connector selection and installation, refer to the SD20/SP20 Square Flange Connector Design and Installation Guide. For further details on similar waterproof connector applications in surveillance systems, see the SP17 Waterproof Connectors in Digital Video Recorder (DVR) Interfaces.
