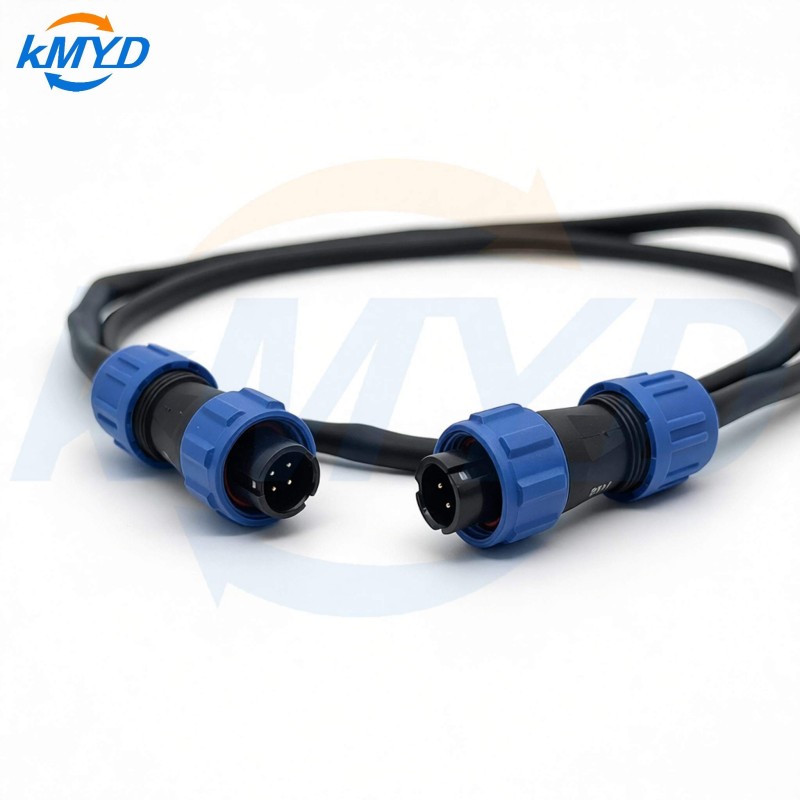

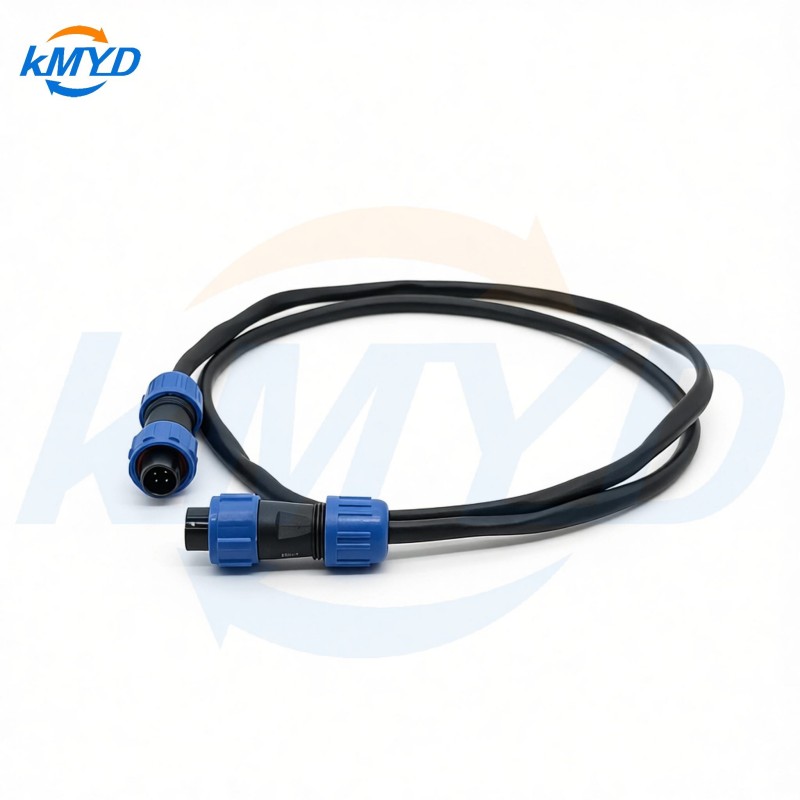

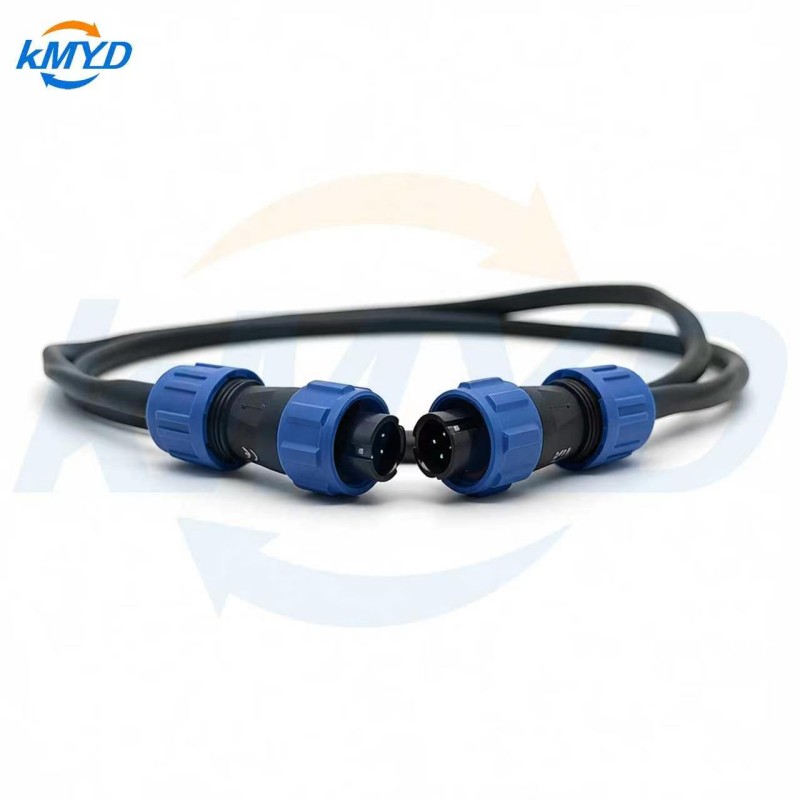

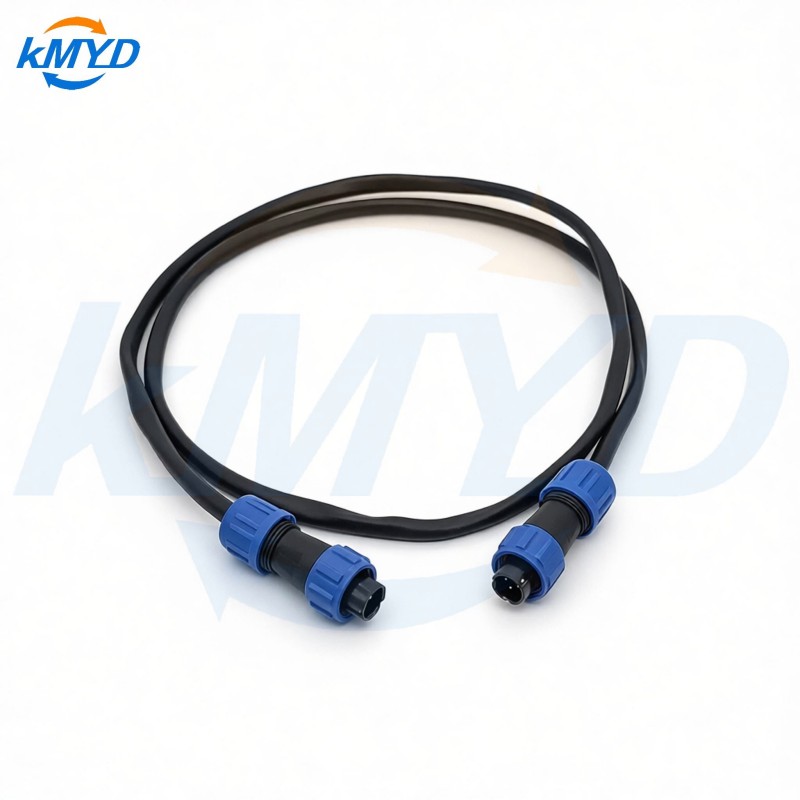

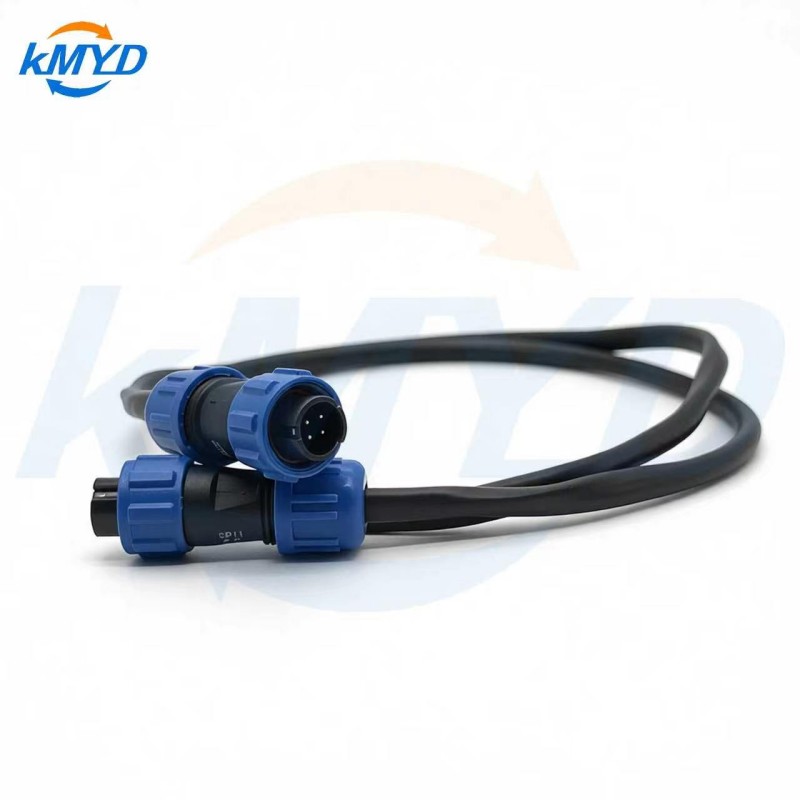

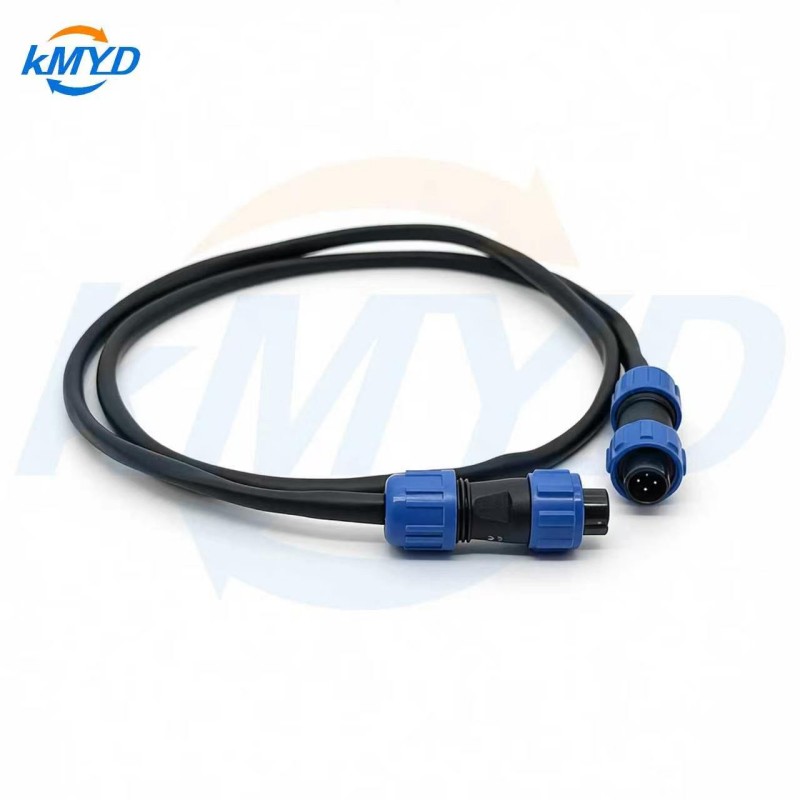

SP11 4 Pin Male to Male Waterproof Cable Assembly Overview

The SP11 4 Pin Male to Male Cable Assembly provides a dependable connection solution for industrial equipment, automation systems, and outdoor electrical applications. With waterproof SP11 circular connectors on both ends, this assembly delivers secure locking, stable signal transmission, and consistent performance in demanding environments.

Manufactured with high-quality materials and precision assembly processes, this cable offers strong resistance to vibration, dust, and moisture, making it suitable for long-term use in harsh industrial conditions. Custom lengths and configurations are available to meet specific installation requirements.

Key Selection Considerations

• Pin Configuration: This assembly uses a 4-pin layout, suitable for power and signal transmission in compact spaces.
• Connector Gender: Male connectors on both ends allow direct extension between two female receptacles or panel-mounted sockets.
• Environmental Protection: The waterproof design protects against moisture and dust ingress, supporting outdoor and washdown applications.
• Customization Options: Cable length, jacket material, and connector configurations can be tailored to your installation layout.

Application Suitability

This cable assembly is well suited for industrial control panels, outdoor lighting systems, automation equipment, and other applications requiring a secure, moisture-resistant connection. Its robust construction helps maintain signal integrity in environments with vibration or exposure to the elements.

Manufacturing and Quality Assurance

Shenzhen Meiyadi Technology Co., Ltd. operates a complete in-house production system, including mold development, die casting, CNC machining, injection molding, cable assembly, and final testing. This vertical integration supports consistent quality and efficient production lead times.

Each cable assembly undergoes strict quality inspections, including waterproof testing, insertion and withdrawal force testing, voltage resistance testing, and dimensional inspection before shipment. Products are manufactured under an ISO9001-certified quality management system, with UL, CE, and RoHS compliant options available.

Customization and Technical Support

Whether you need standard products or fully customized cable assemblies, our engineering team provides professional technical support, rapid sample development, and flexible production. We help customers reduce sourcing costs while ensuring long-term product reliability and stable supply.

Inquiry Checklist

To receive an accurate quotation and configuration recommendation, please provide the following details:

• Required cable length and conductor gauge (AWG)
• Mating connector type on the equipment side (female receptacle or panel mount)
• Operating voltage and current requirements
• Environmental conditions (indoor, outdoor, chemical exposure, temperature range)
• Required certifications (UL, CE, RoHS) and order quantity

For related connector options, review the 12G Series Circular Connectors or consult our LD32/SP32 Industrial Docking Connector for higher-current applications.
