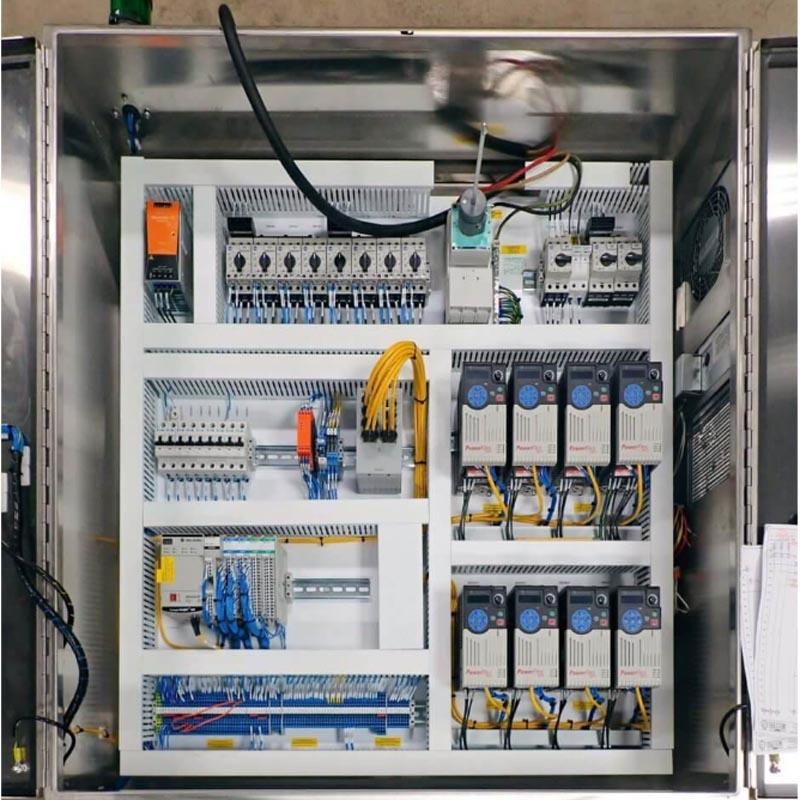

M8 Connectors in PLC Control Cabinets: Project Background and Application Context

In modern industrial automation, PLC control cabinets serve as the central hub for managing sensors, actuators, and control modules. Reliable electrical connections within these cabinets are critical for ensuring stable communication and consistent power distribution. M8 connectors are a standard choice for linking input/output devices, signal cables, and field sensors to programmable logic controllers (PLCs), delivering dependable signal transmission in automated systems.

These control cabinets are typically deployed in demanding industrial environments, including manufacturing lines, packaging systems, and material handling equipment. In such settings, vibration, dust, and temperature fluctuations can compromise connection integrity. The M8 connector's compact design, robust housing, and secure threaded locking mechanism are engineered to maintain stable performance under these conditions. Its small form factor is particularly advantageous in high-density control cabinets, where optimizing wiring space is essential for efficient layout and airflow.

Customer Requirement and Technical Challenges

When specifying connectors for PLC control cabinets, engineers must evaluate several key parameters to ensure a proper fit for the application. The primary decision points include:

• Electrical requirements: Determine the current and voltage ratings needed for signal and power circuits. M8 connectors are typically available in 3-pin and 4-pin configurations, supporting various signal and low-power applications.
• Environmental protection: Assess the IP rating required for the installation environment. For cabinets exposed to dust or washdown, connectors with IP67 sealing provide protection against ingress.
• Mechanical durability: Consider the mating cycle requirement and vibration resistance. The threaded coupling mechanism of M8 connectors ensures a secure fit that resists loosening from machine vibration.
• Cable and mounting style: Choose between field-wireable or pre-wired (molded) versions, and confirm whether a straight or angled cable outlet is needed for the cabinet layout.

It is important to note that M8 connectors are not suitable for high-current power distribution or applications requiring high mating cycle counts beyond their rated specification. For such cases, alternative connector series should be considered.

Solution and Installation Considerations

For PLC cabinet wiring, the selection between a plug and socket, as well as male and female contacts, must match the device interface and the cable assembly. Pre-wired M8 connectors simplify installation by reducing field wiring time, while field-wireable versions offer flexibility for custom cable lengths. The locking mechanism should be verified to ensure it provides the required pull-out force and vibration resistance for the specific equipment.

During installation, attention must be paid to the cable strain relief and bending radius to prevent damage to the connection. Proper mating torque should be applied to achieve the specified IP rating without over-tightening.

Commissioning and Maintenance Benefits

M8 connectors support efficient commissioning and maintenance procedures. When a sensor or control module requires replacement, or when the system is being expanded, the quick-disconnect design allows for fast and secure reconnection, minimizing production downtime. This modularity simplifies troubleshooting, as individual components can be isolated and tested without disturbing the entire wiring harness.

By providing a dependable and repeatable connection, M8 connectors contribute to enhanced system reliability and operational efficiency in PLC-controlled automation systems. Their use helps reduce wiring errors and supports cleaner, more organized cabinet layouts.

Related Resources and Next Steps

For engineers evaluating connector options for control systems, reviewing detailed specifications is a practical next step. The SF Series Aviation Connectors Specifications and Performance Data provides technical parameters for a different connector family that may be relevant for other cabinet interfaces. For guidance on selecting connectors for communication between frequency converters and PLCs, refer to the connector selection FAQ for anti-interference performance.

To discuss your specific PLC cabinet wiring requirements or to request a sample for evaluation, please use the inquiry form or contact our sales team via WhatsApp. Providing your electrical load, environmental rating, and cable specifications will help us recommend the most suitable M8 connector configuration for your application.
