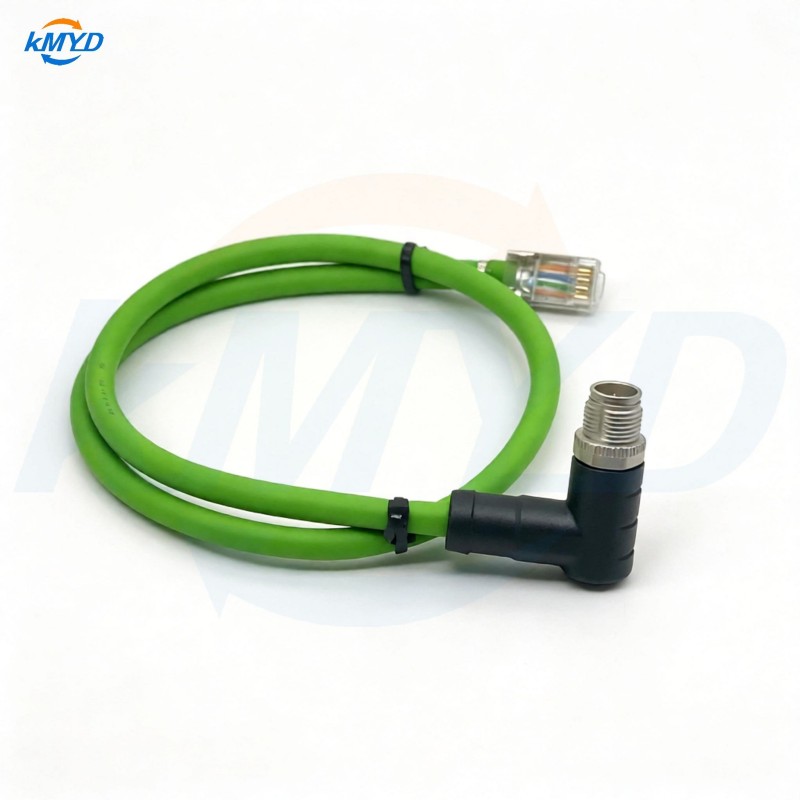

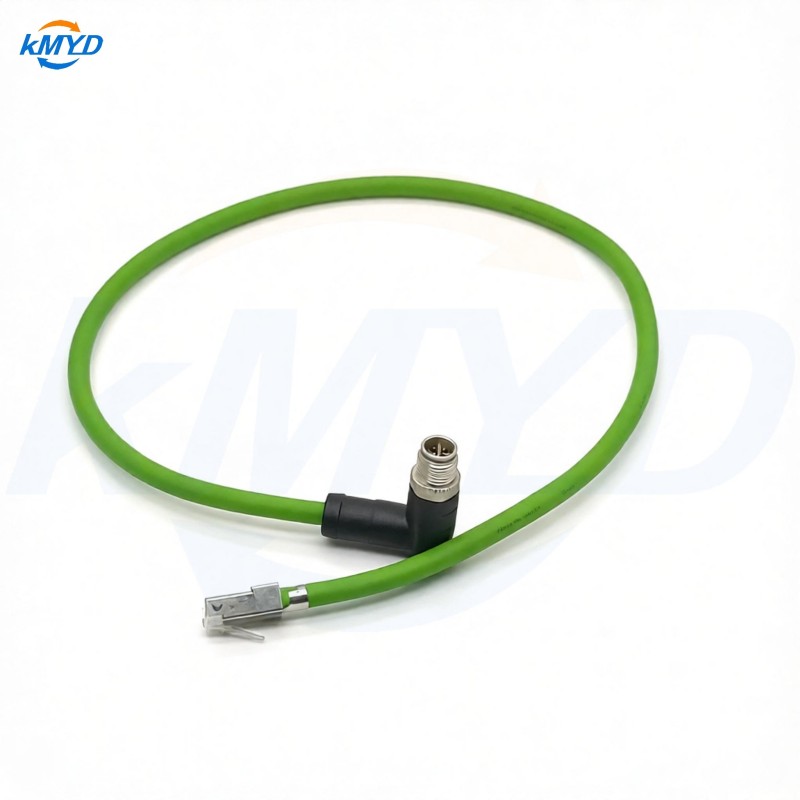

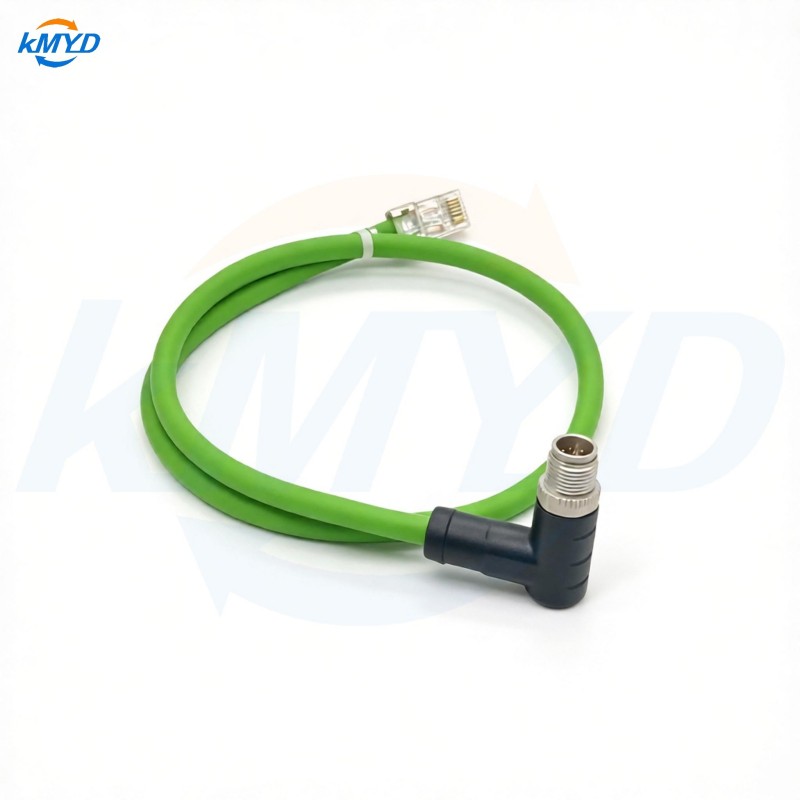

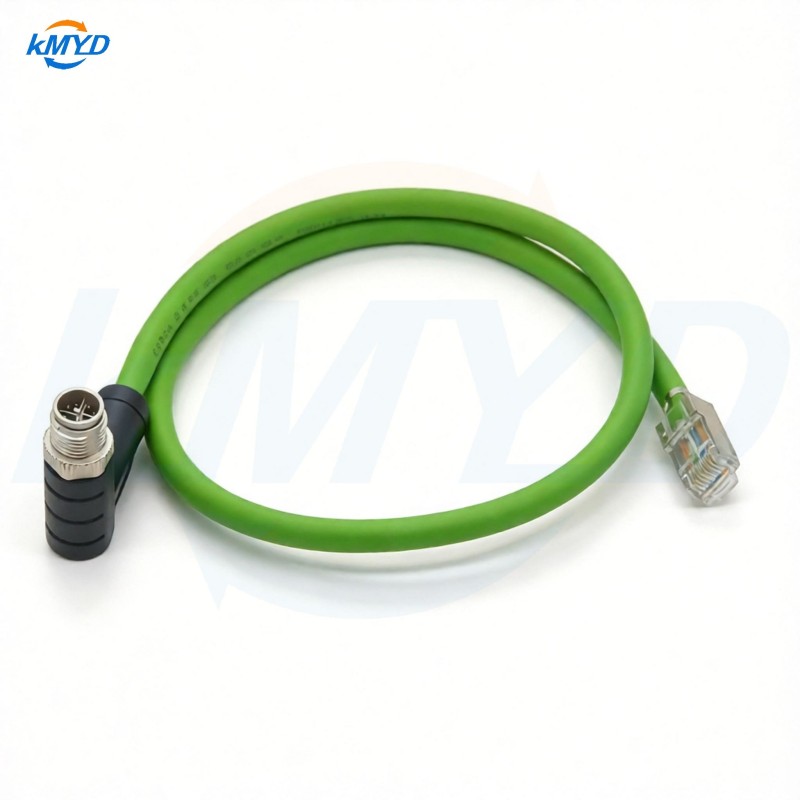

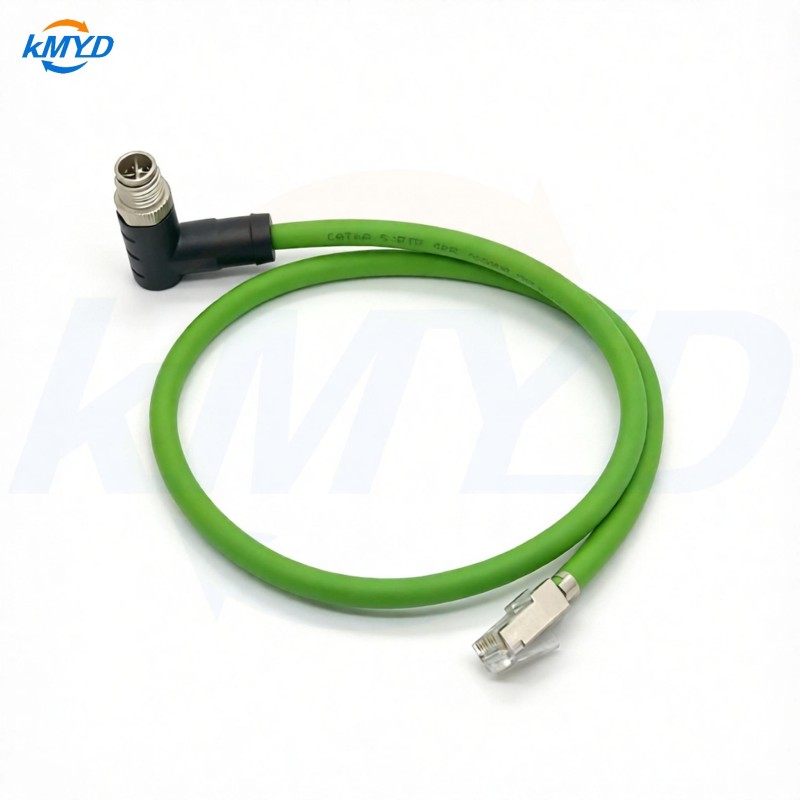

M12 8 Pin X-Coded 90° Right Angle Male to RJ45 Overmolded Ethernet Cable

M12 8 Pin X-Coded 90° Right Angle Male to RJ45 Overmolded Ethernet Cable Assembly

This cable assembly provides a shielded, high-speed link between industrial M12 X-coded interfaces and standard RJ45 equipment. It is built for industrial Ethernet applications where secure mating, reliable data transmission, and space-efficient cable routing are required.

The X-coded M12 8 pin connector is engineered for high-frequency Ethernet communication, while the RJ45 interface offers convenient connection to compatible network switches, controllers, industrial computers, and other Ethernet devices.

Why Choose a Right-Angle Overmolded Assembly?

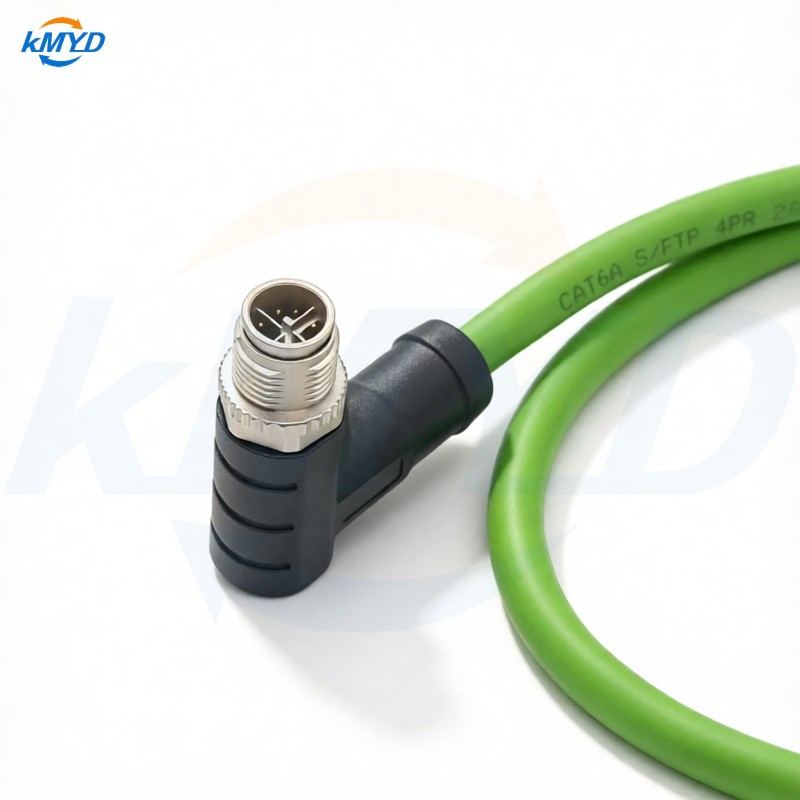

The 90° right-angle connector reduces cable routing space, which is particularly useful in compact equipment installations. The overmolded construction reinforces the connector-to-cable transition, helping protect the assembly against repeated bending, vibration, and mechanical stress.

Key Selection Points

• M12 8 Pin X-Coded Connector – Designed for industrial Ethernet connectivity with high-speed data transmission.
• 90° Right-Angle Male Design – Optimizes cable routing in confined spaces and reduces strain on the mating point.
• RJ45 Interface – Compatible with standard Ethernet equipment, switches, and controllers.
• Overmolded Construction – Provides enhanced protection at the cable connection point against vibration and flexing.
• Custom Cable Options – Length, jacket material, wiring, and connector configuration can be customized.

Application Fit

This assembly suits industrial Ethernet networks, factory automation, industrial computers, PLC and control systems, robotics, and machine vision. It is also suitable for network switches and communication equipment where a reliable, shielded connection is needed.

Manufacturing and Quality Evidence

Manufactured by Shenzhen Meiyadi Technology Co., Ltd., a professional connector and cable assembly manufacturer with more than 15 years of experience in industrial connectivity. Meiyadi specializes in M12 Ethernet connectors, industrial network cables, waterproof connectors, and customized cable assemblies.

Integrated manufacturing capabilities cover R&D, mold development, precision machining, injection molding, cable assembly, and quality inspection. Each production stage is managed through established quality control procedures to maintain stable connection performance and consistent product quality.

Customization and Inquiry Input

The factory supports customized Ethernet cable solutions for different equipment interfaces and installation environments. With flexible OEM/ODM services and professional engineering support, Meiyadi provides reliable industrial Ethernet connection solutions for automation, robotics, machine vision, communication equipment, and smart manufacturing systems.

To receive an accurate quotation, please provide the following details:

• Cable length and jacket material required
• Wiring scheme or pinout (T568A/T568B or custom)
• Mating connector type on the equipment side
• Required shielding and bend radius
• Order quantity and target delivery date
