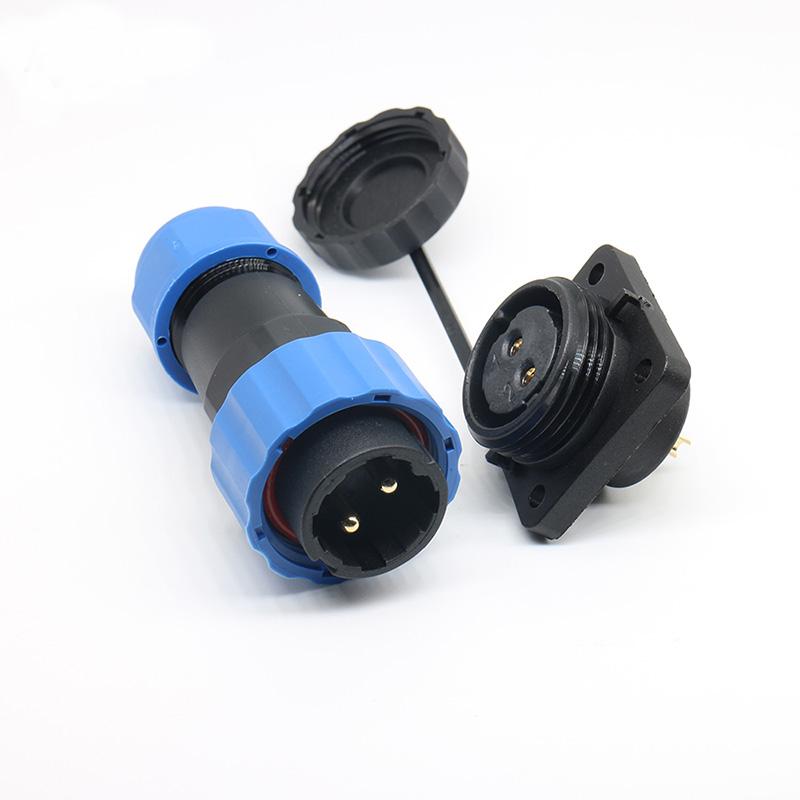

SD20/SP20 Square Flange Connector Design and Installation Guide

SD20/SP20 Flange Connector

SP20/SD20 Square Flange Connector Design Overview

The diagram illustrates the SP20/SD20 square flange connector’s design, featuring precise measurements, specifications, and material information for accurate installation. This page helps engineers and procurement teams confirm the mechanical envelope, mounting dimensions, and material choices before integrating the connector into a panel or enclosure.

Key Design and Dimensional Details

Use the diagram to verify the following critical parameters for your application:

• Mounting dimensions: Confirm the flange hole pattern and panel cutout size to ensure proper fit.
• Overall profile: Review the connector body length, width, and height to check clearance in your assembly.
• Material specification: Identify the housing and contact materials to assess suitability for your operating environment.

How to Use This Diagram for Installation

Before ordering, cross-check the diagram against your panel thickness and available space. The square flange design is intended for bulkhead or panel mounting, so verify that the mating plug (SP20) and socket (SD20) orientations align with your cable routing.

For a complete understanding of the series, review the SD20/SP20 flange connector catalog entry for additional electrical ratings and ordering options. If your application requires a right-angle docking configuration, consult the SP20/SD20 right-angle docking connector dimensions for comparison.

Next Step for Your Project

If the dimensions and materials shown here match your requirements, confirm your pin count and cable entry direction, then submit an inquiry with your panel thickness and environmental conditions to verify compatibility.
