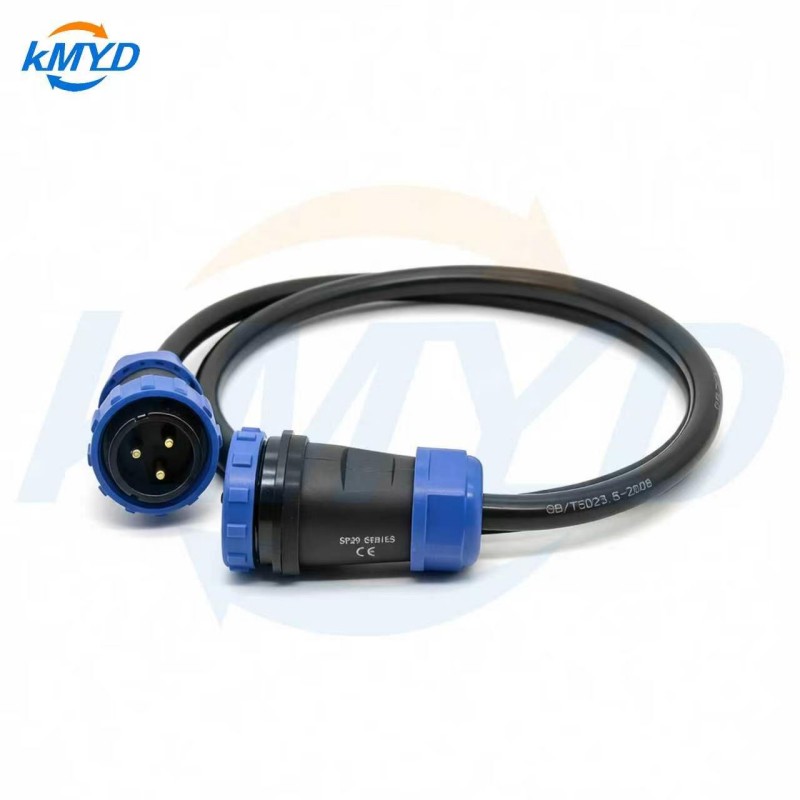

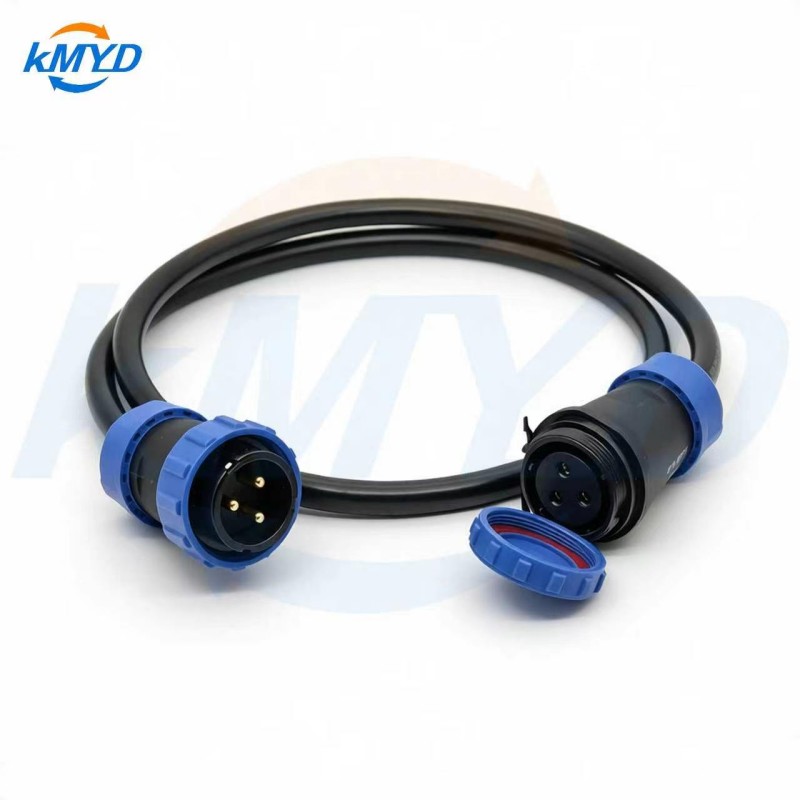

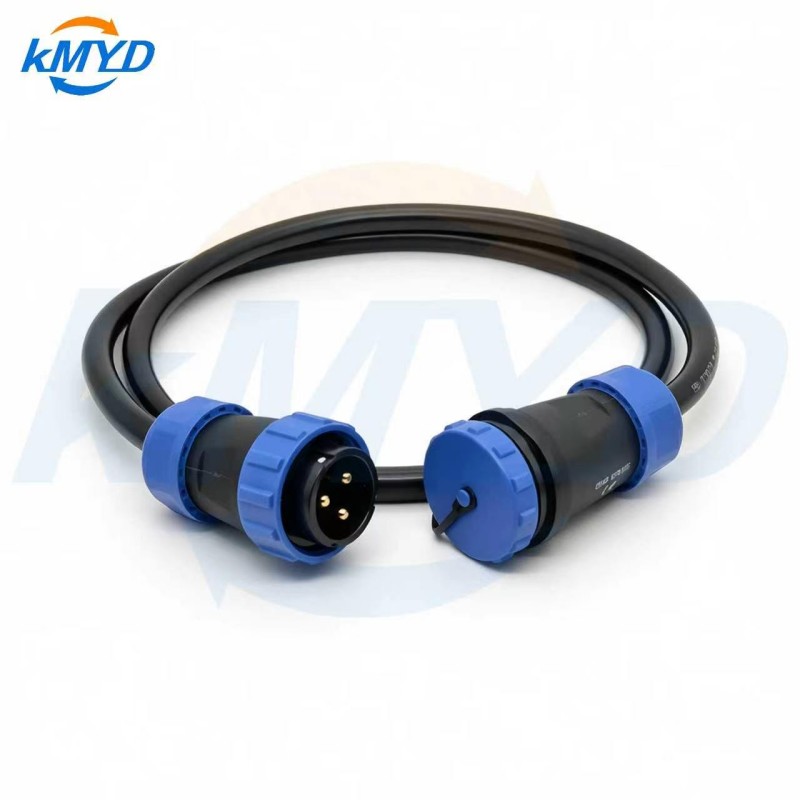

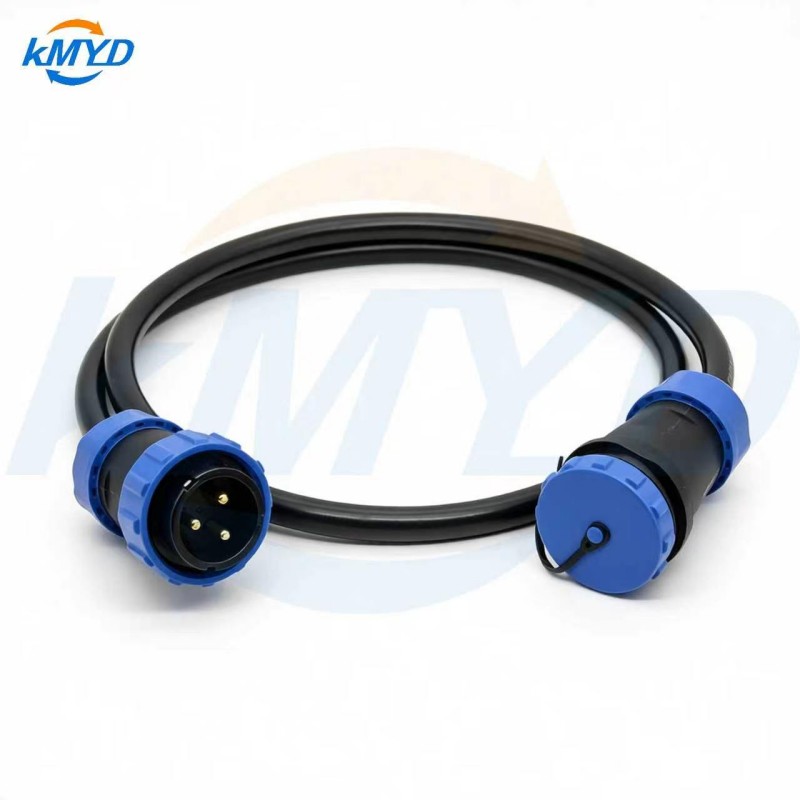

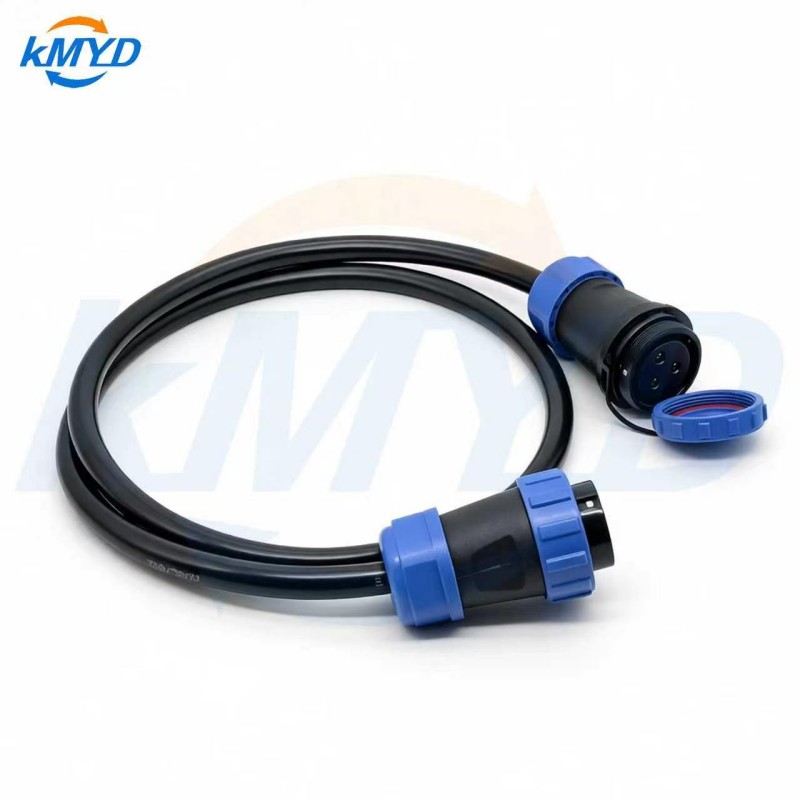

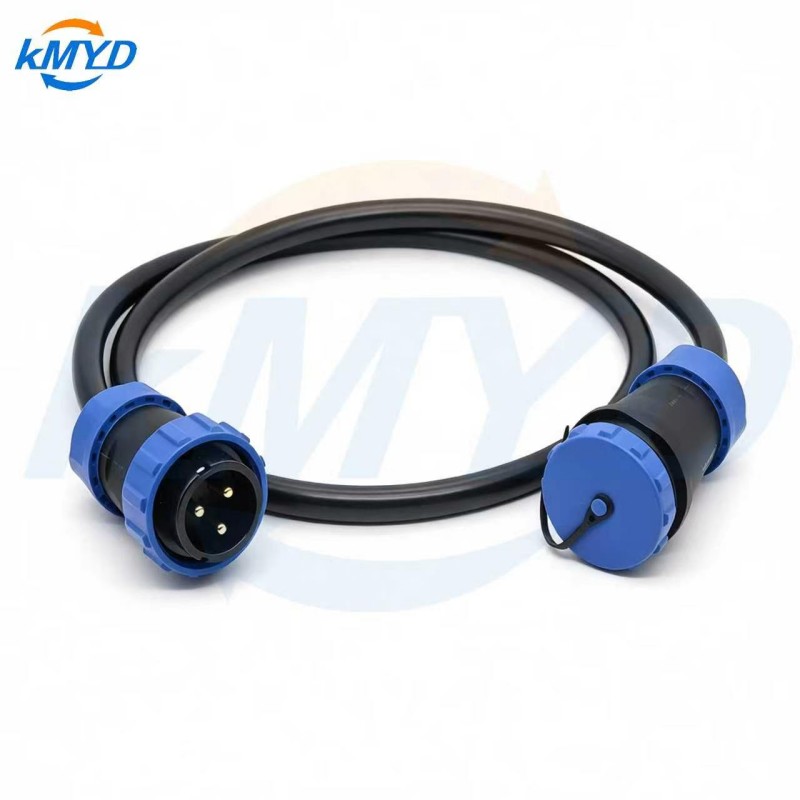

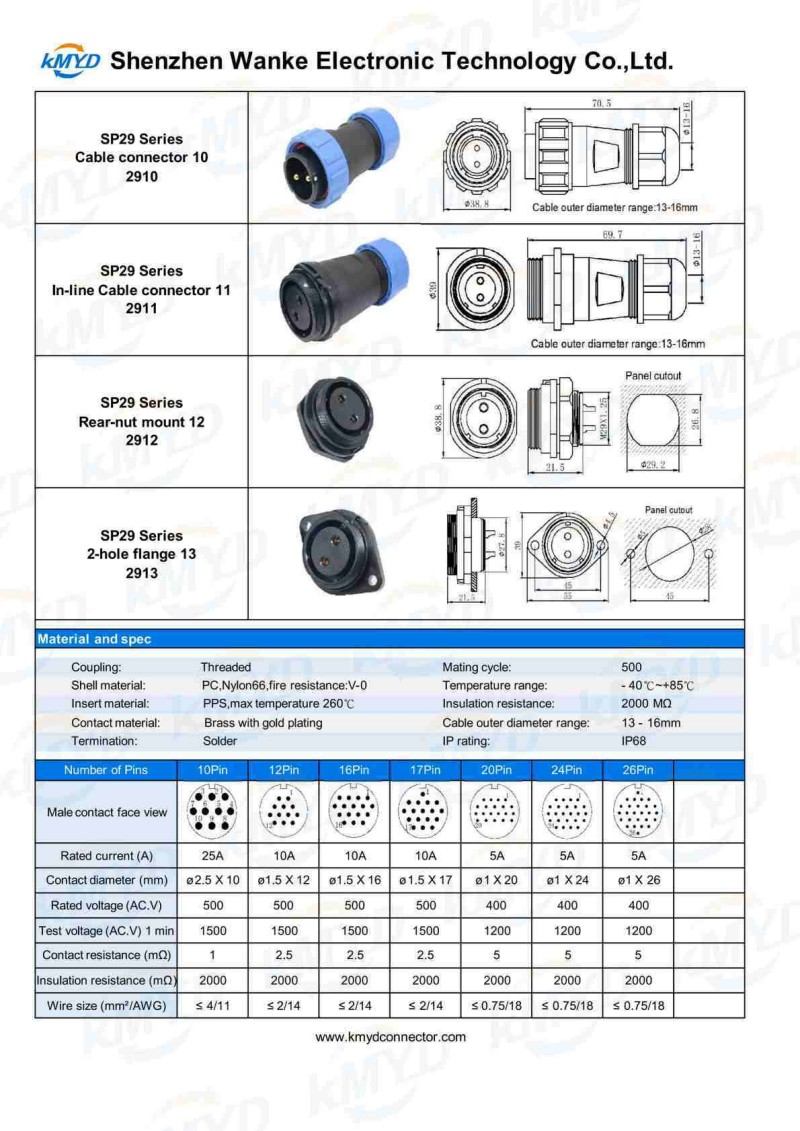

SP29 3 Pin Plug to Female Socket IP68 Waterproof Cable Assembly 50A High Current

The SP29 3 Pin Waterproof Cable Assembly is engineered for high-power connection applications that demand robust protection, stable performance, and reliable current transmission. This male plug to female socket configuration provides a secure and convenient connection solution for industrial equipment, outdoor power systems, and heavy-duty electrical applications where consistent power delivery is critical.

Rated for IP68 protection, the SP29 connector delivers dependable defense against water ingress, dust, and challenging environmental conditions. The circular connector housing and screw locking mechanism maintain a firm connection, minimizing the risk of loosening caused by vibration or movement during operation.

Supporting up to 50A high current transmission, this cable assembly suits applications requiring substantial power delivery and long-term reliability. High-quality materials and precision assembly processes ensure excellent electrical performance, durability, and safety in demanding working environments.

Key Features

• 50A High Current Performance – Designed for high-power applications with stable energy transmission.
• IP68 Waterproof Design – Provides reliable protection against water and dust in harsh environments.
• 3 Pin Male to Female Connection – Enables simple and secure equipment interconnection.
• Secure Locking Structure – Ensures stable mating and prevents accidental disconnection.
• Durable Cable Assembly – Built for long service life and consistent performance.
• Customization Available – Supports OEM/ODM services including cable length, wiring configuration, and connector specifications.

Typical Applications

• Industrial Power Equipment
• Outdoor Electrical Systems
• Battery and Energy Storage Systems
• Automation Machinery
• Marine and Harsh Environment Equipment
• High-Power Electronic Devices

Selection and Ordering Guidance

When selecting the SP29 3 Pin IP68 Waterproof Cable Assembly for your application, consider the following factors to ensure proper configuration:

• Mating Requirements: Confirm whether your equipment requires a plug or socket, and verify the mating interface compatibility.
• Cable Specifications: Provide the required cable length, conductor size, and outer diameter for your installation.
• Electrical Load: Verify that your operating current and voltage remain within the rated limits of the connector.
• Environmental Conditions: Assess the operating temperature range and exposure to moisture, chemicals, or UV radiation.
• Mounting Configuration: Determine whether panel mount, cable mount, or inline connection is needed for your setup.

For a complete solution, review the Waterproof Connectors range or explore the LD20/SP20 Industrial Flange Connector for related mounting options.

Manufacturing and Quality Assurance

Manufactured by Shenzhen Meiyadi Technology Co., Ltd., a professional connector and cable assembly manufacturer with over 15 years of industry experience, the SP29 series benefits from specialized expertise in waterproof connectors, industrial connectors, and customized cable solutions.

With integrated production capabilities including mold development, die casting, CNC machining, injection molding, cable assembly, and quality inspection, Meiyadi offers complete manufacturing solutions from product design to mass production.

The quality management system includes waterproof testing, electrical performance testing, salt spray testing, insertion and withdrawal force testing, and precision inspection to ensure every connector meets high reliability standards.

Through advanced manufacturing technology, professional engineering support, and flexible OEM/ODM services, Meiyadi delivers high-quality connection solutions for industrial automation, automotive, energy, medical equipment, and other demanding applications.

Inquiry Information

To receive an accurate quotation and configuration recommendation, please provide the following details when contacting our engineering team:

• Mating-side connector requirement (plug or socket)
• Pinout or wiring diagram
• Cable outside diameter and conductor size
• Electrical load (current and voltage)
• Operating environment and temperature range
• Required order quantity
