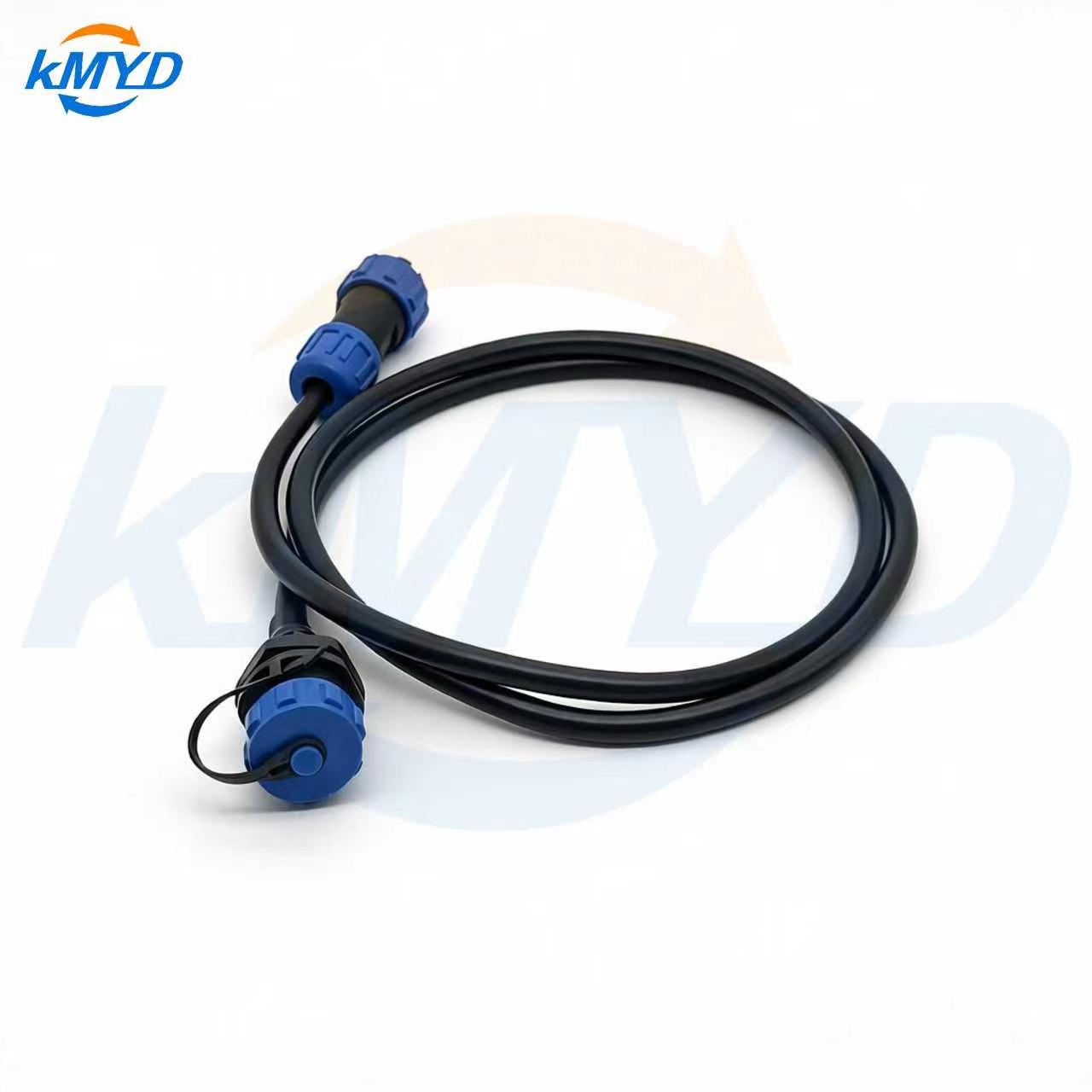

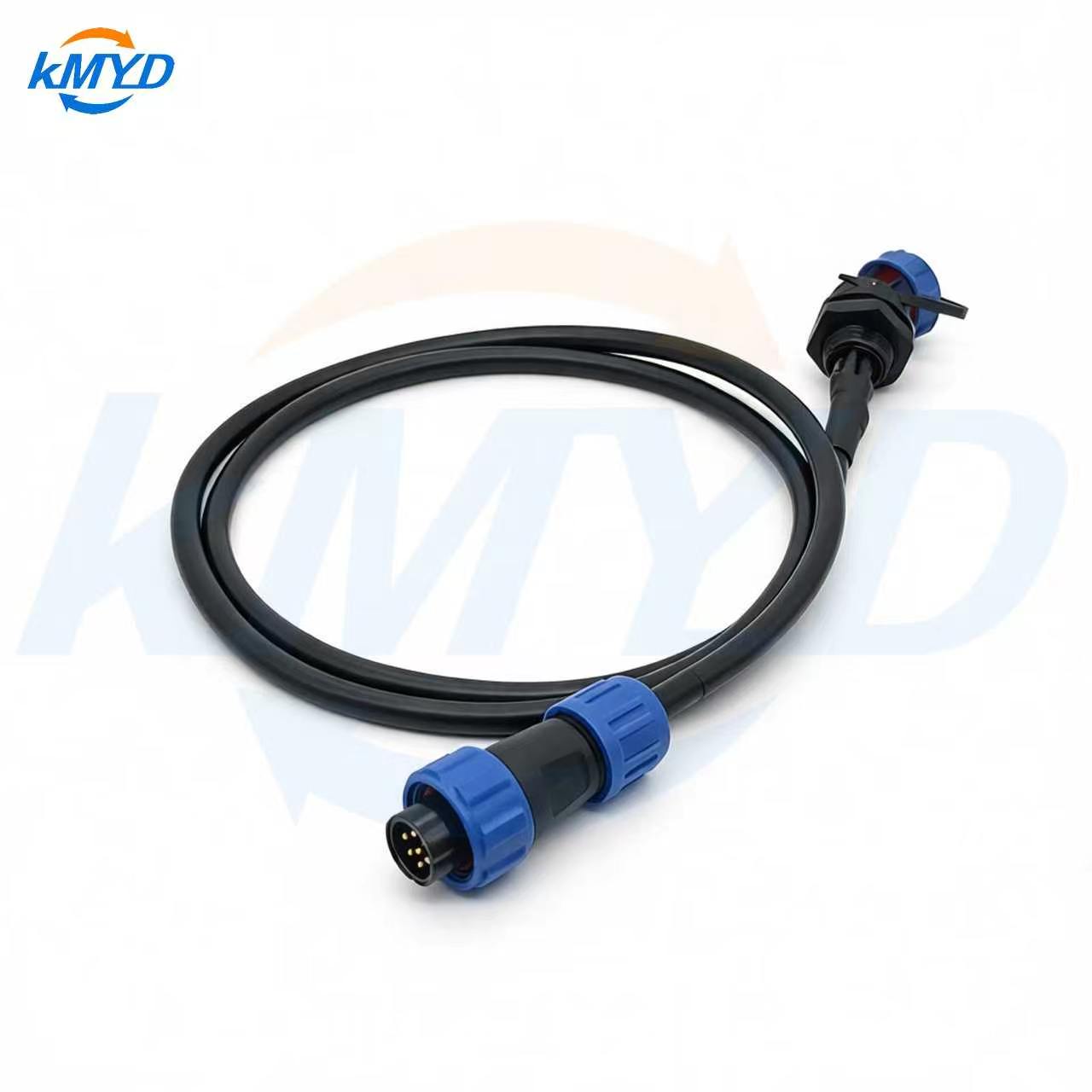

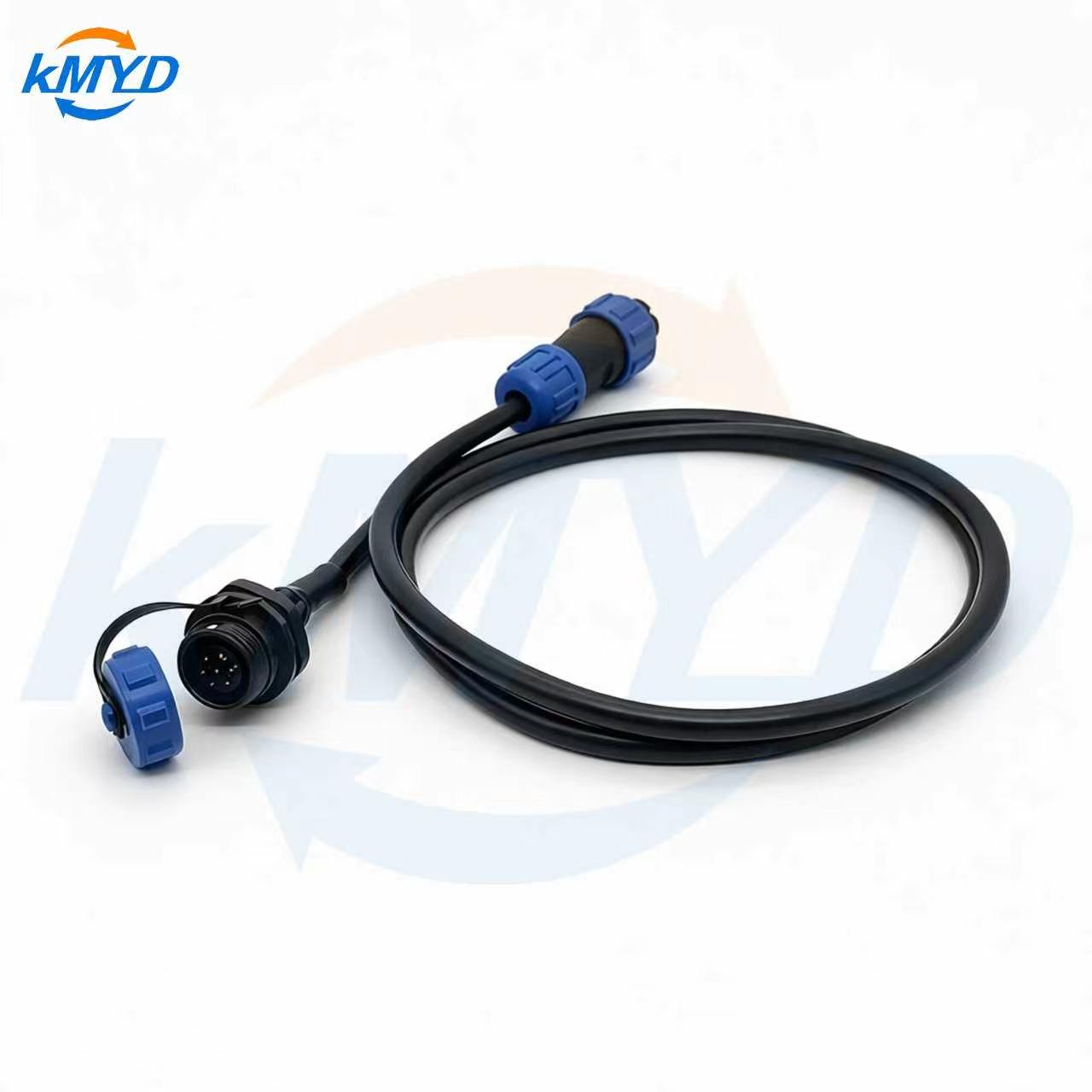

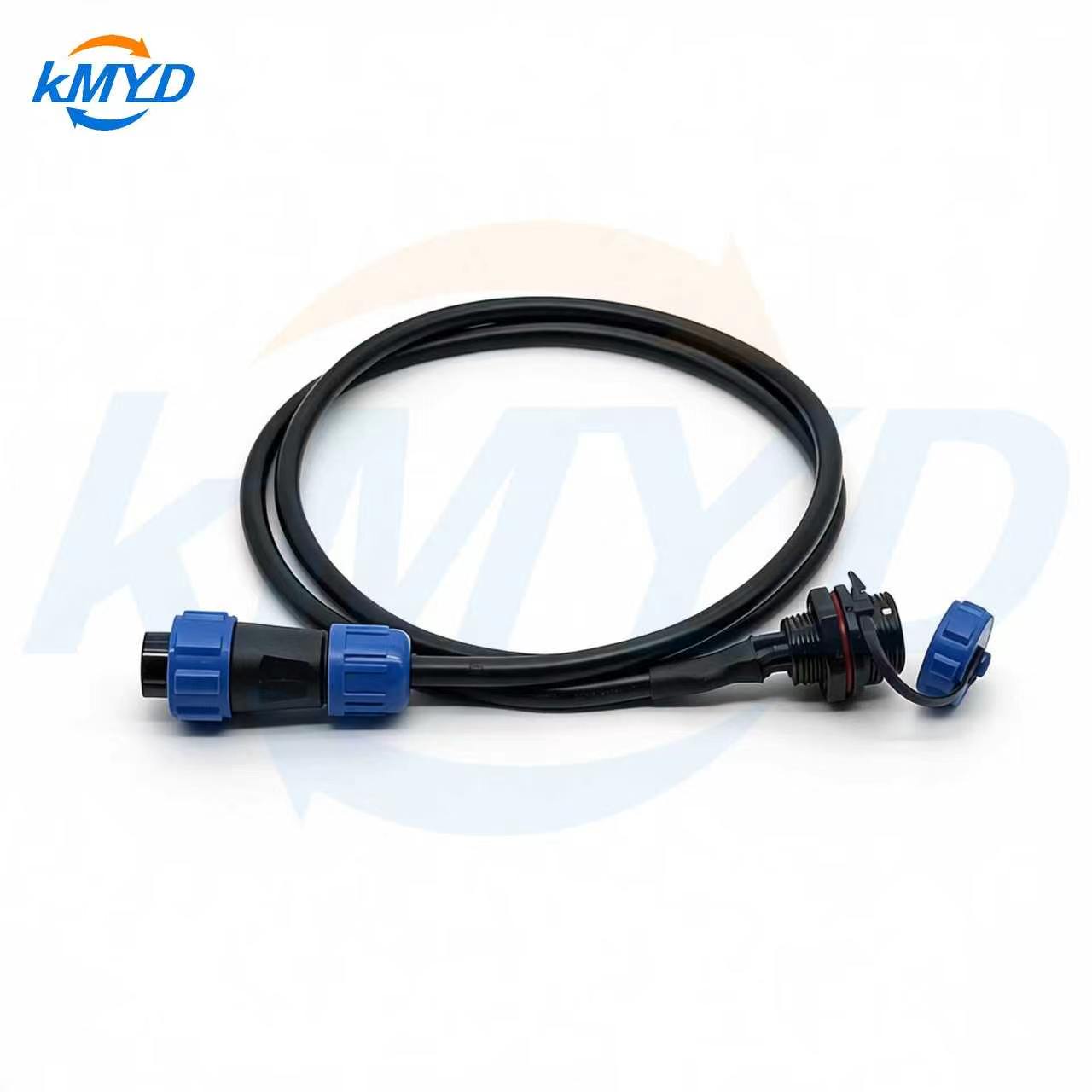

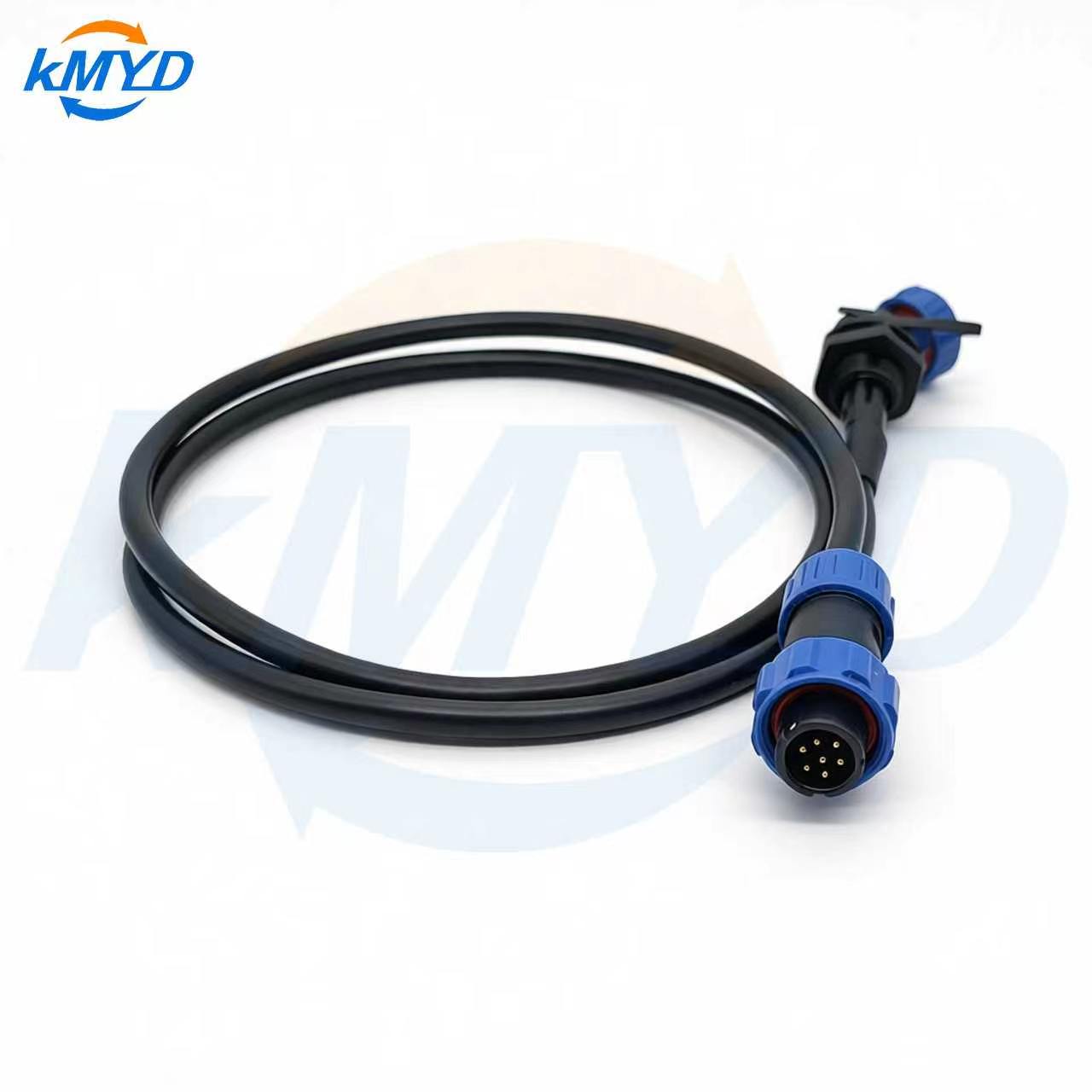

SP13 Waterproof Male Plug to Panel Mount Female Connector Cable Assembly

SP13 Waterproof Male Plug to Panel Mount Female Connector Cable Assembly

This SP13 cable assembly is designed for a seamless connection between equipment-mounted sockets and external wiring systems. The male plug and panel mount female connector combination provides a practical solution for extending cables, replacing wiring, and building reliable electrical connections in compact spaces.

Featuring a rear nut panel mounting structure, the female connector can be securely installed on equipment panels for a neat and stable connection. The SP13 circular connector design offers protection against dust and moisture, making it suitable for applications where space efficiency and connection reliability are essential.

Manufactured with high-quality materials and precise assembly processes, this cable provides consistent electrical performance and long-term durability. It is widely used in industrial control equipment, automation systems, LED devices, instrumentation, and outdoor electronic applications.

Product Highlights

• Panel Mount Connection Design – Enables secure installation directly onto equipment panels for a clean wiring layout.
• SP13 Circular Connector Structure – Compact size with reliable locking performance for stable connections.
• Waterproof Protection – Designed to withstand demanding environments with improved resistance to moisture and dust.
• Flexible Cable Assembly – Ready-to-install solution that simplifies equipment wiring and integration.
• Customization Available – Supports customized cable length, wiring configuration, and connector requirements.

Selection and Application Guidance

When selecting this SP13 cable assembly, consider the following decision points to ensure it matches your application:

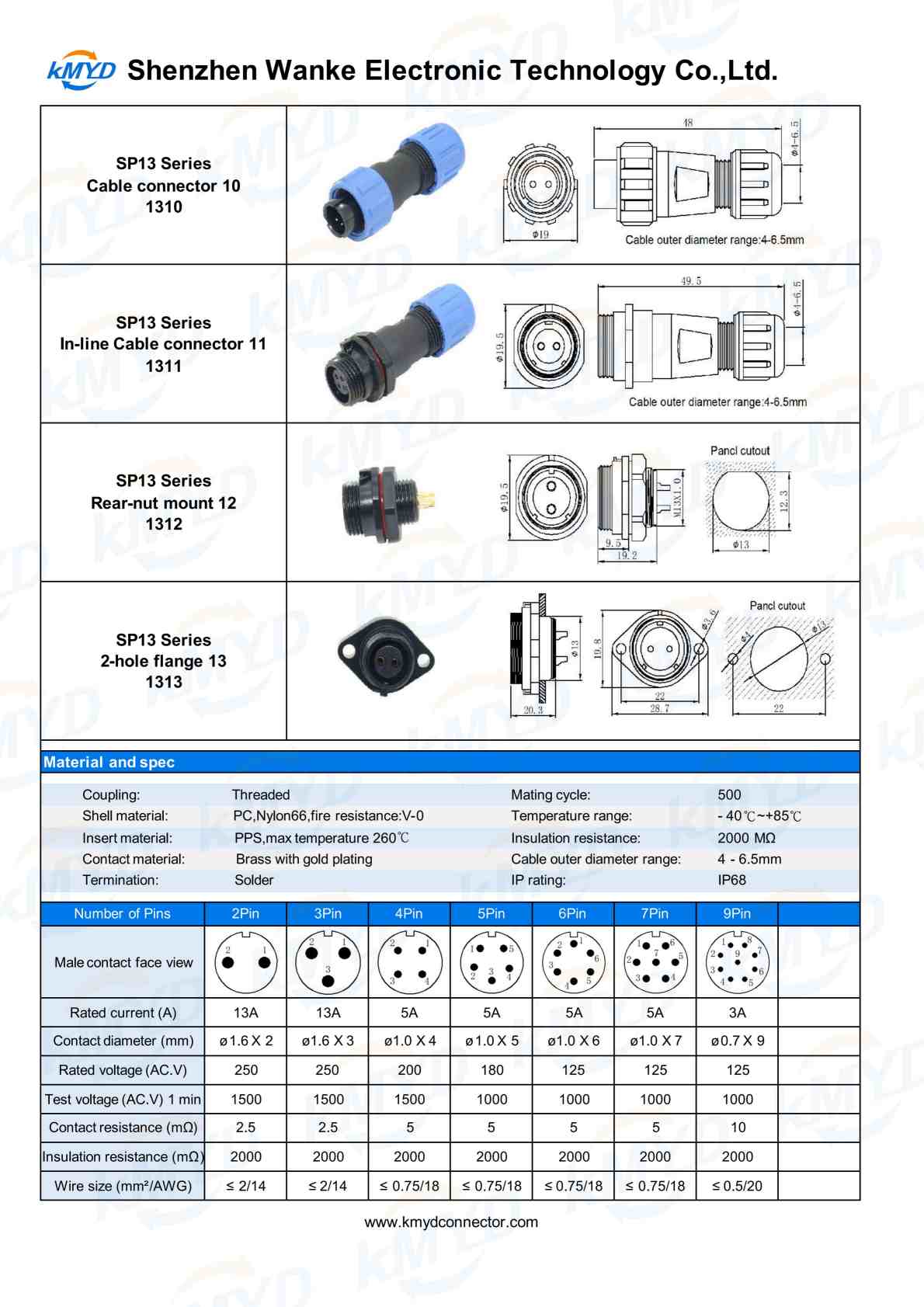

• Pin Count and Wiring: The SP13 series supports 2-9 pin configurations. Confirm the required pin count and pinout for your equipment before ordering.
• Mounting Interface: The female connector uses a rear nut panel mount structure. Verify the panel cutout diameter and thickness to ensure a proper fit.
• Environmental Protection: The connector is designed for dust and moisture resistance. Confirm the specific IP rating needed for your installation environment.
• Cable and Termination: Specify the required cable length, conductor size, and termination method to match your system's wiring layout.

Factory Strength – Professional Connector Manufacturer

Shenzhen Meiyadi Technology Co., Ltd. is a high-tech manufacturer specializing in the research, development, production, and sales of connectors and cable assemblies. Since its establishment in 2007, the company has been dedicated to providing reliable connection solutions for industrial and electronic applications worldwide.

With a complete manufacturing system and strong technical capabilities, Meiyadi has built an integrated production chain covering mold development, die casting, precision machining, stamping, injection molding, cable assembly, and final inspection. This allows us to provide efficient one-stop solutions from product design and prototyping to mass production.

Equipped with advanced production facilities and professional testing equipment, our factory strictly controls every stage of manufacturing. Quality inspections include waterproof testing, salt spray testing, insertion and withdrawal force testing, voltage resistance testing, and precision measurement to ensure stable performance and long-term reliability.

As an experienced connector manufacturer, Meiyadi supports OEM and ODM customization, offering flexible solutions for different connector structures, cable specifications, and application requirements. Our products have passed international certifications including ISO9001, UL, CE, RoHS, and BSCI, demonstrating our commitment to quality and continuous improvement.

With years of industry experience, professional production capabilities, and a customer-focused approach, Meiyadi Technology is committed to becoming a trusted partner for customers in industrial automation, automotive electronics, medical equipment, security communication, and other high-demand industries.

Inquiry Checklist

To receive an accurate quotation and ensure the correct configuration, please provide the following details when inquiring:

• Required pin count and pinout diagram
• Cable length and conductor size (AWG)
• Panel cutout dimensions and mounting thickness
• Electrical load (current and voltage)
• Environmental requirements (IP rating, temperature range)
• Order quantity and target delivery schedule
