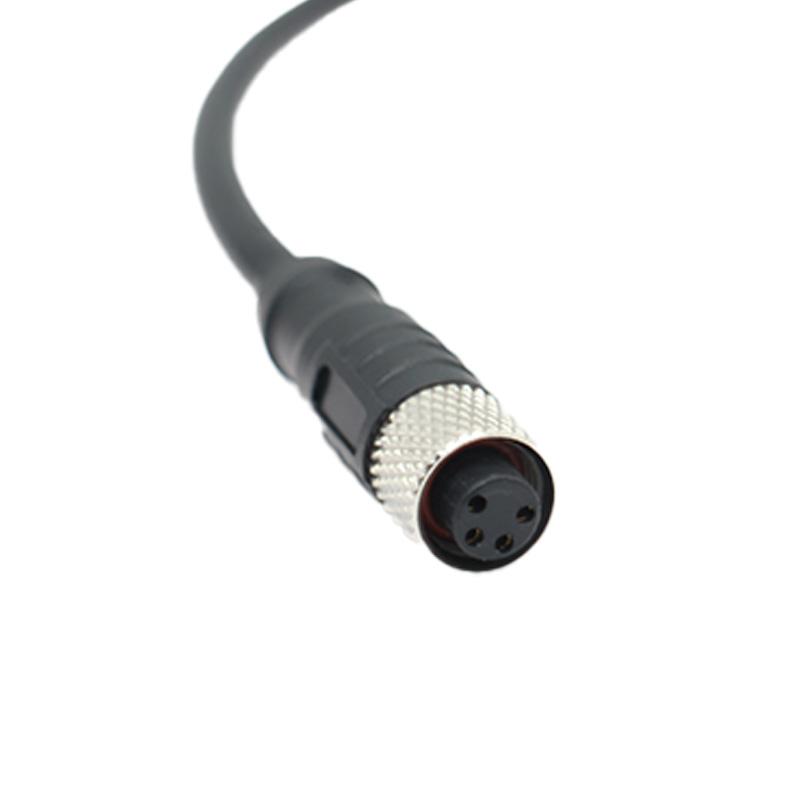

4Pin Connectors with Cables
< >

M8 IP67 Waterproof Cable Connector 2 - 8 Pins

MOQMOQ >200
>Number Of CoresNumber Of Cores 2-8Pin
Contact DiameterContact Diameter(mm) 0.6mm/1.0mm
IP RatingIP Rating IP67
Shell MaterialShell Material Brass with Plated-Nickel
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 1A-3A
Rated VoltageRated Voltage(Ac.V) 125V/180V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

M8 IP67 Waterproof Cable Connector - Compact Industrial Signal Connection Solution
The M8 IP67 waterproof cable connector (2–8 pins) is designed for compact industrial systems that require reliable signal transmission in limited installation spaces. With a small form factor and stable electrical performance, it is widely used in sensor-based applications and decentralized control systems.
Unlike larger connector series, the M8 type focuses on space efficiency and high-density wiring integration, making it ideal for modern automation equipment where compact layout and stable signal communication are both required.

Optimized for Sensor-Level Connectivity
The M8 connector is commonly used in low-power signal environments where accuracy and stability are critical. Its threaded locking design ensures secure mating even under vibration or continuous operation.
Key functional advantages include:
Stable signal transmission for sensor systems
Compact design for tight installation spaces
Secure locking structure for vibration resistance
Reliable performance in continuous operation

Suitable for high-density wiring layouts

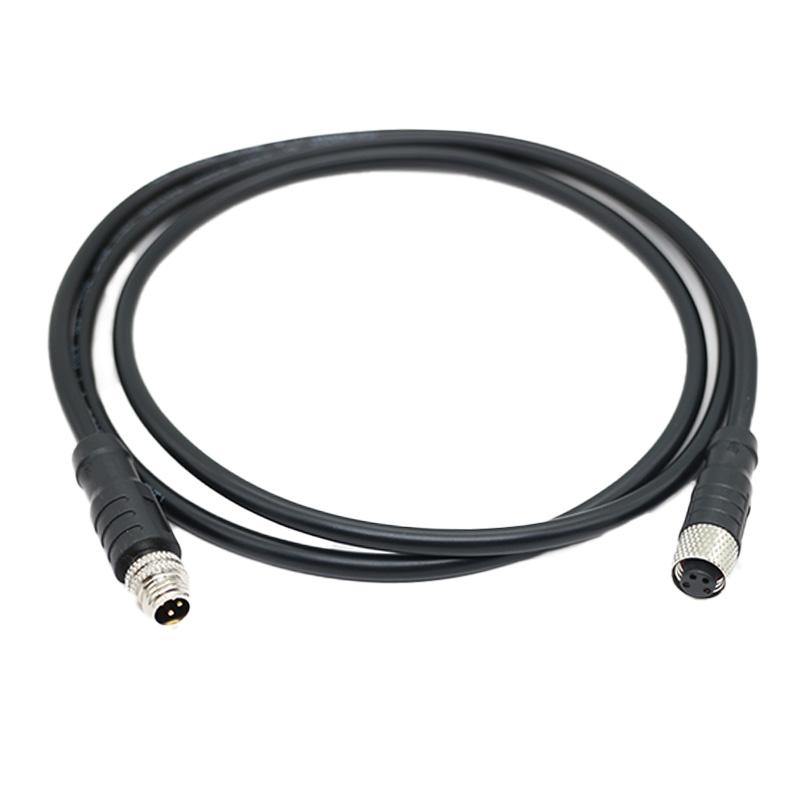

M8 Connectors with Cable


M8 Connector's Flexible Configuration & Cable Options
To meet different industrial requirements, the M8 IP67 cable connector supports a wide range of customization options:
2 to 8 pin configurations available
Pre-wired cable assembly or open-end wire options
Custom cable length based on equipment layout
Shielded cable options for signal protection
PVC / PUR / silicone cable materials
OEM labeling and wiring customization
This flexibility allows integration into both standard and specialized industrial systems.

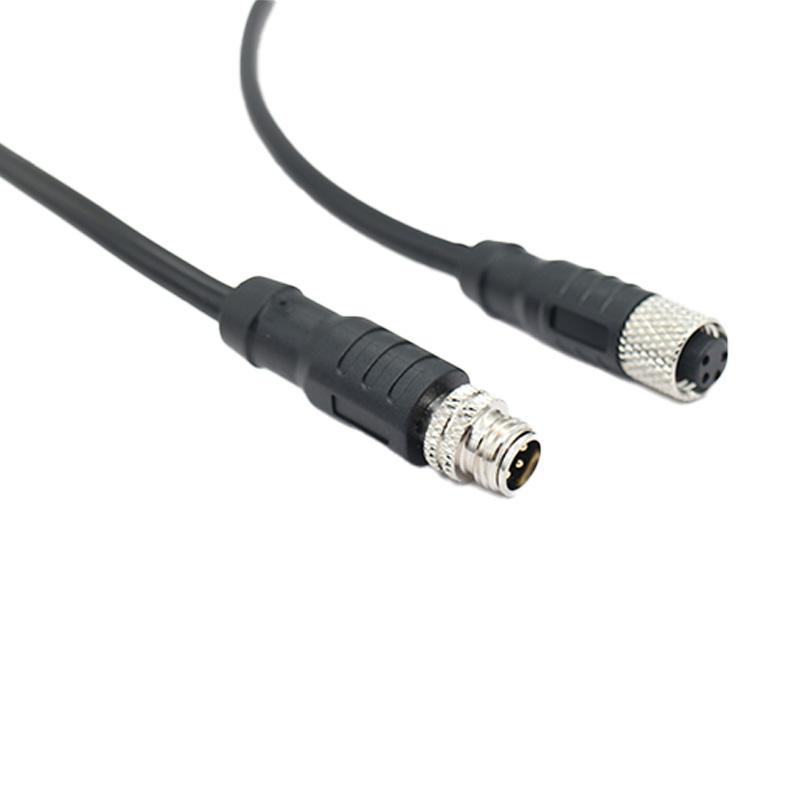

M8 A-code Connectors

Typical Applications for M8 Cable Connector
The M8 waterproof cable connector is widely used in compact industrial and electronic systems, including:
Industrial sensors and actuators
Automation and control systems
Robotics and production equipment
Machine vision systems
Data acquisition modules

Compact outdoor monitoring devices

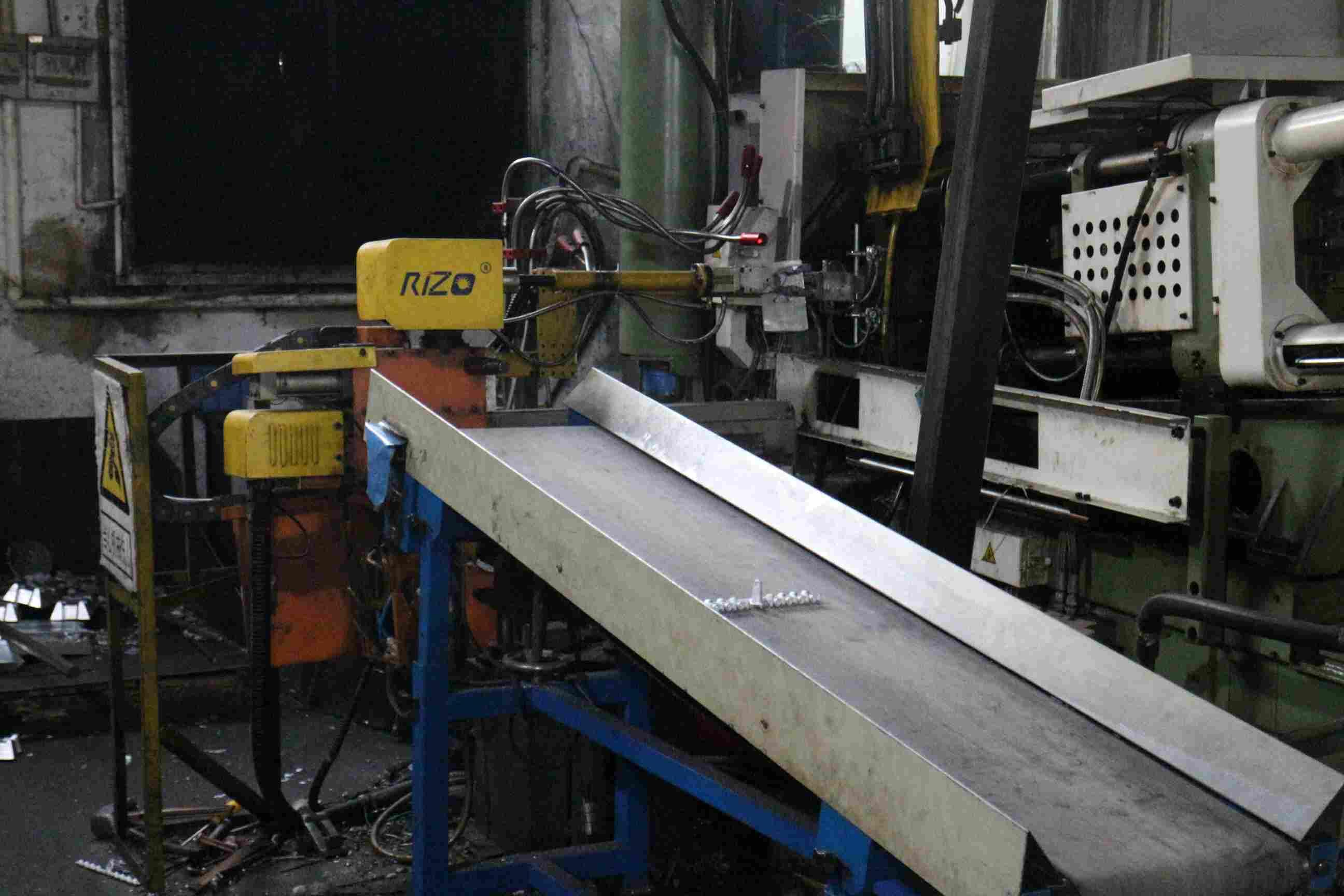

Manufacturing Focus - Precision for Small-Scale Connectors
Unlike general connector production, M8 series manufacturing requires higher precision in molding and pin alignment due to its compact structure.
Our production system emphasizes:
High-precision injection molding for small connector housings
Strict control of pin alignment accuracy
Stable electrical performance consistency in micro-structures
Batch-to-batch dimensional stability for mass production

Full inspection of sealing performance for IP67 protection

M8 Connector


With manufacturing experience since 2007, we specialize in circular connectors and cable assemblies with full in-house production capability, including mold development, machining, assembly, and testing processes.

Connector

Quality Assurance System
Every M8 connector undergoes strict quality verification to ensure reliability in industrial applications:
IP67 waterproof sealing test
Electrical continuity and conductivity testing
Mechanical mating cycle testing
Vibration resistance evaluation
Dimensional precision inspection

All products comply with ISO9001, CE, RoHS, and UL standards, ensuring consistent performance for global industrial customers.

M8 Connectors

Compact Reliability for Modern Systems
The M8 IP67 waterproof cable connector is designed to support the growing demand for compact, high-density industrial wiring systems. With stable performance, flexible customization, and precision manufacturing, it provides a dependable connectivity solution for modern automation and sensor-driven applications.

 Item

 Parameters

 Number of Cores

 2-8Pin

 Gender

 Male/Female

 Housing Material

 Brass with Nickel Plated

 Cores Material

 Brass Plated with Silver/Gold

 Insulator Material

 PA66

 Locking System

 Screw Locking

 Temperature Range

 -30℃, +85℃

 Rated Current (A)

 1A/3A

 Rated Voltage (AC.V)

 125V/180V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 1500㏁

 Contact Resistance (㏁)

 ≤10㏁

 Termination

 Solder
