IP68 Connector Silicone Gaskets for Outdoor LED Displays

LD13 IP68 Flange Connectors Dimensions and Materials

Why Connector Silicone Gaskets Matter for IP68 Sealing

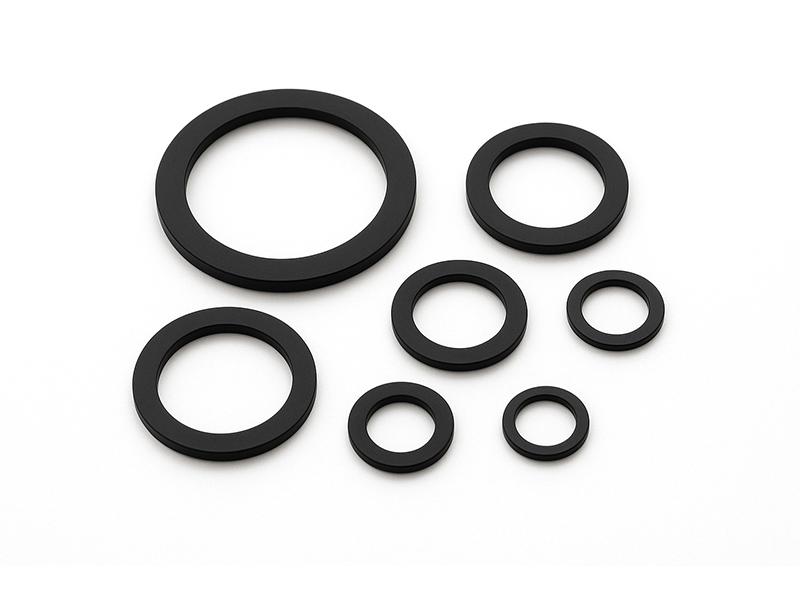

Connector silicone gaskets are a critical component for achieving reliable interface sealing in industrial and outdoor electronic systems. When combined with a fully enclosed connector design, these gaskets help deliver IP68-rated waterproof and dustproof performance, protecting sensitive electrical contacts from moisture ingress and particulate contamination. For engineers and maintenance teams working in demanding environments, understanding how these gaskets function and where they apply is essential for long-term system reliability.

Key Functions and Application Environments

Silicone gaskets serve as a compressible barrier between connector mating faces, accommodating minor surface irregularities while maintaining a consistent seal under pressure. Their material properties make them particularly suitable for:

• Outdoor LED display installations exposed to rain, humidity, and temperature swings
• Street lighting systems in coastal or high-dust regions
• Industrial equipment subject to washdown or high-pressure cleaning
• Enclosures where vibration could otherwise loosen standard seals

How Silicone Gaskets Support IP68 Performance

The IP68 rating indicates protection against continuous immersion in water under conditions specified by the manufacturer. Achieving this level requires more than a gasket alone; it depends on the interaction between the gasket's compression set resistance, the connector housing's rigidity, and the mating hardware's clamping force. Silicone's elasticity allows it to maintain sealing pressure over time, reducing the risk of leaks that can occur with less resilient materials after repeated mating cycles.

Selection Considerations for Your Application

When evaluating connector silicone gaskets, consider the operating temperature range, chemical exposure, and required mating frequency. Silicone generally performs well across a broad temperature span, but verify the specific grade against your environment. Also confirm that the gasket's durometer (hardness) matches the clamping design of your chosen connector—too soft a gasket may extrude under pressure, while too hard a material may not conform adequately to surface imperfections.

For projects involving outdoor LED displays or street lighting, the combination of a fully enclosed connector housing and a properly specified silicone gasket is a proven approach to achieving dependable IP68 sealing. If you are selecting connectors for a new design or retrofitting existing equipment, review the mating interface dimensions and environmental requirements before finalizing your component choice.

Next Steps for Your Connector Selection

To ensure the gasket and connector combination meets your performance goals, prepare details about your operating environment, cable diameter, and mounting configuration. Sharing these specifics with a connector supplier helps confirm compatibility before you commit to a design. For further guidance on waterproof connector options, explore our waterproof connector catalog or consult our technical team with your application parameters.
