M11 Male Connectors
< >

M11 4 Pin Male Straight Plug Threaded Circular Connector

MOQMOQ >200
PricePrice
>Number Of CoresNumber Of Cores 4 Pin
Contact DiameterContact Diameter(mm) 1.5 mm
IP RatingIP Rating IP 67
Shell MaterialShell Material Nickel Plated Brass
Temperature RangeTemperature Range -25°C ~ +85°C
TerminationTermination Solder / Crimp
Rated CurrentRated Current(A) 5 A
Rated VoltageRated Voltage(Ac.V) 250 V
Test VoltageTest Voltage(Ac.V)1Min 1500 V
Insulation ResistanceInsulation Resistance (MΩ) ≥ 1000 MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 5 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+8619924482730

M SERIES CONNECTOR

M11 4 Pin Male Straight Plug
Threaded Circular Connector

Stable power and signal transmission for industrial equipment.

11 mm threaded interface · 4 pin configuration · Metal housing · Direct straight plug installation.

4 Pin Threaded Locking Nickel Plated Brass IP67

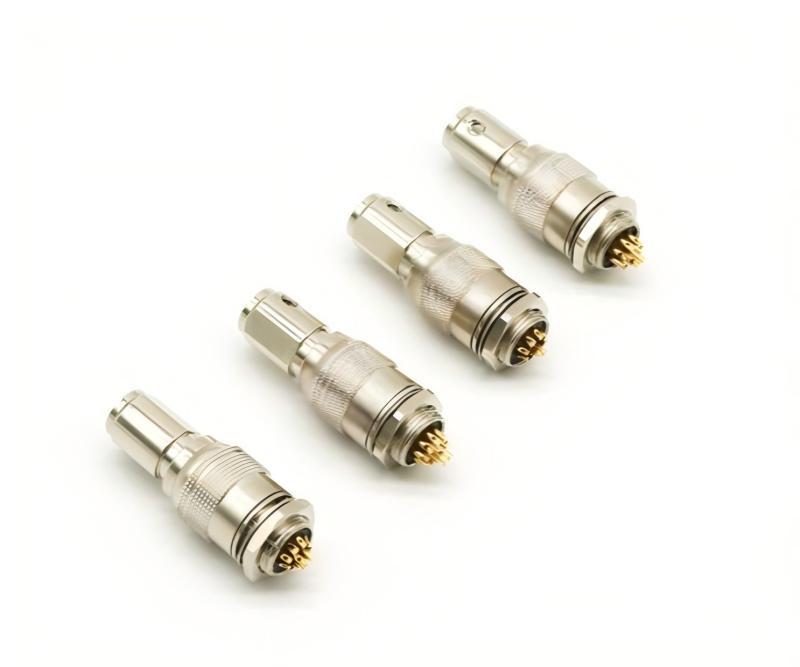

M11 4 pin male straight plug circular connector
M11 / 4 PIN KMYD CONNECTOR
MODEL
M11 4 Pin Male Straight Plug
LOCKING
Threaded Coupling System
MATERIAL
Nickel Plated Brass Shell
APPLICATION
Automation & Control Systems

Product Overview

The M11 4 Pin Male Straight Plug is a medium size circular connector designed for stable power and signal transmission in industrial equipment. With an 11 millimeter threaded interface and four pin configuration, this model is suitable for control systems that require stronger mechanical fixation than miniature sensor connectors.

It is commonly used in automation machinery, electrical control units, compact power interface modules, and medium size industrial equipment where secure connection and organized wiring are required.

PRODUCT DETAILS

Compact Circular Connector for Industrial Control

View the M11 straight plug structure, threaded interface, and durable metal connector body.

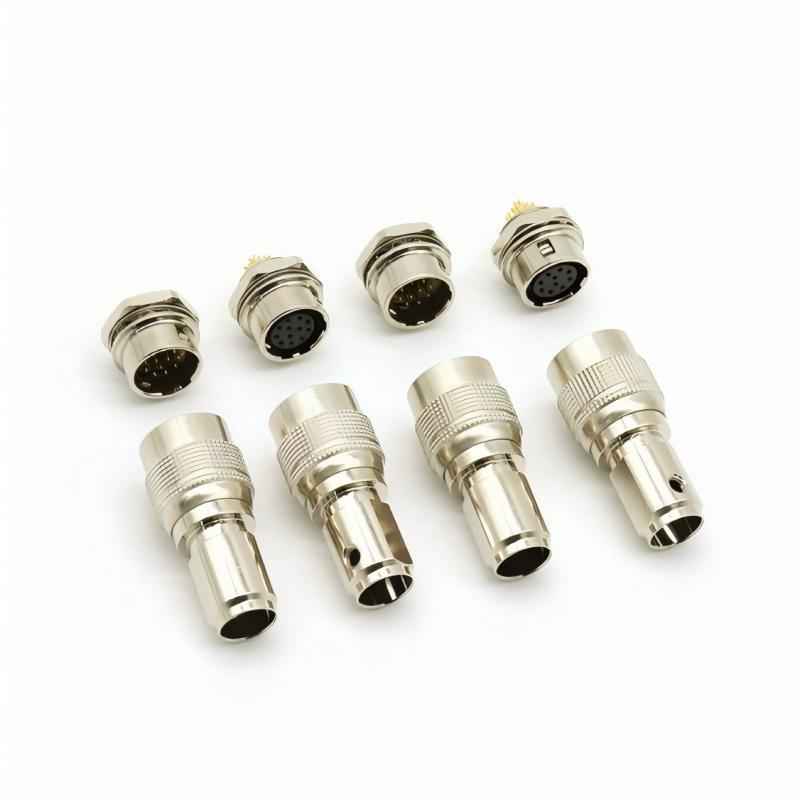

M11 connector product detail view
01 / M11 CONNECTOR
4 Pin Configuration
Supports combined power and signal transmission within one connector body.

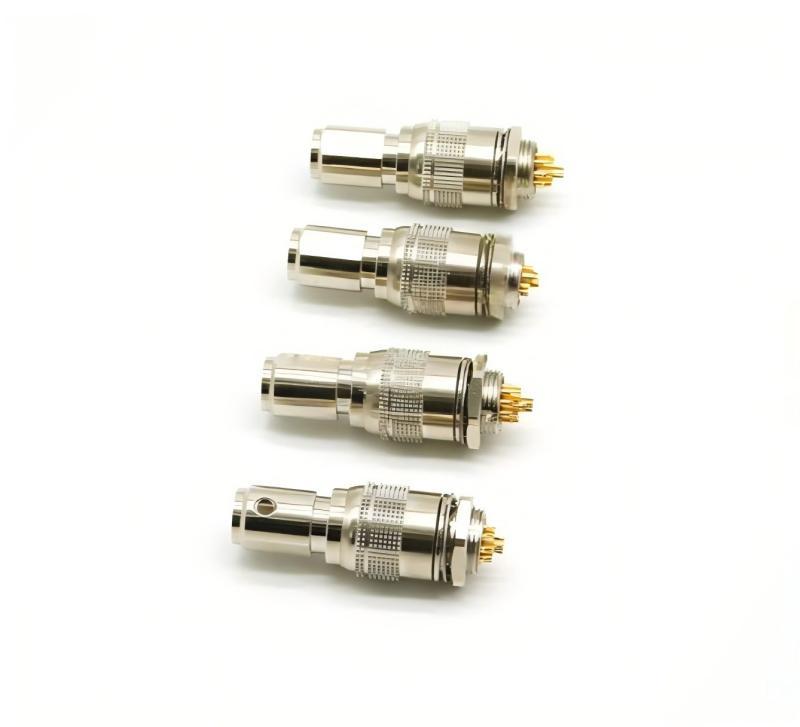

M11 male straight plug threaded connector
02 / STRAIGHT PLUG
Direct cable routing for structured installation.
Threaded locking.
Stable industrial connection.
The precision threaded coupling system helps maintain secure engagement with the corresponding female socket.

Why Choose the M11 4 Pin Male Straight Plug

This connector balances compact size, stronger mechanical fixation, and stable electrical transmission. It is suitable for control systems that require a more robust interface than miniature sensor connectors while still keeping installation space efficient.

Key Product Features

01   4 Pin Integrated Connection

Suitable for motor control wiring, compact power distribution modules, equipment control circuits, and sub assembly interface connections.

02   Male Straight Plug Structure

Allows aligned cable output, simplified panel side mating, reduced cable bending, and stable front facing installation.

03   Threaded Locking Mechanism

Provides anti vibration performance, electrical continuity, cable tension retention, and long term operational stability.

04   Metal Housing Durability

The metal shell construction supports impact resistance, wear resistant threading, stable insulation positioning, and repeated mating cycles.

Typical Application Scenarios

The M11 4 Pin Male Straight Plug is commonly applied in medium size industrial equipment requiring stable mechanical and electrical connection.

01   Industrial automation systems
02   CNC machinery
03   Control panels
04   Power interface modules
05   Testing and measurement equipment

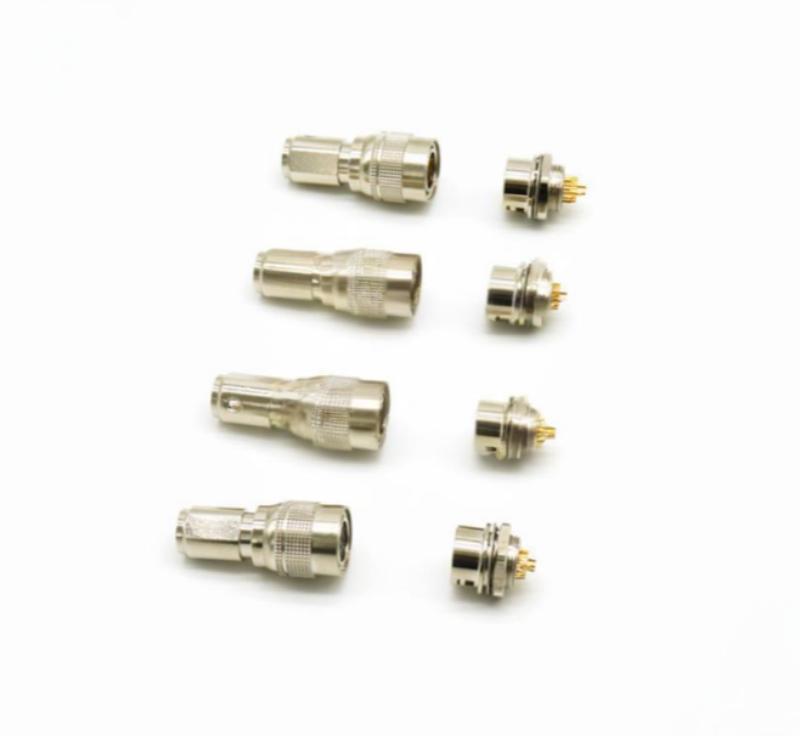

M11 male plug application product view

Manufacturing Strength

KMYD provides industrial circular connectors for automation, control equipment, power interfaces, and custom connection projects. Our production capability supports stable batch supply, connector assembly, and engineering support for different application requirements.

M series connector manufacturing Threaded circular connector supply OEM / ODM support Bulk purchasing support

Technical Specifications

Number of Cores: 4 Pin
Contact Diameter: 1.5 mm
IP Rating: IP67
Rated Current: 5 A
Rated Voltage: 250 V
Termination: Solder / Crimp

Quality and Structure

Shell Material: Nickel Plated Brass
Temperature Range: -25°C ~ +85°C
Test Voltage: 1500 V
Insulation Resistance: ≥ 1000 MΩ
Contact Resistance: ≤ 5 mΩ
Certification: CE, RoHS, ISO9001

Reliable Interface for Automation and Control Systems

The M11 4 Pin Male Straight Plug Threaded Circular Connector is designed to deliver secure mechanical fixation and stable electrical transmission in industrial equipment. With its four pin configuration, straight plug structure, threaded locking mechanism, and durable metal housing, it serves as a reliable interface for automation and control systems.

GET IN TOUCH

Contact Us for Technical Documentation and Bulk Purchasing

Share your application requirements, quantity, and connector configuration needs to receive professional support from our team.

KMYD CONNECTOR · M SERIES INDUSTRIAL CONNECTORS

 Item

 Parameters

 Number of Cores

 4 Pin

 Gender

 Male/Female

 Housing Material

 Nickel Plated Brass

 Locking System

 Screw Locking

 Temperature Range

 -25°C~ +85°C

 Rated Current (A)

 5 A

 Rated Voltage (AC.V)

 250 V

 Test Voltage (AV.C)1Min

 1500 V

 Insulation Resistance (㏁)

 ≥1000 ㏁

 Contact Resistance (㏁)

 ≤5㏁

 Termination

 Solder/Crimp
