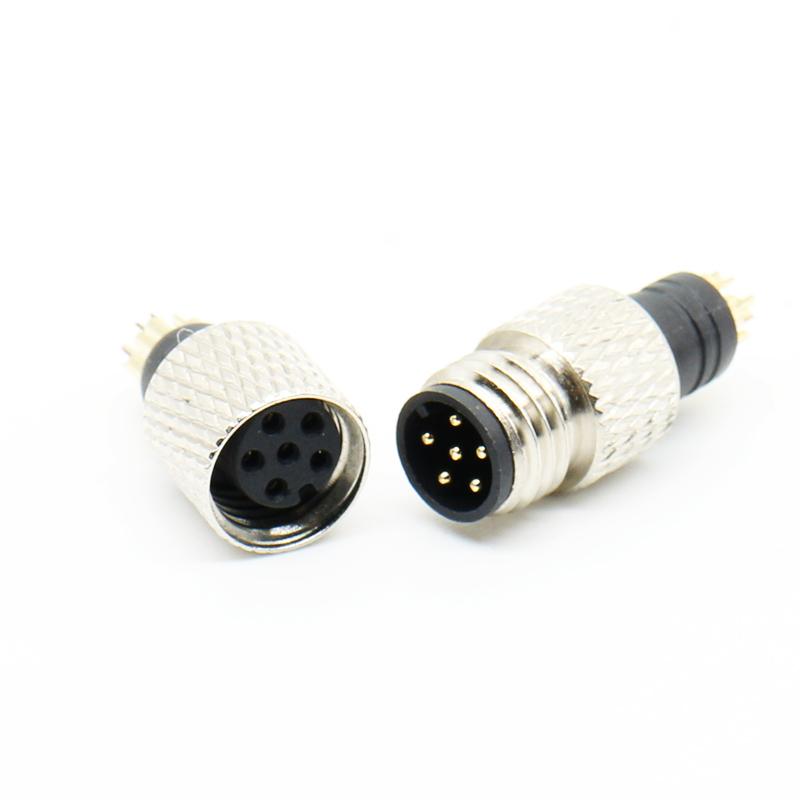

6 Pin Connector
< >

M8 Circular Connector

>Number Of CoresNumber Of Cores 2-8 Pin
Contact DiameterContact Diameter(mm) 1.0mm/0.72mm/0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 3A/1A
Rated VoltageRated Voltage(Ac.V) 180V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+86-19924482730

M8 Connector - Unshielded, Compact and Reliable for Your Industrial Applications

Looking for a robust and space-saving connection solution for your industrial equipment? This M8 Unshielded Connector is the perfect choice for demanding applications where reliability and compact design are critical.

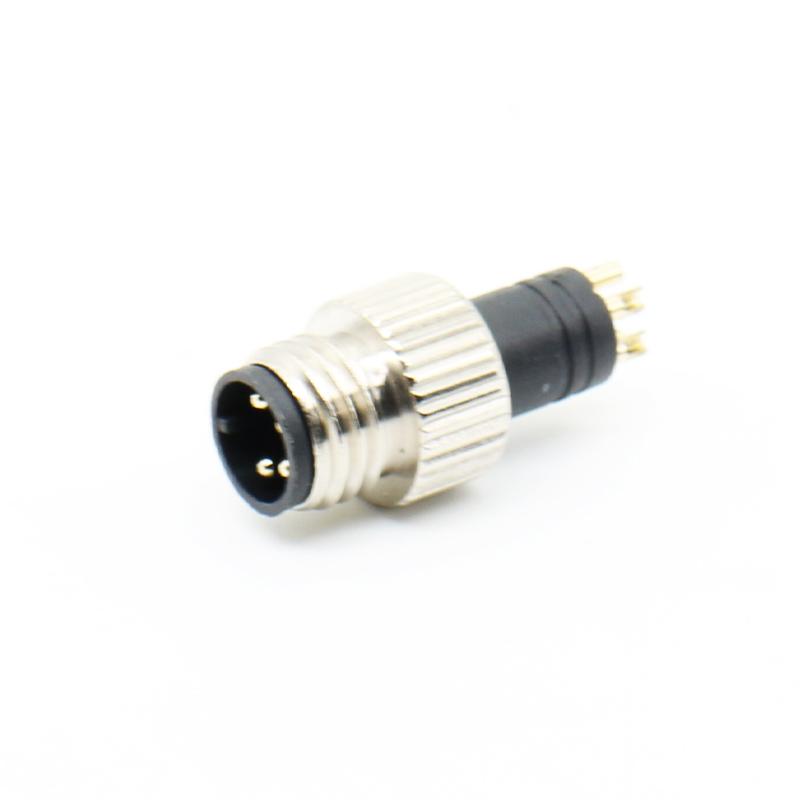

M8 Connector Threaded Coupling: Ensures a secure, vibration-resistant connection in tight spaces.

Male Connector.jpg

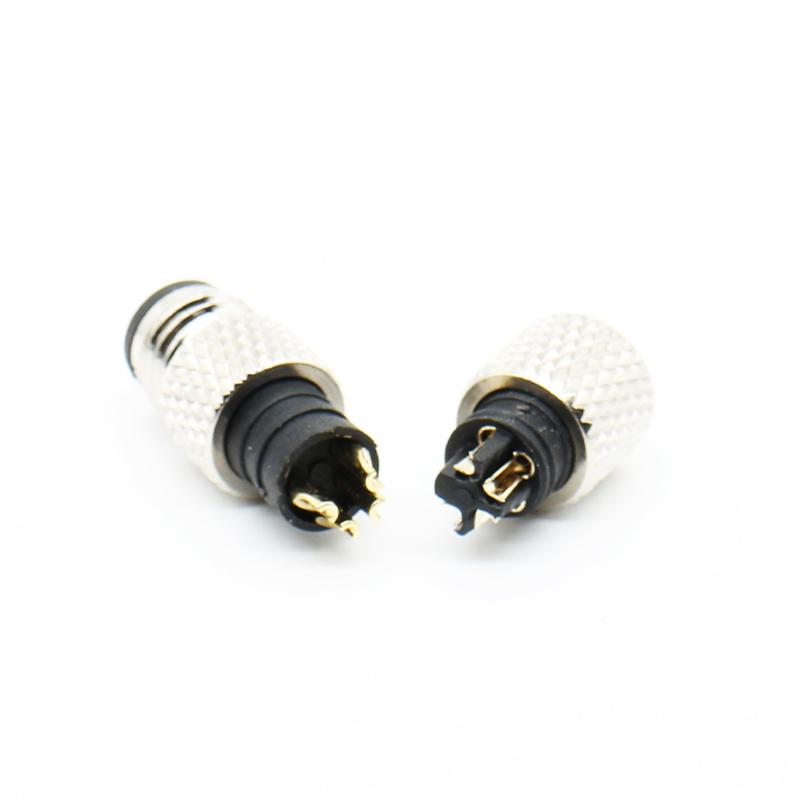

M8 Connector Unshielded Design: Ideal for applications where EMI/RFI protection is not a primary concern, offering a cost-effective solution.

Electrical Connector.jpg

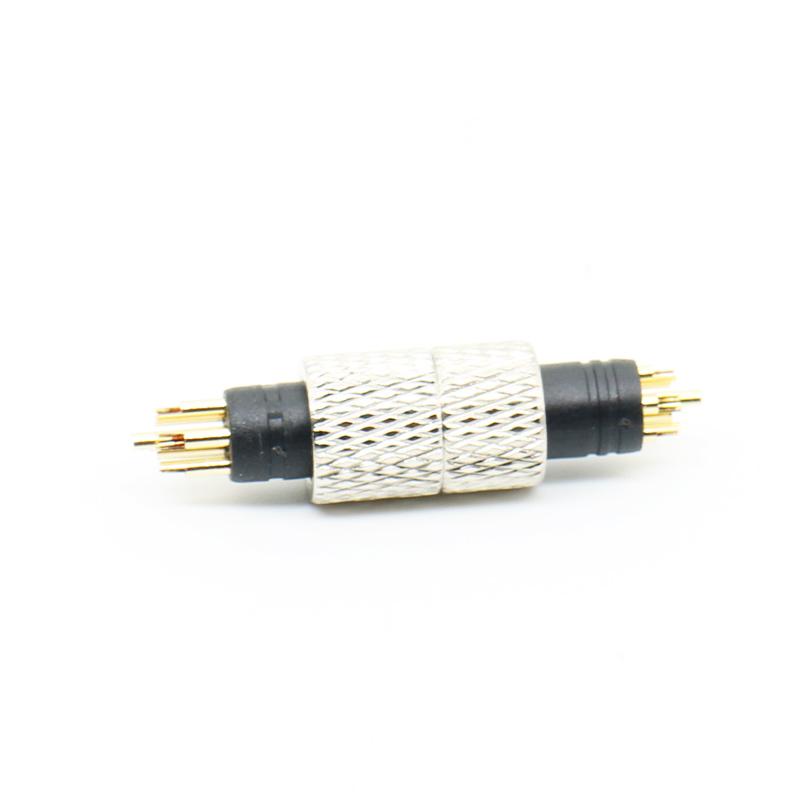

M8 Connector Rugged Construction: Built with durable materials like PA (Nylon) housing and brass nickel-plated threads to withstand harsh industrial environments, including exposure to dust, oils, and moisture (typical IP67 rating when mated).

IP67 M8.jpg

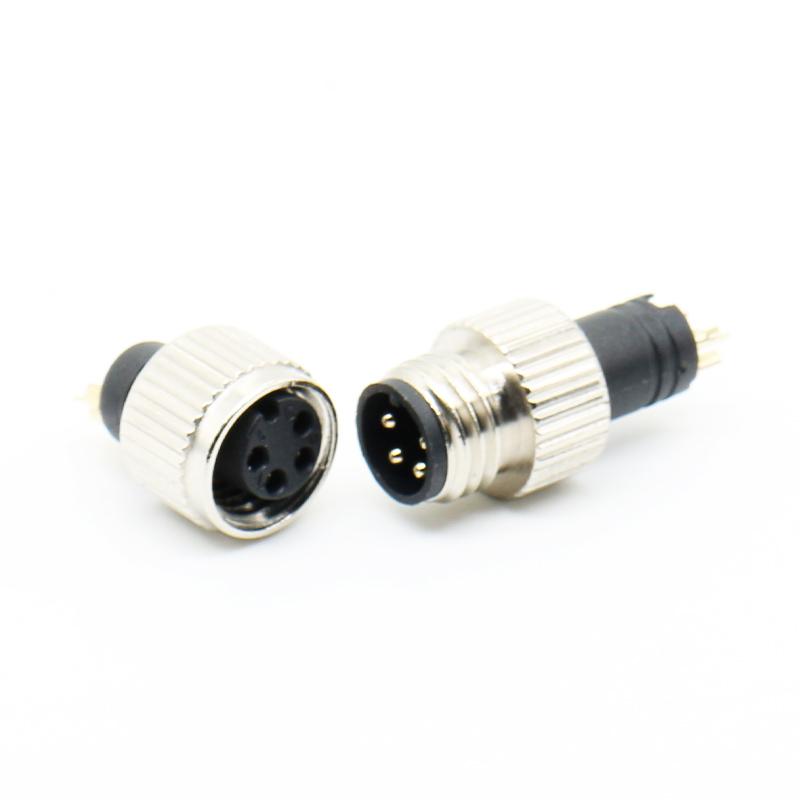

M8 Connector Precision Contacts: Features high-quality pins/sockets for excellent electrical conductivity and stable signal/power transmission.

Waterproof Connector.jpg

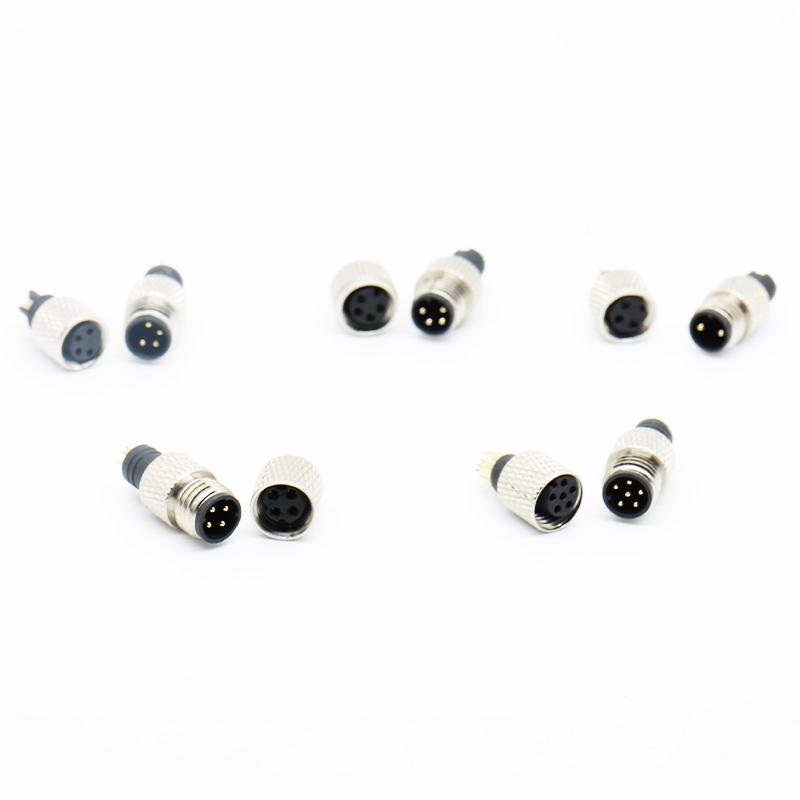

M8 Connector Flexible Pin Options: Available in various conductor configurations to suit your specific wiring needs.

M8 Connector.jpg







Item

Parameters

Number of Cores

2-8Pin

Gender

Male/Female

Housing Material

Nickel Plated Brass

Cores Material

Gold Plated Brass

Insulator Material

PA66

Locking System

Screw Locking

Temperature Range

-30℃, +85℃

Rated Current (A)

3A(2-5Pin)/ 1A(6-8Pin)

Rated Voltage (AC.V)

180v

Test Voltage (AV.C)1Min

1000V

Insulation Resistance (㏁)

1500㏁

Insulation Resistance (㏁)

≤10㏁

Termination

Solder
