RJ45 Connectors in Radar Data Transmission Systems

RJ45 connectors are used in radar systems for Ethernet-based data transmission between processing units, displays, and network infrastructure. They are commonly integrated into modern radar systems that rely on digital communication protocols for data sharing and remote monitoring.

Project Background

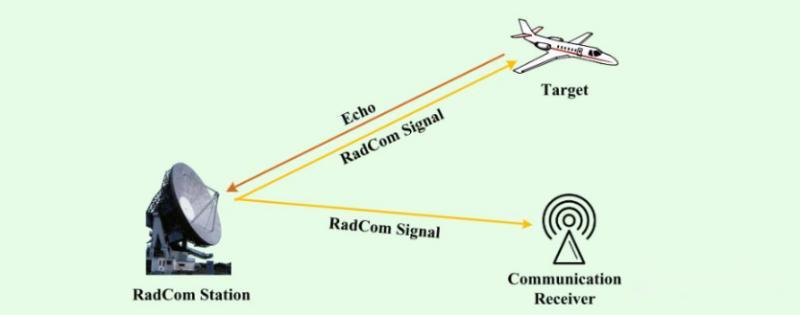

Radar systems increasingly depend on high-speed digital networks to transfer target data, status information, and control commands between distributed units. Ethernet-based links using RJ45 connectors provide a standardized, cost-effective interface for these communication paths.

Interface and Environmental Requirements

In radar installations, the connector must support reliable data transmission in environments that may include vibration, temperature variation, and electromagnetic interference. The RJ45 interface is typically specified for shielded twisted-pair cabling to maintain signal integrity over the required cable runs.

Connector Solution

The selected RJ45 connector configuration supports standard Ethernet protocols and is available in shielded versions to reduce electromagnetic interference. The connector is designed for field termination or factory-molded cable assemblies, depending on the installation requirements.

Verification and Delivery Process

Before delivery, the connector assemblies are checked for contact continuity, shielding effectiveness, and mechanical fit with the mating equipment. Cable assemblies are tested to confirm they meet the required data transmission performance.

Verified Results

The RJ45 connectors provide a stable Ethernet link for radar data transmission, supporting the required data rates and maintaining signal quality in the intended operating environment. The shielded design helps protect against interference from nearby radar and power equipment.

For related information, see the Communication Radar Solution or review the SF Series Aviation Connectors Specifications and Performance Data.
