M8 4 Pin Male to Male 90° Right Angle Overmolded Cable Assembly

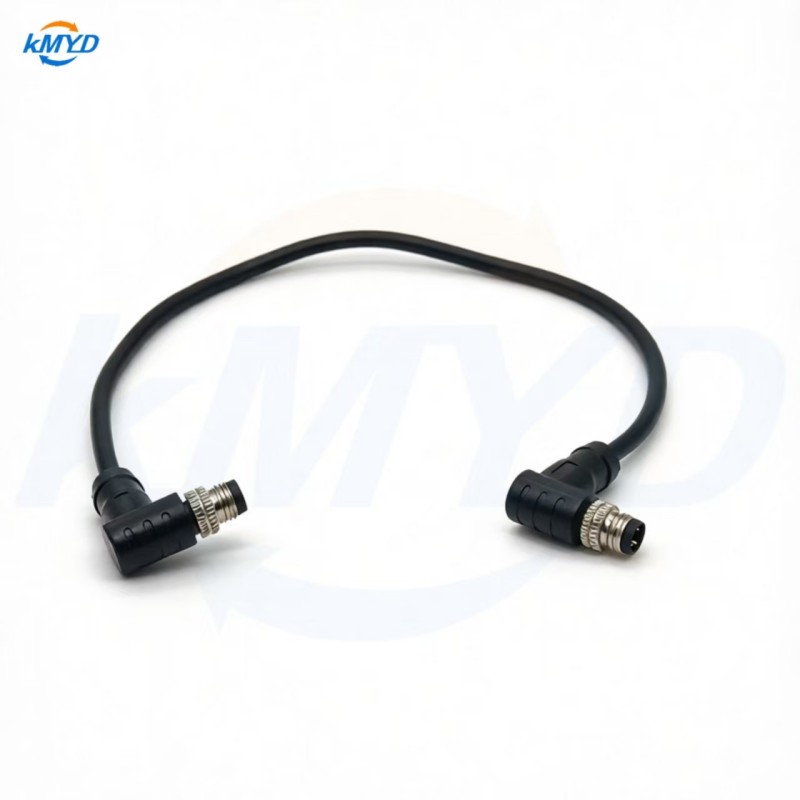

M8 4-Pin Male-to-Male Right-Angle Overmolded Cable Assembly Overview

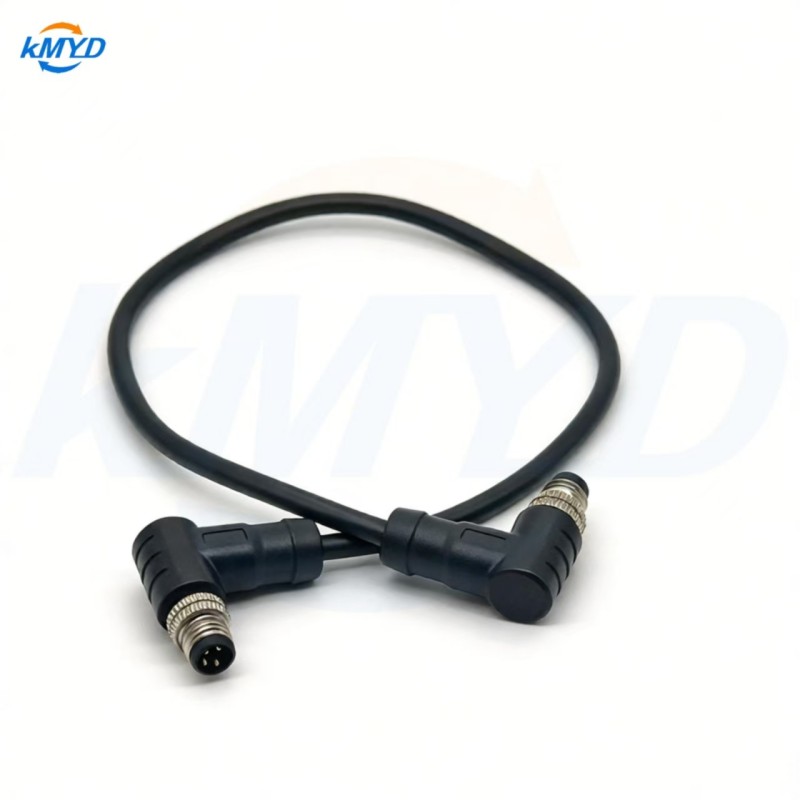

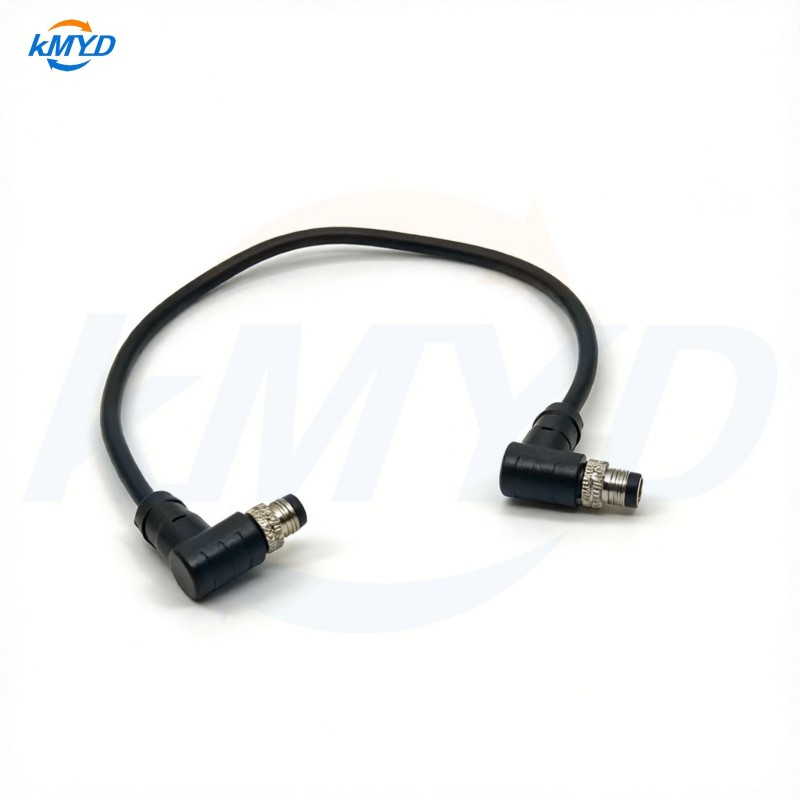

This M8 4-pin cable assembly provides a direct, compact connection between two compatible M8 female interfaces. The dual male ends are suited for sensors, controllers, and industrial equipment where a secure, space-saving link is required.

Why Choose a 90° Right-Angle Design?

The 90° right-angle connector redirects the cable route in confined installation areas where a straight connector would require excessive bending space. This structure helps keep the cable closer to the equipment surface, supporting a cleaner and more organized installation layout.

Key Selection Criteria for M8 Cable Assemblies

When evaluating this assembly for your application, consider the following decision points:

• Mating Interface: Verify that your equipment uses M8 female interfaces, as this cable is male-to-male and will not suit female ports.
• Pin Count and Wiring: Confirm the 4-pin configuration matches your signal or power requirements and pinout diagram.

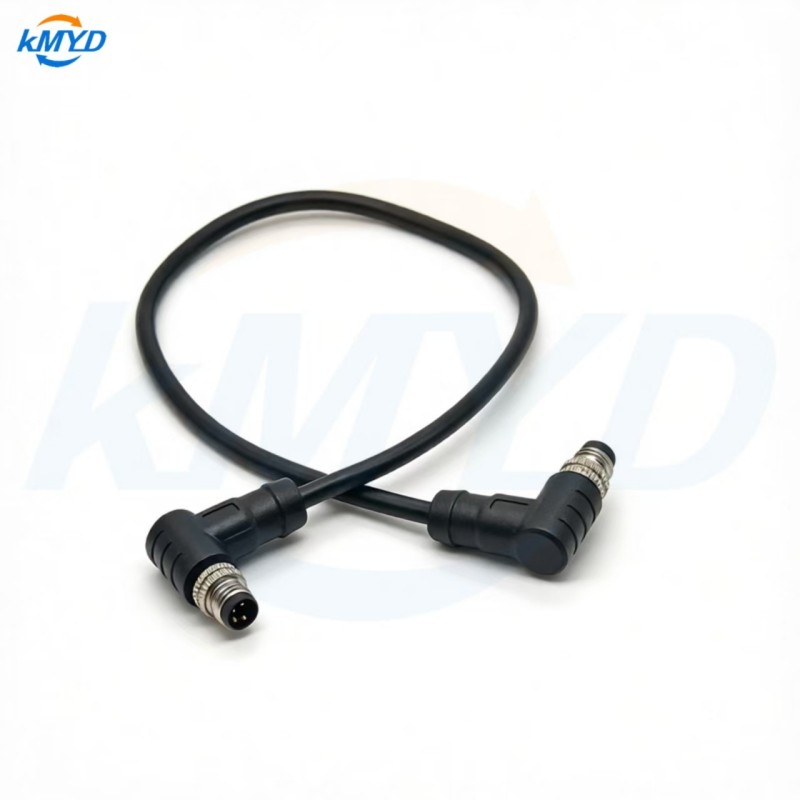

• Mechanical Protection: The overmolded junction improves resistance to pulling, bending, and everyday mechanical stress for continuous use.
• Environmental Fit: Assess the operating temperature and exposure to oils or chemicals to confirm the jacket material suits your environment.

Construction and Mechanical Reliability

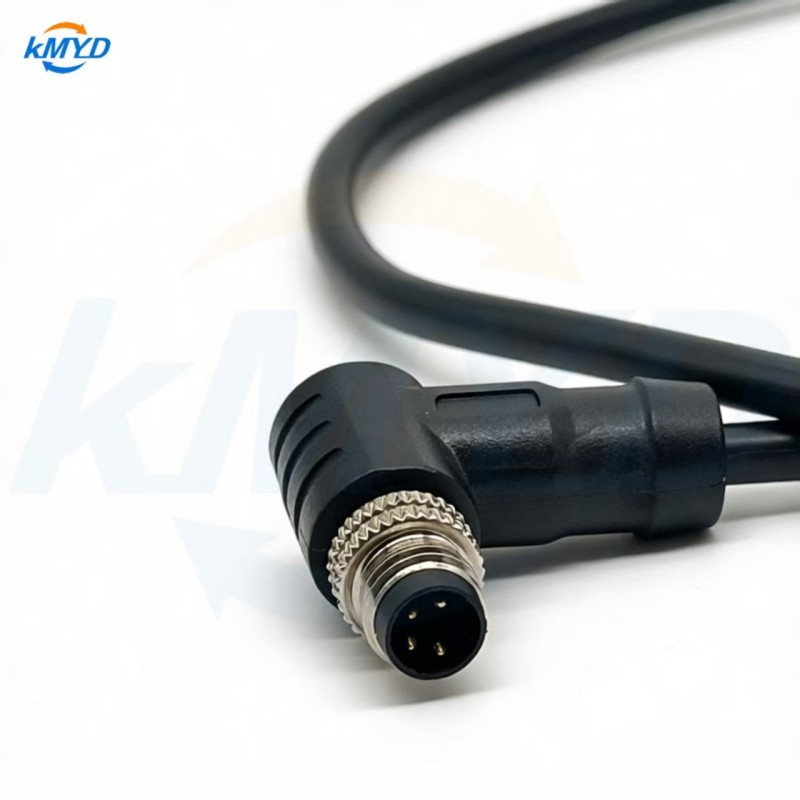

The cable and connectors are integrated through an overmolded construction, creating a protected connection point at the cable-to-connector junction. This design strengthens the assembly against vibration and flexing in automated systems and industrial machinery.

Customization Options for OEM/ODM Projects

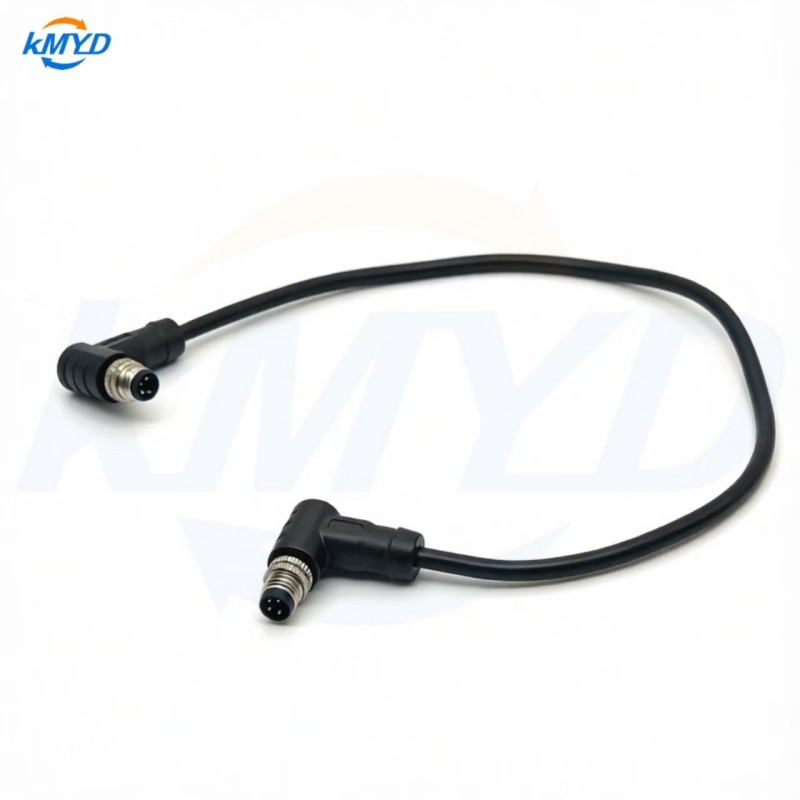

Cable length, wire specifications, jacket material, and pin configuration can be customized to match different equipment and installation requirements. The factory supports a wide range of M8 and M12 configurations, including straight, right-angle, waterproof, and overmolded assemblies.

Suitable Applications

This compact cable assembly is designed for use in the following equipment categories:

• Industrial sensors and actuators
• Automation and machine control systems
• Robotics systems
• Measurement instruments
• Industrial control systems

Manufacturing and Quality Assurance

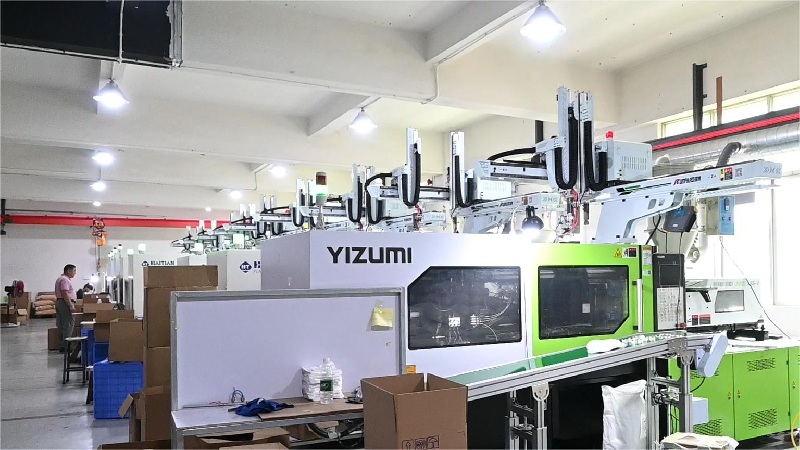

Manufactured by Shenzhen Meiyadi Technology Co., Ltd., a professional connector and cable assembly manufacturer with more than 15 years of industry experience. The factory provides integrated capabilities covering connector R&D, mold development, precision machining, injection molding, cable assembly, and quality inspection.

Professional testing and quality control procedures are applied throughout production to ensure consistent product performance. This integrated approach allows customized products to move efficiently from initial design and sample development to mass production.

Inquiry Checklist for Ordering

To ensure an accurate match for your equipment, please prepare the following details when making an inquiry:

• Required cable length and overall assembly dimensions
• Wire gauge, conductor count, and jacket material (PVC, PUR, etc.)
• Pinout or wiring diagram for the 4-pin configuration
• Electrical load (current/voltage) and operating environment
• Required order quantity and target delivery schedule

With flexible OEM/ODM services and experienced engineering support, Meiyadi provides practical connection solutions for industrial automation, sensors, machinery, robotics, and electronic equipment. Contact our team to discuss your specific M8 cable assembly requirements.
