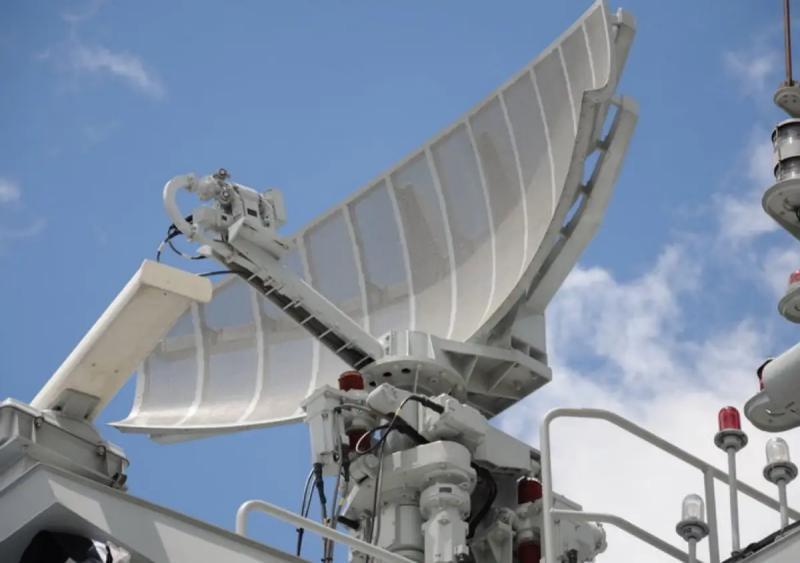

Project Background: Marine Radar Systems in Offshore and Vessel-Based Applications

Marine radar systems operate in some of the most demanding environments for electronic equipment. Continuous exposure to high humidity, salt spray, vibration, and temperature fluctuations can compromise standard connectors, leading to signal loss, corrosion, or complete system failure. For vessels and offshore installations, the reliability of every interconnection between radar units, display consoles, and power distribution is critical to navigation safety and operational uptime.

This case outlines the engineering considerations and connector selection process for marine radar systems, focusing on the environmental and electrical requirements that drive the choice of waterproof circular connectors.

Interface and Environmental Requirements

The primary challenge in marine radar installations is not just the initial connection, but maintaining a sealed, stable interface over years of service. The key requirements for this application include:

• Environmental Protection: Connectors must resist saltwater ingress and humidity. A high IP rating (e.g., IP67 or IP68) is typically required to prevent corrosion and short circuits.
• Electrical Loads: Radar units and displays require reliable power transmission and signal integrity. Connectors must support the specific current and voltage ratings of the radar system's power supply and data lines.
• Mechanical Durability: Vessel vibration and cable strain require robust locking mechanisms and strain relief to prevent accidental disconnection or cable damage.
• Mating Cycles: For maintenance and system upgrades, connectors should withstand repeated mating and unmating without degradation in sealing performance.

These factors dictate that the connector solution must be a sealed, circular interface designed for harsh environments, rather than a standard industrial or consumer-grade connector.

Connector Solution: Waterproof Circular Connectors

For this application, waterproof circular connectors are the appropriate solution. Their cylindrical design allows for a robust sealing mechanism, while the threaded or bayonet coupling ensures a secure fit against vibration. The specific configuration—including pin count, contact layout, and cable entry—must be matched to the radar system's interface requirements.

When selecting a connector series, engineers must verify the following parameters against the radar system's specifications:

• Contact Arrangement: The number of pins and their layout must match the radar unit's power and signal requirements.
• Rated Current and Voltage: The connector's electrical ratings must exceed the system's maximum operating values to provide a safety margin.
• Ingress Protection (IP) Rating: The connector must be rated for continuous exposure to water and humidity, typically IP67 or higher.
• Cable Range: The connector's cable entry must accommodate the specific cable diameter used in the installation to maintain a proper seal.

For related connector options, engineers may also evaluate the 12G Series Circular Connectors for high-reliability signal and power applications, or consult the LD20/SP20 Heavy-Duty Square Connector Dimensions and Specs for alternative mounting configurations.

Verification and Delivery Process

The validation of a marine-grade connector solution involves more than a visual inspection. The process typically includes:

• Sample Testing: Prototype connectors are subjected to salt spray and humidity tests to verify corrosion resistance and sealing integrity.
• Electrical Verification: Contact resistance and insulation resistance are measured to ensure stable performance under load.
• Mechanical Testing: Mating cycles and cable pull tests confirm the locking mechanism and strain relief meet the vessel's operational demands.
• On-Site Commissioning: Final installation on the radar system verifies that the connector mates correctly with the equipment interface and maintains a sealed connection during operation.

Delivery evidence includes test reports, dimensional drawings, and installation records that confirm the connector's suitability for the marine environment.

Result and Application Fit

The use of waterproof circular connectors in marine radar systems provides a reliable interface that maintains signal integrity and power delivery in salt-exposed, humid conditions. By matching the connector's IP rating, electrical ratings, and mechanical design to the radar system's requirements, operators can reduce maintenance frequency and prevent unexpected downtime.

For engineers evaluating similar applications, it is essential to confirm the specific mating interface and pin configuration with the equipment manufacturer, as compatibility cannot be inferred from appearance alone. If you have a specific radar system or vessel requirement, please provide your interface details and environmental specifications to our team for a verified connector recommendation.
