OEM M16 Pre-Wired Connector Male Female Cable Assembly

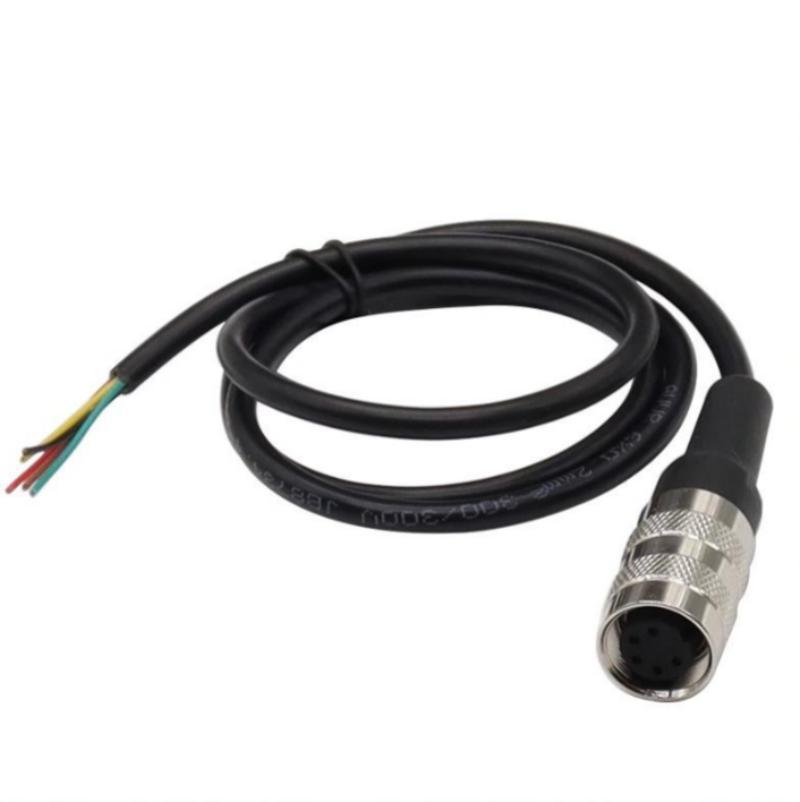

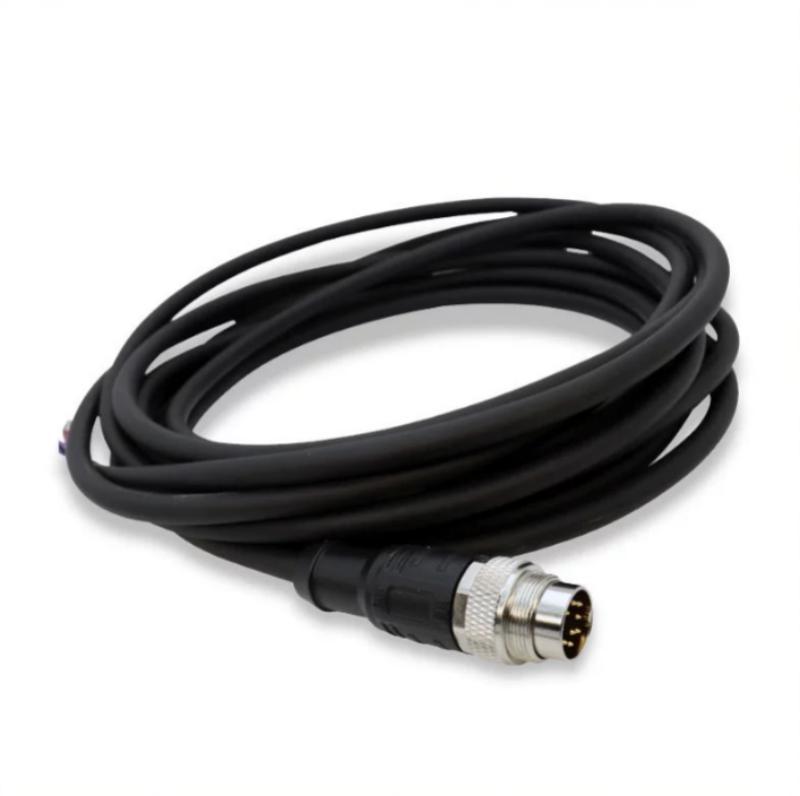

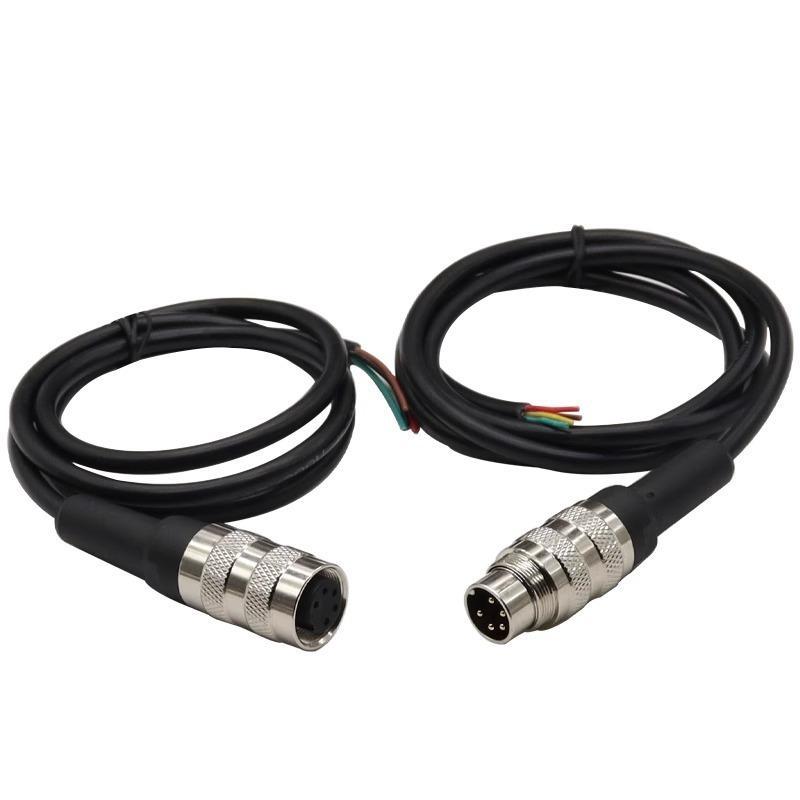

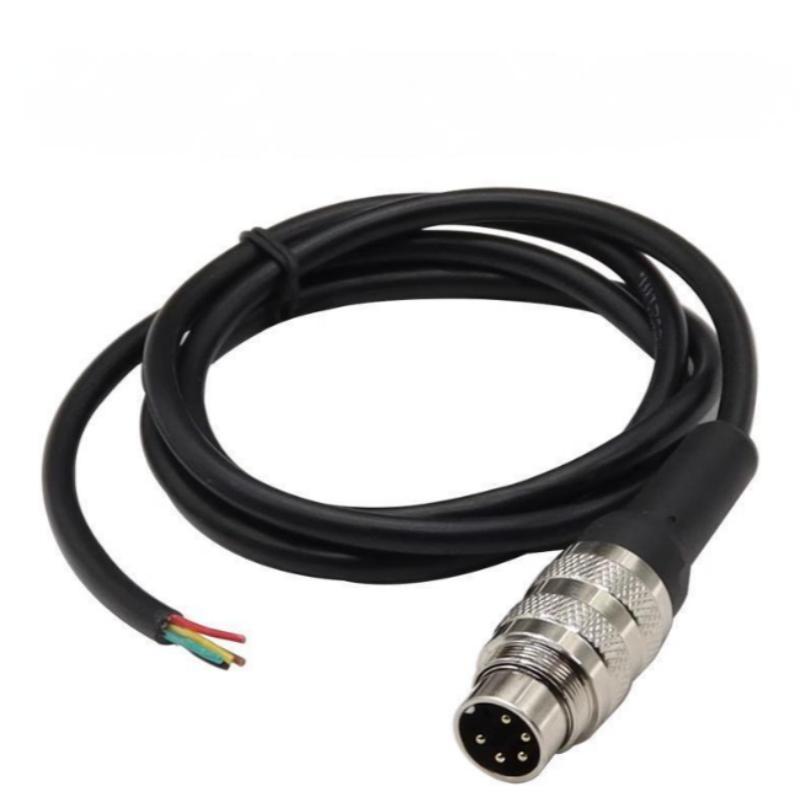

This factory-finished solution combines an M16 male connector, a female connector, and a customized cable assembly into one integrated unit. It is designed for equipment manufacturers that need a dependable connection system without the overhead of separate component sourcing and manual cable processing.

By delivering a pre-wired, electrically verified assembly, this product helps simplify production workflows, reduce installation labor, and improve wiring consistency across batches.

Designed Around OEM Production Needs

In OEM manufacturing, connection systems must support fast assembly speed, stable batch consistency, simplified installation procedures, lower production error rates, and flexible customization for different equipment models. The pre-wired M16 assembly is developed specifically for these requirements, helping manufacturers reduce time spent on manual wiring and connection verification.

Why Pre-Wired Assemblies Improve Production Efficiency

Traditional assembly processes usually involve connector procurement, cable sourcing, manual soldering or crimping, pin mapping verification, and final electrical inspection. This increases labor cost and creates more opportunities for inconsistency.

Our factory-assembled solution provides pre-configured wiring, verified electrical connections, ready-to-install cable assemblies, and stable production repeatability, allowing customers to focus more on equipment manufacturing instead of wiring preparation.

M16 Connector Structure for Industrial Stability

The M16 circular connector series is widely used in industrial systems because of its balance between compact installation size, stable threaded locking structure, reliable signal and power transmission, and mechanical durability under continuous operation. Combined with an integrated cable assembly, it becomes a practical solution for industrial equipment requiring dependable connectivity.

Applications

The OEM M16 Pre-Wired Cable Assembly is widely used in industrial automation equipment, machinery control systems, sensor and actuator integration, robotics and motion control systems, electrical control cabinets, industrial monitoring equipment, and smart manufacturing devices. Its integrated wiring structure helps simplify equipment installation and maintenance processes.

Why Customers Choose Our OEM Cable Assemblies

• Factory-Assembled & Electrically Tested: Each assembly is completed and verified before shipment to reduce installation risks.
• OEM-Focused Customization: We support customer-specific cable structures, pin assignments, and assembly requirements.
• Stable Production Consistency: Standardized manufacturing processes help ensure reliable batch-to-batch quality.
• Reduced Assembly Workload: Ready-to-install assemblies improve production efficiency and reduce manual labor.
• Long-Term Manufacturing Support: We support both prototype development and large-volume OEM production projects.

Factory Strength – Connector & Cable Assembly Manufacturer

We are a professional industrial connector manufacturer with over 15 years of experience in circular connectors, waterproof connectors, and custom cable assembly production. Unlike suppliers that only provide components, we specialize in integrated connector and cable manufacturing solutions.

Complete In-House Production System

Our factory includes precision mold development, CNC machining workshops, injection molding production lines, terminal stamping and plating processes, cable cutting and wire preparation, soldering, crimping, and overmolding assembly, and electrical and mechanical testing laboratories. This integrated production system allows us to maintain stable quality and flexible OEM manufacturing capability.

Assembly-Oriented Quality Control

Each M16 cable assembly undergoes continuity and pin mapping testing, pull-force and cable durability testing, connector locking inspection, insulation resistance testing, and final visual and structural verification. This helps ensure stable long-term industrial performance.

OEM & ODM Support

We support flexible customization including cable length and wire specification customization, shielded cable options, connector coding and pin configuration adjustments, branding and logo printing, and customized packaging solutions. From sample development to mass production, we provide full engineering and manufacturing support.

Selection and Inquiry Guidance

To help us match the correct assembly for your equipment, please provide the following details when you inquire:

• Required pin count and gender (male or female) for each end
• Cable length and conductor size (AWG or mm²)
• Connector coding or keyway orientation, if specified
• Electrical load (current and voltage) and signal type
• Environmental requirements such as IP rating or temperature range
• Target order quantity and any packaging or branding needs

For related connector options, see our Aviation Plug Connectors or review the LD20/SP20 Industrial Flange Connector Dimensions and Specs.

Contact Us

We provide sample support, technical consultation, OEM/ODM engineering service, fast production and global delivery, and factory-direct pricing. Contact us today for professional OEM M16 Pre-Wired Connector Male Female Cable Assembly solutions for industrial applications.
