BNC Connectors in Broadcast Video Systems

BNC connectors are a foundational interface in broadcast video systems, linking cameras, switchers, and monitors with consistent high-frequency signal transmission. Their design supports the reliable transfer of video signals in professional production environments where signal integrity is critical.

Project Background and Application Context

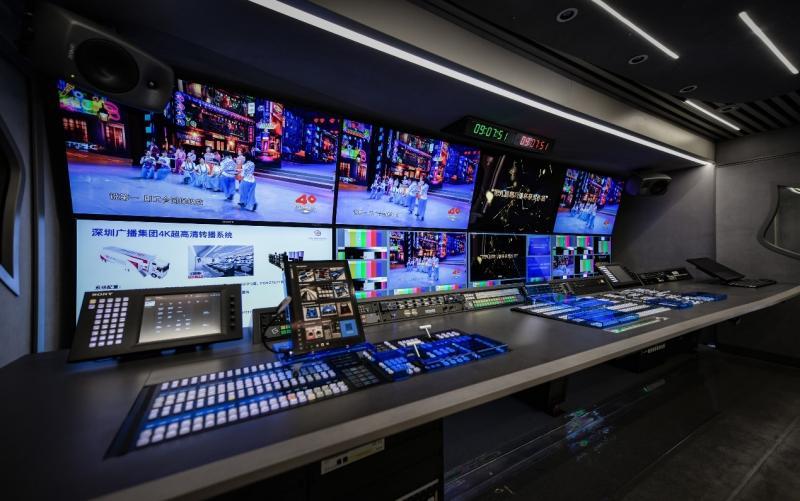

In broadcast production, video equipment must maintain stable signal flow across multiple devices. BNC connectors are commonly used in studios and outside broadcast vans to interconnect cameras, production switchers, and monitoring equipment. The bayonet locking mechanism ensures quick, reliable connections during production and equipment changes, minimizing downtime and signal disruption.

Interface and Environmental Requirements

Broadcast systems demand connectors that support high-frequency video signals with low reflection and consistent impedance. The BNC connector's bayonet coupling provides a secure mechanical lock, while its coaxial design preserves signal quality over cable runs. Environmental conditions in broadcast settings typically include controlled indoor environments, but connectors may also be used in field production where dust and handling are factors.

Connector Solution and Configuration

The BNC connector series is available in 50-ohm and 75-ohm versions, with 75-ohm types commonly used for video signals. Key configuration options include:

• Straight and right-angle plug designs for cable routing flexibility
• Panel-mount jacks for fixed equipment interfaces
• Field-installable and crimp termination styles
• Nickel or gold plating for corrosion resistance and signal integrity

Verification and Delivery Process

Before deployment, BNC connectors are verified for mechanical mating cycles, contact resistance, and signal transmission performance. In broadcast applications, connectors are tested with the specific cable type and equipment interface to confirm impedance matching and secure locking. Delivery includes connectors matched to the required cable diameter and termination method.

Verified Results and Operational Benefits

In broadcast video systems, BNC connectors provide stable signal transmission with minimal insertion loss, supporting reliable video feeds during live production. The bayonet lock reduces the risk of accidental disconnection, while the robust construction withstands repeated mating cycles typical of production environments.
