IP68 Waterproof SD28/SP28 Connector Wiring Harness

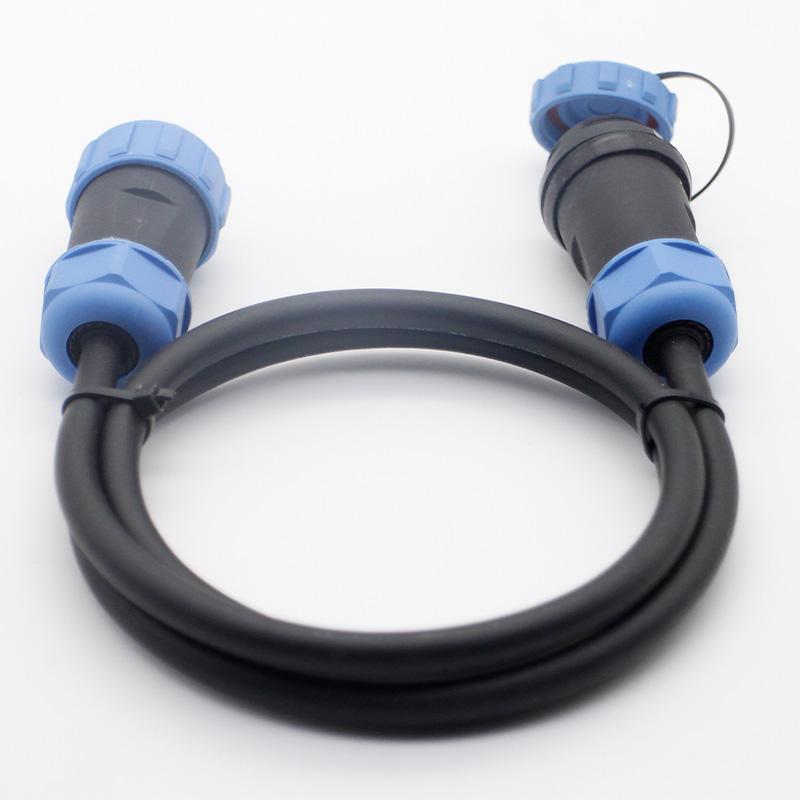

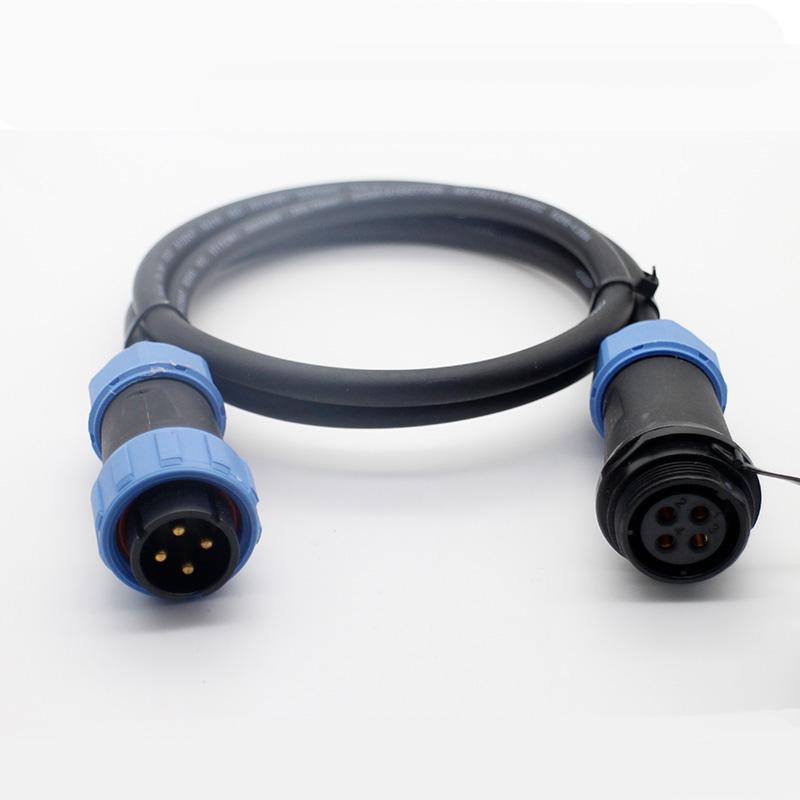

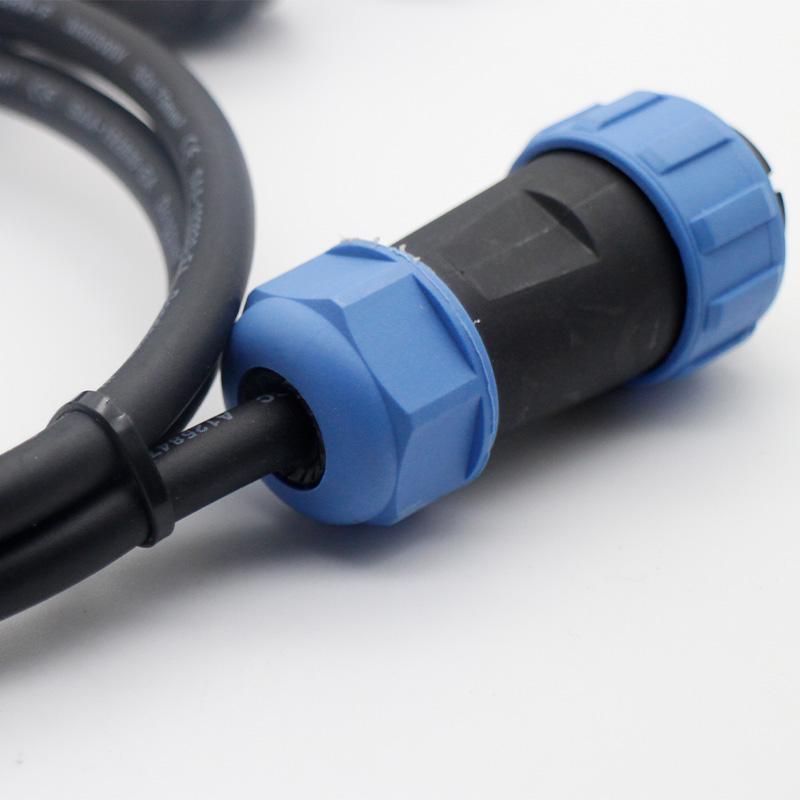

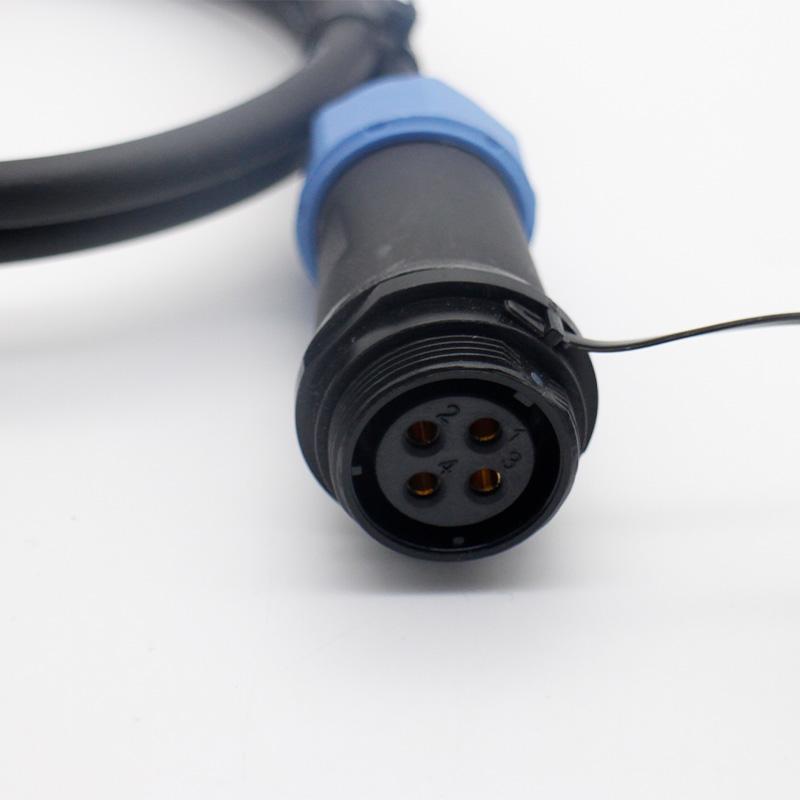

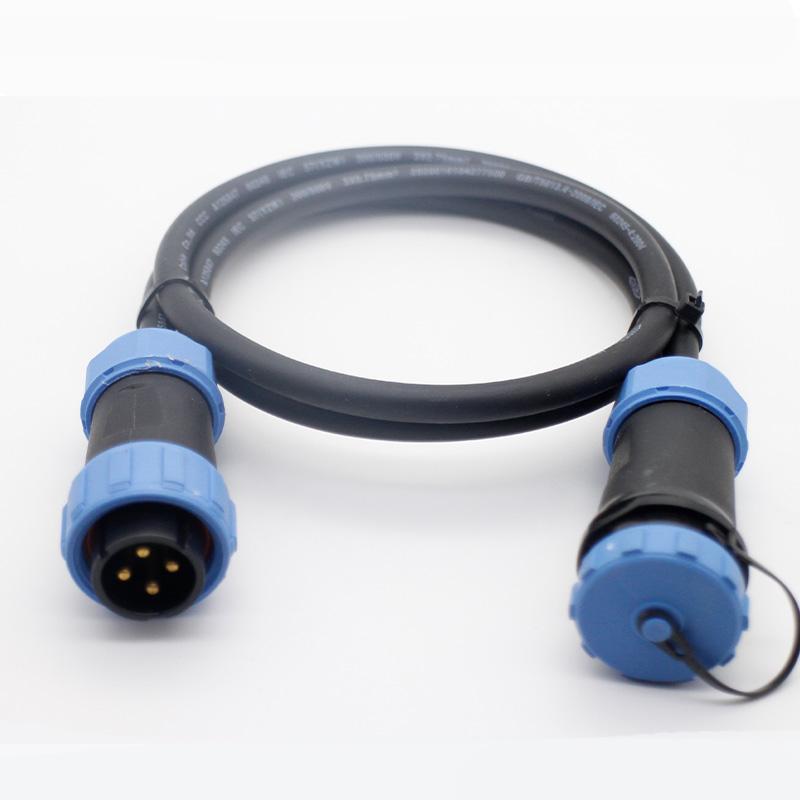

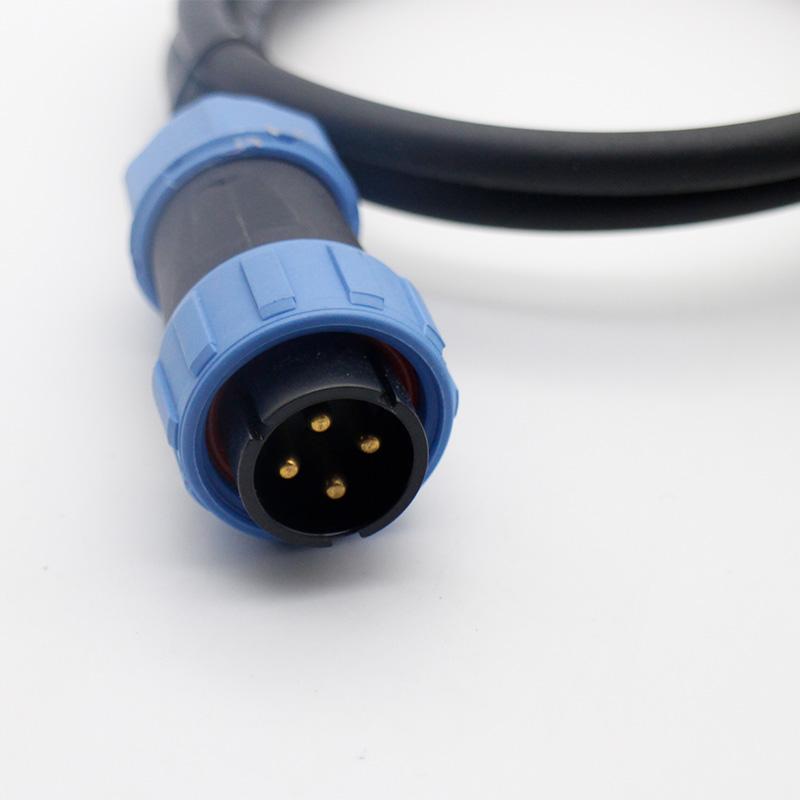

IP68 Waterproof SD28 / SP28 Connector Wiring Harness Overview

The IP68 Waterproof SD28 / SP28 Connector Wiring Harness is a heavy-duty pre-assembled cable solution designed for stable power and signal distribution in industrial and outdoor environments. Built around the SD28 / SP28 circular connector platform, it provides a reliable plug-and-play wiring system that reduces installation time and ensures consistent electrical performance in complex equipment systems.

With IP68-rated sealing protection, this wiring harness is engineered to operate in harsh conditions such as moisture, dust, vibration, and long-term outdoor exposure, making it suitable for demanding industrial applications.

Integrated Wiring Solution for Industrial Systems

Unlike standalone connectors, this product is delivered as a complete wiring harness system, ensuring stable electrical connection quality from production to final installation. It helps simplify wiring architecture and improves system reliability.

Key advantages include:

• IP68 waterproof and dustproof protection
• Pre-assembled wiring harness for fast installation
• Stable multi-circuit power and signal transmission
• Heavy-duty connector structure for industrial use
• Secure locking system to prevent accidental disconnection
• Designed for long-term continuous operation

Custom Engineering for Real Installation Needs

Each wiring harness can be customized according to actual equipment requirements, making it suitable for both standard production and OEM projects.

Customization options include:

• Custom cable length based on equipment layout
• Support for multiple wire cross-sections
• PVC, rubber, or PUR industrial cable materials
• Shielded cable options for signal stability
• Multi-branch or multi-connector harness design
• Straight or angled connector configurations
• OEM labeling and project-specific wiring solutions

This flexibility allows seamless integration into different industrial systems.

Typical Applications for SD28/SP28 Waterproof Connector Wiring Harness

The SD28 / SP28 waterproof connector wiring harness is widely used in systems requiring reliable electrical interconnection and environmental protection, including:

• Industrial automation equipment
• Power distribution and control systems
• Construction and heavy machinery
• Renewable energy systems
• Outdoor lighting and infrastructure projects
• Marine and transportation electrical systems

Factory Strength - Reliable Manufacturing for System-Level Solutions

We are not only producing connectors, but delivering complete wiring solutions for industrial systems. Our factory integrates connector manufacturing, cable processing, and wiring assembly under a unified production and quality control system.

This allows us to ensure consistency, reliability, and scalability for project-based customers.

Our manufacturing strengths include:

• Integrated production of connectors and wiring harnesses
• Stable batch consistency for industrial-scale orders
• Strict process control from raw materials to final assembly
• Experienced team supporting OEM and engineering projects
• Flexible production scheduling for customized requirements
• Reliable export capability for global industrial markets

This structure ensures that customers receive not only products, but stable long-term supply support.

Quality Assurance Focused on Field Performance

Each wiring harness is tested to ensure reliable operation in real-world conditions rather than only factory environments.

Quality control includes:

• Waterproof sealing integrity testing (IP68 verification)
• Electrical continuity and load performance testing
• Cable pull strength and strain resistance testing
• Vibration and mechanical durability testing
• Final inspection of wiring accuracy and assembly quality

Certifications & Compliance

Our products are manufactured under strict international standards to ensure safety and reliability:

• ISO9001 Quality Management System
• CE Certification
• RoHS Environmental Compliance
• IP68 Waterproof Protection Standard

Selection Guidance and Inquiry Checklist

To ensure the SD28 / SP28 wiring harness matches your application, consider the following decision points:

• Pin count and layout: Confirm the number of circuits required and the mating pinout before ordering.
• Cable specification: Specify conductor cross-section, cable outer diameter, and whether shielding is needed for signal integrity.
• Environmental requirements: Verify operating temperature range and chemical exposure conditions beyond the IP68 rating.
• Mechanical configuration: Choose straight or angled connector versions based on space constraints in your equipment.
• Mating side: Confirm whether the harness connects to a panel-mount receptacle or another cable plug.

When requesting a quotation, please provide the following information:

• Required pin count and wiring diagram or pinout
• Cable length, conductor size, and jacket material
• Connector configuration (straight or angled, male or female)
• Electrical load (current and voltage per circuit)
• Operating environment and temperature range
• Order quantity and target delivery schedule

For related connector options, review the Aviation Plug Connectors series or consult the LD20/SP20 Industrial Flange Connector Dimensions and Specs for alternative mounting configurations.

Reliable Industrial Wiring Solution for Long-Term Projects

The IP68 Waterproof SD28 / SP28 Connector Wiring Harness delivers a complete, durable, and customizable connection solution for industrial equipment. With strong manufacturing capability and stable production control, it is designed to support long-term, project-based industrial applications where reliability and consistency are critical.
