GX20 Connector for AGV Robot Power Connections

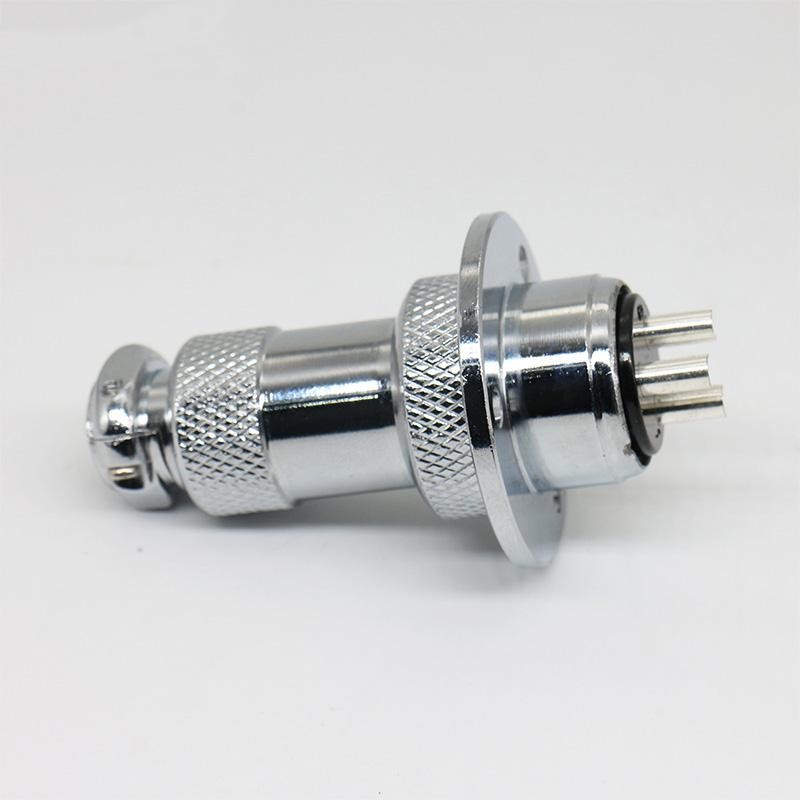

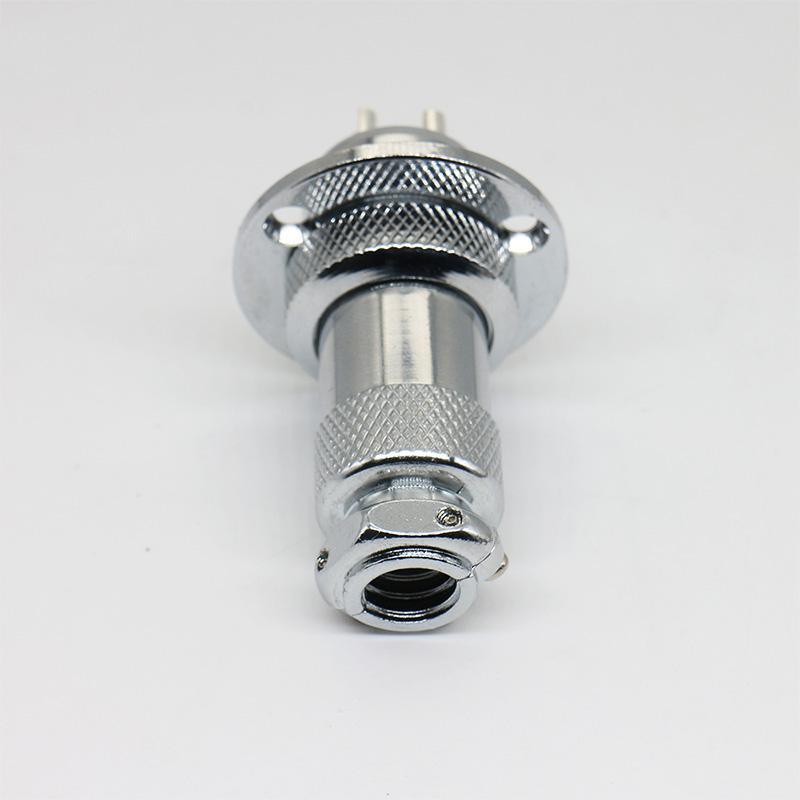

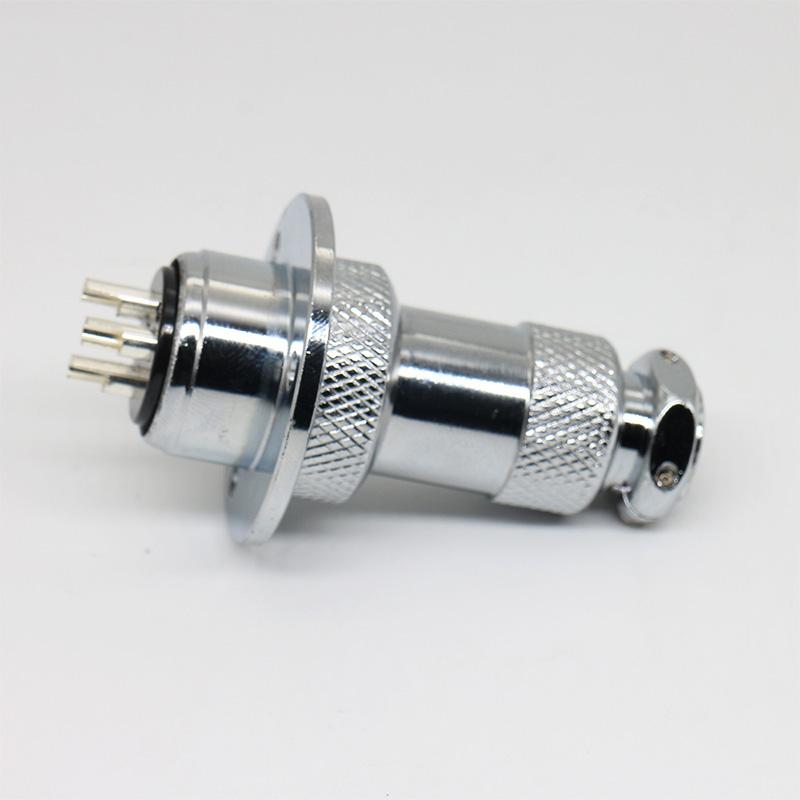

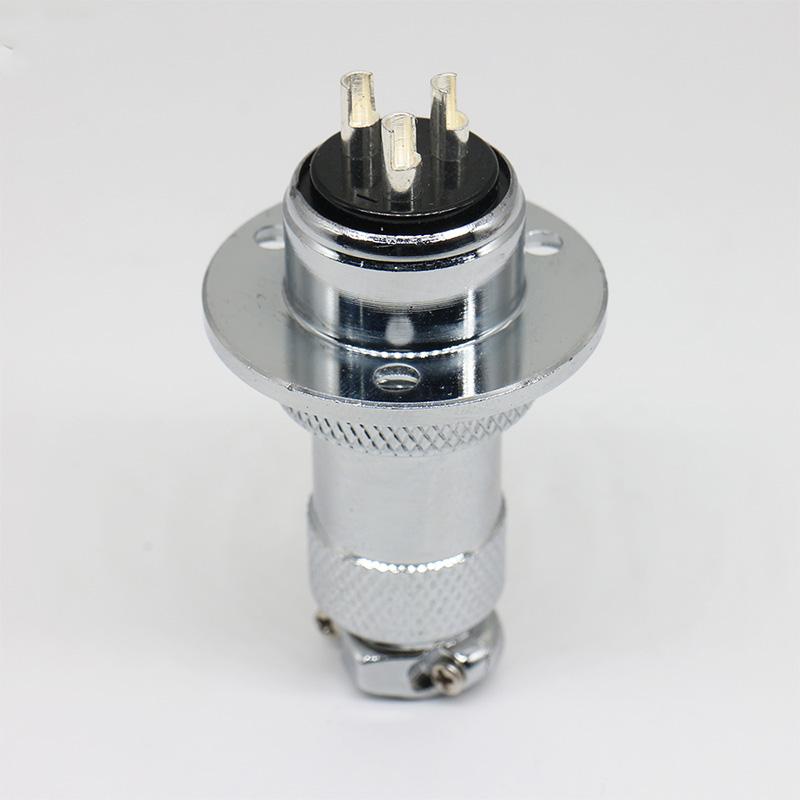

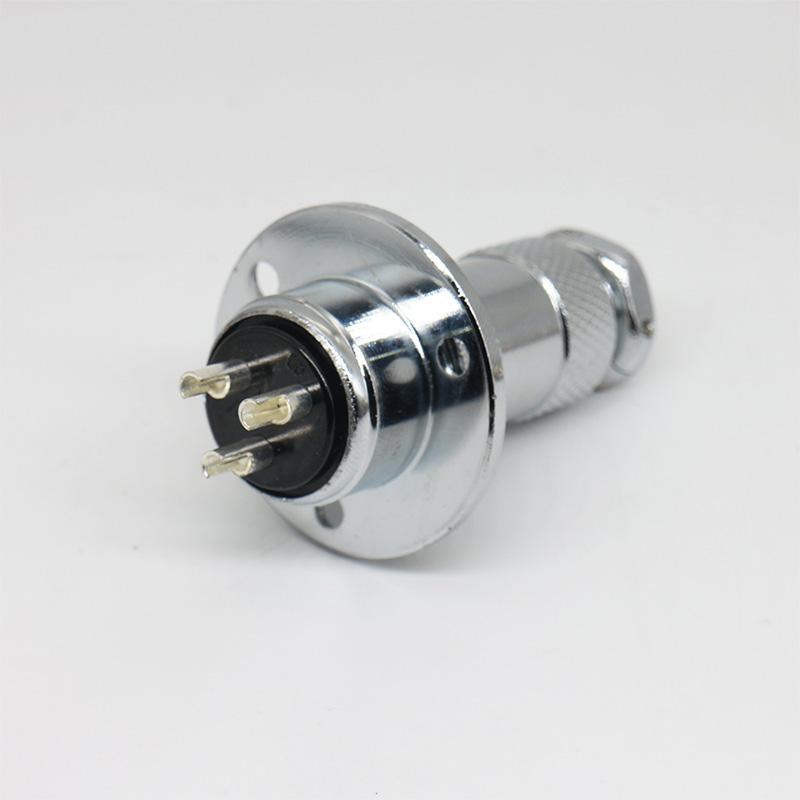

The GX20 connector is a circular industrial connector engineered for power transmission in automated guided vehicles (AGVs) and mobile robotic platforms. Its nickel-plated zinc alloy housing and screw-lock coupling provide mechanical stability in environments subject to continuous vibration and movement. This connector is suited for engineers integrating power links into AGV drive units, robotic arms, and automated material handling systems.

Selection Considerations for AGV Power Systems

Choosing the correct GX20 configuration depends on the electrical load, cable routing, and mechanical constraints of the robot platform. Confirm the required pin count, gender orientation, and termination method before ordering to ensure a proper match with the existing harness.

• Pin count options range from 2 to 15 cores, allowing matching to power and control circuit requirements.
• Male and female variants are available; verify the mating side required for the cable and panel connection.
• Confirm the cable diameter and conductor size against the connector's termination range before assembly.

Construction and Mechanical Reliability

The connector housing is manufactured from zinc alloy with nickel plating, providing corrosion resistance and protection against mechanical impact in industrial settings. The insulator material and brass contacts plated with silver or gold support consistent electrical performance over repeated mating cycles. The screw-lock mechanism secures the connection against loosening caused by vibration during robot movement.

Application Scope and Boundaries

This connector is appropriate for AGV power units, mobile robotic platforms, robotic arms in warehouse automation, and automated assembly systems. It is not intended for underwater or high-pressure washdown environments unless additional protection is provided. For applications requiring higher pin density or different mounting styles, evaluate other circular connector series before finalizing the design.

Installation and Maintenance Planning

Before installation, prepare the cable ends according to the recommended strip length and verify the contact crimp or solder quality. During maintenance, inspect the housing, contacts, and locking mechanism for wear or damage. Include the following information when requesting a quotation or technical support:

• Required pin count and gender configuration
• Cable type, conductor size, and outer diameter
• Operating voltage and current for the application
• Mounting style: cable, panel, or chassis mount
• Environmental conditions such as temperature range and exposure to chemicals or moisture
