GX20 Circular Connector for Robotic Dispensing System Control in Germany

Project Background

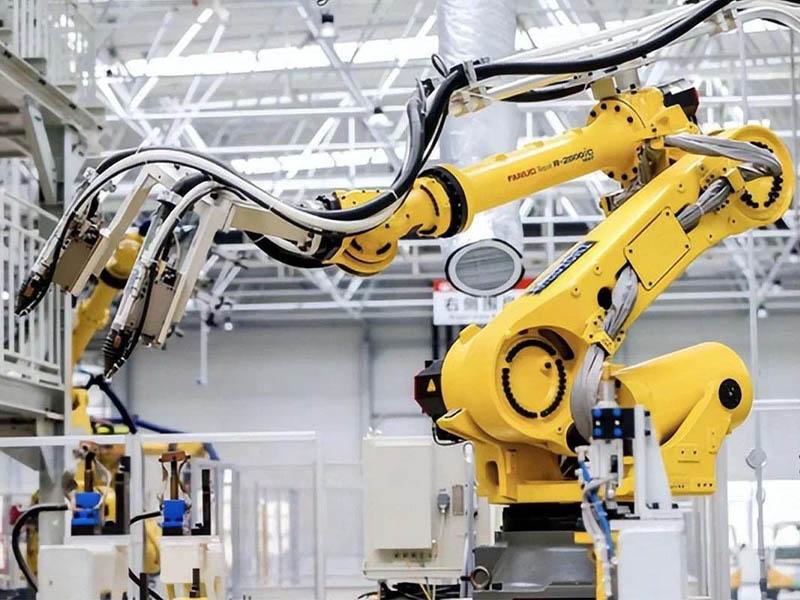

Germany's Industry 4.0 transformation has driven widespread adoption of robotic dispensing systems in electronics manufacturing and automotive assembly. These systems rely on precise and stable connections for control components, directly impacting dispensing accuracy, production quality, and equipment uptime.

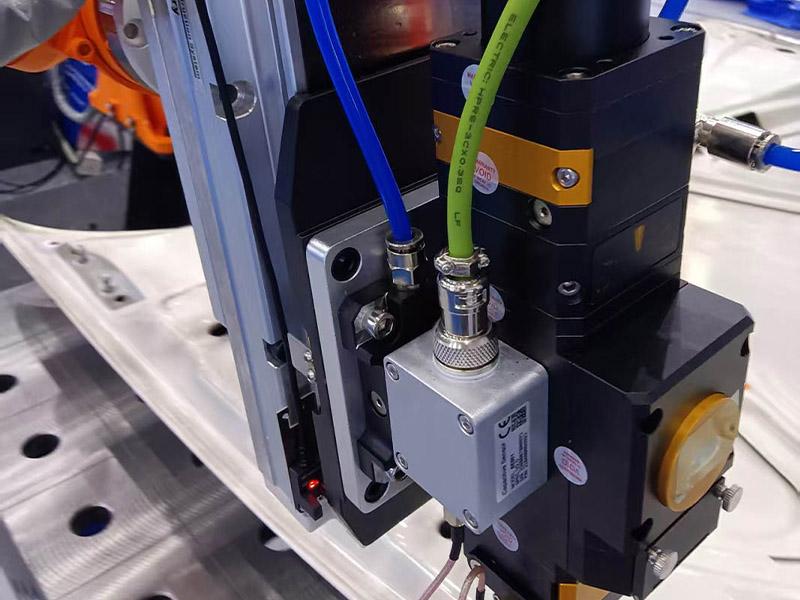

ConnTech Precision GmbH (example company), a German industrial cable specialist, identified limitations in traditional connectors used for robotic dispensing control: poor vibration resistance, environmental vulnerability, and signal instability. Such issues caused dispensing deviations, unexpected downtime, and higher maintenance costs. The company implemented the GX20 circular connector to ensure stable, high-performance connectivity for key components including solenoid valves, pressure sensors, and valve drive modules.

Application Challenges

The robotic dispensing systems were deployed in high-speed industrial environments, exposing several connector challenges:

• Vibration Resistance: Robotic arms operating at up to 1.2 m/s generate continuous vibrations (12–2000 Hz, 12g), causing contact loosening and intermittent signals.

• Environmental Protection: Exposure to adhesive residues and dust led to connector contamination and signal disruption.

• Low-Latency Signal Transmission: Maintaining ±0.05 mm dispensing accuracy required control signal latency ≤1 ms, difficult for standard connectors under dynamic conditions.

• Frequent Maintenance: Regular calibration demanded high mating cycles, accelerating connector wear.

• Regulatory Compliance: Connectors needed to meet German DIN standards and EU CE requirements for industrial automation equipment.

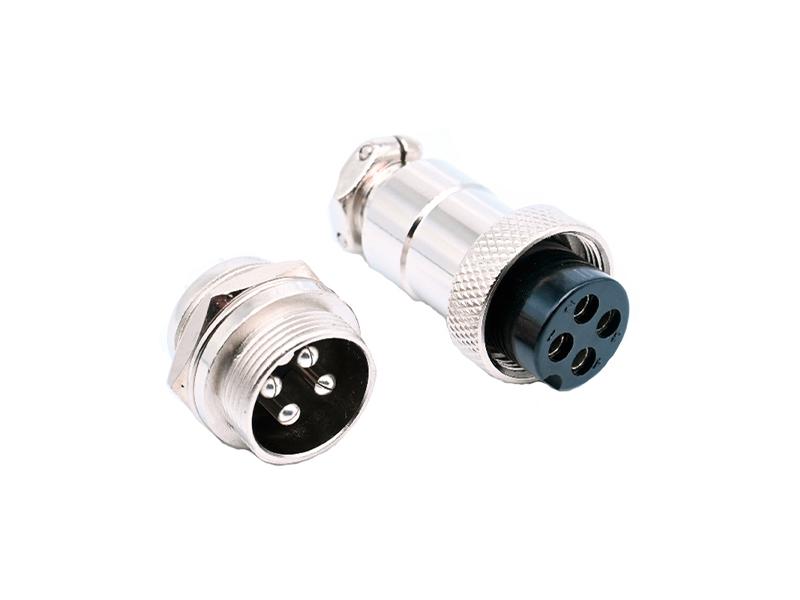

Solution: GX20 Circular Connector

The GX20 circular connector was customized to address these challenges and ensure reliable control in robotic dispensing systems.

Vibration Resistance and Environmental Protection

The connector features a threaded locking mechanism with anti-loosening design (locking force ≥180 N). Gold-plated phosphor bronze contacts maintain stable electrical performance under 12g vibrations across 12–2000 Hz, with ≤4 mΩ contact resistance. IP67-rated sealing and fluororubber gaskets protect against adhesive residues, dust, and moisture, making it ideal for dispensing environments.

Low-Latency Signal Transmission

Low-impedance conductors and independent shielding reduce signal attenuation and electromagnetic interference. Transmission latency is ≤0.8 ms, with ≥85 dB crosstalk attenuation at 1 GHz, ensuring precise, real-time valve control.

Durability for Frequent Mating

Dual-layer gold-plated contacts provide ≥15,000 mating cycles, reducing replacement frequency. Keyed interfaces prevent misalignment between power and signal connections, enhancing operational safety.

Compliance with Standards

The GX20 circular connector meets DIN 41652, CE, and RoHS requirements, ensuring full regulatory compliance for German industrial automation equipment.



Technical Specifications

• Protection Rating: IP67

• Housing Material: Nickel-plated brass (48-hour salt spray test)

• Contact Resistance: ≤4 mΩ

• Vibration Resistance: 12g, 12–2000 Hz

• Signal Latency: ≤0.8 ms

• Mating Life: ≥15,000 cycles

• Rated Voltage / Current: 250V AC / 10A

• Shielding: ≥85 dB @1 GHz

• Certifications: DIN 41652, CE, RoHS

Project Results

After deploying GX20 connectors:

• Dispensing deviation decreased by 92%

• Equipment downtime dropped below 0.15%

• Maintenance frequency reduced by 60%, lowering annual costs by ~35%

• Compliance and reliability helped secure new orders from German automation manufacturers

Industry Applicability

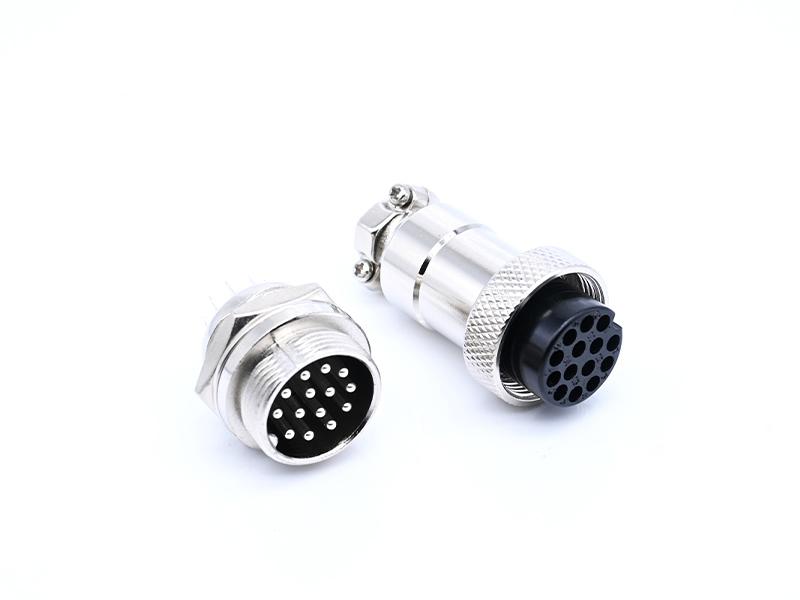

The GX20 circular connector is also suitable for robotic welding, automated sorting, and precision assembly actuators. Its customizable pin counts and interfaces allow precise connectivity for diverse industrial automation applications, providing reliable support for high-precision operations.
