M12 Connectors for Collaborative Robot Sensor Systems in Denmark

M12 Circular Connectors

Project Background

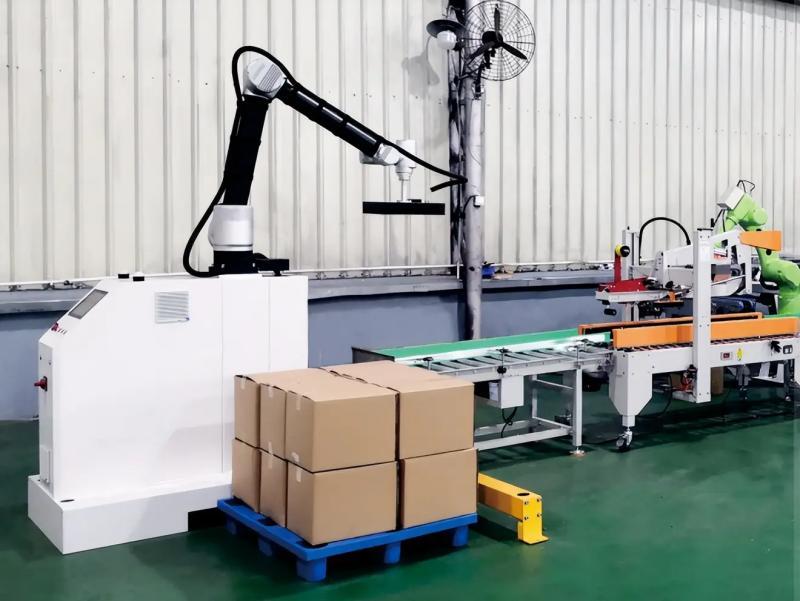

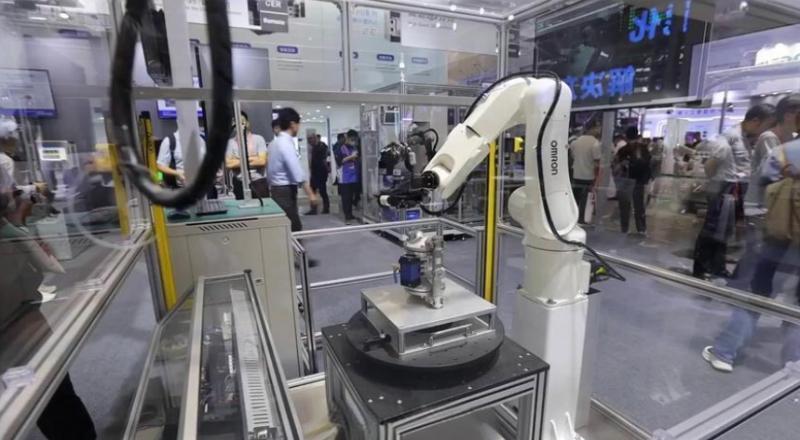

Collaborative robots (cobots) are increasingly deployed in Danish assembly lines where human-machine interaction is essential. These robots depend on a network of sensors to maintain safe, precise operation in shared workspaces. Sensors are integrated throughout the robotic arm, including the joints and end-of-arm tooling, to support real-time control and collision detection.

Customer Requirement

The Danish automation integrator required a standardized, field-proven connector solution for sensor and actuator connections across multiple cobot models. The primary technical targets were:

• Reliable signal integrity for position, proximity, force, and torque sensors mounted on robot joints and end-effectors
• Secure mating under continuous motion and vibration without accidental disconnection
• Environmental protection against dust and moisture typical of production floor conditions
• Clear coding to separate signal and communication channels, simplifying maintenance in multi-sensor layouts

Solution and Configuration

M12 circular connectors were specified for their threaded locking mechanism, which ensures stable connections during high-speed operation and repeated movement cycles. The selected series offers multiple coding options, allowing clean separation of power, signal, and fieldbus lines. This configuration reduces electromagnetic interference and streamlines troubleshooting in dense robotic wiring harnesses.

Commissioning and Delivery

During the commissioning phase, the connectors were mated and unmated repeatedly to verify mechanical retention and contact stability under simulated robot motion. The installation team confirmed that the threaded coupling maintained consistent electrical contact throughout the test cycles. The delivered units met the project's mechanical robustness and ingress protection requirements, and the coding scheme was validated against the robot's wiring diagram to prevent mis-mating during field service.

Result and Application Fit

The M12 connector solution provided a durable and standardized interface for sensor connectivity in collaborative robotic systems. The locking mechanism, coding flexibility, and environmental resistance proved suitable for the demanding automation environment in Denmark. For related products, see M12 Circular Connectors or explore M12 waterproof circular connectors with customized cable for application-specific cabling needs.
