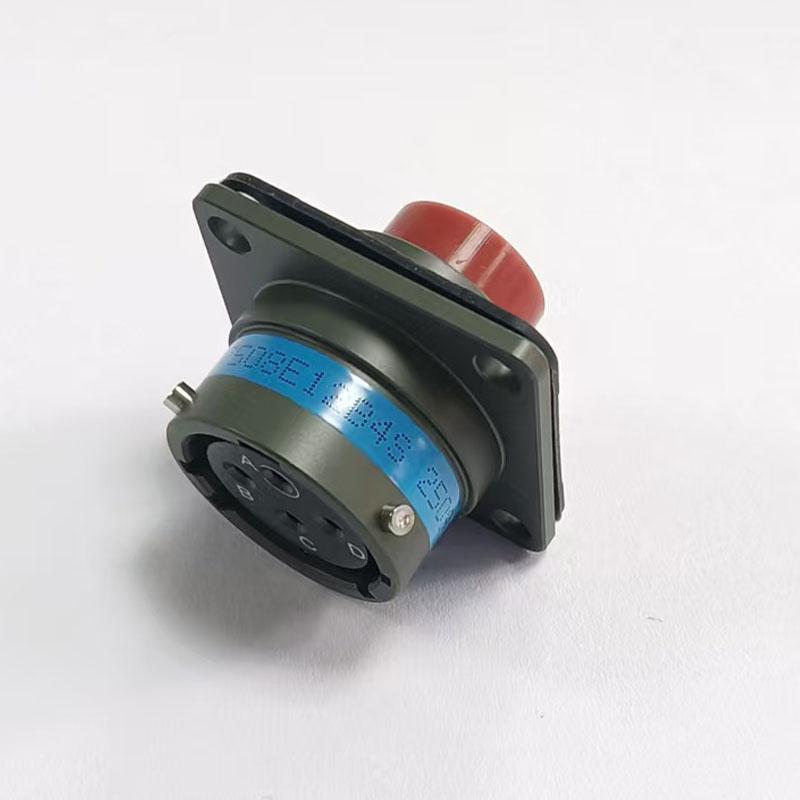

MS27508E12B4S Connector for Robotic Gripper Control Modules

The MS27508E12B4S connector is engineered for robotic gripper control modules, delivering dependable power and stable signal transmission in industrial automation environments. Its rugged aluminum alloy housing and precision-machined contacts are built to endure continuous vibration, repeated mating cycles, and demanding production floor conditions, making it a practical choice for precision gripping, assembly, and material handling systems.

Why This Connector Suits Robotic Gripper Applications

Robotic gripper modules require connectors that maintain electrical continuity under constant motion and mechanical stress. The MS27508E12B4S is designed with this operating profile in mind, offering a balance of mechanical strength and electrical reliability for control and power circuits.

• Stable contact integrity – Gold-plated brass contacts help maintain consistent conductivity for gripper motors and control signals, reducing the risk of intermittent faults during high-speed operations.
• Vibration-resistant housing – The aluminum alloy shell provides structural rigidity, helping the connector withstand shock and vibration commonly found in robotic end-of-arm tooling.
• Quick system integration – The streamlined bayonet-style coupling allows for fast, secure mating, which simplifies installation and maintenance in automated cells.
• Application-matched configuration – Available in male and female variants with 4 pins, this connector supports straightforward wiring for gripper actuation and feedback circuits.

Selection and Configuration Considerations

When specifying the MS27508E12B4S for a gripper module, confirm the following variables to ensure correct mating and performance:

• Gender and mounting – Verify whether the application requires a plug (male) or receptacle (female), and whether cable or panel mounting is needed for the robot arm or control cabinet.
• Pin assignment – Confirm the wiring scheme for power, signal, and any shielding requirements before assembly.
• Cable preparation – Ensure the cable diameter and conductor size are compatible with the contact barrel and strain relief provisions.
• Environmental exposure – While the housing is built for industrial use, confirm the specific IP rating and temperature range required for your operating environment.

Application Fit and Boundaries

This connector is well suited for robotic gripper control modules, automated assembly tooling, and material handling equipment where reliable power and signal delivery are critical. It is also appropriate for other industrial automation applications that require a compact, durable 4-pin circular interface.

However, it is not intended for high-voltage power distribution, submersible or underwater use, or applications requiring frequent field rewiring without proper tooling. For environments with extreme chemical exposure or continuous flexing at the cable entry, confirm material compatibility and cable strain relief options with your supplier.

Installation and Maintenance Guidance

Proper installation is essential to achieving the connector's expected service life. Ensure contacts are correctly crimped or soldered according to the manufacturer's instructions, and verify that the coupling ring is fully tightened to prevent partial mating. Periodically inspect the connector for signs of wear, contamination, or loose contacts, especially in high-cycle robotic applications.

Inquiry Checklist for Accurate Quoting

To receive an accurate quotation and ensure the correct connector configuration, please provide the following information when contacting KMYD:

• Required gender (male or female) and mounting style (cable or panel)
• Pin count and any specific pinout or wiring diagram
• Cable outer diameter and conductor size
• Operating voltage, current, and environmental conditions
• Quantity and target delivery schedule

For related industrial connector options, you may also review the Aviation Plug Connectors range or the LD20/SP20 Industrial Flange Connector for alternative mounting configurations.
