LD12 2PIN Waterproof Connectors for Industrial AMR Robot Sensor Systems in Japan

Project Background

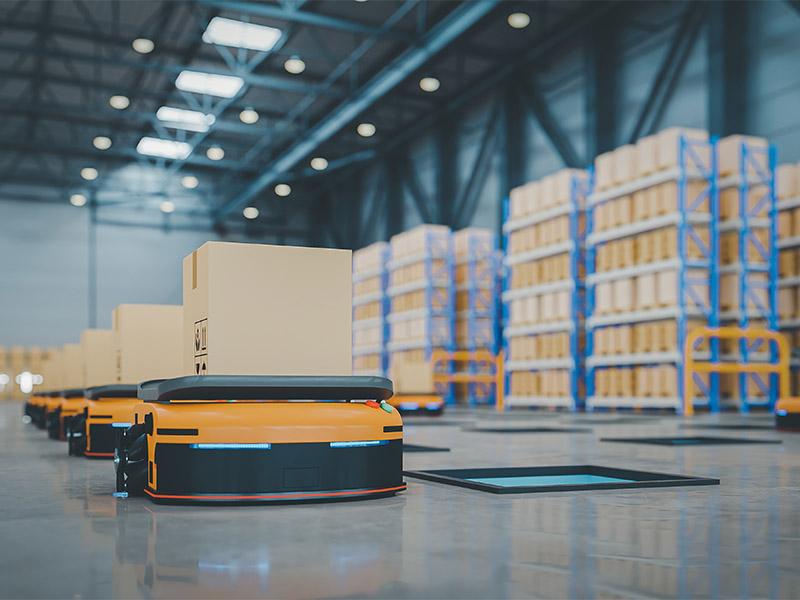

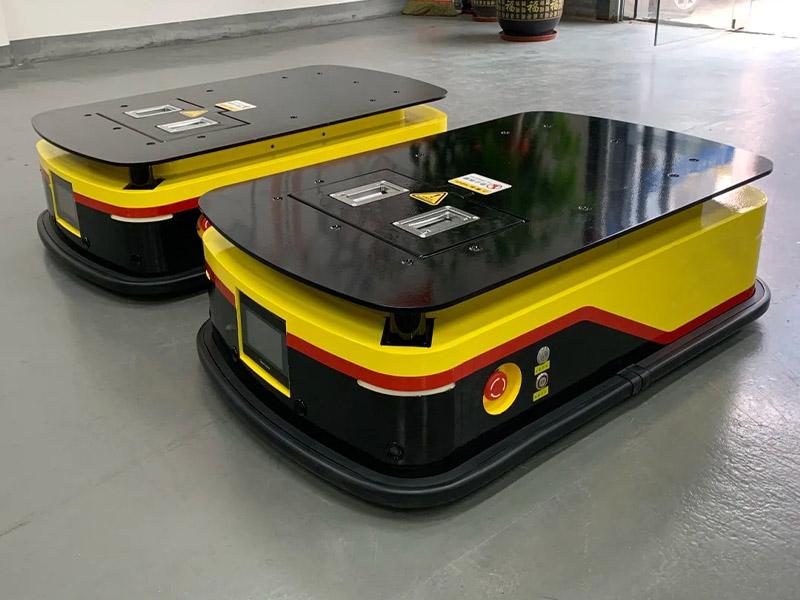

With the rapid development of industrial automation and smart logistics, Autonomous Mobile Robots (AMRs) are increasingly deployed in manufacturing plants and automated warehouses. These robots rely on basic sensor systems—such as proximity sensors, limit sensors, and safety trigger modules—to ensure safe navigation and accurate positioning.

In this project, a Japan-based industrial automation equipment integrator required a reliable low-voltage power and signal connection solution for AMR sensor modules. The connectors needed to support panel-mounted installation, enable fast cable termination without soldering, and maintain stable performance under vibration, dust, and occasional water exposure.

After evaluation, the customer selected the LD12 2PIN Waterproof Connector, a compact, panel-mount connector with screw-type cable termination, specifically designed for industrial field wiring and maintenance-friendly installations.

Application Challenges

The AMR sensor connection system faced several practical challenges in real-world operation:

• Continuous vibration and movement increased the risk of loose wiring and intermittent power supply

• Sensors were installed on robot panels exposed to dust, cleaning moisture, and oil residue

• On-site wiring required no-solder assembly to reduce installation time and human error

• Maintenance personnel needed quick cable replacement without specialized tools

• Compact sensor modules required a panel-mounted connector with minimal internal space usage

These requirements ruled out traditional solder-type connectors and complex locking structures.

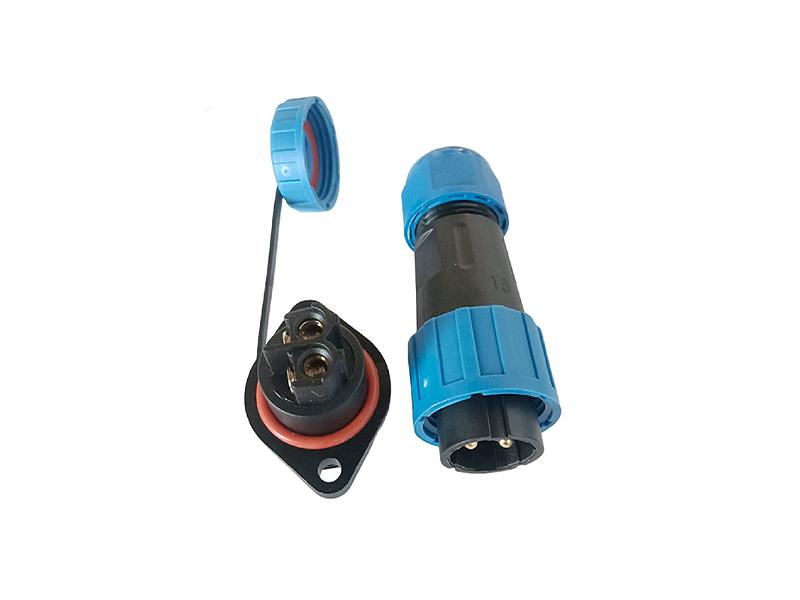

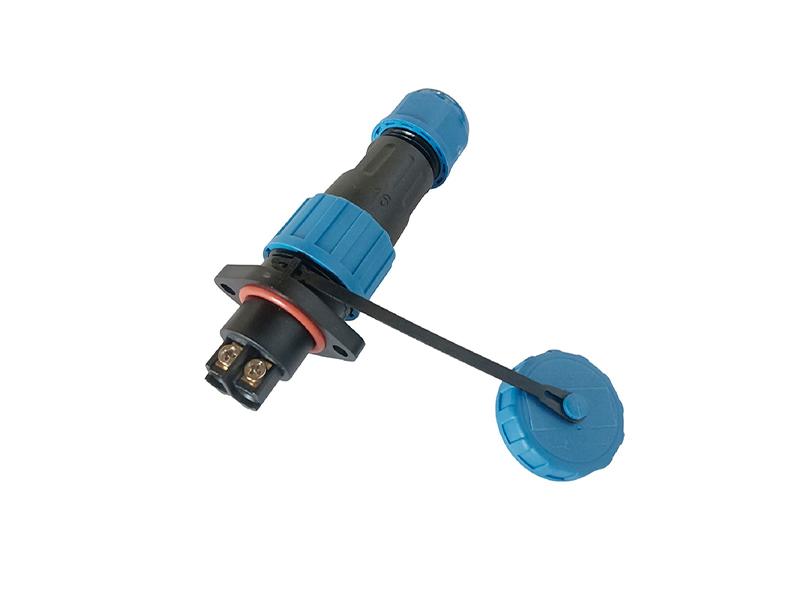

Solution: LD12 2PIN Waterproof Panel-Mount Connector

To address these challenges, the system integrator adopted the LD12 2PIN Waterproof Connector, configured for panel installation with screw-type cable termination.

This connector is specifically designed for low-voltage power and basic signal transmission, making it ideal for proximity sensors, limit switches, and safety input modules commonly used in AMR platforms.

Key technical features include:

• 2-pin configuration, optimized for power or simple control signal circuits

• Panel-mount design, enabling secure installation on metal or plastic enclosures

• Screw terminal cable connection, allowing fast, tool-based wiring without soldering

• Threaded coupling structure, providing stable mating and resistance to vibration

• Integrated sealing gasket, achieving reliable waterproof and dustproof protection

The screw termination structure allows technicians to connect or replace cables directly on site, significantly reducing assembly time and simplifying maintenance procedures.

Installation and Performance Results

After implementation, the LD12 2PIN connector demonstrated stable and reliable performance across multiple AMR units operating in Japanese industrial environments.

Key results included:

• Stable power and signal transmission with no observed connection failures during continuous robot movement

• Installation time per connector reduced by approximately 35–40% compared to solder-type solutions

• Maintenance efficiency significantly improved, enabling fast cable replacement without disassembling sensor modules

• Improved consistency in field wiring quality, reducing human error during installation

The panel-mounted structure ensured a clean and professional appearance while maintaining excellent mechanical stability under vibration.

Industry Applicability

The LD12 2PIN Waterproof Panel-Mount Connector is well suited not only for AMR sensor systems, but also for:

• AGV power and control modules

• Industrial sensors and limit switches

• Safety interlock systems

• Compact automation equipment and control panels

With its no-solder screw termination, compact size, and reliable sealing performance, the LD12 series provides a practical and cost-effective connectivity solution for industrial automation applications requiring fast installation and easy maintenance.
