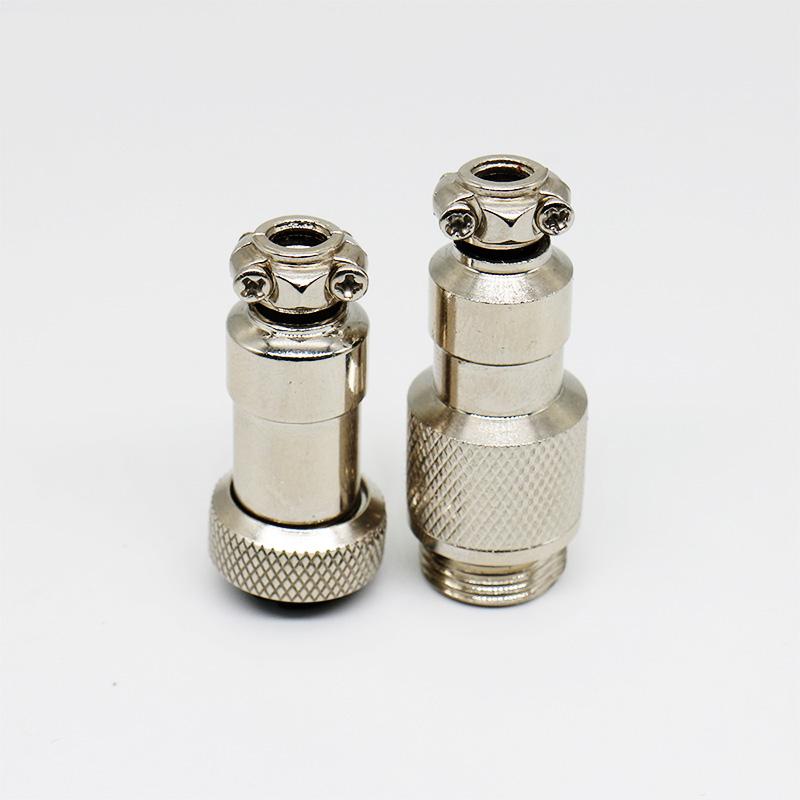

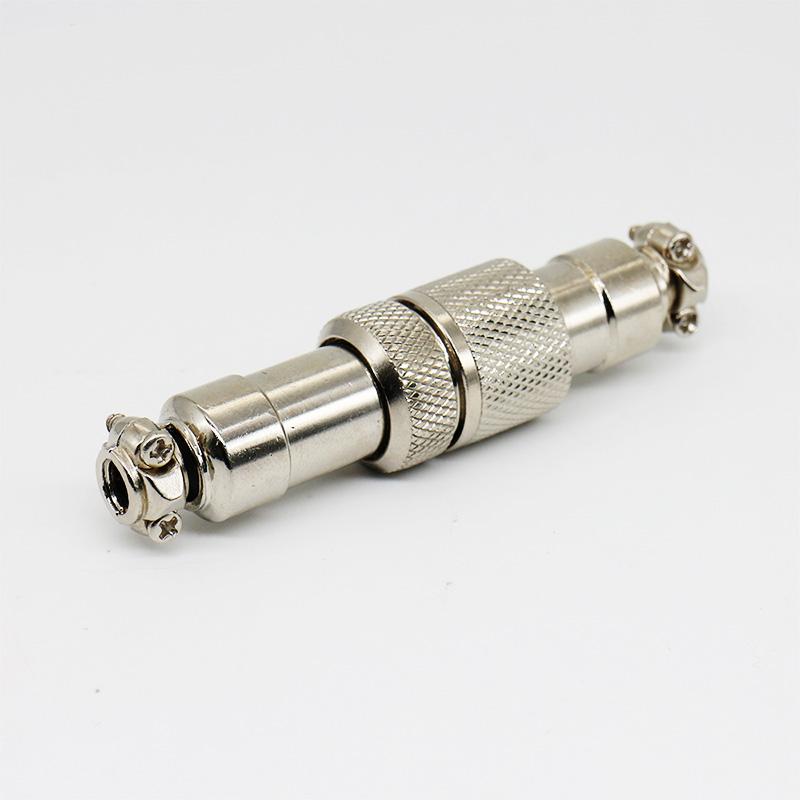

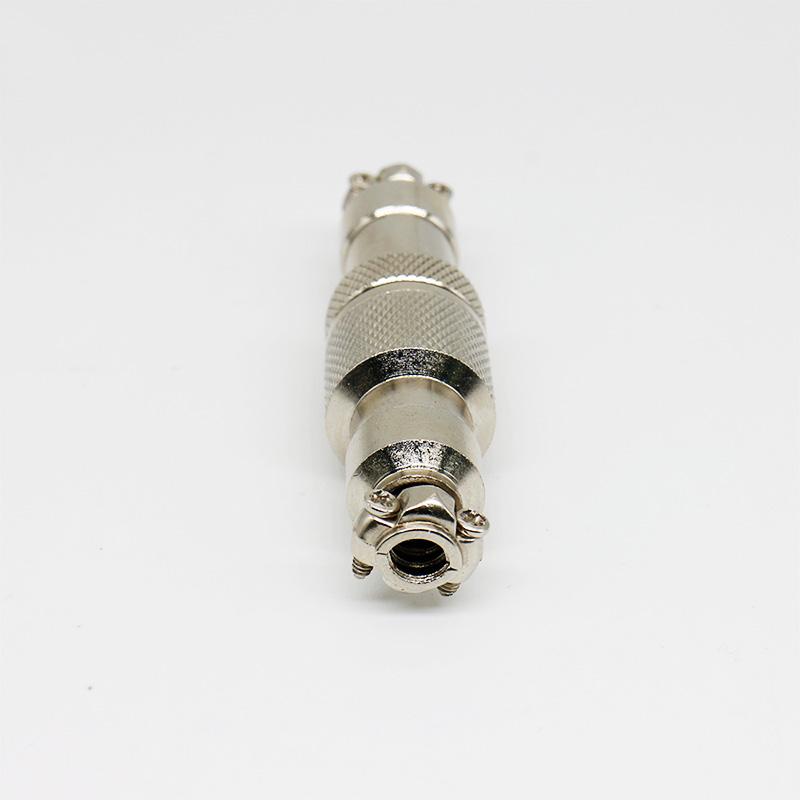

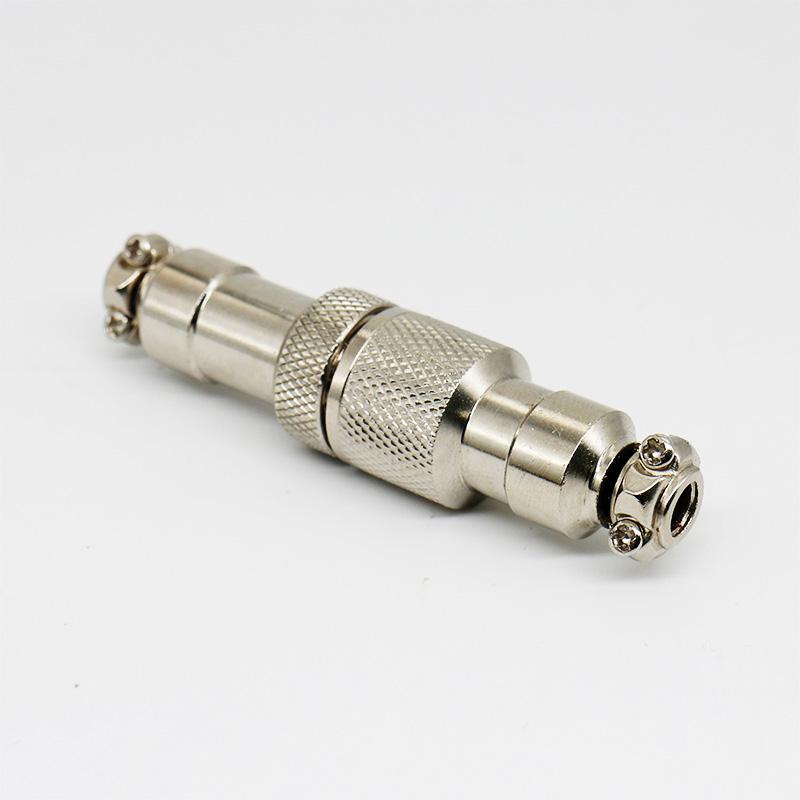

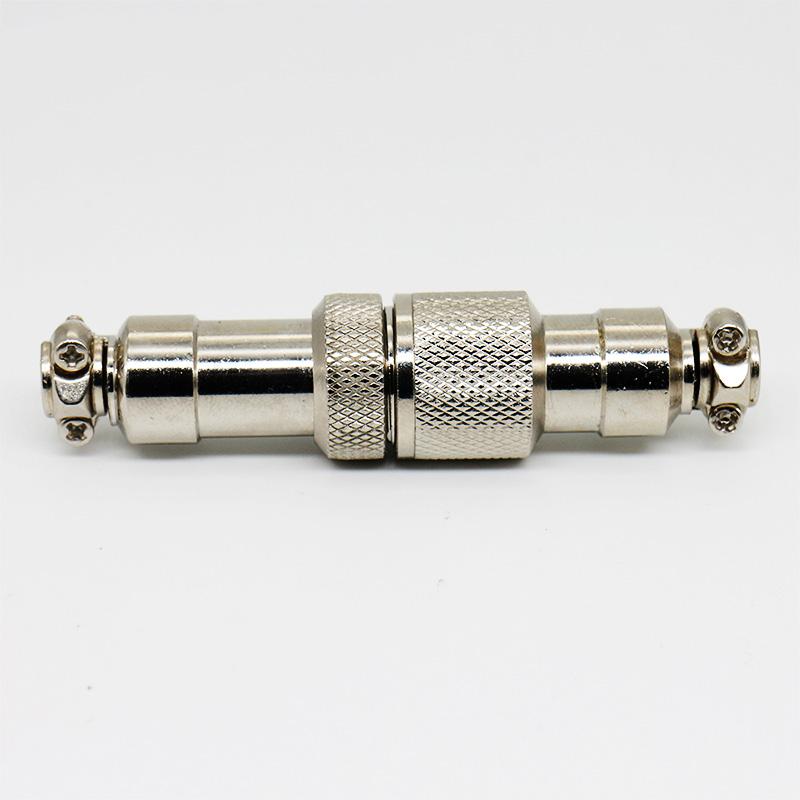

GX12 Connector for Robotic Arm Joint Sensors

Din Circular Connector

Durable Design for Industrial Environments

Ideal for Robotic Arm Sensor Applications

This GX12 circular connector is widely used in robotic arm joint sensors, robotic control systems, automation equipment, and industrial machinery where reliable power and signal transmission is required.

Key Selection Considerations

When selecting a GX12 connector for your robotic arm joint sensor application, consider the following decision points:

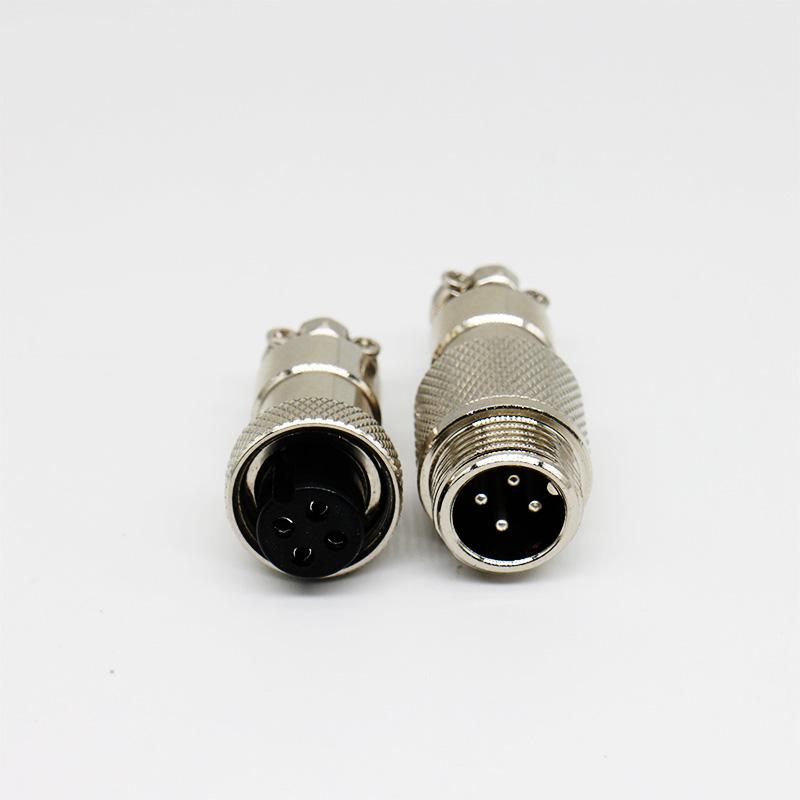

• Pin Configuration: Choose the appropriate number of cores (2-7 pins) based on your sensor's power and signal requirements.
• Gender and Mounting: Determine whether a male or female connector and panel or cable mount configuration best fits your robotic arm assembly.
• Environmental Resistance: Verify that the zinc alloy housing with nickel plating and screw locking system meets your vibration and mechanical stress demands.
• Contact Material: Confirm whether brass contacts with gold or silver plating are suitable for your signal integrity and corrosion resistance needs.

Application Fit and Boundaries

The GX12 connector is well-suited for robotic arm joint sensors, control systems, and automation equipment where space is constrained and reliable locking is essential. However, it is not intended for high-power industrial applications or environments requiring high IP-rated waterproofing while unmated. For such requirements, consider alternative connector series with higher ingress protection.

Installation and Inquiry Guidance

To ensure correct mating and reliable performance, provide the following details when inquiring about this connector:

• Required pin count and gender (male/female).
• Cable diameter and termination type (solder, crimp, or PCB).
• Mounting style (panel mount, cable mount, or free hanging).
• Specific application environment (temperature, vibration, exposure to chemicals).
• Any custom cable length or connector assembly requirements.

For related connector options, explore the 12G Series Circular Connectors or review the M12 Connector for Robotic Arm Control Systems for alternative solutions.
