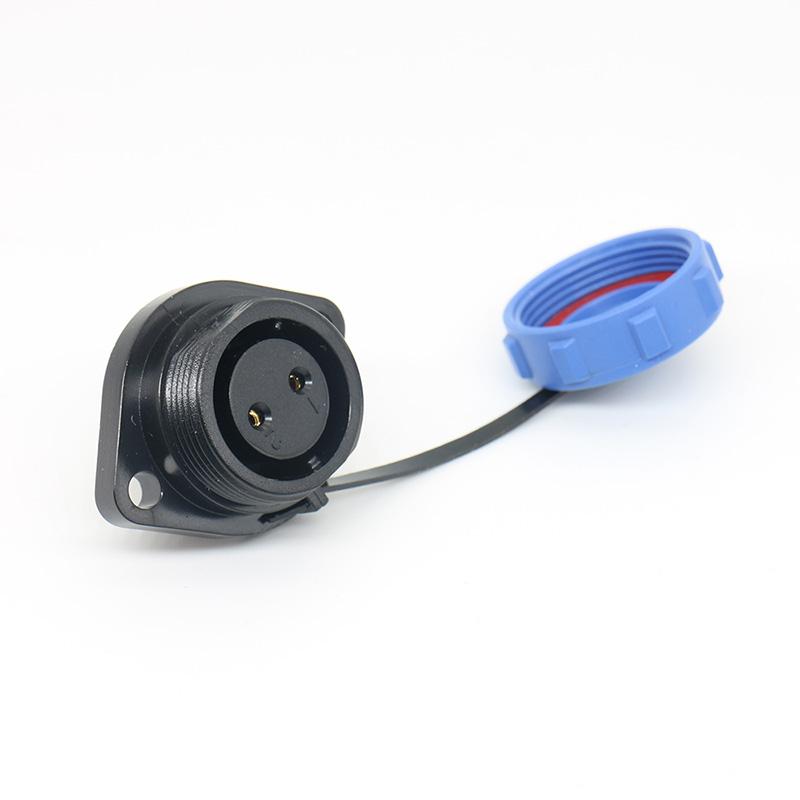

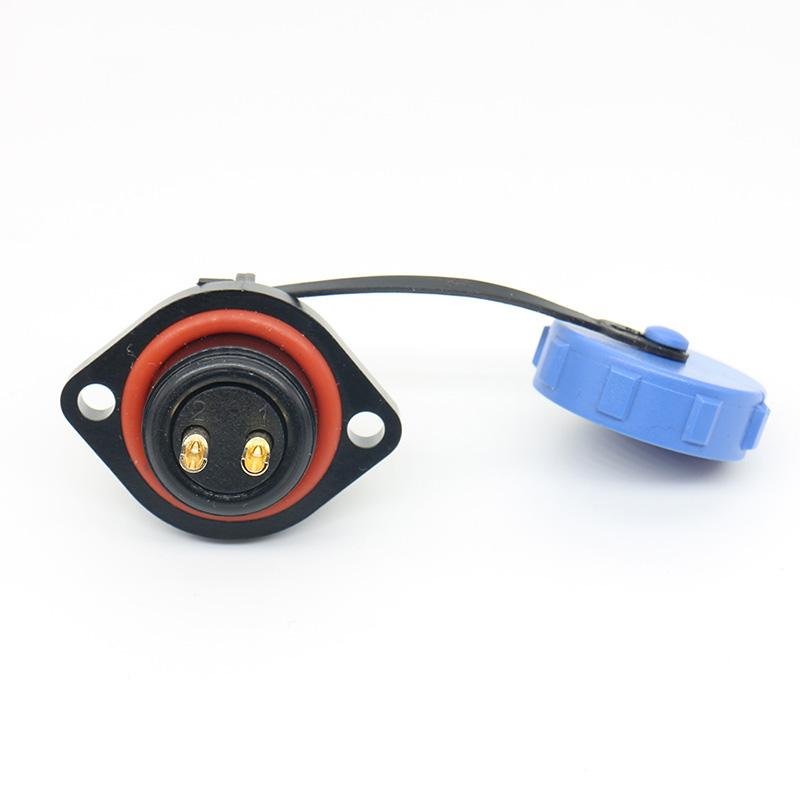

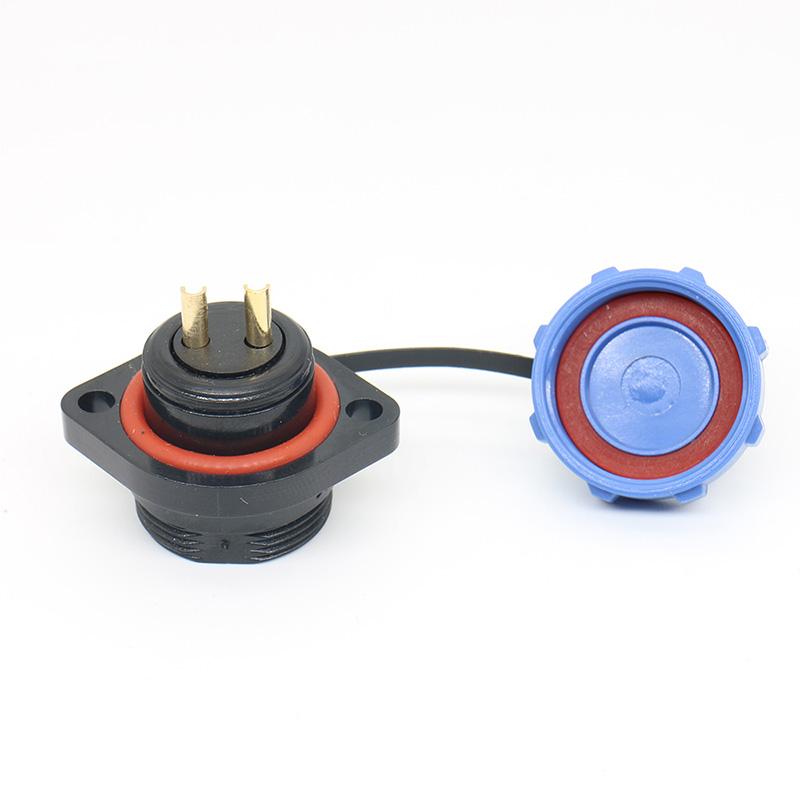

SP17 IP68 Waterproof Connector for Robotic Vision Cameras

SP17 Waterproof Connector for Robotic Vision Cameras

The SP17 IP68 Connector is engineered for robotic vision cameras, providing a reliable, waterproof, and dustproof connection in industrial and automated environments. Designed for precision and durability, it ensures stable data transmission for your robotic systems, even under harsh conditions.

Why Choose the SP17 for Your Vision System

Selecting the right interconnect for a robotic vision camera depends on the environmental exposure, signal integrity requirements, and mechanical constraints of your application. The SP17 series addresses these concerns with a compact, sealed interface designed for continuous operation in automated equipment.

• Environmental Protection: The IP68 rating protects sensitive camera signals from moisture, dust, and debris, supporting reliable operation in washdown and outdoor environments.
• Precision Fit: Specifically designed for robotic vision cameras and industrial robots, the connector maintains a secure mating interface to prevent signal loss from vibration.
• Durable Construction: High-quality materials ensure long-lasting performance in continuous-duty automation cycles.
• Versatile Applications: Suitable for autonomous mobile robots, inspection robots, and AI vision systems where space is limited.

Application Scope and Integration

The SP17 is suited for vision-guided robotics, including pick-and-place systems, quality inspection stations, and autonomous navigation platforms. Its sealed design supports integration into camera housings and junction boxes where standard connectors may fail due to moisture ingress.

For applications involving high-flex cabling or frequent mating cycles, confirm the cable strain relief and mounting orientation with your system integrator to ensure long-term reliability.

Configuration and Mating Considerations

When specifying the SP17, verify the following to ensure correct mating and performance:

• Confirm the required number of cores (2-9 pin) and gender (male/female) for your camera interface.
• Check the housing material option (PC/PA66) against your environmental and chemical exposure requirements.
• Verify the contact plating (brass plated with gold) meets your signal integrity and corrosion resistance needs.
• Determine whether a panel-mount or cable-mount configuration best suits your robotic arm or camera housing design.

Suitable and Unsuitable Use Cases

The SP17 is appropriate for sealed, low-to-medium current signal connections in robotic vision, sensor, and control applications. It is not intended for high-power distribution or applications requiring frequent field rewiring without proper tooling. For higher pin-count or flange-mounted requirements, consider the LD20/SP20 Industrial Flange Connector.

Inquiry Checklist for Accurate Quoting

To receive an accurate quotation and sample configuration, please provide the following details:

• Required pin count and gender (male/female).
• Cable outer diameter and conductor gauge for the mating cable.
• Mounting style: cable-to-cable, panel mount, or PCB mount.
• Operating environment: temperature range, chemical exposure, and washdown frequency.
• Any specific housing color or keying requirements.

For a broader selection of sealed interconnect options, review the Waterproof Connectors catalog.
