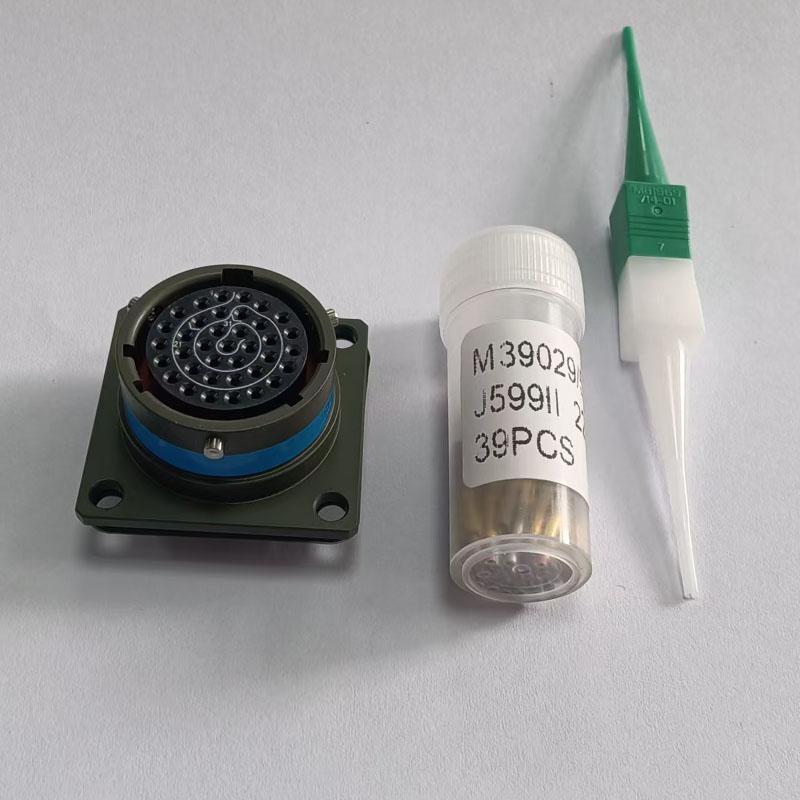

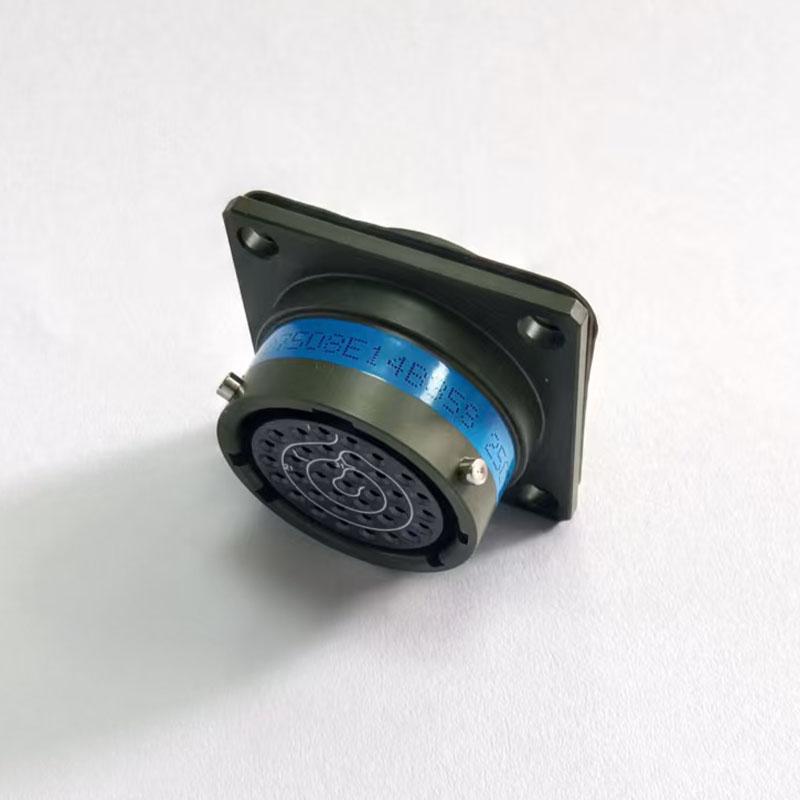

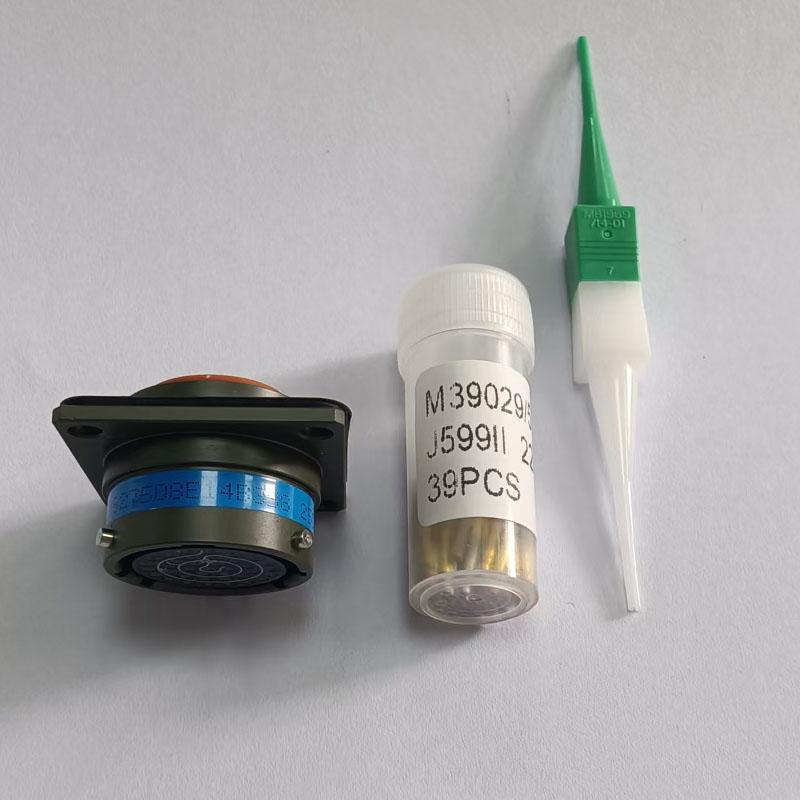

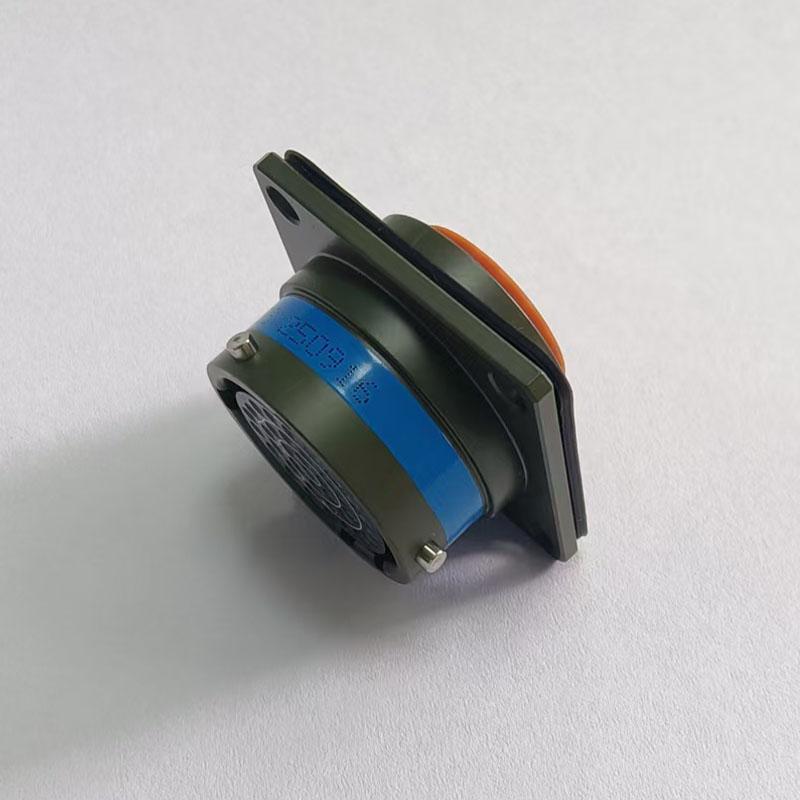

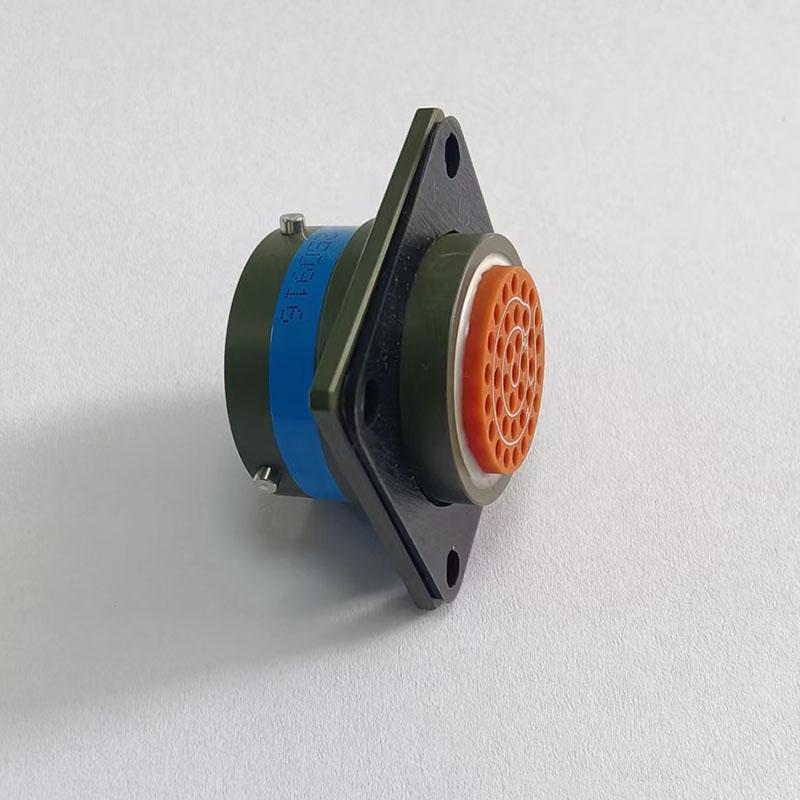

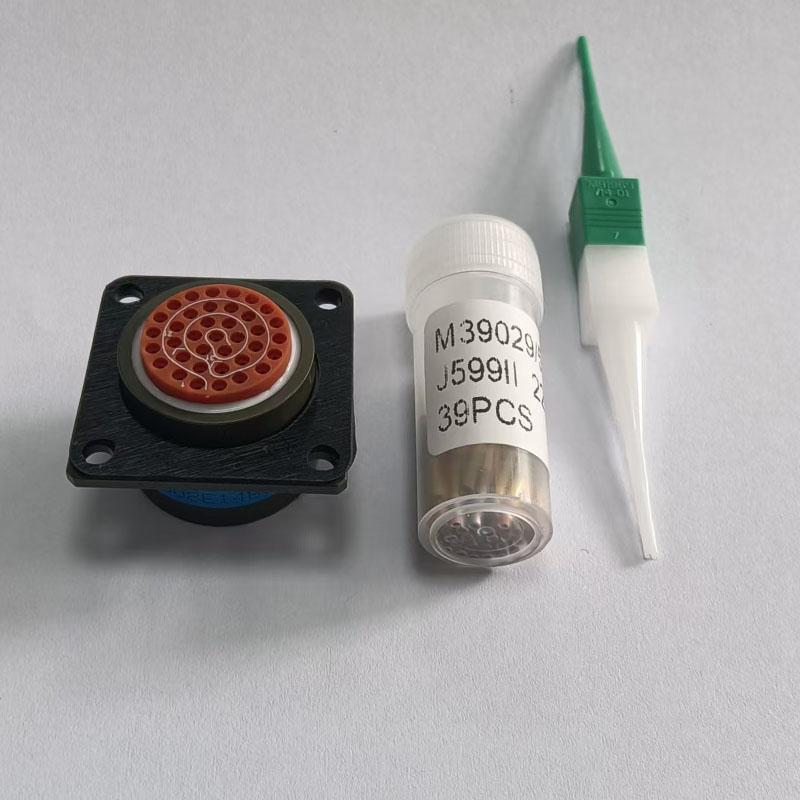

MS27508E14B35S Connector for AGV Robot Power Modules

The MS27508E14B35S connector is a MIL-spec circular connector designed for reliable power delivery in AGV robots and industrial mobile equipment. Its 37-pin configuration and secure locking mechanism make it suitable for demanding automated material handling applications where vibration resistance and stable electrical contact are critical.

Why This Connector Fits AGV Power Applications

AGV power modules require connectors that maintain electrical integrity under continuous movement, vibration, and repeated mating cycles. The MS27508E14B35S addresses these demands through its MIL-spec construction and aluminum alloy housing, which provides mechanical protection for the gold-plated brass contacts inside.

• Secure locking mechanism: Prevents accidental disconnection during robot operation and transit.
• Compact footprint: Sized for integration into space-constrained AGV power modules.
• Durable housing: Aluminum alloy shell withstands industrial shock and vibration.
• Gold-plated contacts: Supports stable signal and power transfer over extended service life.

Selection Considerations for Your AGV Platform

Before specifying this connector, verify the following parameters against your AGV power module requirements:

• Mating interface: Confirm the plug and receptacle orientation matches your cable assembly and panel layout.
• Pin assignment: The 37-pin layout must align with your power and signal distribution scheme.
• Gender configuration: Select the appropriate male or female version for your mounting arrangement.
• Cable entry: Verify the cable diameter and termination method suit your harness design.

Application Scope and Boundaries

This connector is well suited for AGV power modules, industrial mobile robots, and automated material handling systems that require a rugged circular interface. It is not intended for high-frequency signal transmission, underwater mating, or applications requiring repeated field rewiring without proper tooling. For environments with continuous water immersion or extreme temperature cycling, confirm the environmental rating with your application engineer.

Installation and Integration Notes

Proper installation requires attention to the locking mechanism and contact seating. Ensure the connector is fully engaged before energizing the circuit, and verify that cable strain relief is provided separately to avoid transmitting mechanical loads through the contact interface. For robotic arm end effector applications, review the related MS27508E14B35P variant to compare pin arrangements.

Information to Include in Your Inquiry

To receive an accurate quotation and configuration recommendation, provide the following details:

• Required gender (plug or receptacle) and mounting style
• Cable diameter and conductor count for your harness
• Operating voltage and current per pin
• Environmental conditions (temperature range, exposure to fluids or dust)
• Mating cycle expectations and any specific locking requirements

For a broader overview of compatible circular connector options, review the Aviation Plug Connectors range. For related AGV power connector solutions, see the GX20 Screw-Lock Circular Connector for AGV Robot Power.

Contact our engineering team with your application details to confirm the MS27508E14B35S meets your AGV power module requirements, or to discuss alternative configurations from the MIL-spec connector family.
