M8 Connectors
< >

M8 IP67 Waterproof Panel Mount Cable Connector 2-8 Pin

MOQMOQ >200
PricePrice
>Number Of CoresNumber Of Cores 2-8 Pin
Contact DiameterContact Diameter(mm) 1.0mm/0.72mm/0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 3A/1A
Rated VoltageRated Voltage(Ac.V) 180V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE,ISO9001, RoHS
Get Quote
+8619924482730

LD20/SP20 Waterproof Panel Mount Connector Specs

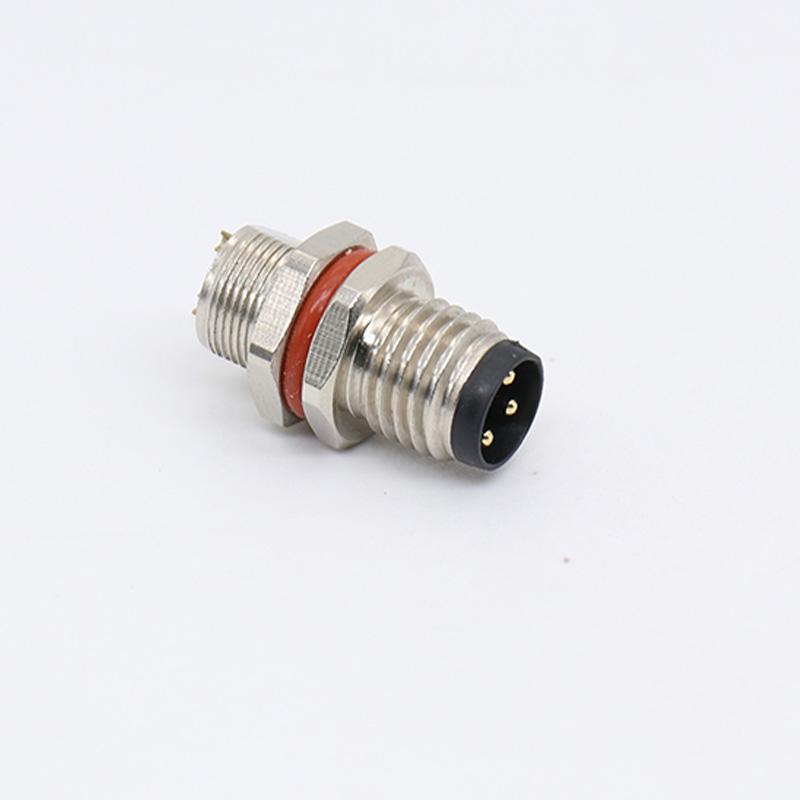

M8 IP67 waterproof panel mount cable connector main product view
M8 PANEL MOUNT CONNECTOR

M8 IP67 Waterproof
Panel Mount Cable Connector

Compact and reliable panel interface solution for industrial signal transmission.

Panel-mounted structure · Pre-assembled cable design · IP67 waterproof protection · Stable industrial connection.

IP67 Rated Panel Mount Cable Assembly OEM / ODM

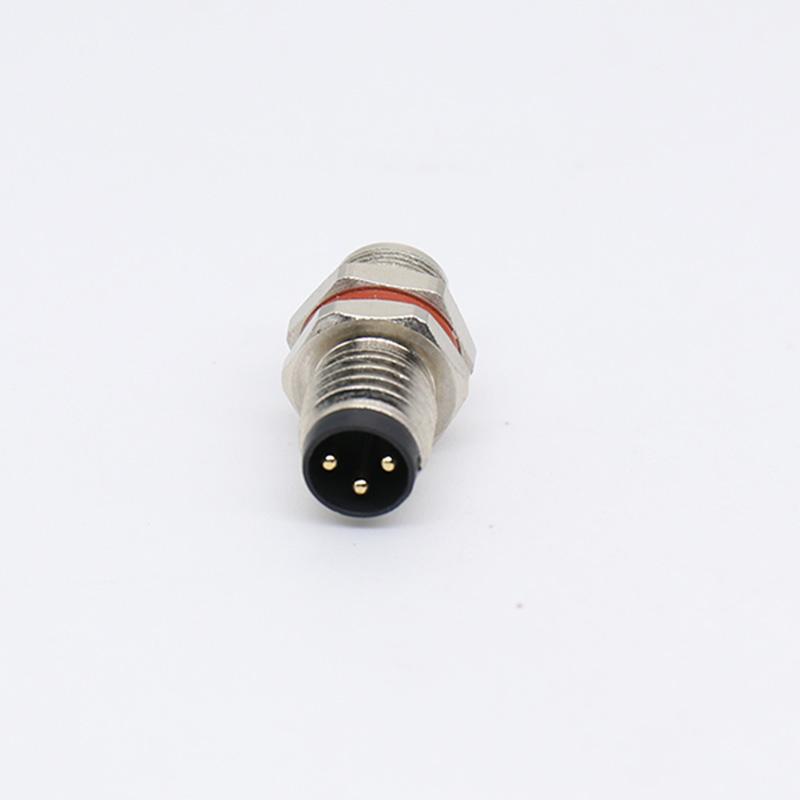

M8 panel mount cable connector product view
M8 / PANEL MOUNTKMYD CONNECTOR
MODEL
M8 Panel Mount Cable Connector
PROTECTION
IP67 Waterproof & Dustproof
DESIGN
Fixed Panel Interface
APPLICATION
Automation & Control Panels

Product Overview

The M8 IP67 waterproof panel mount cable connector is designed as a compact and reliable interface solution for industrial equipment requiring stable signal transmission and secure panel integration. It combines a panel-mounted structure with a pre-assembled cable design, enabling efficient connection between internal circuits and external devices.

With its M8 compact form factor, this connector is widely used in space-limited industrial systems where stable wiring, environmental protection, and easy installation are equally important.

PRODUCT DETAILS

Reliable Panel Interface Design

View the fixed panel interface, compact connector body, and integrated cable assembly structure.

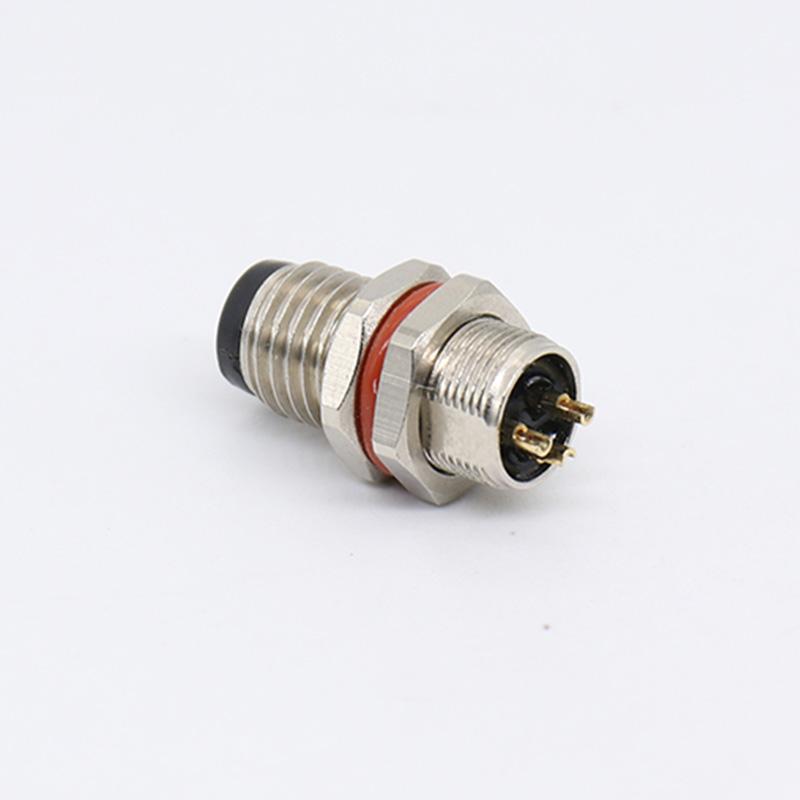

M8 connector interface detail
01 / PANEL INTERFACE
Fixed Equipment Connection Port
Designed to serve as a stable connection point on equipment enclosures and control panels.

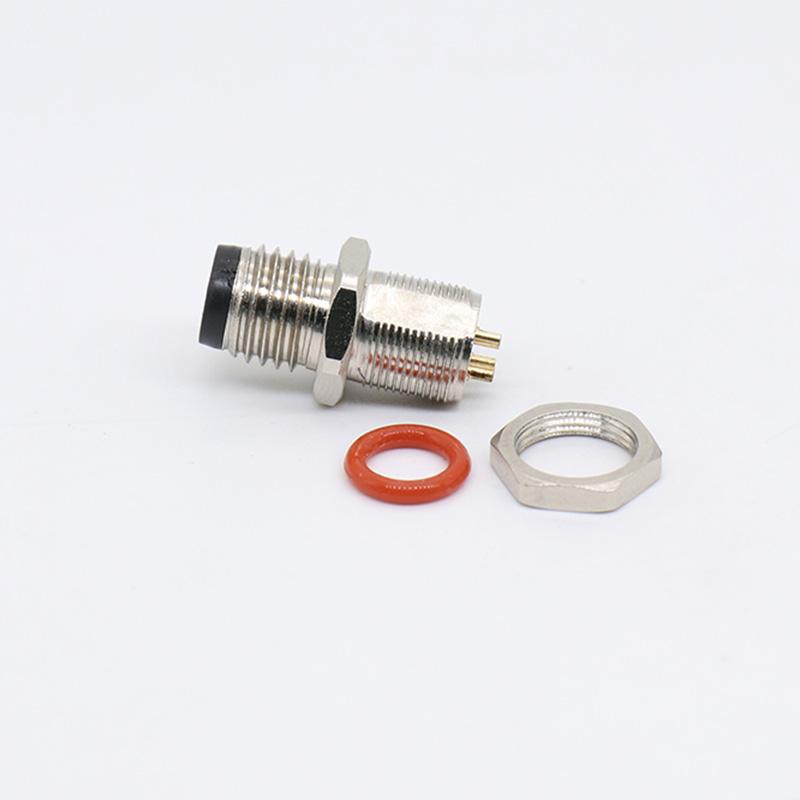

M8 panel mount connector manufacturing support
02 / COMPACT M8 DESIGN
Space-saving structure for industrial systems.
Secure mounting.
Stable signal output.
The panel mount format improves system organization and supports long-term connection reliability.

Why Choose This M8 Panel Mount Connector

Unlike inline cable connectors, the panel mount version is engineered to act as a fixed connection port on equipment enclosures. This design improves wiring organization, supports secure installation, and helps maintain stable long-term performance in industrial control systems.

Key Product Advantages

01   Secure Panel Mounting

Fixed installation structure helps maintain a stable connector position on equipment panels and enclosures.

02   IP67 Protection

Waterproof and dustproof protection supports use in industrial environments exposed to moisture and dust.

03   Compact M8 Structure

Small connector size supports space-saving integration in compact electrical panels and machine modules.

04   Stable Signal Transmission

Reliable locking and cable integration help maintain signal stability under vibration and repeated connection cycles.

05   Cable Integration & Custom Options
Custom cable length, PVC / PUR / silicone cable options, shielded cable, different wire gauges, straight or right-angle cable configurations, OEM wiring, and labeling support are available.

Typical Applications

The M8 IP67 panel mount cable connector is widely used in industrial and electronic systems requiring stable panel connection and compact wiring.

01   Industrial automation equipment
02   Sensor and actuator systems
03   Control cabinets and electrical panels

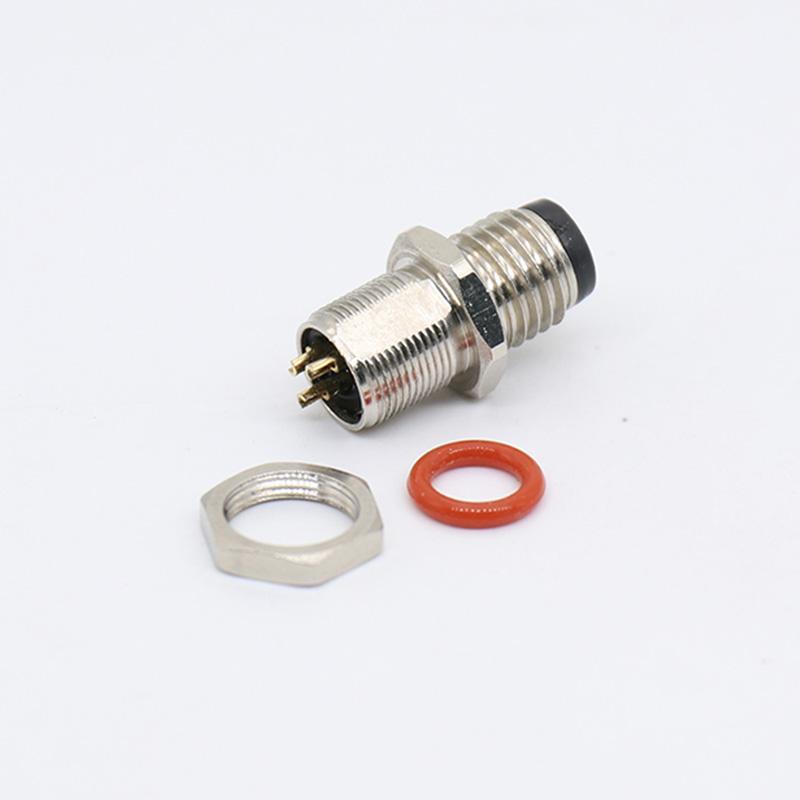

M8 panel mount connector quality and product view

LD28/SP28 Panel Mount Connectors Dimensions and Materials

Item Parameters
Number of Cores 2-8 Pin
Gender Male / Female
Housing Material Nickel Plated Brass
Core Material Gold Plated Brass
Insulator Material PA66
Locking System Screw Locking
Temperature Range -30°C to +85°C
Rated Current (A) 3A (2-5 Pin) / 1A (6-8 Pin)
Rated Voltage (AC.V) 180V
Test Voltage (AC.V) 1 Min 1000V
Insulation Resistance (MΩ) 1500 MΩ
Contact Resistance (MΩ) ≤10 MΩ
Termination Solder
