M5 Connectors
< >

M5 4 Pin Female Straight Plug IP67 Connector

MOQMOQ >200
PricePrice
>Number Of CoresNumber Of Cores 4 Pin
Contact DiameterContact Diameter(mm) 0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material Brass Nickel Plated
Temperature RangeTemperature Range -25°C ~ +80°C
TerminationTermination Solder
Rated CurrentRated Current(A) 1A
Rated VoltageRated Voltage(Ac.V) 60V
Test VoltageTest Voltage(Ac.V)1Min 500V
Insulation ResistanceInsulation Resistance (MΩ) ≥100 mΩ
Contact ResistanceContact Resistance (MΩ) ≤5 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+8619924482730

M SERIES CONNECTOR

M5 4 Pin Female Straight Plug
IP67 Connector

Compact circular connector for precise sensor and automation signal transmission.

5 mm threaded interface · 4 pin female plug · IP67 protection · Overmolded cable assembly.

4 Pin Female Straight Plug IP67 Rated OEM / ODM

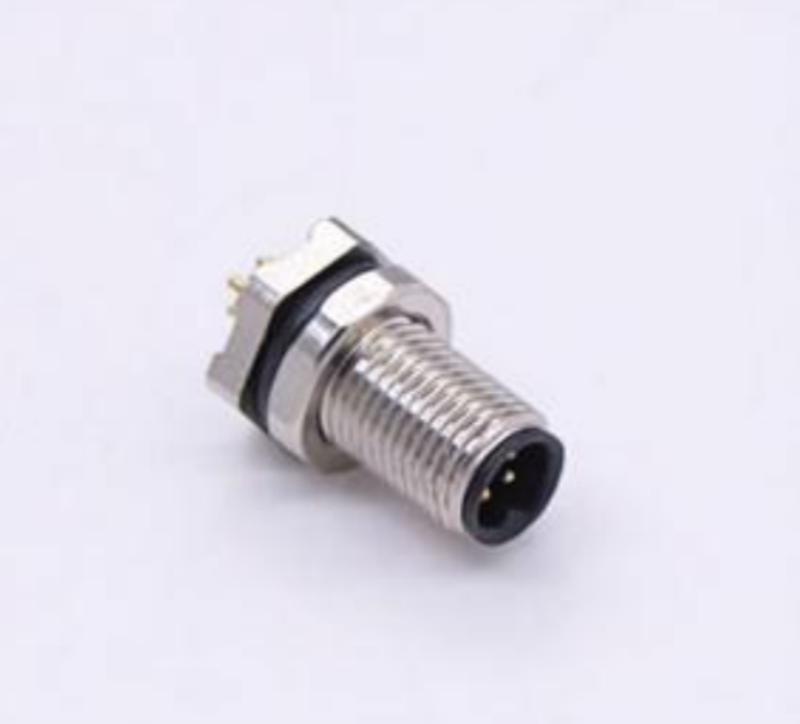

M5 4 pin female straight plug connector main product view
M5 / 4 PIN FEMALEKMYD CONNECTOR
MODEL
M5 4 Pin Female Straight Plug
PROTECTION
IP67 Waterproof
INTERFACE
5 mm Threaded Connection
APPLICATION
Sensors & Automation

Product Overview

The M5 4 Pin Female Straight Plug is a compact circular connector designed for precise signal transmission in industrial automation and sensor applications. Featuring a 5 millimeter threaded interface and IP67 protection rating, this connector is suitable for space limited installations where stable and secure connections are required.

This model is specifically engineered for four wire sensor systems and IO level signal integration, including miniature proximity switches, photoelectric sensors, compact automation modules, and embedded control devices.

PRODUCT DETAILS

Compact Female Plug for Sensor Wiring

View the M5 straight plug structure, threaded connection, and overmolded cable design.

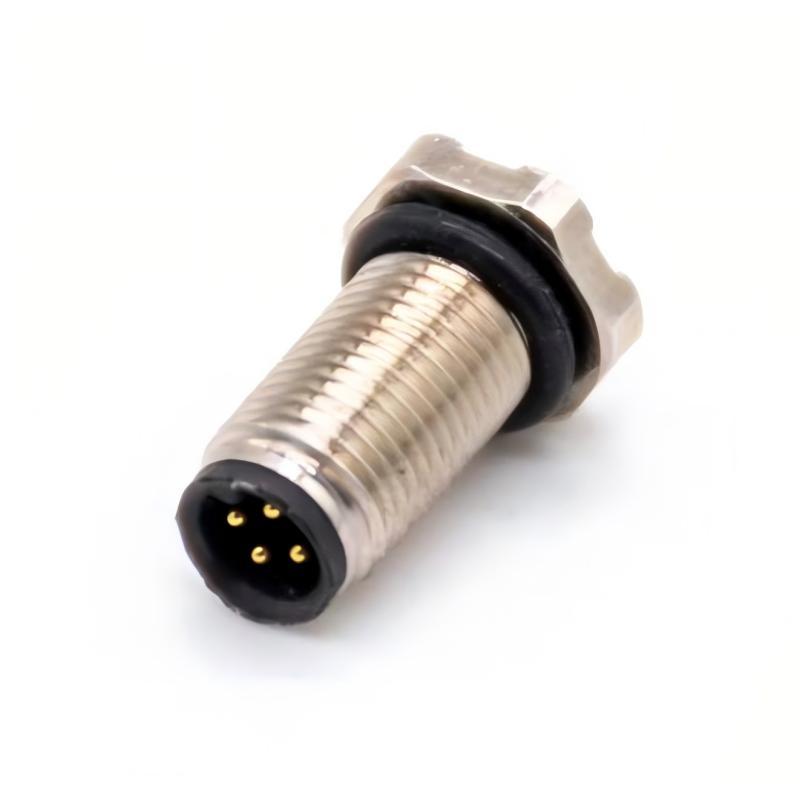

M5 connectors product detail view
01 / 4 PIN FEMALE PLUG
Multi-Signal Transmission
The 4 pin layout supports simultaneous power and signal transmission within one compact connector body.

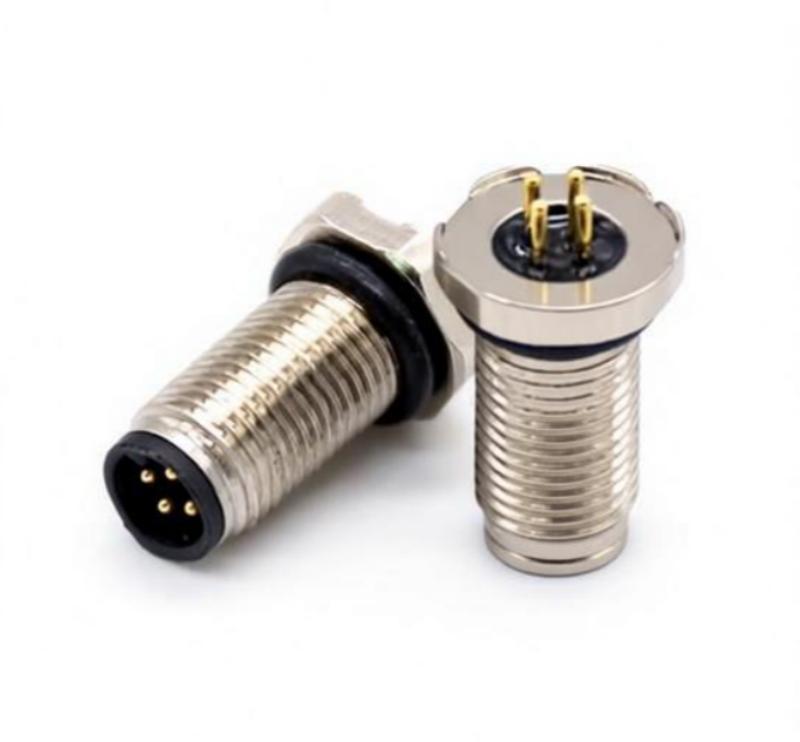

M5 female straight plug threaded connector
02 / STRAIGHT DESIGN
Direct cable routing for machine side installation.
Small connector.
Stable threaded locking.
The straight plug format supports clean cable routing and compatibility with front mounted sensor ports.

Why Choose the M5 4 Pin Female Straight Plug

This M5 connector is designed for compact automation systems where installation space is limited but secure signal connection is still essential. Its female straight plug structure, threaded locking system, and IP67 protection make it suitable for sensor wiring and miniature control interfaces.

Key Product Features

01   4 Pin Configuration

Supports sensor signal connection, miniature proximity switches, photoelectric sensors, and small automation modules.

02   Straight Plug Design

Allows direct cable routing, simple installation, reduced structural complexity, and stable threaded locking connection.

03   IP67 Waterproof Protection

Dust tight sealing, temporary water immersion resistance, and integrated sealing ring design improve reliability in industrial environments.

04   Overmolded Cable Construction

Integrated strain relief, improved cable retention, PVC or PUR jacket options, and multiple cable lengths reduce installation time.

05   OEM Customization Support
Custom cable length, cable material selection, private label marking, and packaging customization are available for system integrators and equipment manufacturers.

Application Scenarios

The M5 4 Pin Female Straight Plug IP67 connector is widely used in miniaturized automation systems requiring compact size and stable connection performance.

01   Industrial automation equipment
02   Compact sensor systems
03   Robotics modules
04   Precision assembly machines
05   Embedded control devices

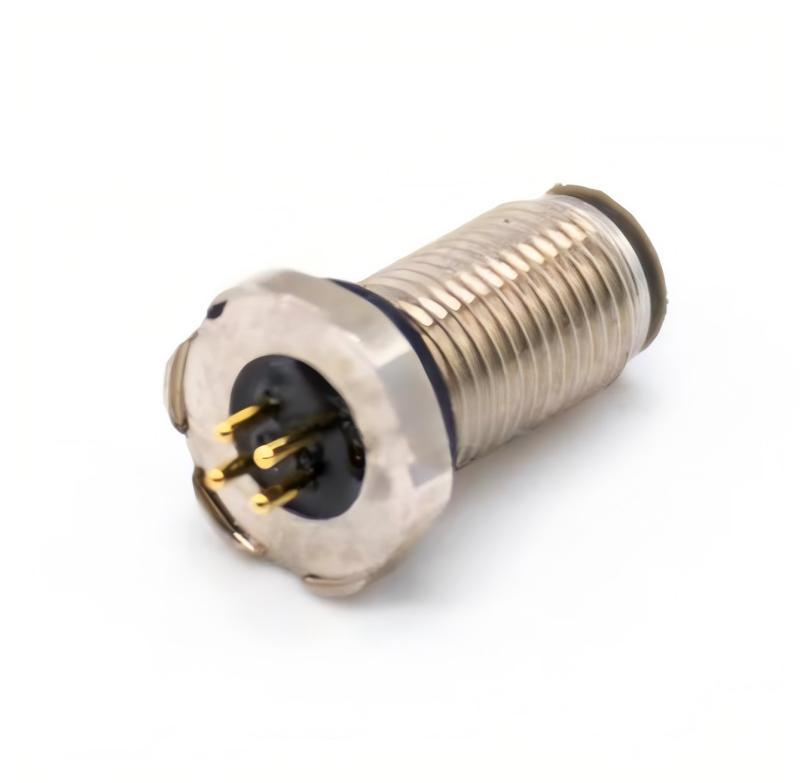

M5 connector application product view

Manufacturing and Custom Cable Support

KMYD provides compact M-series circular connectors and customized cable assembly support for industrial automation, sensor systems, robotics modules, and embedded equipment. Technical drawings and specifications are available to assist project selection and integration.

M5 female connector customized cable assembly
Custom cable length PVC or PUR jacket options Private label marking Packaging customization

Electrical Performance

Rated Voltage: Up to 60 V AC / DC
Rated Current: Up to 1 A
Insulation Resistance: > 100 MΩ
Contact Resistance: < 5 mΩ
Contact Option: Gold plated contacts available

Mechanical Structure

Connector Type: Female straight plug
Locking System: Threaded locking
Protection Rating: IP67 when properly connected
Temperature Range: -25°C ~ +80°C
Construction: Overmolded cable assembly

Compact and Reliable Sensor Connection Solution

The M5 4 Pin Female Straight Plug IP67 Connector is a compact and reliable solution for industrial sensor and automation applications. With its 4 pin configuration, straight plug structure, waterproof protection, and stable threaded locking system, it delivers consistent performance in space limited environments.

GET IN TOUCH

Contact Us for M5 Connector Drawings and Custom Cable Assembly

Share your sensor wiring, cable length, material, and installation requirements to receive suitable connector support.

KMYD CONNECTOR · M SERIES INDUSTRIAL CONNECTORS

 Item

 Parameters

 Number of Cores

 4 Pin

 Gender

 Male/Female

 Housing Material

 Brass Nickel Plated

 Locking System

 Screw Locking

 Temperature Range

 -25°C~ +80°C

 Rated Current (A)

 1 A

 Rated Voltage (AC.V)

 60 V

 Test Voltage (AV.C)1Min

 500 V

 Insulation Resistance (㏁)

 ≥100 ㏁

 Contact Resistance (㏁)

 ≤ 5㏁

 Termination

 Solder
