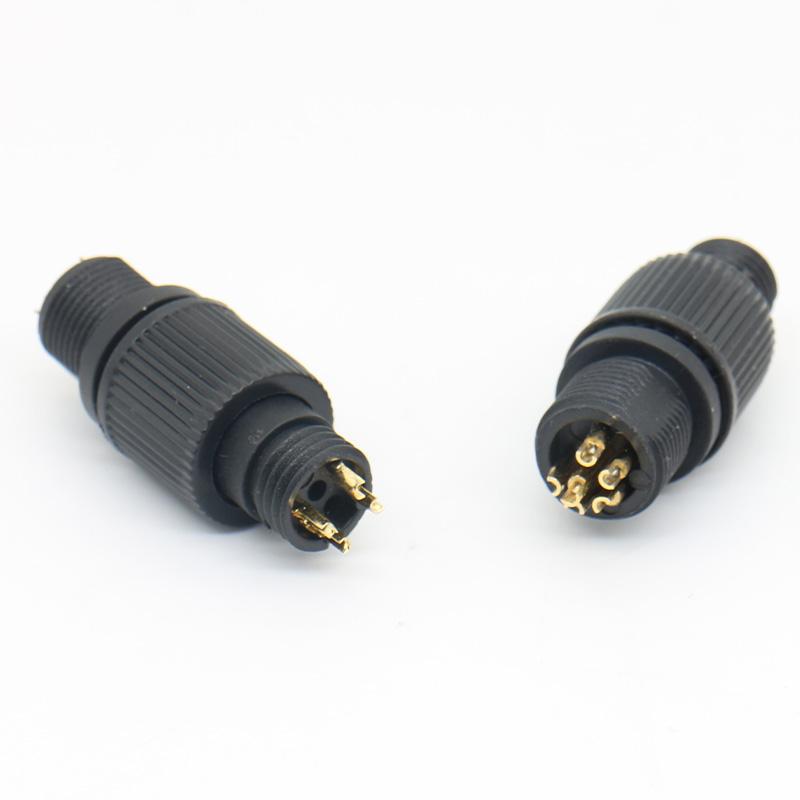

M11 LED Lighting Connector

>Number Of CoresNumber Of Cores 2-6Pin
Contact DiameterContact Diameter(mm) 1.0mm
IP RatingIP Rating IP67
Shell MaterialShell Material Nylon
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder/Panel Mount
Rated CurrentRated Current(A) 4A
Rated VoltageRated Voltage(Ac.V) 60V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) ≥100MΩ
Contact ResistanceContact Resistance (MΩ) ≤30MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote

M11 Circular Connector: Reliable Connection for Harsh Environments & Precision Devices

When stability meets durability, the M11 series connector becomes the unsung hero of your electrical systems. Designed to tackle daily wear, environmental challenges, and precision transmission needs, this compact yet powerful component delivers consistent performance across industrial, commercial, and electronic applications — no more signal drops, loose connections, or safety concerns.

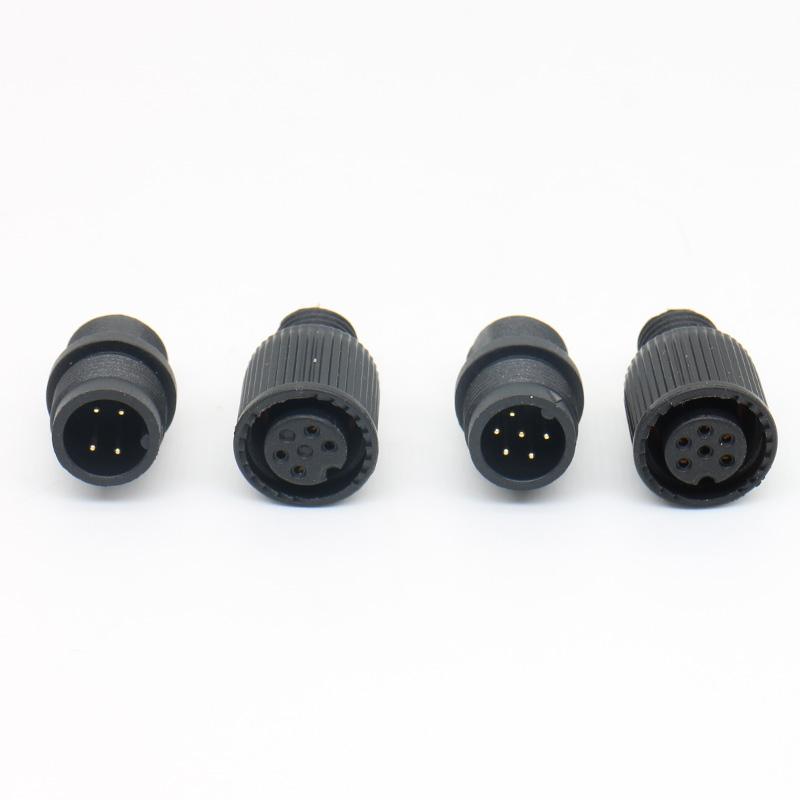

Circular Connector


M11 Connectors Core Advantages: Beyond Basic Connection

Robust Environmental Adaptability: With IP67 waterproof protection and a wide operating temperature range of -40°C to +85°C (varies by model), it resists humidity, dust, salt spray, and extreme temperature fluctuations. Whether in outdoor LED lighting, marine equipment, or high-temperature industrial settings, it maintains reliable operation .

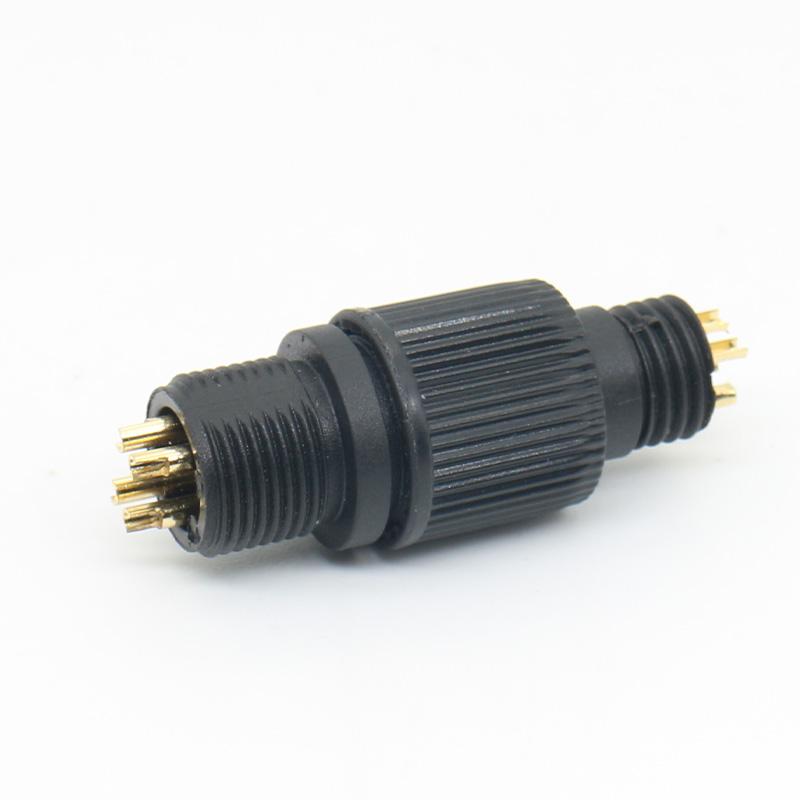

Waterproof Connectors

Superior Conductivity & Durability: Equipped with high-conductivity copper contacts (some with gold plating) that ensure contact resistance as low as 6mΩ, minimizing power loss and signal interference. The PVC or PPS insulation material boasts flame-retardant (UL 94 V-0) and anti-aging properties, while the sturdy housing supports up to 500+ mating cycles .

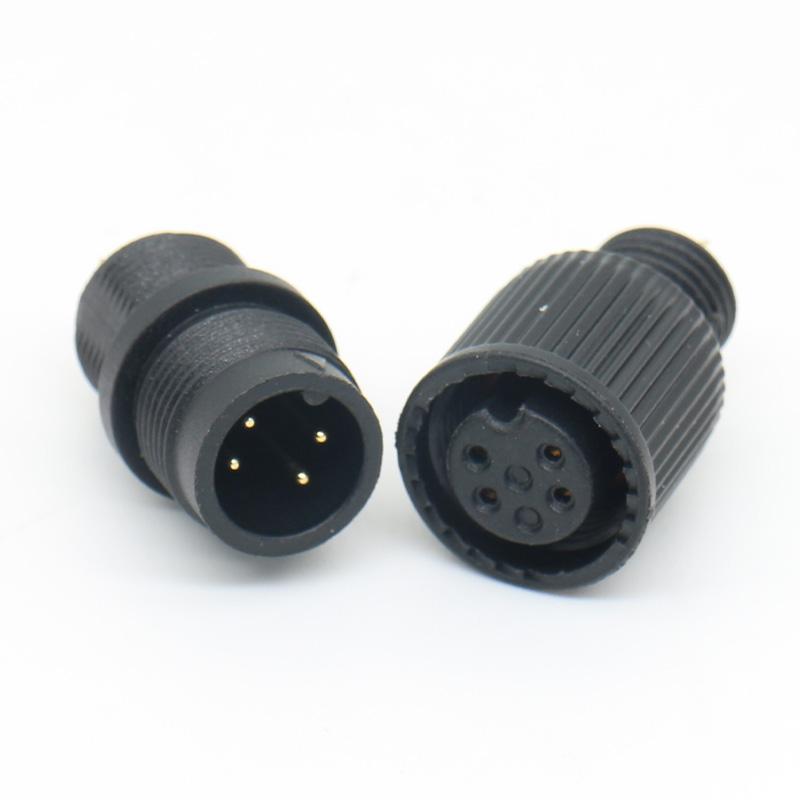

Male Connector


Flexible & User-Friendly Design: Available in 2-6 pin configurations, 20-24AWG wire gauge compatibility, and both angle and linear types to solve cable bending and space constraints. Modular structure enables quick, tool-free installation, saving time for on-site assembly and maintenance .

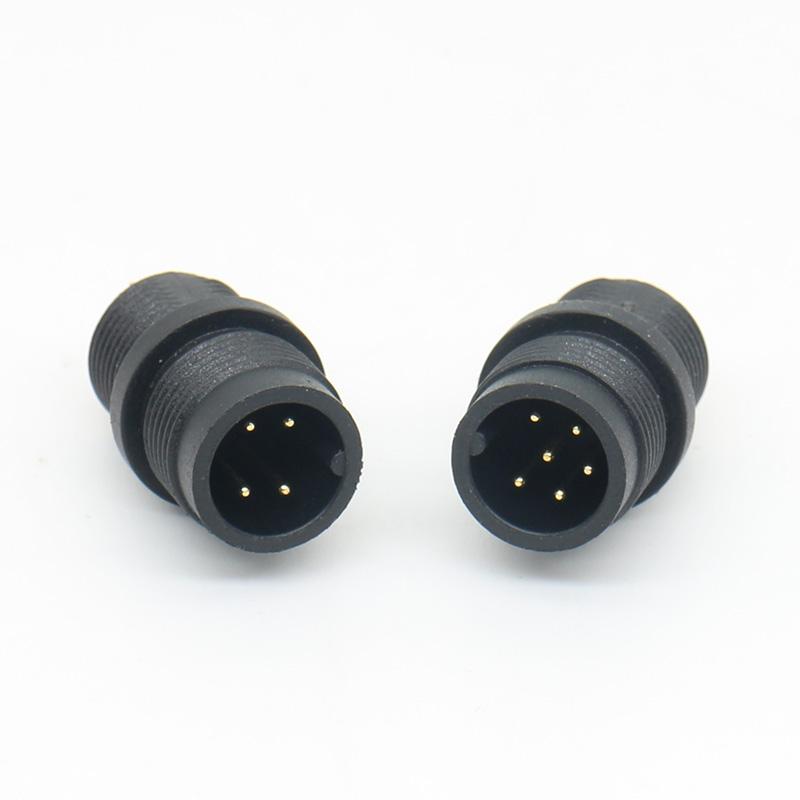

4pin Connector


Versatile Applications of M11 Connectors

Across Scenarios From powering LED light strips and CCTV cameras to connecting industrial sensors and precision instruments, the M11 series adapts to diverse needs:

Electronic devices: Baby monitors, laptops, routers, and DC power supply systems.

Industrial equipment: Automation production lines, robotics, and measuring instruments.

Outdoor & harsh environments: Marine electronics, automotive systems, and outdoor security devices.


Quality You Can Trust

Every M11 connector undergoes strict performance testing. We offer OEM/ODM customization services — adjust pin counts, cable lengths, and housing materials to match your specific project requirements. With halogen-free options and excellent electromagnetic shielding, it’s not just a connector, but a long-term investment in system stability.

Choose the M11 series to eliminate connection worries. It’s the silent guarantee that keeps your devices running smoothly, whether in daily use or extreme conditions.

Item

Parameters

Number of Cores

2-6Pin

Gender

Male/Female

Housing Material

Nylon

Cores Material

Brass Plated with Gold

Insulator Material

PA66

Locking System

Screw Locking

Temperature Range

-40℃, +85℃

Rated Current (A)

4A

Rated Voltage (AC.V)

60V

Test Voltage (AV.C)1Min

1000V

Insulation Resistance ()

≥100

Insulation Resistance ()

≤30

Termination

Solder/ Panel Mount


Related Resource


M11 LED Lighting ConnectorMain Features
Related Solutions

Customer Reviews



Score
 Remove

Review Title

Review Text

   Clean and Professional


SkyRover  2026-02-04

Well-finished M11 Connectors with tight locking and smooth mating.
   Recommended Product


NeonFable  2026-02-04

High-quality M11 Connectors that meet professional standards.
   Solid Performance


NorthWander  2026-02-04

These M11 Connectors are sturdy, precise, and very dependable.
   Easy to Work With


RiftRunner  2026-02-04

Compact M11 Connectors that are simple to install and use.
