IP68 Waterproof LD Circular Connector 2-11 Pin Screw Crimping

SF Series Aviation Connectors Specifications and Performance Data

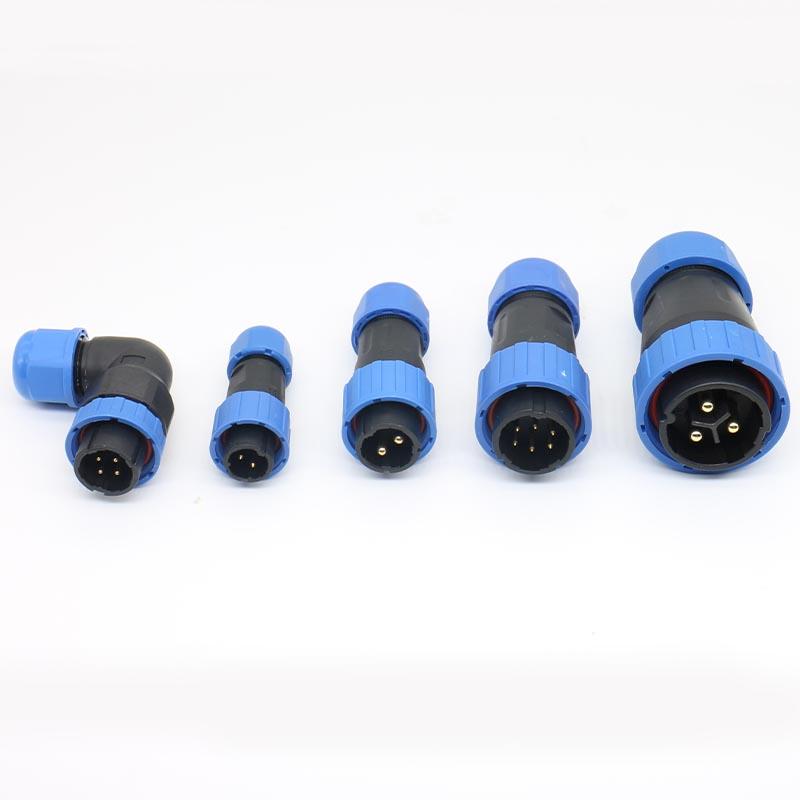

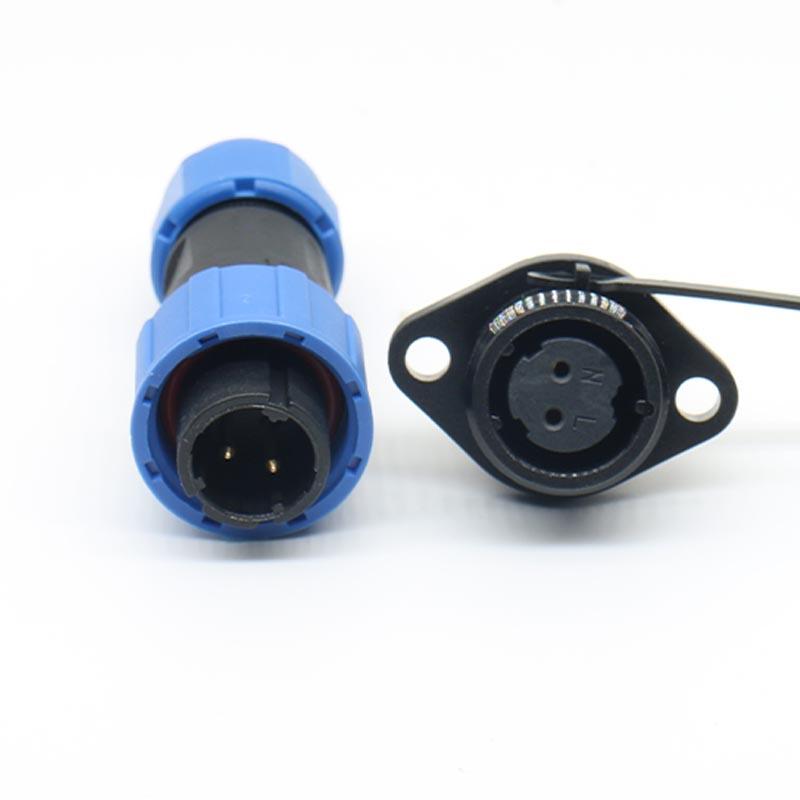

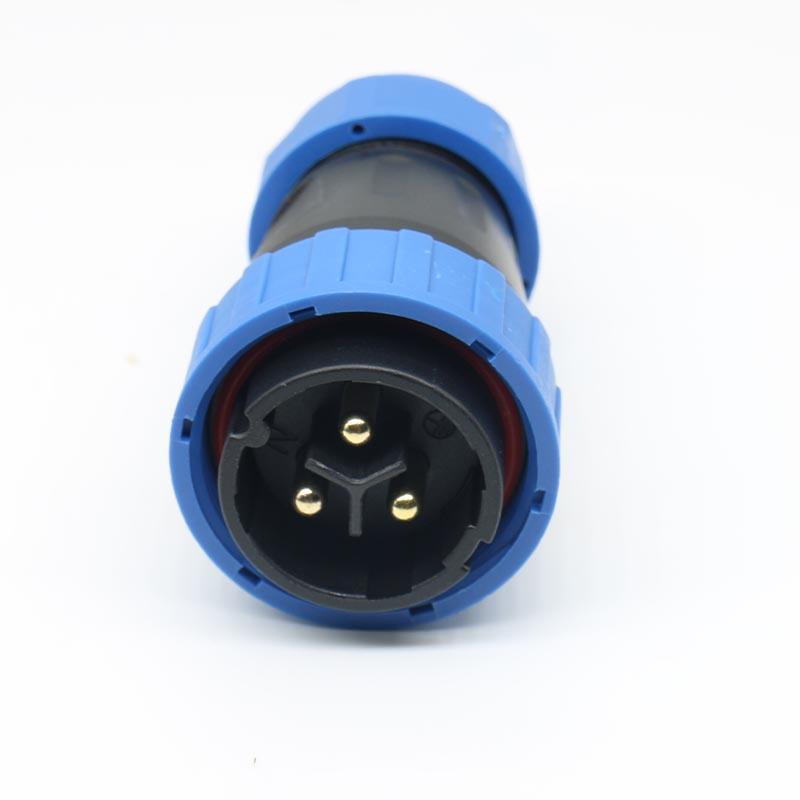

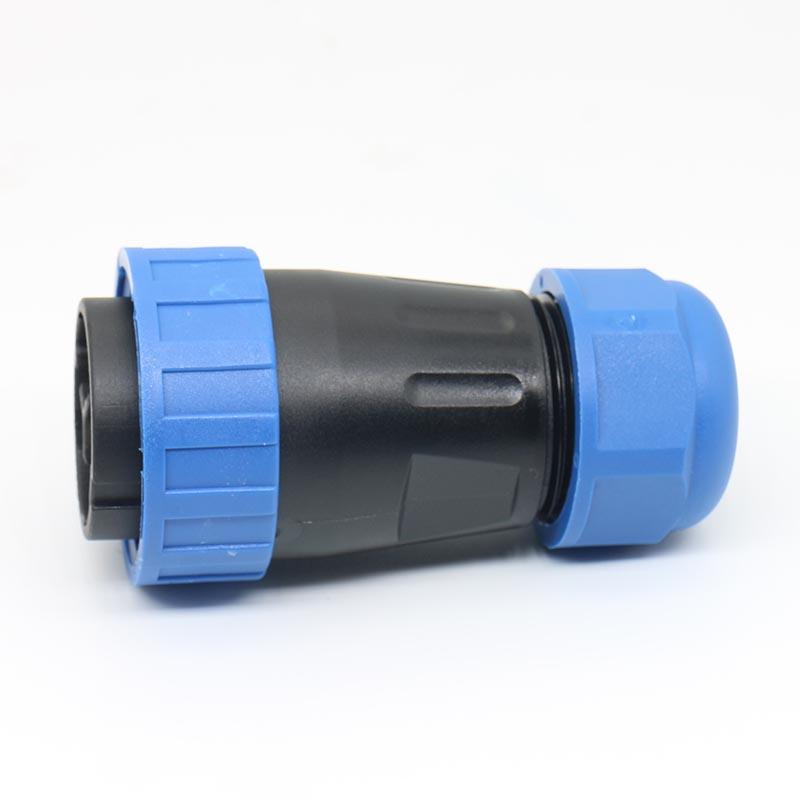

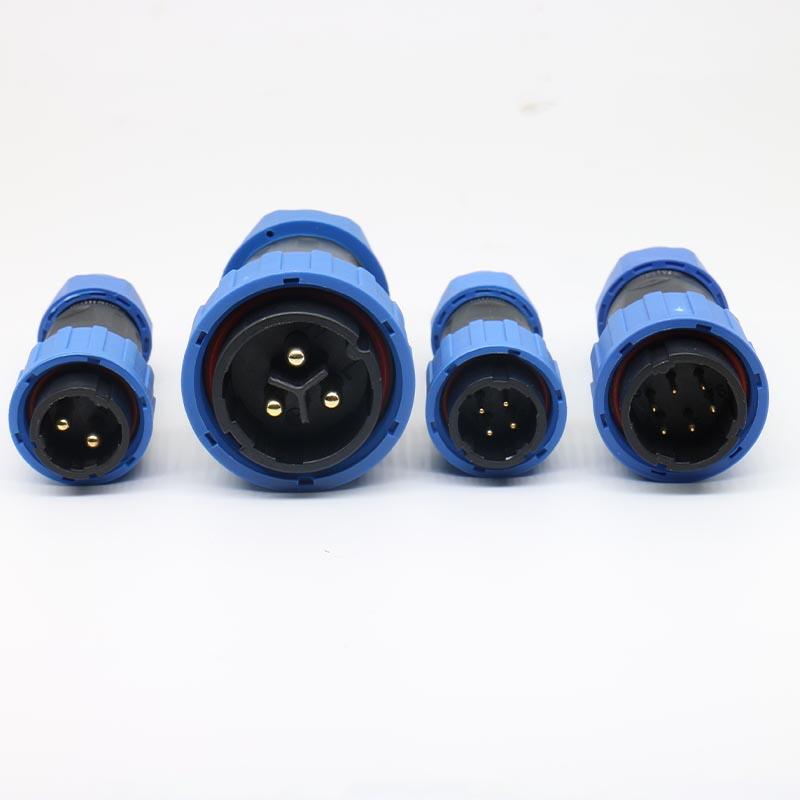

LD Series Waterproof Circular Connector Overview

The LD Series Waterproof Aviation Connector is a heavy-duty, industrial-grade electrical connector engineered for demanding environments. Combining robust construction with high-performance specifications, it provides reliable connectivity solutions for both wire-to-wire and wire-to-device applications.

Key Options & Customisation for LD Waterproof Connectors

Multiple Specifications Available

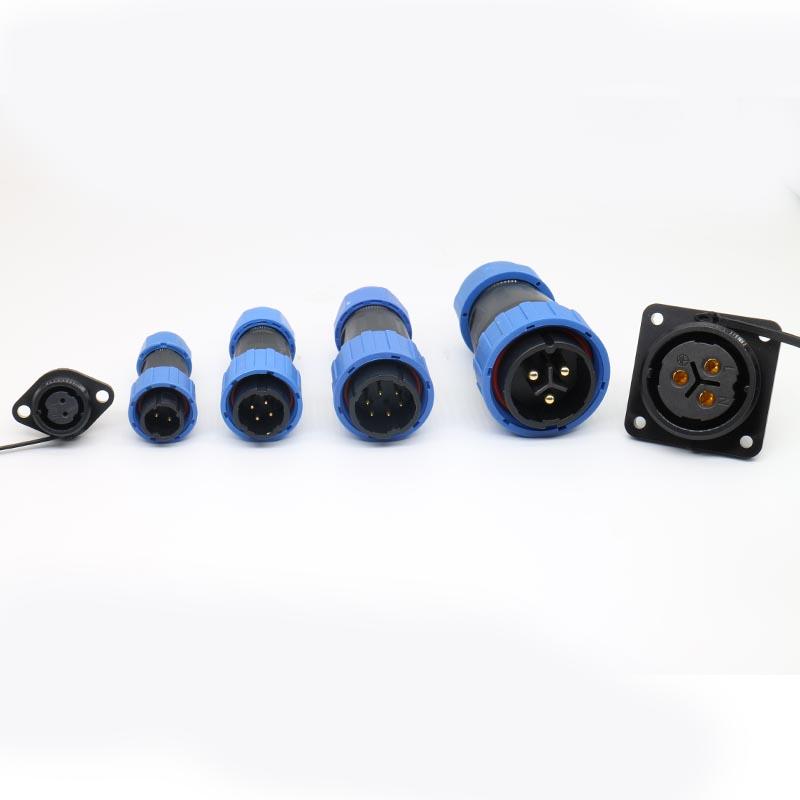

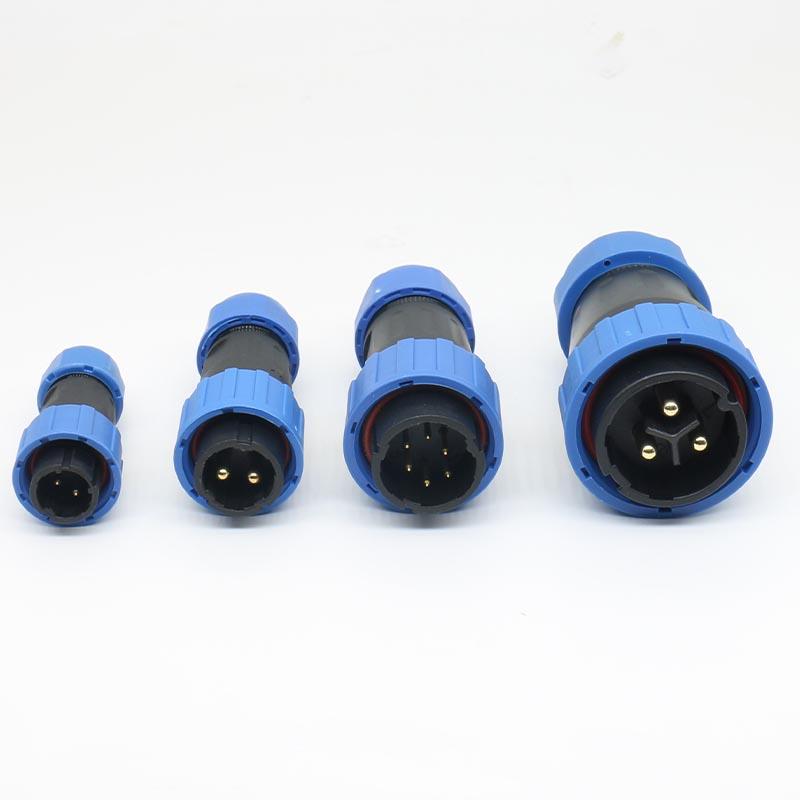

Choose from various sizes (e.g., LD12/LD16/LD20/LD24) to match different wiring needs.

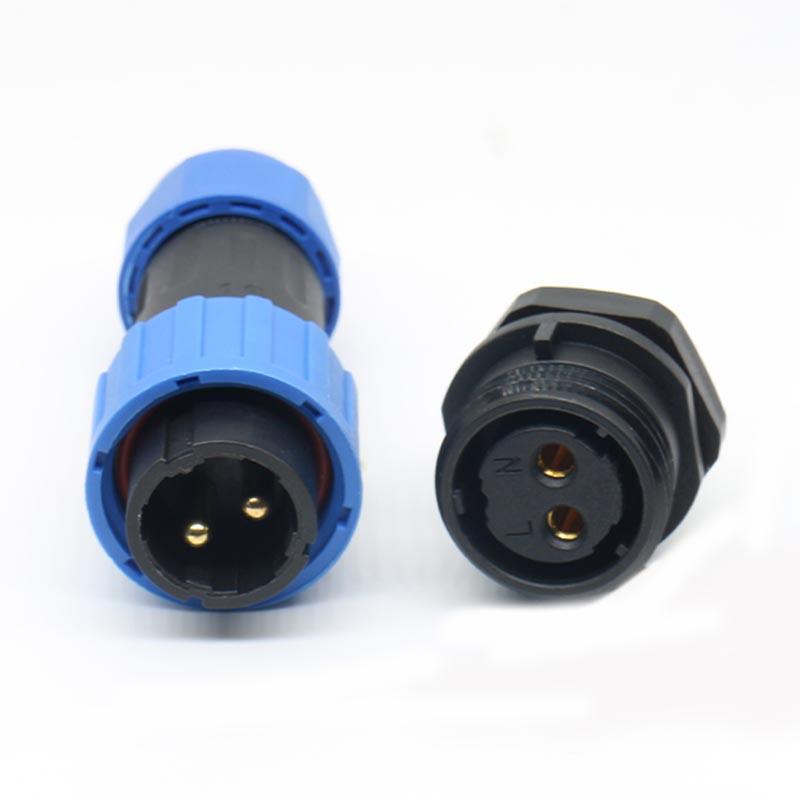

2-11 Pin Configurations Flexible

Pin counts (2Pin to 11Pin) to support diverse power/signal transmission requirements.

Premium Materials of LD Circular Connectors

Shell Material: Flame-retardant PA66 nylon (high impact resistance, corrosion-proof, and heat-resistant)

Contact Material: Gold-plated brass (low contact resistance, anti-oxidation, and excellent conductivity)

Core Performance for LD Connectors

IP Rating: IP68 (fully dust-tight; submersible in water for long periods, suitable for outdoor/wet environments)

Easy Installation: Screw crimping (solder-free) termination for quick, tool-free wiring.

Stable Conductivity: Gold-plated brass contacts minimise signal loss and ensure consistent power transmission.

Application Scenarios

• Industrial equipment: Construction machinery, automation systems
• Outdoor electronics: Solar energy systems, LED lighting
• Marine/boating devices: Shipboard wiring, underwater instruments
• Automotive/vehicle accessories: RVs, off-road vehicles
• Li-ion battery systems: Energy storage, electric tools

Selection Guidance and Inquiry Checklist

To ensure the correct connector for your application, consider the following decision points:

• Pin Count and Gender: Determine the required number of cores (2-11) and whether a male or female connector is needed for your mating side.
• Size and Mounting: Select the appropriate shell size (LD12, LD16, LD20, LD24) based on your cable diameter and panel space. Confirm if you need a cable or panel mount version.
• Environmental Fit: The IP68 rating suits continuous immersion, but verify the specific chemical, temperature, and UV exposure of your environment against the PA66 housing.
• Termination Preference: The screw crimping termination is solder-free and tool-free, which is ideal for field installation. Confirm if this matches your assembly process.

When submitting an inquiry, please provide the following details to ensure accurate matching:

• Mating connector requirement (plug/socket, male/female)
• Pin count and pinout or wiring diagram
• Cable outside diameter and conductor size (AWG/mm²)
• Electrical load (current/voltage) and environment (temperature, chemicals)
• Required quantity and any custom marking or packaging needs

For related heavy-duty options, review the IP68 Waterproof LD20/SP20 Heavy-Duty Wire Connector or explore the 12G Series Circular Connectors for alternative configurations.
