M8 Connectors for Network Cameras: Dependable Connectivity in Surveillance Systems

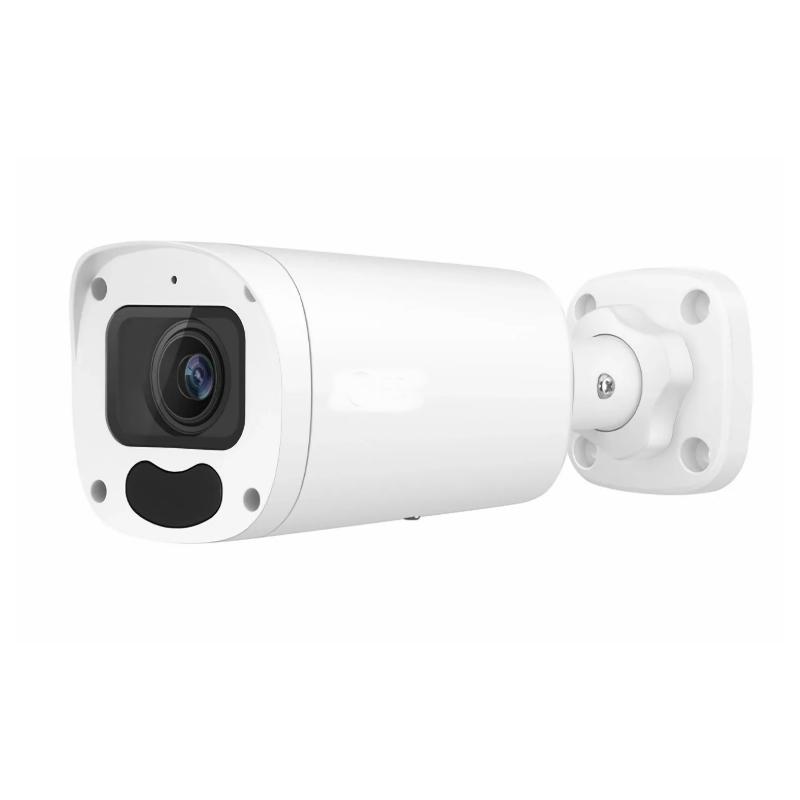

Network cameras depend on stable electrical connections to transmit video signals, deliver power, and exchange control data for uninterrupted surveillance. M8 connectors are commonly used to link camera modules, power supplies, and network interfaces, delivering secure connectivity in installations where space is limited and reliability is critical.

Project Background and Operating Environment

Surveillance deployments in outdoor, industrial, and traffic management settings expose network cameras to vibration, dust, moisture, and fluctuating temperatures. M8 connectors address these conditions with compact housings, robust locking mechanisms, and corrosion-resistant materials that preserve signal integrity over extended service life. Their sealed construction helps maintain consistent performance in environments where exposure to the elements is a routine concern.

Installation Efficiency and Maintenance Advantages

The M8 series also streamlines field servicing. When camera modules or network components require inspection or replacement, the connector design enables quick, secure reconnection, reducing system downtime. This combination of environmental sealing and mechanical durability supports stable video transmission, system uptime, and long-term operational efficiency in networked surveillance applications.

For engineers selecting connectors for security camera projects, the M8 series provides a practical balance of compact dimensions, environmental protection, and mechanical strength. Key selection factors include cable diameter, pin count, and the IP rating required for the specific installation site. For guidance on signal integrity over longer cable runs, refer to our technical FAQ on reducing attenuation. For alternative mounting approaches in similar applications, see the SD20/SP20 Square Flange Connector Design and Installation Guide.
