SP21 Connectors for Smart Electrical Control Boxes

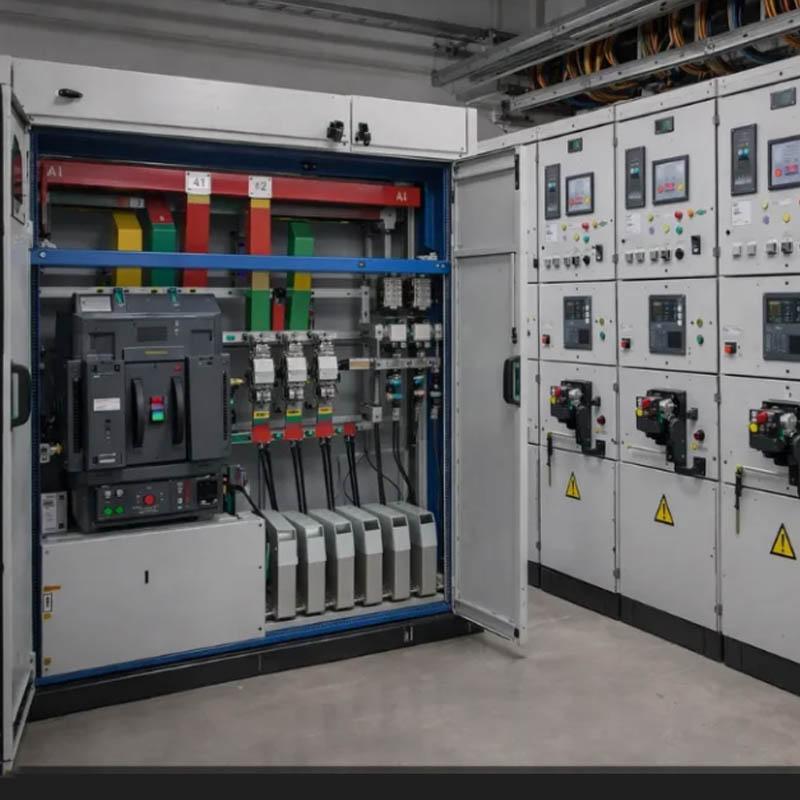

Smart electrical control boxes in industrial automation and outdoor utility networks require stable connectivity to coordinate sensors, actuators, circuit breakers, and control modules. SP21 connectors serve as the interface for power lines, signal cables, and communication links within these enclosures, delivering secure and consistent electrical performance under demanding operating conditions.

Project Background and Industry Context

Control boxes deployed in manufacturing plants, renewable energy sites, and infrastructure projects are exposed to vibration, dust, humidity, and temperature fluctuations. These environmental factors can compromise standard connector performance, leading to intermittent signal loss or power interruptions. The SP21 series was selected for such applications to provide a rugged, sealed interface that maintains electrical continuity in harsh settings.

Electrical and Mechanical Requirements

The application required connectors capable of handling both power and signal lines within a compact enclosure footprint. Key specifications included a positive locking mechanism to resist vibration-induced disconnection, a high ingress protection rating to prevent moisture and particulate ingress, and a housing design that accommodates the specified cable diameter range. The SP21 connectors meet these requirements with their waterproof construction and durable shell, reducing the likelihood of electrical faults and unscheduled maintenance.

Solution and Installation Process

The SP21 series was integrated into the control box wiring layout, with each connector configured to match the pin count and cable gauge of the corresponding circuit. During installation, the connectors were mated to the panel-mounted receptacles and secured using the locking mechanism. The sealing elements were verified to ensure the IP rating was maintained across all connection points. The installation process was streamlined by the connector's field-friendly design, allowing technicians to complete wiring and sealing without specialized tooling.

Commissioning and Verification

After installation, each connection was tested for continuity and insulation resistance to confirm proper mating and sealing. The control boxes were then powered up, and the sensor and actuator signals were monitored to verify stable communication. The connectors performed consistently during the commissioning phase, with no observed voltage drops or signal interference. The positive locking and environmental sealing were confirmed to hold under simulated vibration and humidity conditions.

Result and Operational Benefit

The SP21 connectors delivered a reliable interface for the smart control boxes, supporting continuous operation in the intended environment. The combination of ingress protection, mechanical strength, and ease of service reduced the risk of connection-related failures and simplified future maintenance. For engineers evaluating connector options, the SP21 series provides a practical balance of sealing performance and field-friendly handling. When selecting a connector, verify the cable diameter, pin count, and required IP rating against your enclosure's wiring layout and sealing needs. For related guidance on flange-mounted connector installation, refer to the SD20/SP20 Square Flange Connector Design and Installation Guide. To compare additional sealing options for similar control applications, review the 12G Series Circular Connectors for alternative circular interface solutions. For further insight into SP series wiring configurations, see the SP Series Waterproof Wire Connector with Cable for In-Line Power and Signal.
