VG95234 Circular Connectors in Harvesters: Project Background

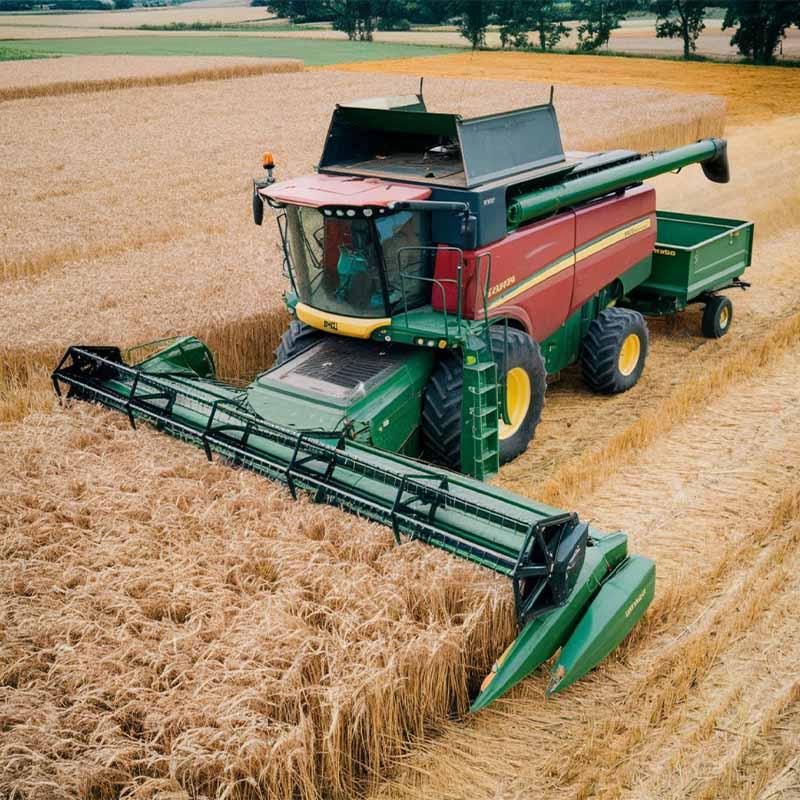

Modern harvesters depend on electrical systems that must perform reliably despite constant vibration, dust, and moisture exposure. VG95234 circular connectors are widely adopted in harvesting equipment to ensure stable power and signal transmission between critical components such as control units, sensors, hydraulic systems, and drive motors. This case outlines how these connectors address the demanding conditions of agricultural field operations.

Interface and Environmental Requirements

Harvesters often run for extended periods in challenging field environments, where equipment failure can lead to significant productivity losses. The application requires connectors that can withstand:

• Continuous mechanical shock and vibration from the harvesting process.
• Exposure to dust, dirt, and agricultural debris.
• Moisture and temperature fluctuations common in outdoor conditions.
• Secure mating to prevent accidental disconnection during operation.

VG95234 connectors are designed with rugged metal housings and secure locking mechanisms that maintain strong connections even during heavy-duty harvesting operations. Their resistance to shock, temperature changes, and contaminants makes them particularly suitable for agricultural machinery working in harsh outdoor environments.

Connector Solution and Configuration

The selected VG95234 series provides a circular, multi-pin interface suitable for both power and signal circuits. The metal shell construction and threaded coupling ensure a stable, vibration-resistant connection. The configuration supports the electrical load requirements of the harvester's control systems and sensors, while the environmental sealing helps protect internal contacts from moisture and particulate ingress.

Commissioning and Delivery Process

During system integration, the connectors were evaluated for mating force, contact continuity, and cable strain relief. The installation process focused on verifying correct pin alignment and secure locking to prevent loosening during operation. Field trials confirmed that the connectors maintained stable electrical performance under continuous vibration and exposure to field conditions.

Verified Results and Operational Benefits

The use of VG95234 circular connectors simplifies maintenance and system integration. When components such as grain monitoring sensors or cutting system controllers need replacement, these connectors allow fast and secure reconnection, minimizing downtime. By providing dependable connectivity, they help improve harvesting efficiency, equipment reliability, and overall operational safety in modern agricultural applications.
