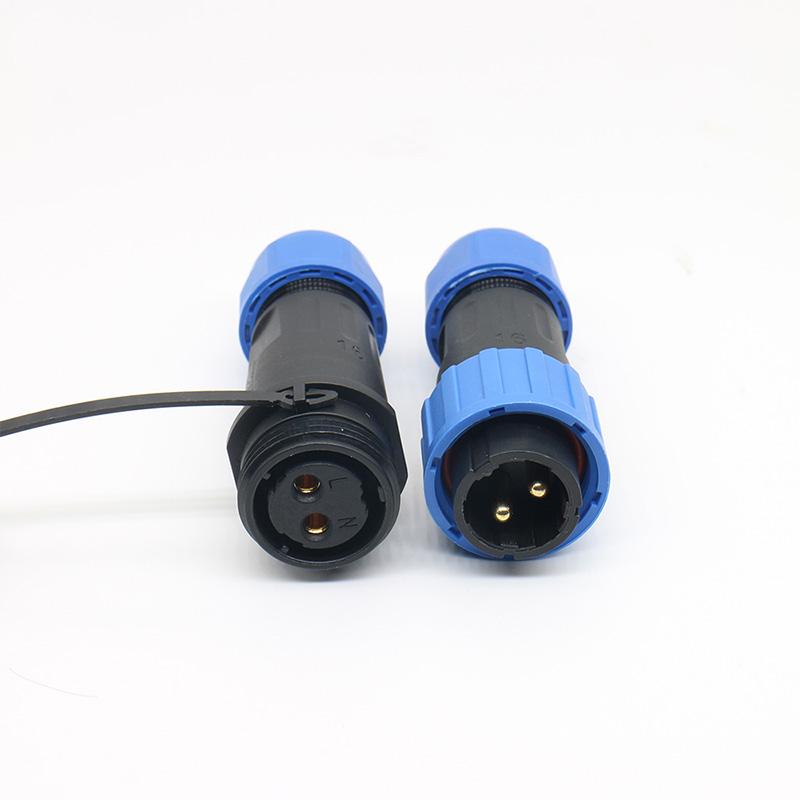

LD16 Docking Connector
< >

LD16/SP16 2-12 Pin Docking Connector for Transportation

>Number Of CoresNumber Of Cores 2-12 Pin
Contact DiameterContact Diameter(mm) 1.0mm/1.8mm/2.8mm
IP RatingIP Rating IP68
Shell MaterialShell Material Thermoplastic PA6(Flame Retardant)
Temperature RangeTemperature Range -25°C to +85°C
TerminationTermination Screw Crimping
Rated CurrentRated Current(A) 5A/10A/20A
Rated VoltageRated Voltage(Ac.V) 250V/380V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 1 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

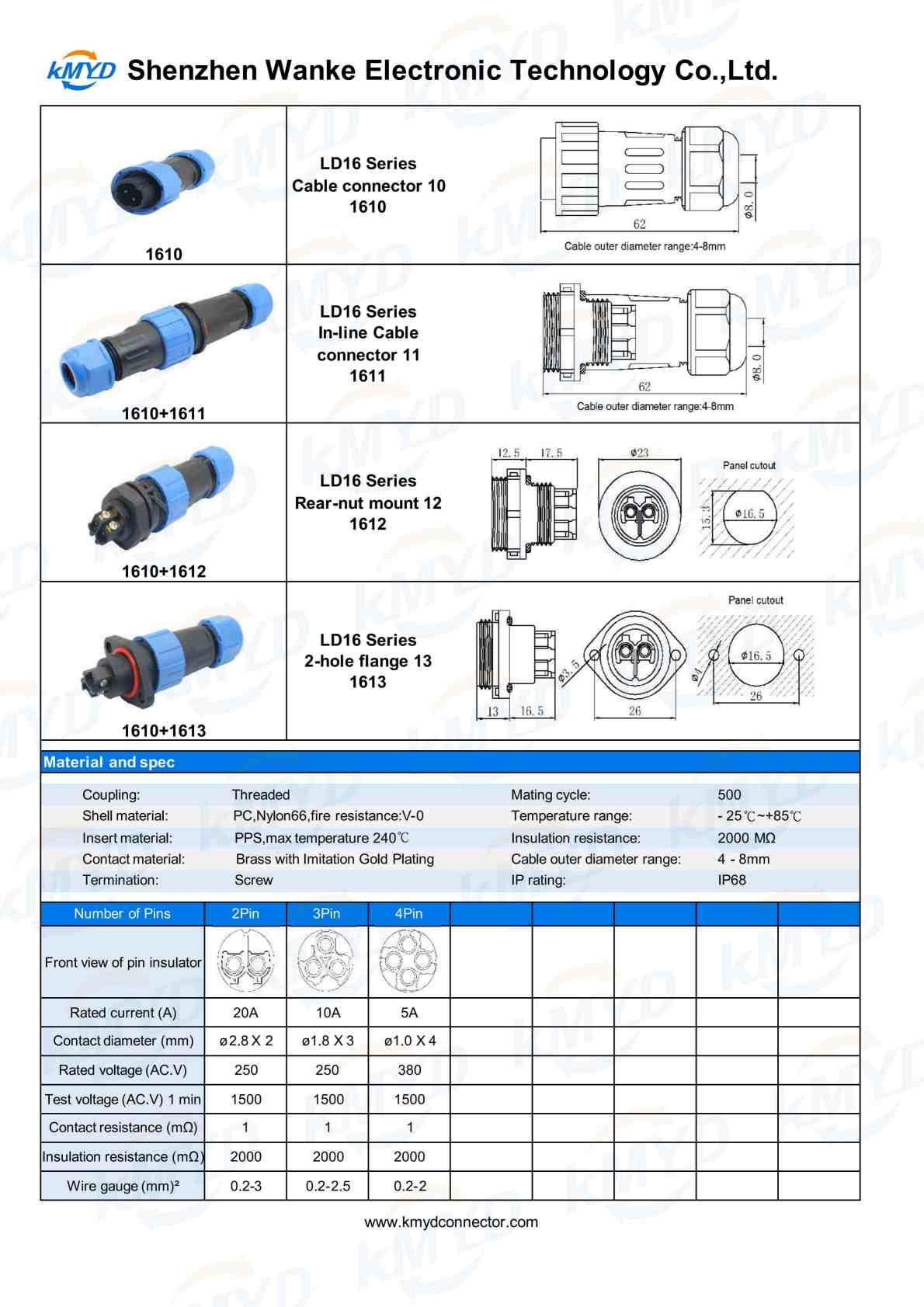

LD16 / SP16 2 -12 Pins Docking Connector for Transportation - Compact & Reliable Interconnection Solution

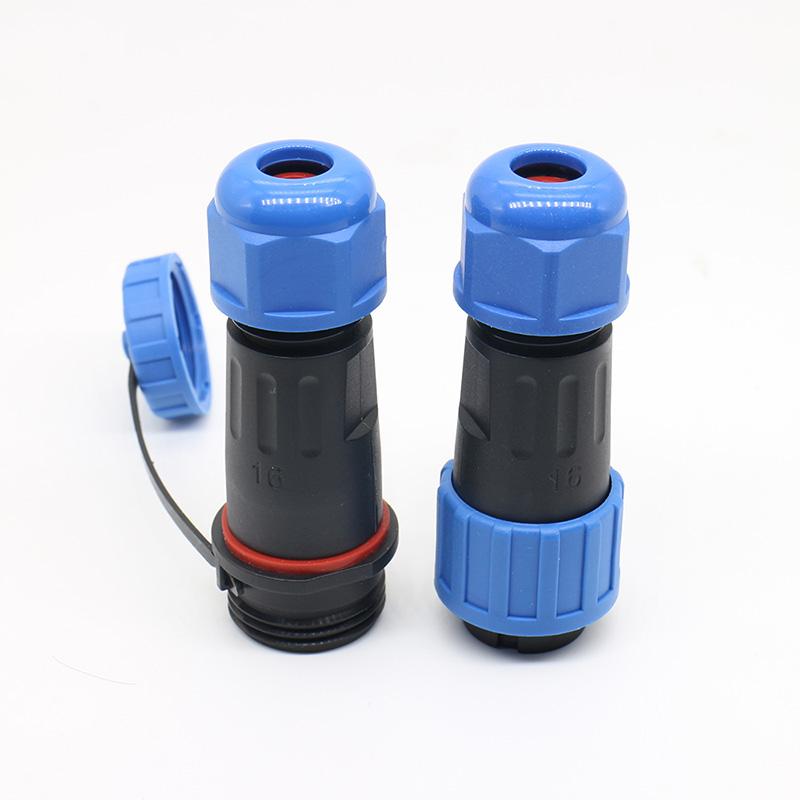

The LD16 / SP16 2–12 Pins Docking Connector is developed for transportation systems that require compact structure, reliable connectivity, and efficient maintenance. With multiple pin configurations available, this series provides flexible solutions for both power distribution and signal transmission in vehicles and mobile equipment.
Connector
Its docking design enables fast and secure connection between modules, making it especially suitable for transportation equipment where quick installation, replacement, and maintenance are critical.

Engineered for Transportation Conditions
Transportation applications often involve continuous vibration, limited installation space, and frequent servicing. This connector series is designed to address these challenges by offering:
Compact LD16/SP16 size for space-sensitive designs
Flexible 2 - 12 pins configurations for different circuit needs
Docking interface for quick plug-in and removal
Sealed structure for stable performance in outdoor and mobile environments
Flexible Pin Configuration for System Design
This series supports different levels of system integration:
2 - 4 Pins → Power transmission
5 - 8 Pins → Combined power and signal
9 - 12 Pins → Multi-signal control and communication
It helps engineers reduce interface quantity, simplify wiring, and improve overall system efficiency.

Application Scenarios for LD16/SP16 Docking Connector
Rail transit systems
Electric vehicles and onboard equipment
Charging and power modules
Transportation control systems

Mobile monitoring and communication devices


Strong Manufacturing Capability Behind the Product
This connector series is produced by a manufacturer with over 15 years of experience in industrial connectors and cable assemblies, supplying customers in transportation, automation, and energy industries.
Connector
Unlike trading companies, we operate a fully integrated in-house production system, including:
Mold development and tooling
Zinc alloy die-casting
CNC machining and precision processing

Injection molding

Cable assembly and final integration

Circular Connector

This complete manufacturing chain allows us to maintain strict quality consistency, faster lead times, and better cost control.

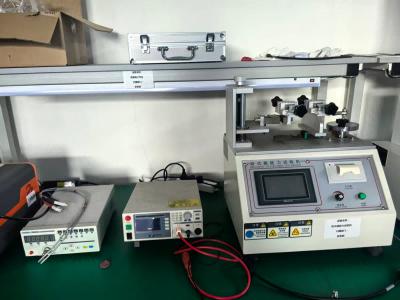

To ensure reliability in transportation environments, each product undergoes multiple verification processes, such as:
Waterproof and sealing performance testing
Electrical conductivity and stability testing
Mechanical durability and mating cycle testing

Environmental simulation testing (vibration, temperature, etc.)

Connector

In addition, our products comply with international standards such as CE, RoHS, and ISO9001, ensuring they meet global market requirements.

Connector


Project-Oriented Customization Support
For transportation projects, standard products are often not enough. We provide engineering-based customization, including:

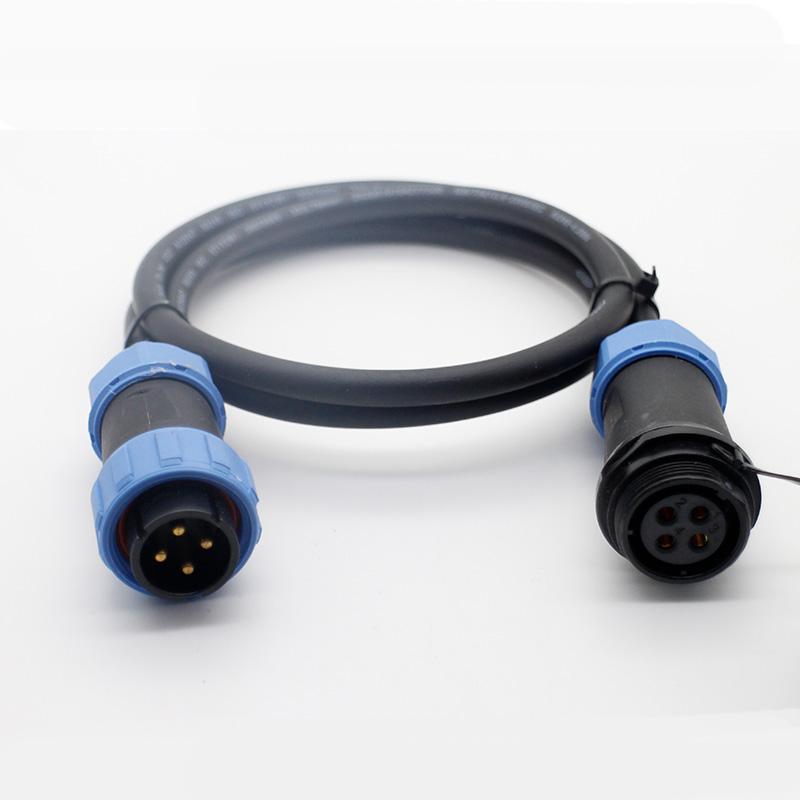

Cable integration and overmolding solutions
Pin configuration optimization
Material selection based on environment
Structural adjustments for specific equipment
Connector
Our engineering team works closely with customers to ensure the connector fits seamlessly into the system design.

A Practical Choice for Transportation Systems
This series is not just a connector, but a reliable interface solution that helps improve installation efficiency, reduce maintenance time, and ensure stable long-term operation in transportation equipment.

Contact Us
We provide samples, technical drawings, and customized solutions based on your project needs.
If you are looking for a compact and dependable docking connector for transportation applications, feel free to contact us for more information and quotation.

Item

Parameters

Number of Cores

2 - 12Pin

Gender

Male/Female

Housing Material

Thermoplastic PA6(Flame Retardant)

Cores Material

Brass Plated with Gold

Insulator Material

Thermoplastics

Locking System

Threaded Connection

Temperature Range

-25℃, +85℃

Rated Current (A)

5A/10A/20A

Rated Voltage (AC.V)

250V/380V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≤1㏁

Termination

Screw Crimping
