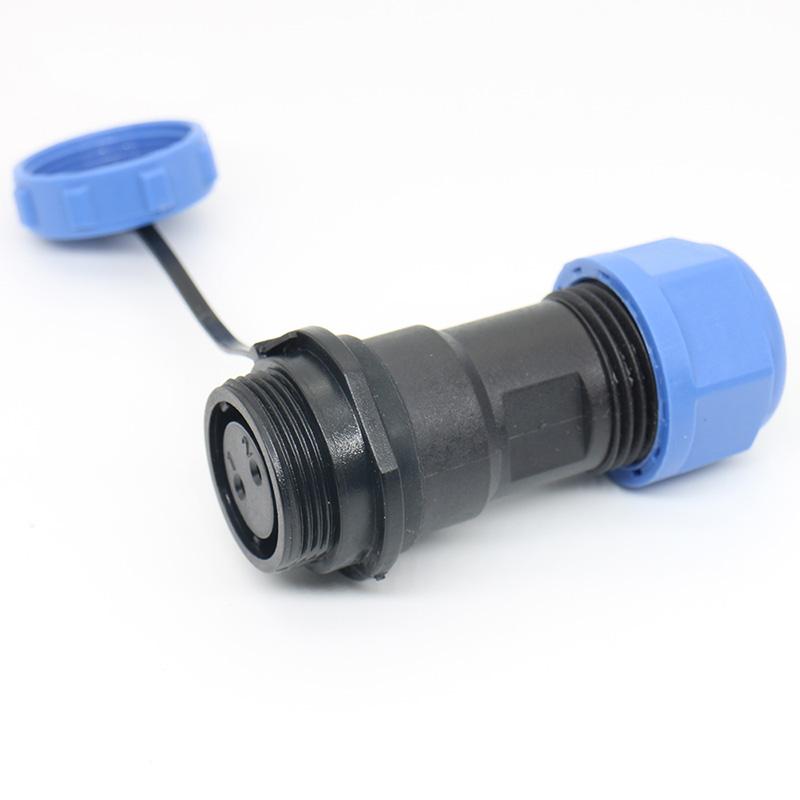

SP17 Docking Connectors
< >

SP17 Docking Connector for Medical and Laboratory Devices

>Number Of CoresNumber Of Cores 2 - 9Pins
Contact DiameterContact Diameter(mm) 1.0mm/1.5MM
IP RatingIP Rating IP68
Shell MaterialShell Material PC/PA66
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Welding
Rated CurrentRated Current(A) 5A/10A
Rated VoltageRated Voltage(Ac.V) 400V-500V
Test VoltageTest Voltage(Ac.V)1Min 1000V-1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≥5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

SP17 Docking Connector – Durable Construction for Medical Equipment
The SP17 docking connector is built with robust materials to ensure long-lasting performance in medical and laboratory environments. Its precision-engineered contacts provide stable and reliable connections for critical devices.

SP17 Docking Connector – Waterproof and Sealed Design

Featuring IP67-rated sealing, the SP17 connector resists water, dust, and contaminants, making it ideal for cleanroom and laboratory applications where hygiene and safety are paramount.

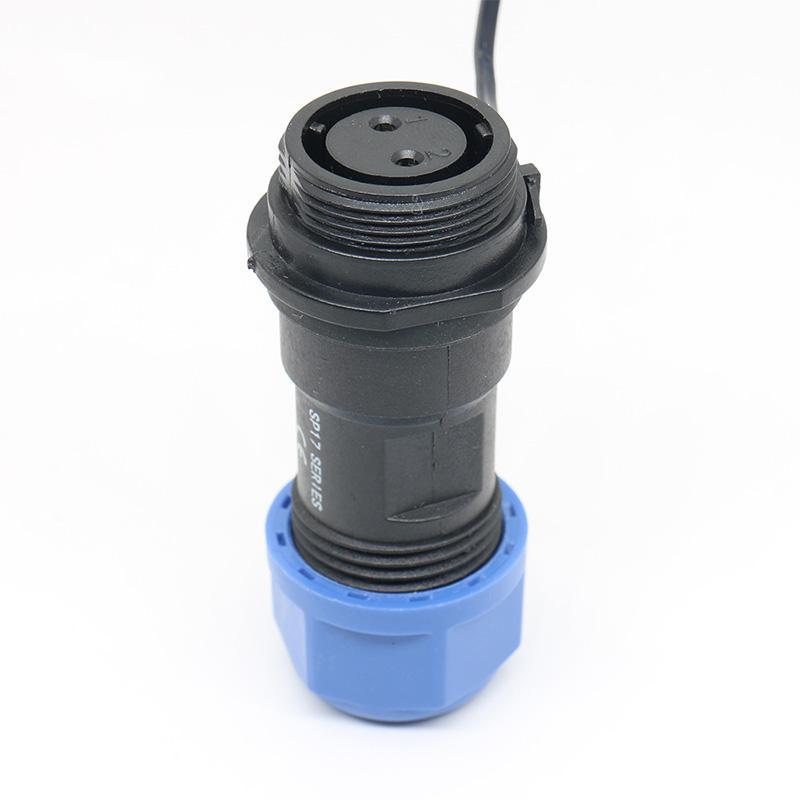

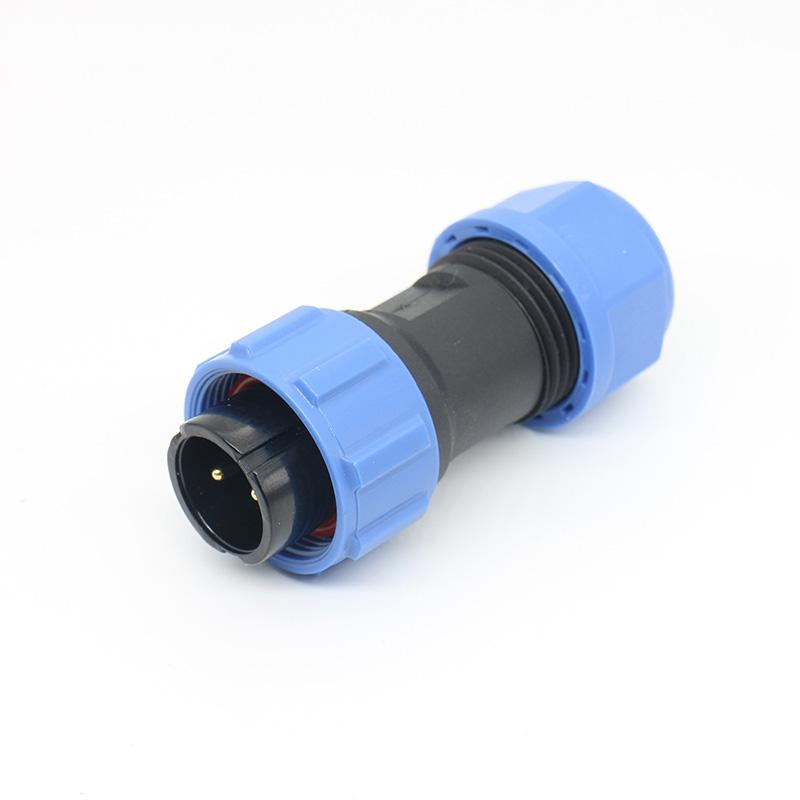

SP17 Connectors


SP17 Docking Connector – Stable Signal and Power Transmission
SP17 connectors deliver consistent electrical performance, supporting both signal and power transmission with minimal interference. Perfect for sensitive medical instruments, lab analyzers, and diagnostic equipment.

SP17 Docking Connector – Easy Installation for Laboratory Systems
Designed for simple and secure docking, the SP17 connector allows quick installation and maintenance, reducing downtime in medical and lab operations. Its compact form factor saves space while maintaining high reliability.

Item

Parameters

Number of Cores

2-9Pin

Gender

Male/Female

Housing Material

PC/PA66

Cores Material

Brass Plated with Gold

Insulator Material

PPS

Locking System

Screw Locking

Temperature Range

-40℃, +85℃

Rated Current (A)

3A/5A/13A

Rated Voltage (AC.V)

400V - 500V

Test Voltage (AV.C)1Min

1000V - 1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≥5㏁

Termination

Welding


Related Products

More》

Related Resource


SP17 Docking Connector
Related Solutions
Related After-sales Questions KMYD Connectors is committed to providing solutions for SP17 Docking Connector for Medical and Laboratory Devices product manufacturing.
How to Install an M12 IP68 Shielded Circular Connector (Crimp Termination Guide)

Correct installation of M12 circular connectors plays a critical role in ensuring stable electrical performance, effective shielding, and long-term reliability—especially in harsh industrial environm...

MORE→

How to Install an M12 IP68 Shielded Circular Connector (Crimp Termination Guide)
Connector Maintenance Guide – Keep Your Equipment Reliable

Regular connector maintenance ensures your equipment runs smoothly and extends the life of your connectors. Follow these easy steps to keep your connectors in top condition. Maintenance Steps: ...

MORE→

Connector Maintenance Guide – Keep Your Equipment Reliable
Connector Troubleshooting Guide – Quick & Easy

Ensure stable operation of your equipment with our connectors. This demo shows how to quickly identify and fix common connector issues. Step 1: Visual Inspection Check for dirt, dust, or ...

MORE→

Connector Troubleshooting Guide – Quick & Easy
Related Catalog
Learn More

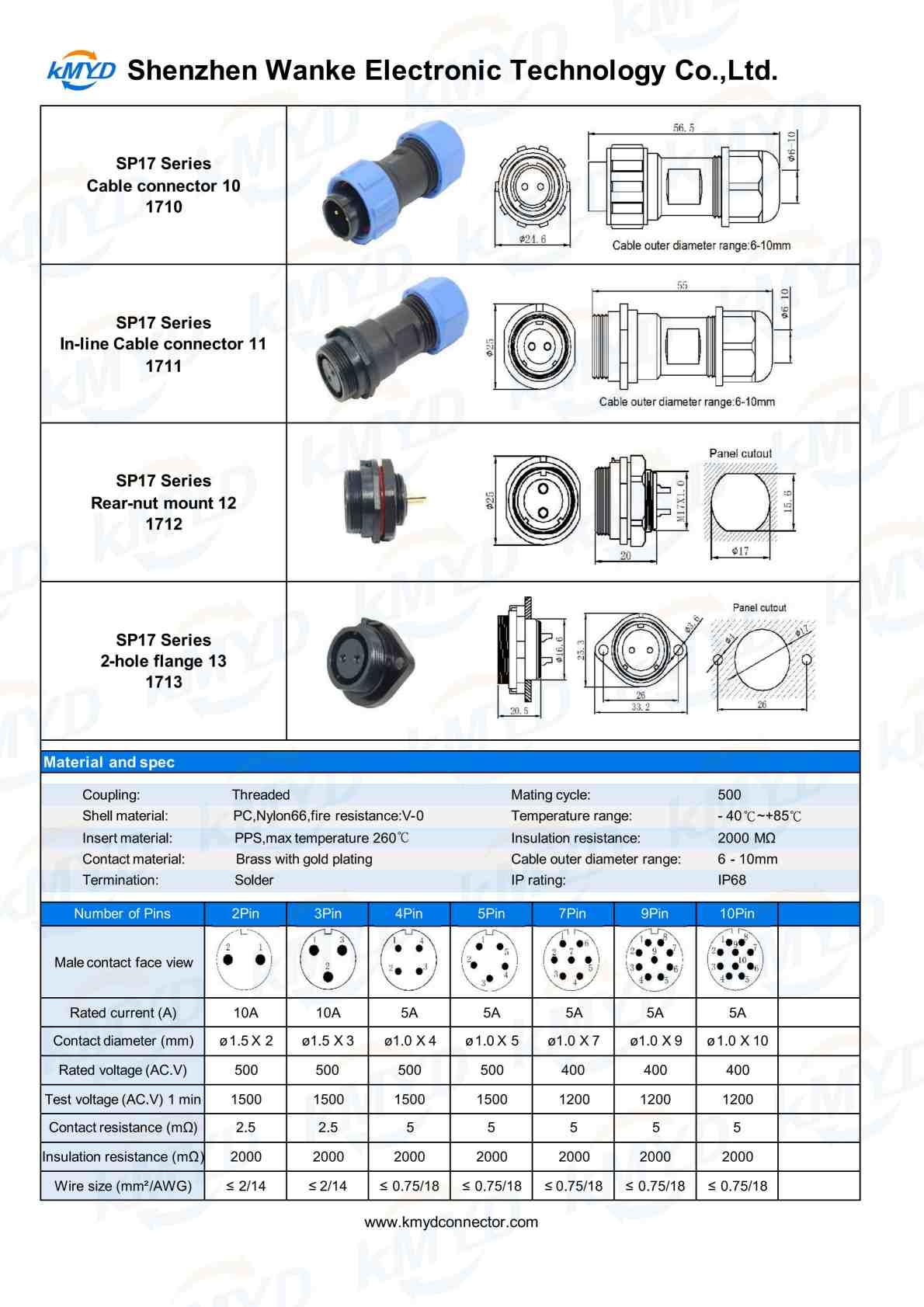

SP17 Docking Connector
