M12 Connectors in Analog Cameras: Ensuring Reliable Surveillance Connectivity

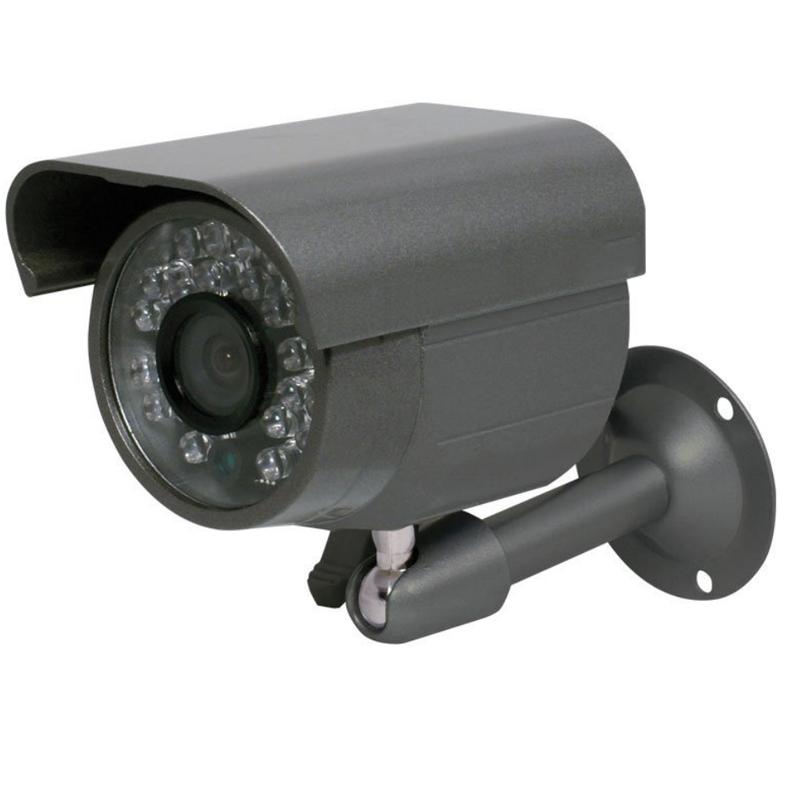

In analog camera systems, reliable connections are critical for transmitting video signals, power, and control data, ensuring consistent surveillance performance. M12 connectors are widely used to connect camera modules, power supplies, and control interfaces, providing stable and interference-resistant connectivity for continuous operation.

Analog cameras are often installed in environments exposed to vibration, dust, moisture, and temperature fluctuations, such as outdoor surveillance, industrial monitoring, and traffic systems. M12 connectors, with their robust metal housings, secure threaded locking mechanisms, and high protection ratings, maintain reliable connections under these challenging conditions. Their durability ensures consistent signal quality and minimal downtime over long-term use.

Moreover, M12 connectors facilitate easy installation and maintenance. When camera modules or power components need servicing or replacement, these connectors allow quick and secure reconnection. By ensuring dependable connectivity, M12 connectors enhance video quality, system stability, and overall reliability in analog surveillance applications.

Key Considerations for Selecting M12 Connectors in Analog Camera Systems

When choosing M12 connectors for analog cameras, engineers and buyers should evaluate the following factors to ensure optimal performance:

• Pin Configuration and Coding: Verify the required pin count (e.g., 4-pin for power and video, 8-pin for additional control signals) and the correct keying/coding (A-coded, B-coded, D-coded, etc.) to match the camera interface and prevent mismating.
• Environmental Protection: Confirm the IP rating (e.g., IP67) needed for the installation environment, especially for outdoor or washdown areas where moisture and dust ingress are concerns.
• Electrical Ratings: Check the current and voltage ratings to ensure the connector can handle the camera's power draw and signal requirements without derating.
• Mating Cycles and Durability: Consider the expected frequency of connection and disconnection during maintenance; M12 connectors typically offer 100+ mating cycles, but this should be verified against the application's service schedule.

Application Boundaries and Installation Notes

M12 connectors are suitable for fixed and semi-permanent installations where a secure, vibration-resistant connection is required. They are not designed for frequent plugging/unplugging under load; always disconnect power before mating or unmating to avoid contact damage. For installations requiring frequent reconfiguration, consider a panel-mount or field-wireable variant to simplify servicing.

For outdoor surveillance cameras, the choice between M8 and M12 connectors depends on the cable diameter, pin count, and required mechanical strength. M12 connectors are generally preferred for larger cables and higher pin counts, while M8 may suffice for compact, low-power cameras. For further guidance, refer to our FAQ on selecting M8 or M12 connectors for outdoor surveillance cameras.

Related Resources for Analog Camera Connectivity

To support your project planning, explore the following verified resources:

• MIL-DTL-5015 Connectors for Outdoor PTZ Surveillance Cameras – for high-power PTZ applications requiring rugged, threaded connectors.
• Which connector is suitable for 4K high-definition cameras in conference systems? – for low-latency video signal transmission requirements.

For a complete overview of available connector series and their technical specifications, download the PT Series Connectors Catalog.

Next Step: Request a Quote or Technical Consultation

If you are evaluating M12 connectors for your analog camera system, our engineering team can assist with selection, customization, and sample testing. Please use the inquiry form below or contact us via WhatsApp to discuss your specific electrical, mechanical, and environmental requirements.
