LD13 In-line Cable 2 Pin Connector IP68 Waterproof

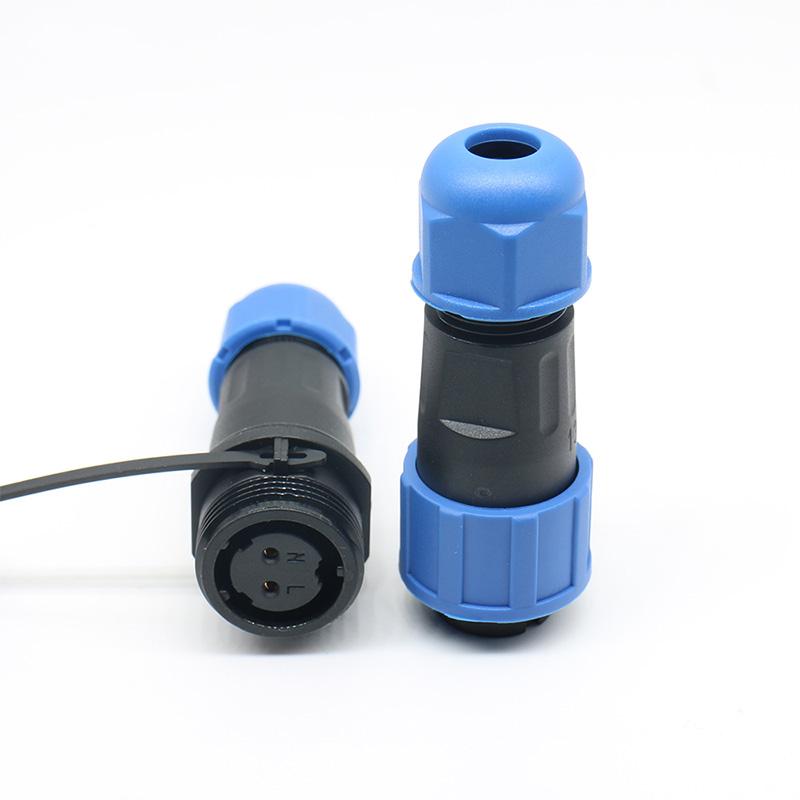

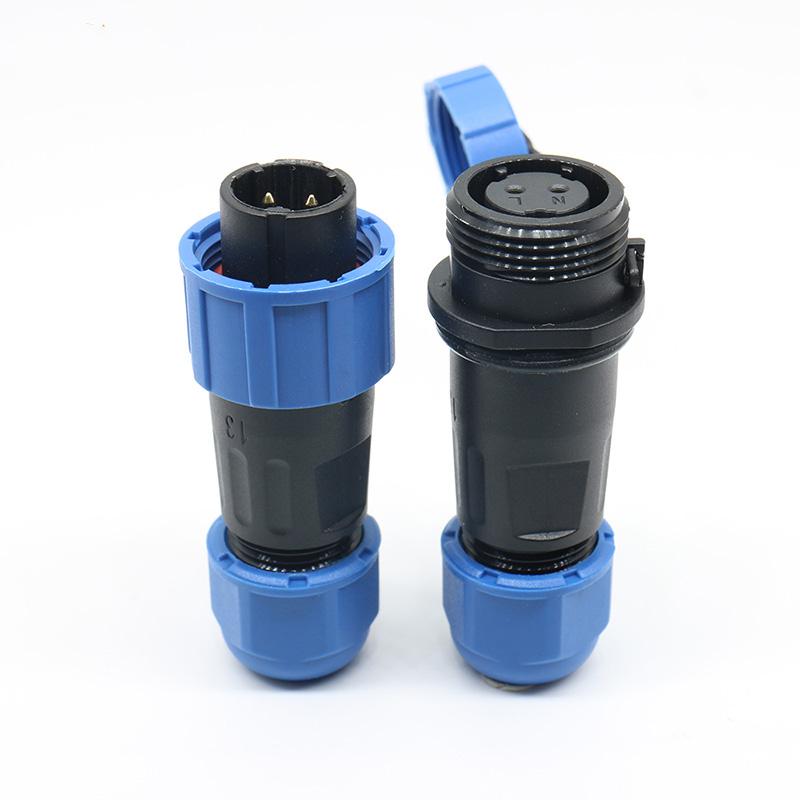

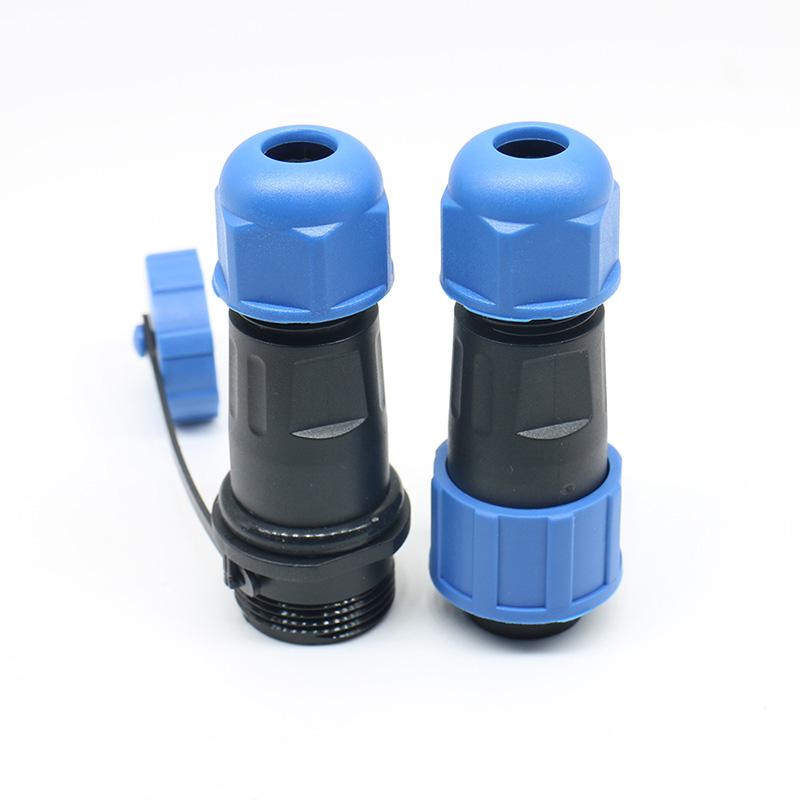

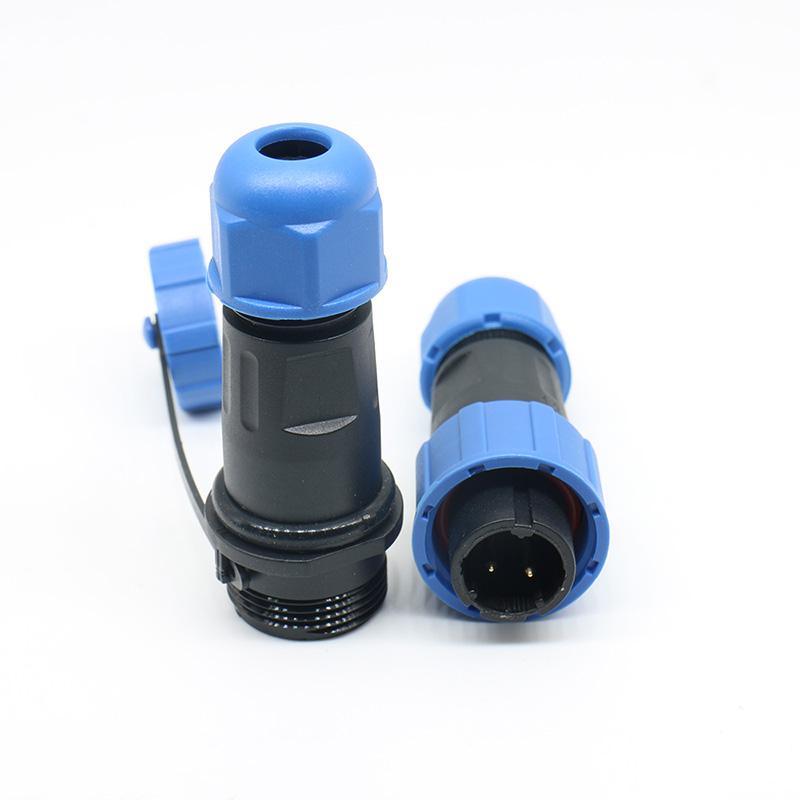

The LD13 In-line Cable 2 Pin Connector is a compact waterproof connector designed for direct cable-to-cable connection in low-voltage electrical systems. Its small body size makes it a good choice for applications where installation space is limited, while the IP68 waterproof structure helps keep the connection protected in outdoor or damp environments.

This connector is designed for 2-pin wiring and is suitable for 0.5-1.5mm² cables. It can be used for power connection or simple signal transmission in outdoor LED products, sensors, compact control devices, small instruments, security equipment, and other electrical systems that require a sealed cable joint.

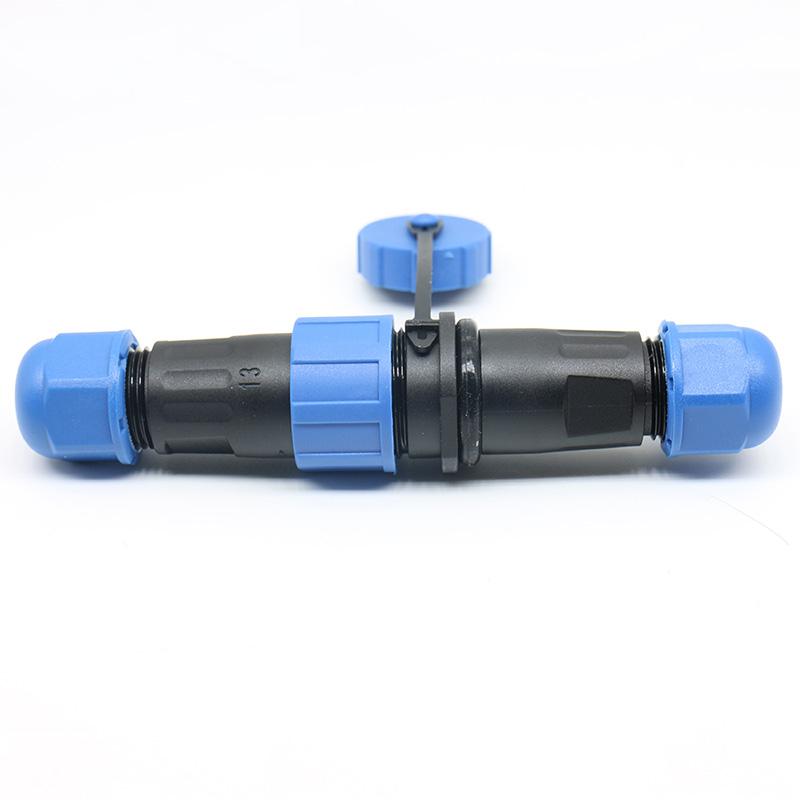

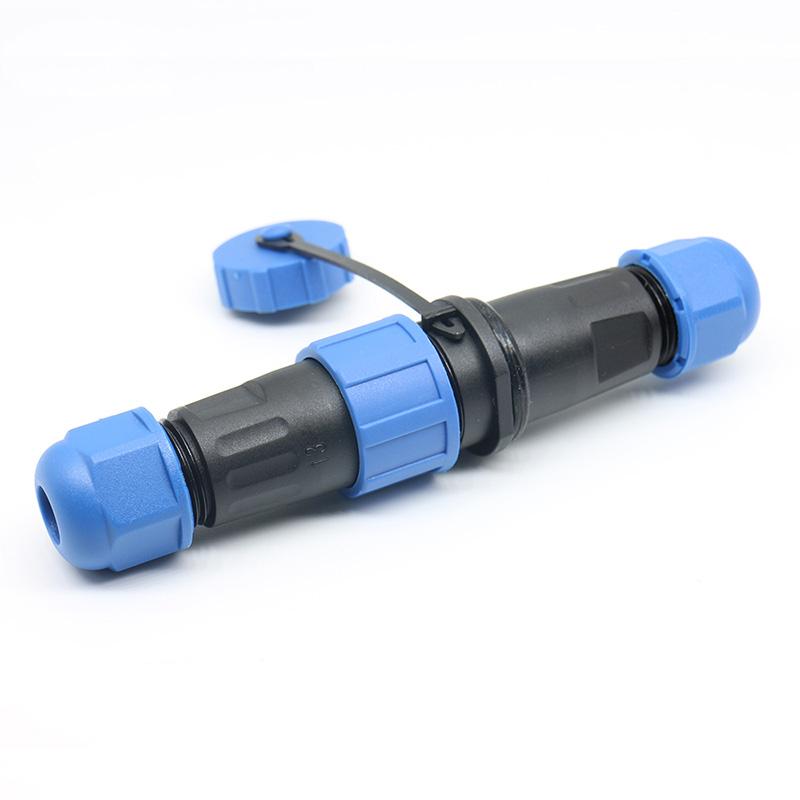

In-line Structure and Threaded Coupling

The in-line structure allows two cables to be connected neatly without requiring a panel or enclosure opening. With threaded coupling, the plug and socket can be tightened securely after wiring, helping reduce connection loosening caused by movement, vibration, or repeated handling. The screw wiring method also makes installation convenient for production assembly, maintenance, and field wiring.

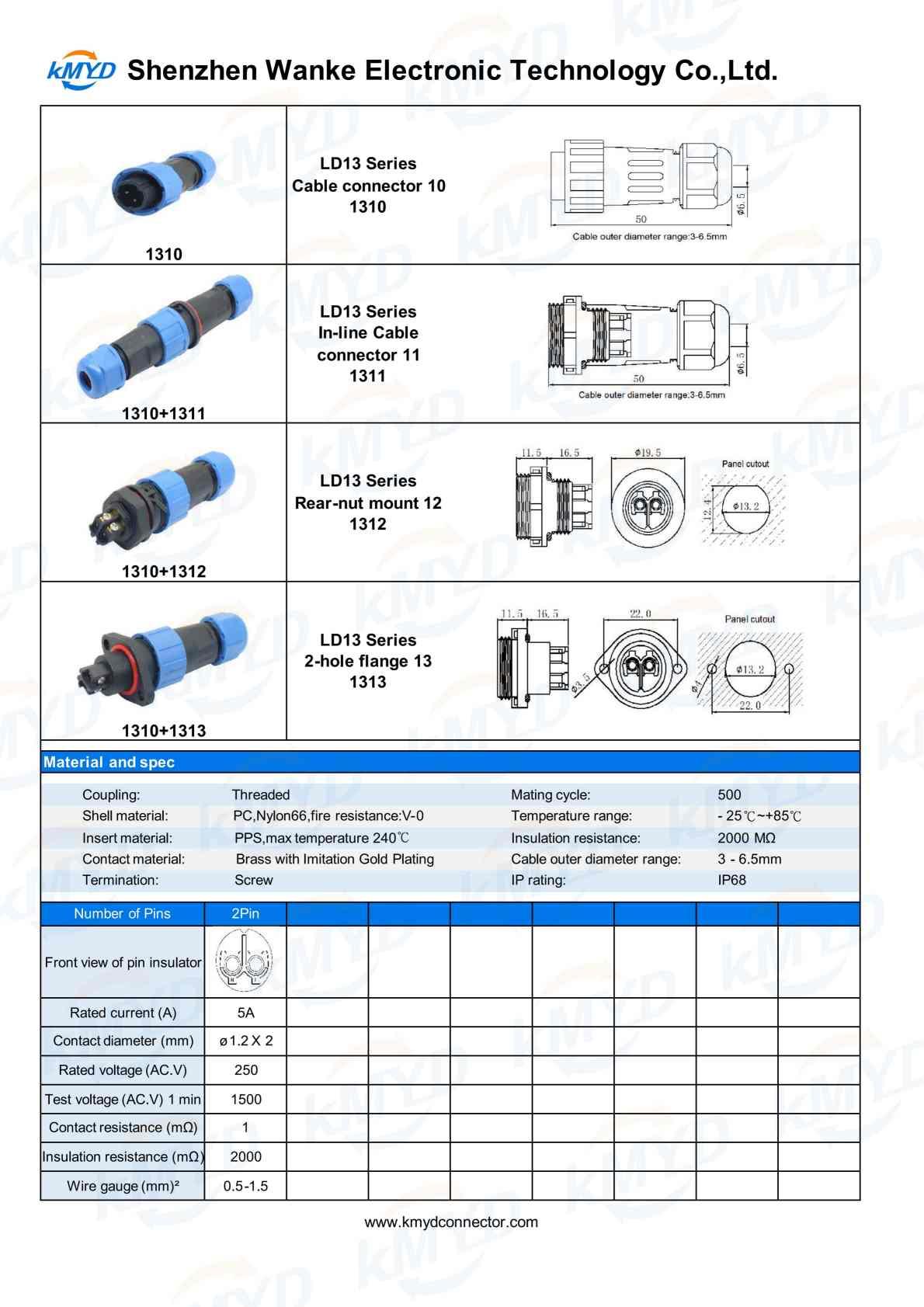

Built with flame-retardant engineering plastic housing, high-temperature-resistant insulation material, and plated brass contacts, the LD13 in-line connector provides stable conductivity, good insulation performance, and reliable service life. It is a practical solution for small waterproof cable connection projects that need simple assembly and dependable protection.

Key Advantages

• Compact in-line design for cable-to-cable connection
• 2-pin layout for power or signal wiring
• IP68 waterproof protection for outdoor and damp locations
• Suitable for 0.5-1.5mm² cable wiring
• Fits 3-6.5mm cable outer diameter
• Threaded coupling helps maintain a firm connection
• Screw termination supports easy assembly and repair
• Flame-retardant housing improves safety in long-term use
• Suitable for OEM and ODM cable connector projects

Typical Applications

The LD13 2 pin in-line waterproof connector can be used in outdoor LED lighting, garden lighting, sensor wiring, compact automation equipment, control modules, monitoring devices, electronic instruments, small power systems, and other applications requiring sealed cable-to-cable connection. For related flange-mount options, see LD13 IP68 Flange Connectors Dimensions and Materials.

Selection Considerations

When selecting this connector for your project, verify the following points:

• Confirm the cable outer diameter fits within the 3-6.5mm range before ordering
• Check that the conductor cross-section matches the 0.5-1.5mm² termination range
• Verify the operating voltage and current requirements of your application
• Confirm the mating connector gender (male or female) needed for your cable assembly
• Specify cable length, color, and any custom marking requirements for OEM orders

Factory Capability and Quality Control

We are a Shenzhen-based connector manufacturer specializing in waterproof connectors, circular connectors, cable assemblies, aviation plugs, RF connectors, DIN connectors, and customized electronic connection solutions. Our factory has complete production capabilities including mold development, injection molding, metal processing, die-casting, assembly, product inspection, and packaging.

To ensure product reliability, we use professional testing equipment such as waterproof testing equipment, airtightness testers, insertion and withdrawal force testers, salt spray testing machines, voltage withstand testers, insulation resistance testers, high-precision measuring instruments, and electrical performance testing equipment. These inspection processes help verify sealing performance, conductivity, insulation safety, corrosion resistance, dimensional accuracy, and overall durability.

Our products are manufactured under a strict quality control system and can support international market requirements such as ISO9001, CE, RoHS, UL, BSCI, and national high-tech enterprise certification. With strong engineering capability and flexible customization service, we can provide OEM/ODM support for cable length, connector color, pin configuration, molded cable assembly, packaging, and application-specific connector designs.

Inquiry Checklist

To receive an accurate quotation and sample recommendation, please provide the following information:

• Required quantity and target delivery schedule
• Cable specification: conductor size, outer diameter, and insulation type
• Mating requirement: male or female connector, straight or angled version
• Electrical load: operating voltage, current, and whether power or signal transmission
• Environmental conditions: outdoor exposure, temperature range, chemical or UV resistance needs
• Customization needs: cable length, color, overmolding, or special packaging

For additional in-line connector options, you may also review the LD12 2 Pins In-line Cable Connector IP68 Waterproof for comparison.
