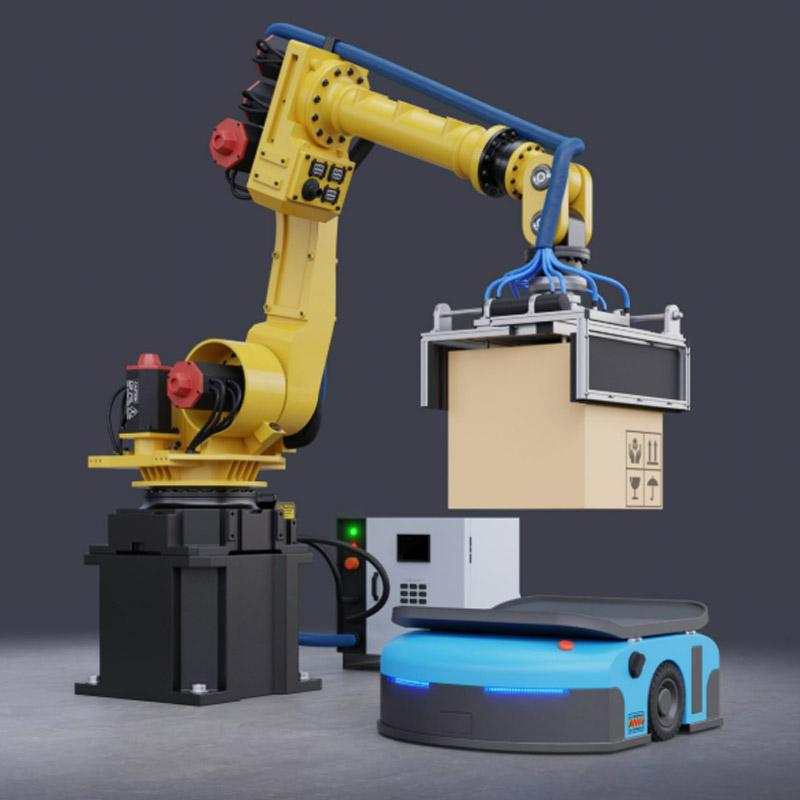

SP21 Connectors in Robotic Arm Actuators: Application Overview

In robotic arm systems, reliable electrical connections are essential for precise actuator control, accurate motion execution, and safe robotic operation. SP21 connectors are commonly used to connect servo motors, linear actuators, sensors, and control modules, ensuring stable power and signal transmission for smooth and responsive arm movements.

Robotic arm actuators often operate in environments with vibration, repetitive motion, dust, and temperature fluctuations. SP21 connectors, with rugged housings, secure locking mechanisms, and high protection ratings, maintain dependable connectivity under these demanding conditions. Their durability ensures continuous operation without signal loss or power interruptions, which is critical for precision tasks.

Additionally, SP21 connectors simplify installation and maintenance. When actuators or associated control devices require servicing or replacement, these connectors allow quick and secure reconnection, reducing downtime. By providing reliable connectivity, SP21 connectors enhance actuator performance, system stability, and overall efficiency in modern robotic arm applications.

Key Decision Points for SP21 Connector Selection

• Electrical Requirements: Verify the current and voltage ratings of the SP21 connector against the actuator's power and signal loads to ensure safe and stable operation.
• Environmental Protection: Confirm the IP rating and temperature range to match the robotic arm's operating environment, especially where dust, vibration, or moisture is present.
• Mechanical Durability: Assess the locking mechanism and housing material for resistance to repetitive motion and vibration, which are common in robotic arm joints.
• Installation and Maintenance: Consider the connector's mating cycles and ease of reconnection to minimize downtime during actuator servicing or replacement.

Application Boundaries

SP21 connectors are suitable for robotic arm actuator connections where stable power and signal transmission are required under moderate mechanical stress. They are not intended for high-voltage industrial mains or submersion in liquids unless explicitly rated for such conditions. Always verify the specific connector configuration against the actuator's interface and cable requirements.

Related Resources

For further guidance on connector selection and installation in robotic systems, refer to the SD20/SP20 Square Flange Connector Design and Installation Guide or explore Aviation Plug Connectors for alternative interface options.

Inquiry Next Step

To confirm the correct SP21 connector configuration for your robotic arm actuator, please provide your electrical load, cable diameter, mounting style, and environmental protection requirements via the inquiry form or WhatsApp. Our team will verify compatibility and supply the appropriate solution.
