SP24 Connectors
< >

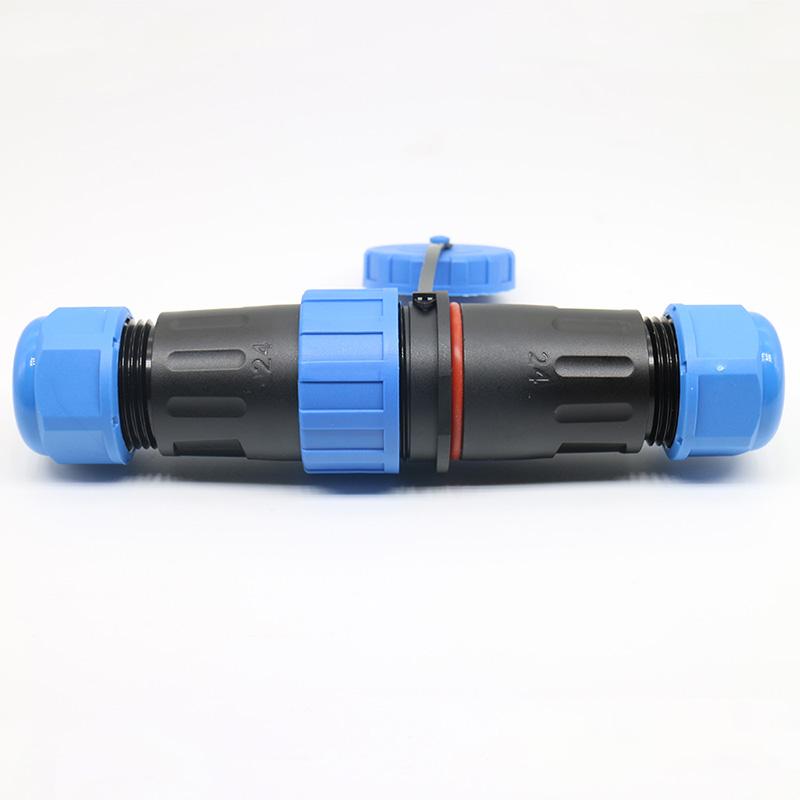

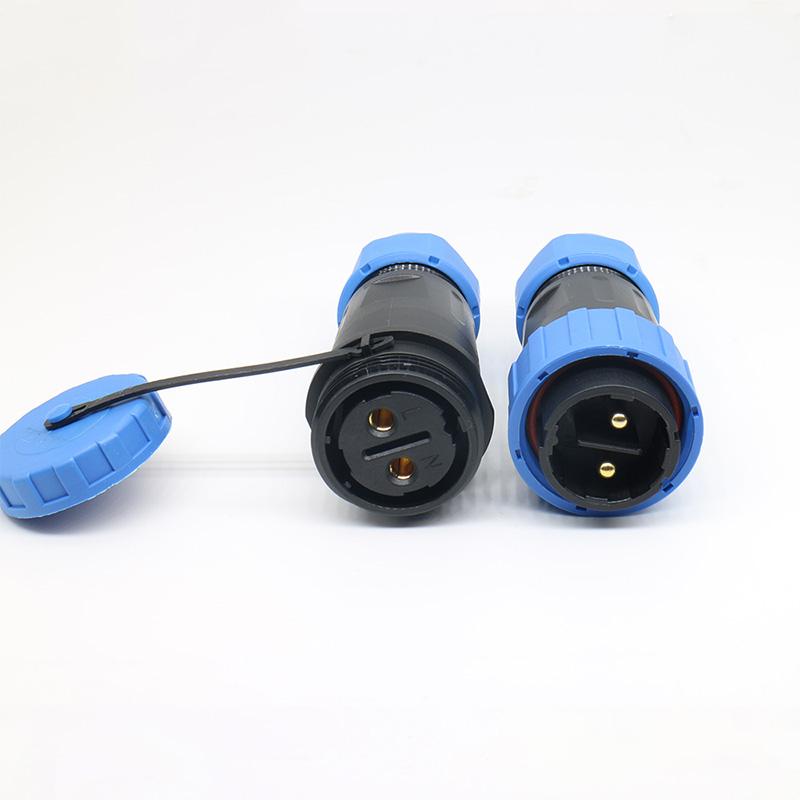

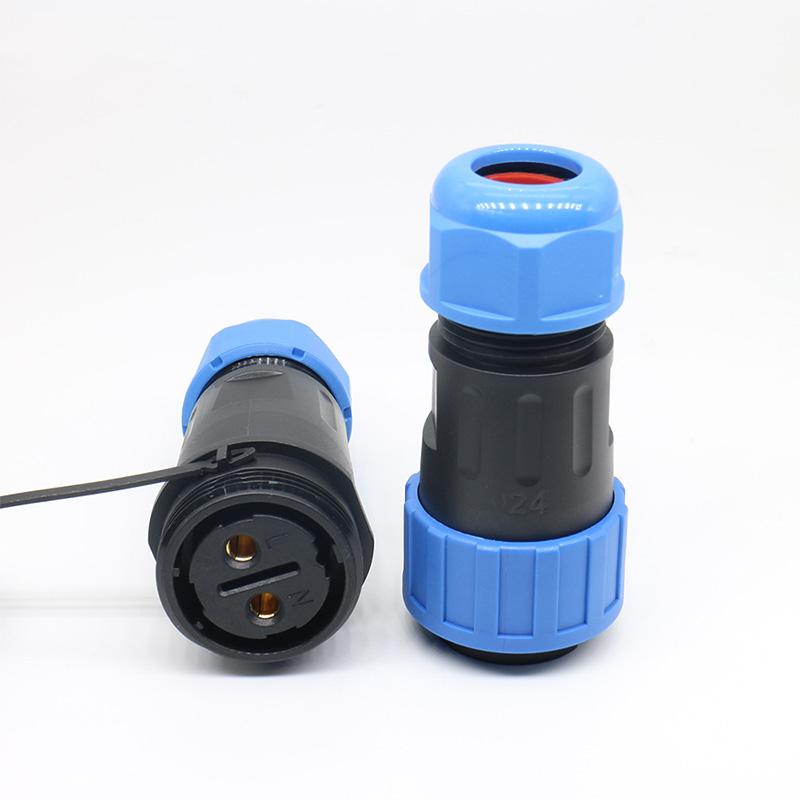

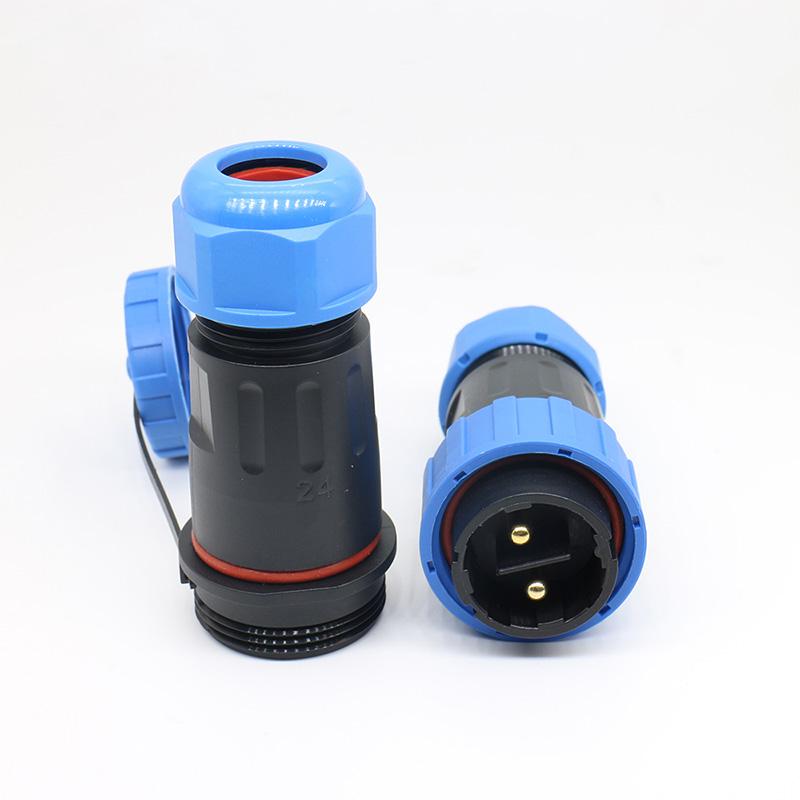

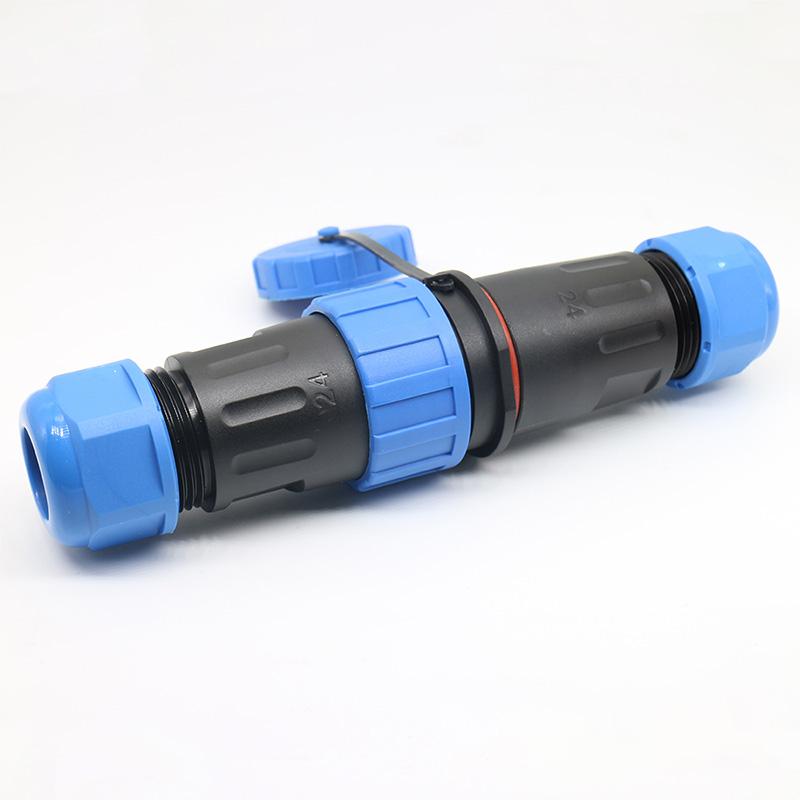

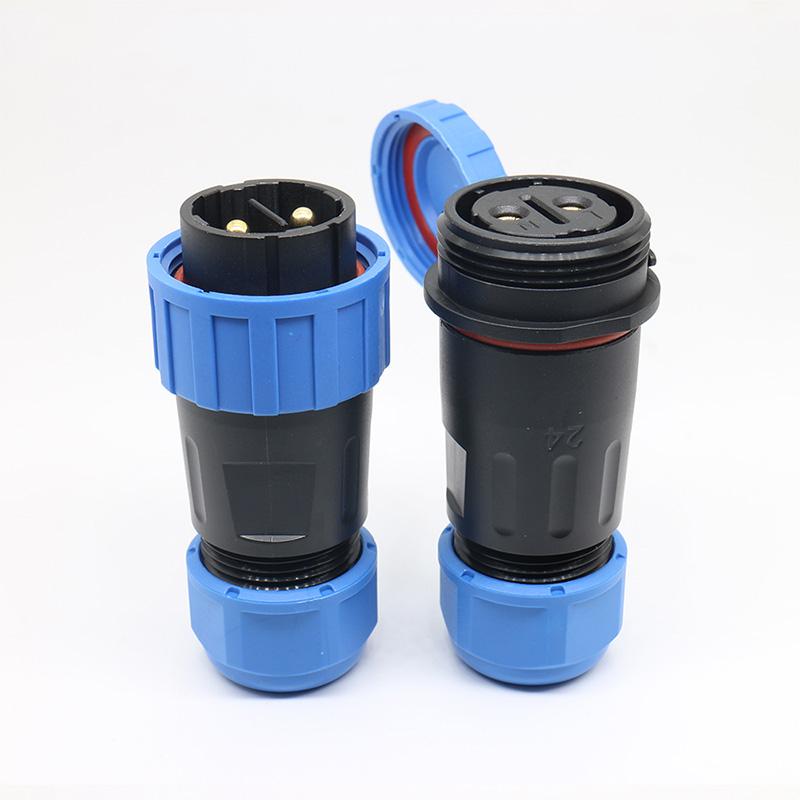

LD24/SP24 Waterproof Docking 4 Pins Connector

>Number Of CoresNumber Of Cores 2 - 9Pins
Contact DiameterContact Diameter(mm) 1.2mm - 3.2mm
IP RatingIP Rating IP68
Shell MaterialShell Material Thermoplastic PA6(Flame Retardant)
Temperature RangeTemperature Range -25°C to +85°C
TerminationTermination Screw Crimping
Rated CurrentRated Current(A) 5A - 45A
Rated VoltageRated Voltage(Ac.V) 280V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 1 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

LD24 / SP24 Waterproof Docking 4 Pins Connector - Heavy-Duty Reliable Connection
The LD24 / SP24 Waterproof Docking 4 Pins Connector is engineered for applications that demand high mechanical strength and stable power transmission. With its larger size and reinforced structure, this connector is ideal for heavy-duty equipment where reliability and durability are critical.
SP20 Connector
Designed with a precise docking interface, it ensures accurate alignment and secure mating, providing consistent electrical performance even in harsh industrial environments.

Built for Demanding Industrial Conditions
Compared to smaller connectors, the LD24 / SP24 series offers enhanced structural strength and higher load capacity, making it suitable for equipment exposed to vibration, impact, and continuous operation. The 4-pin configuration is optimized for stable power delivery, ensuring efficient and reliable system performance.

Key Advantages of LD24/SP24 Connector
Heavy-Duty Structure for Industrial Use
The larger housing design provides superior mechanical strength, making it suitable for rugged applications and demanding working conditions.

4 Pins for Stable Power Transmission
Optimized for power-focused applications, ensuring consistent current flow and reliable operation.

Accurate Docking with Strong Connection Stability
The docking mechanism ensures firm engagement and minimizes the risk of poor contact during operation.

Reliable Waterproof Protection
Sealed design protects against water and dust ingress, supporting stable performance in outdoor and harsh environments.

High Resistance to Vibration and Impact
Engineered to maintain connection integrity even under mechanical stress and continuous movement.

Manufacturing Strength You Can Rely On
Extensive Industry Experience
With more than 15 years of expertise in connector manufacturing, we provide proven solutions for industrial and commercial applications.
SP20 Connector
Integrated Production Capability
From die-casting and mold development to machining, injection molding, and assembly, all processes are managed in-house to ensure consistent quality.
Circular Connector
Strict Quality Control System

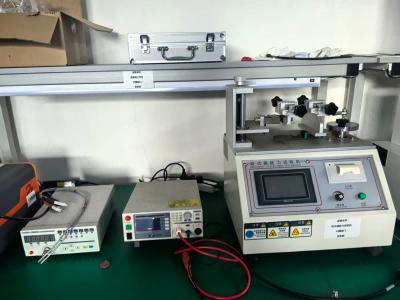

Each connector is tested for electrical performance, mechanical durability, and environmental resistance before delivery.
Connector
Flexible Customization Services
We support customized configurations, including pin layout, materials, and application-specific requirements.

Typical Applications for LD24/SP24 Connector
Heavy Industrial Equipment
Power Supply Systems
Automation Machinery
Outdoor Energy Equipment

Electrical Control Systems

Equipment with High Reliability Requirements


Why This Connector Stands Out
If your application requires a stronger, more durable, and power-focused docking connector, the LD24 / SP24 4 Pins connector delivers the reliability needed for demanding environments.

Looking for a heavy-duty waterproof connector solution?
Contact us today for samples, technical support, or a customized quotation.

 Item

 Parameters

 Number of Cores

 2 - 9Pin

 Gender

 Male/Female

 Housing Material

 Thermoplastic PA6(Flame Retardant)

 Cores Material

 Brass Plated with Gold

 Insulator Material

 Thermoplastics

 Locking System

 Threaded Connection

 Temperature Range

 -25℃, +85℃

 Rated Current (A)

 5A - 45A

 Rated Voltage (AC.V)

 380V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 2000㏁

 Contact Resistance (㏁)

 ≤1㏁

 Termination

 Screw Crimping


Related Products

More》

Related Resource


LD24/SP24 Connector
Related Cases
KMYD Connectors KNOWS WHAT YOU NEED,
LD24/SP24 Waterproof Docking 4 Pins Connector Market Leader！
Underwater Inspection Cameras for Offshore Operations in Norway
Underwater Inspection Cameras for Offshore Operations in Norway
Explore how push-pull connectors are used in underwater inspection camera systems in Norway, supporting reliable signal transmission and efficient equipment handling in offshore environments.
Offshore Monitoring and Sensor Systems in the United States
Offshore Monitoring and Sensor Systems in the United States
Discover how push-pull connectors are used in offshore monitoring systems in the United States, supporting reliable signal connections in control and data acquisition equipment.
SP21 Waterproof Connector for Fishing Light Lighting in the United States
SP21 Waterproof Connector for Fishing Light Lighting in the United States
SP21 Waterproof Connector – the perfect fit for marine LED fishing lights! Engineered for US marine environments, this 9pin connector solves humidity, salt corrosion, and space issues. With IP68 protection, brass nickel-plated contacts, and ABYC C-5/UL 508 compliance, it resists salt fog over 500 hours. Compact Ø21mm×L36mm design halves installation time. 30A rating supports 5–25W lights, reducing failure rates to 0.3% and cutting maintenance costs by 80%, fully complying with USCG.
Marine Navigation and Bridge Control Panels in South Korea
Marine Navigation and Bridge Control Panels in South Korea
Learn how push-pull connectors are applied in marine navigation and bridge control panels in South Korea, supporting compact layouts and efficient maintenance.
Related Application
Monitoring Component for Automatic Feeder
Monitoring Component for Automatic Feeder
GX16 Connectors in PLC-Based Control Panels
GX16 Connectors in PLC-Based Control Panels
MIL-DTL-5015 Connectors in UAV Power Systems
MIL-DTL-5015 Connectors in UAV Power Systems
VG95234 Circular Connectors in Harvesters
VG95234 Circular Connectors in Harvesters
BNC Connectors for Surveillance Video Transmission
BNC Connectors for Surveillance Video Transmission
GX12 Connectors in Industrial Robotics
GX12 Connectors in Industrial Robotics
M12 Connectors in Flow and Pressure Measurement Equipment
M12 Connectors in Flow and Pressure Measurement Equipment
M8 Connectors in PLC Control Cabinets
M8 Connectors in PLC Control Cabinets
Related Catalog
Learn More

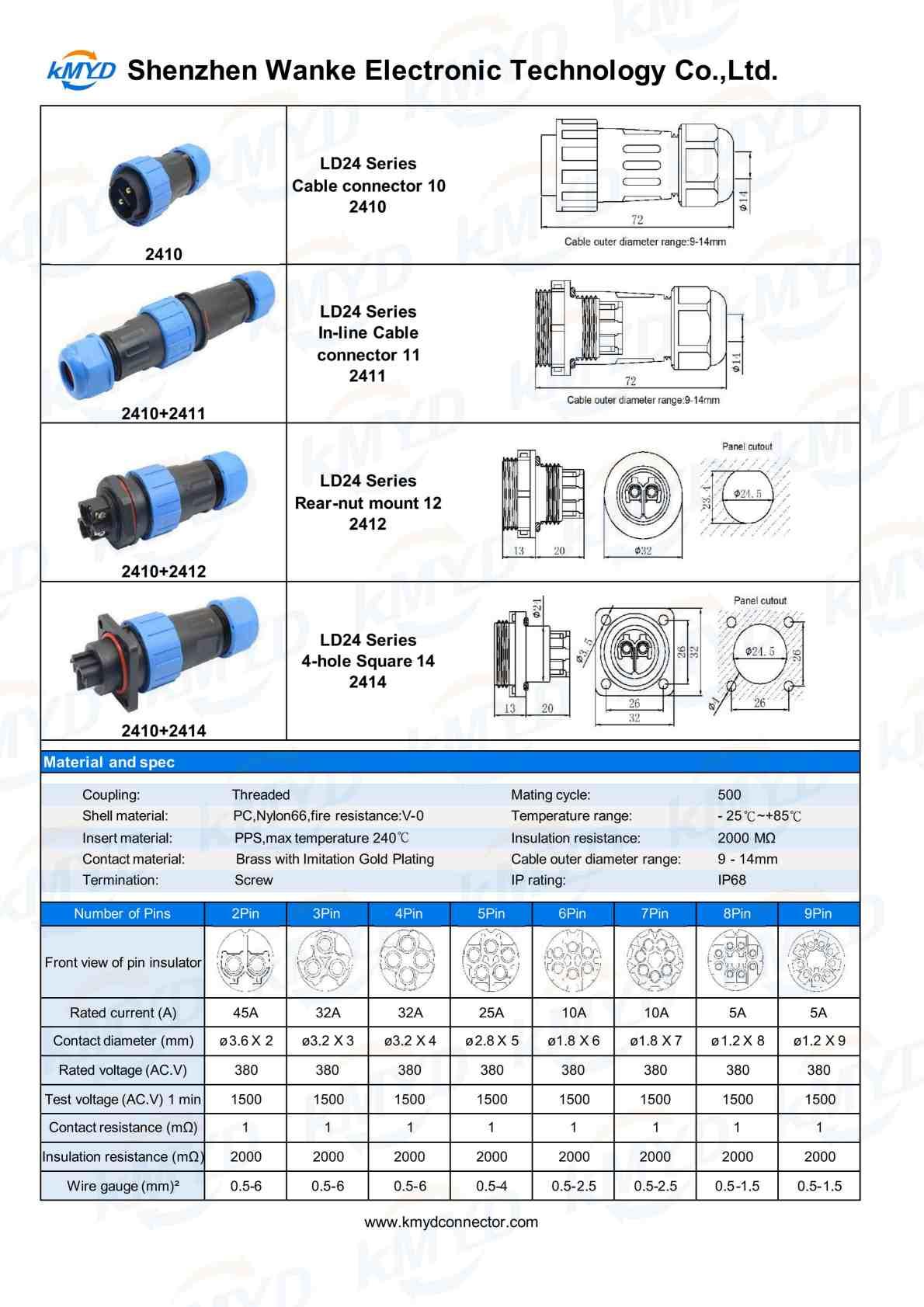

LD24/SP24 Docking Connector
