LD12 Connectors
< >

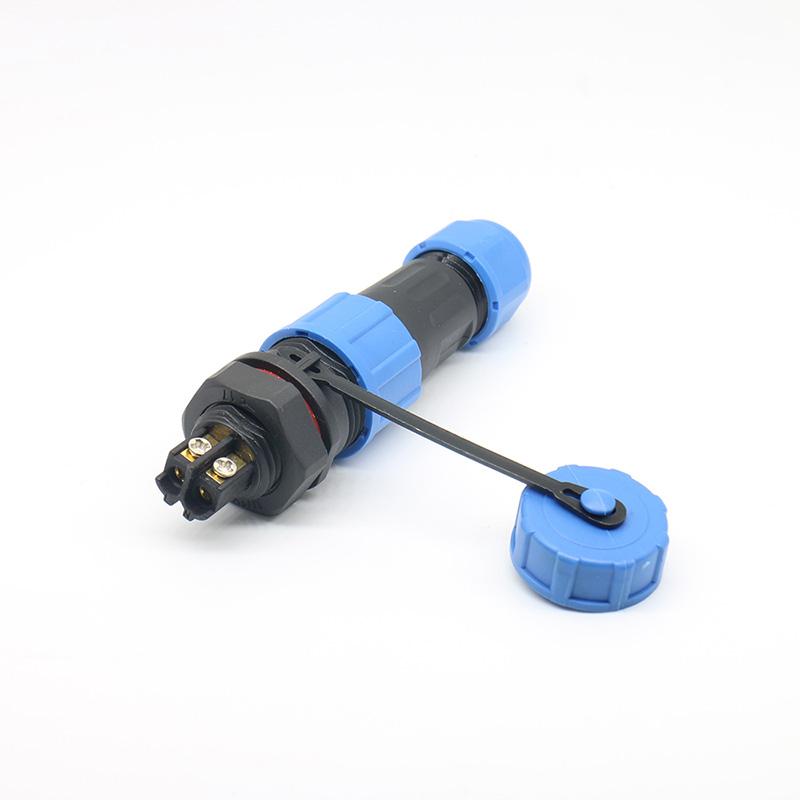

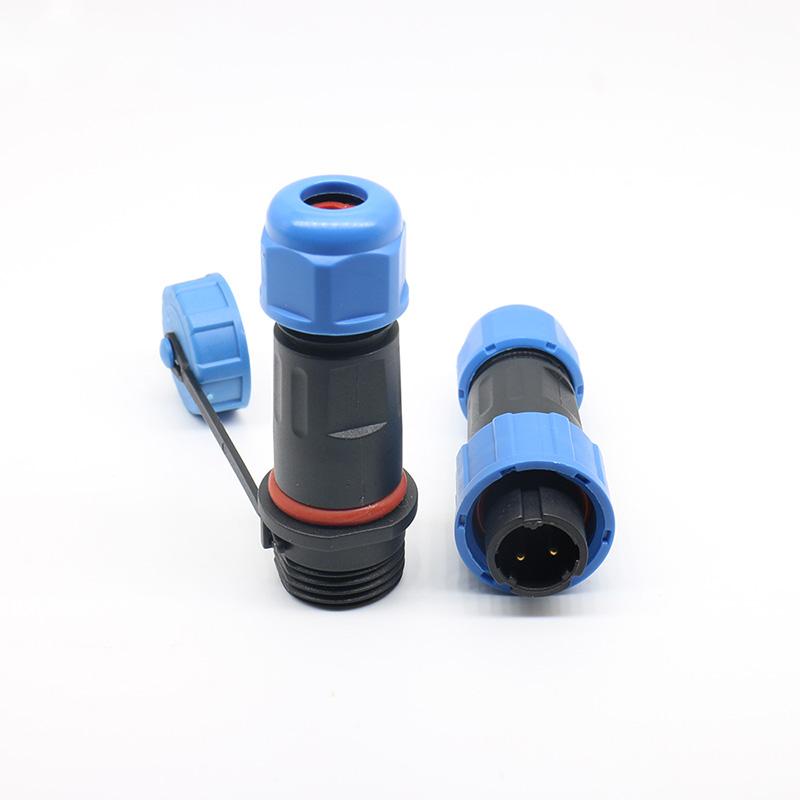

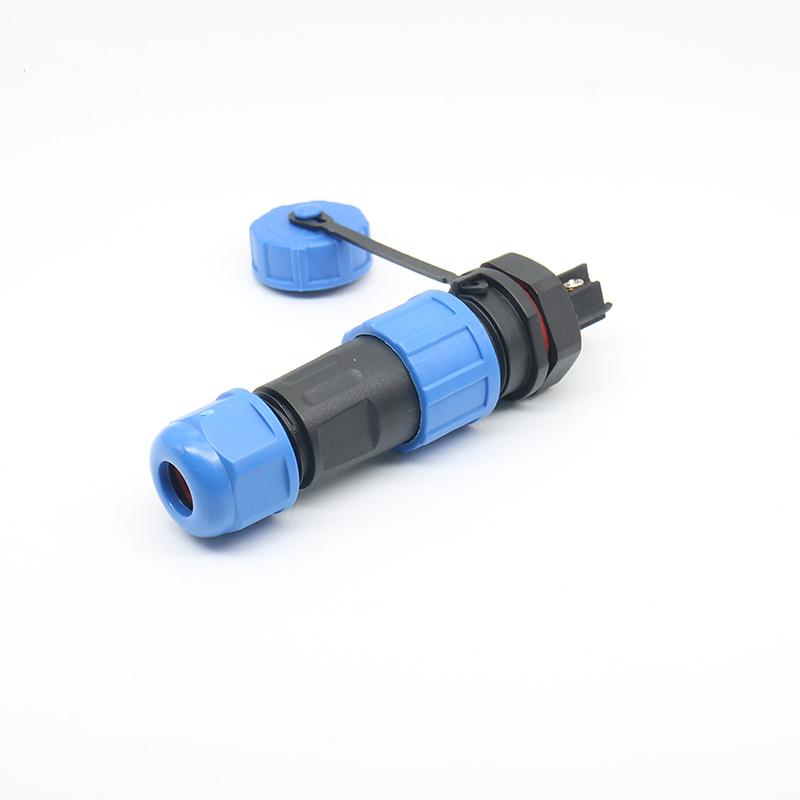

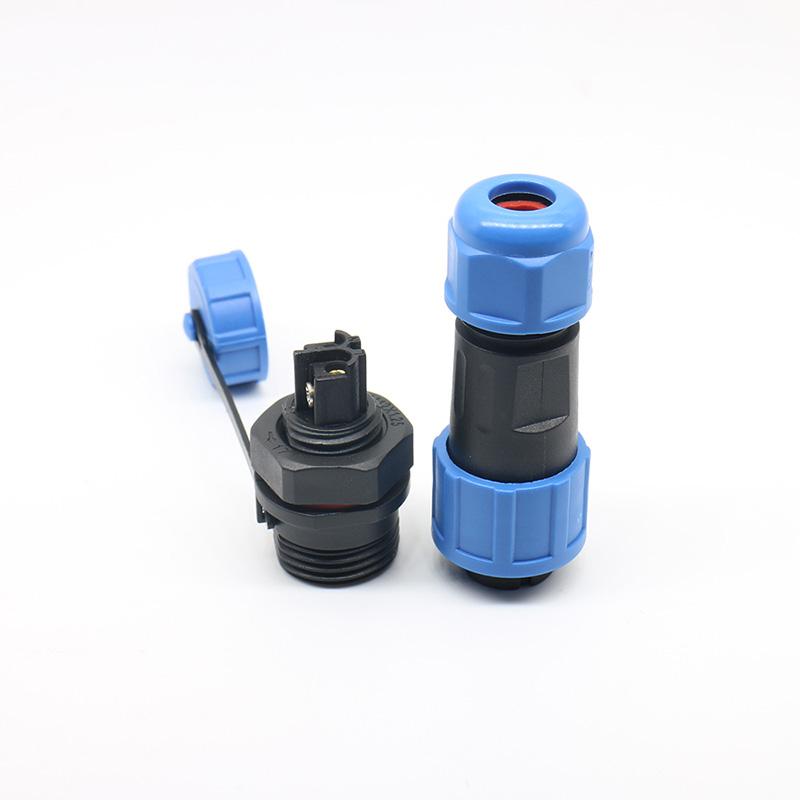

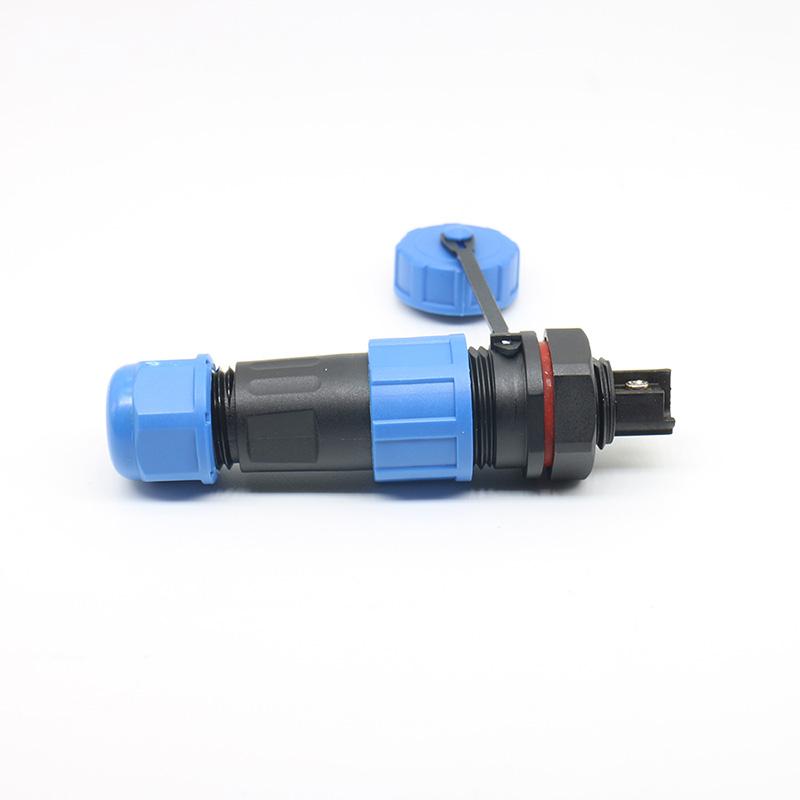

LD12 Waterproof Rear Nut Connector for Machinery Applications

>Number Of CoresNumber Of Cores 2Pins
Contact DiameterContact Diameter(mm) 1.2mm
IP RatingIP Rating IP68
Shell MaterialShell Material Thermoplastic PA6 (Flame Retardant)
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Screw Crimping
Rated CurrentRated Current(A) 5A
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤1MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

The LD12 Waterproof Rear Nut Circular Connector is designed for industrial machinery, control systems, and harsh-environment applications. Its robust rear nut design ensures secure and stable connections, while the waterproof construction protects against moisture, dust, and other contaminants. Made with high-quality materials, the LD12 connector provides reliable signal and power transmission, even in demanding conditions. Easy to install and maintain, it is ideal for automation systems, factory equipment, and outdoor machinery where durability and performance are critical. Perfect for engineers and technicians seeking a dependable connector solution.

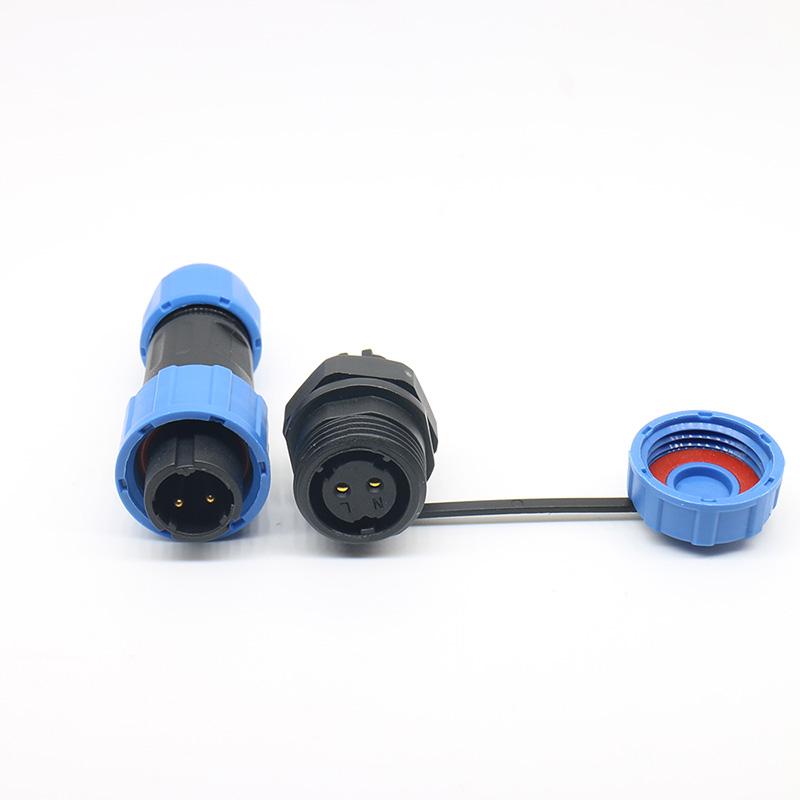

LD12 Connectors

Item

Parameters

Number of Cores

2Pin

Gender

Male/Female

Housing Material

Thermoplastic PA6(Flame Retardant)

Cores Material

Brass Plated with Gold

Insulator Material

Thermoplastics

Locking System

Threaded Connection

Temperature Range

-25℃, +85℃

Rated Current (A)

5A

Rated Voltage (AC.V)

250V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≤1㏁

Termination

Screw Crimping


Related Products

More》

Related Resource


LD12 Waterproof Rear Nut Connector
Related Cases
KMYD Connectors KNOWS WHAT YOU NEED,
LD12 Waterproof Rear Nut Connector for Machinery Applications Market Leader！
Offshore Communication and Control Modules in the United Kingdom
Offshore Communication and Control Modules in the United Kingdom
Discover how push-pull connectors are used in offshore communication and control modules in the UK, supporting compact interfaces and efficient maintenance in platform environments.
Marine Navigation and Bridge Control Panels in South Korea
Marine Navigation and Bridge Control Panels in South Korea
Learn how push-pull connectors are applied in marine navigation and bridge control panels in South Korea, supporting compact layouts and efficient maintenance.
SP21 Waterproof Connector for Fishing Light Lighting in the United States
SP21 Waterproof Connector for Fishing Light Lighting in the United States
SP21 Waterproof Connector – the perfect fit for marine LED fishing lights! Engineered for US marine environments, this 9pin connector solves humidity, salt corrosion, and space issues. With IP68 protection, brass nickel-plated contacts, and ABYC C-5/UL 508 compliance, it resists salt fog over 500 hours. Compact Ø21mm×L36mm design halves installation time. 30A rating supports 5–25W lights, reducing failure rates to 0.3% and cutting maintenance costs by 80%, fully complying with USCG.
Offshore Monitoring and Sensor Systems in the United States
Offshore Monitoring and Sensor Systems in the United States
Discover how push-pull connectors are used in offshore monitoring systems in the United States, supporting reliable signal connections in control and data acquisition equipment.
Related Application
GX16 Connectors in CCTV Cameras and Surveillance Systems
GX16 Connectors in CCTV Cameras and Surveillance Systems
Safe & Efficient Train Components
Safe & Efficient Train Components
GX12 Aviation Connectors in Avionics Navigation
GX12 Aviation Connectors in Avionics Navigation
Robotic Joint Connections
Robotic Joint Connections

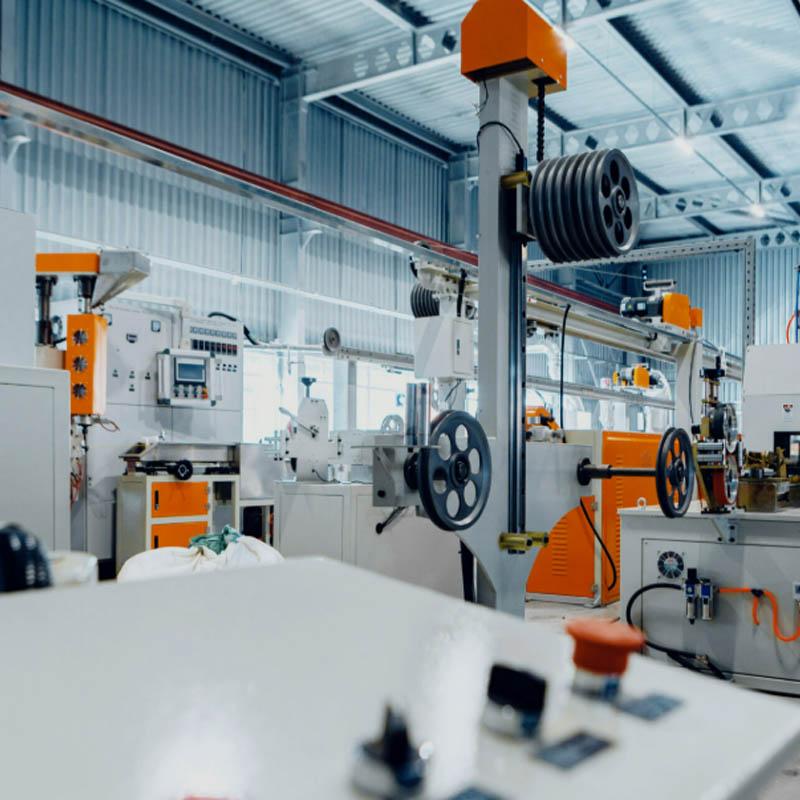

LD Series Connectors in Factory Automation Solutions
LD Series Connectors in Factory Automation Solutions

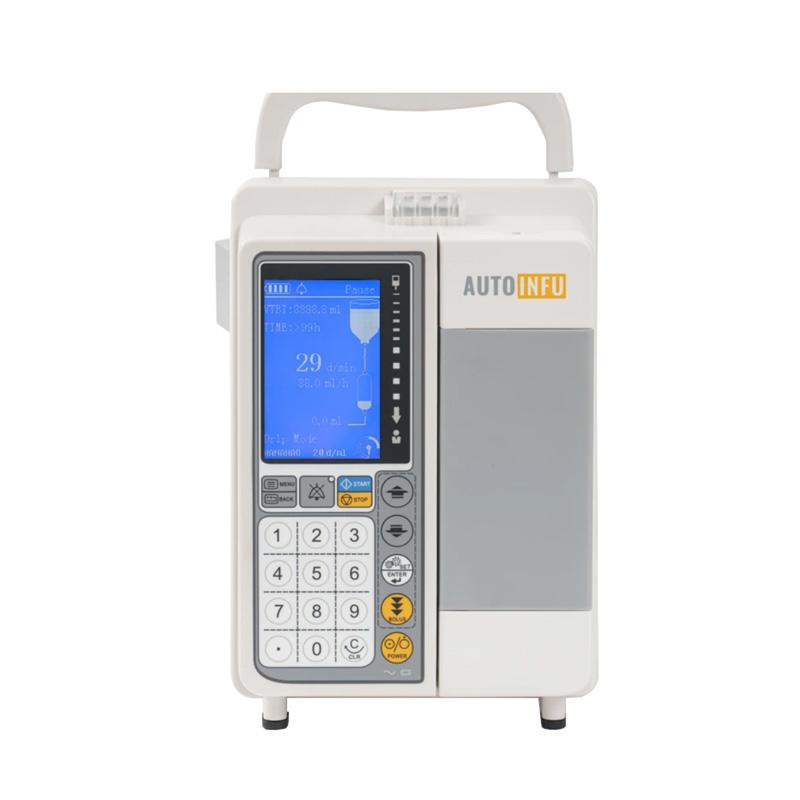

SP13 Waterproof Connectors in Infusion Pumps
SP13 Waterproof Connectors in Infusion Pumps
M12 Connectors in Smart Lighting Sensor Systems
M12 Connectors in Smart Lighting Sensor Systems
SY Series Circular Connectors in Smart Home Control Panels
SY Series Circular Connectors in Smart Home Control Panels
Related Catalog
Learn More

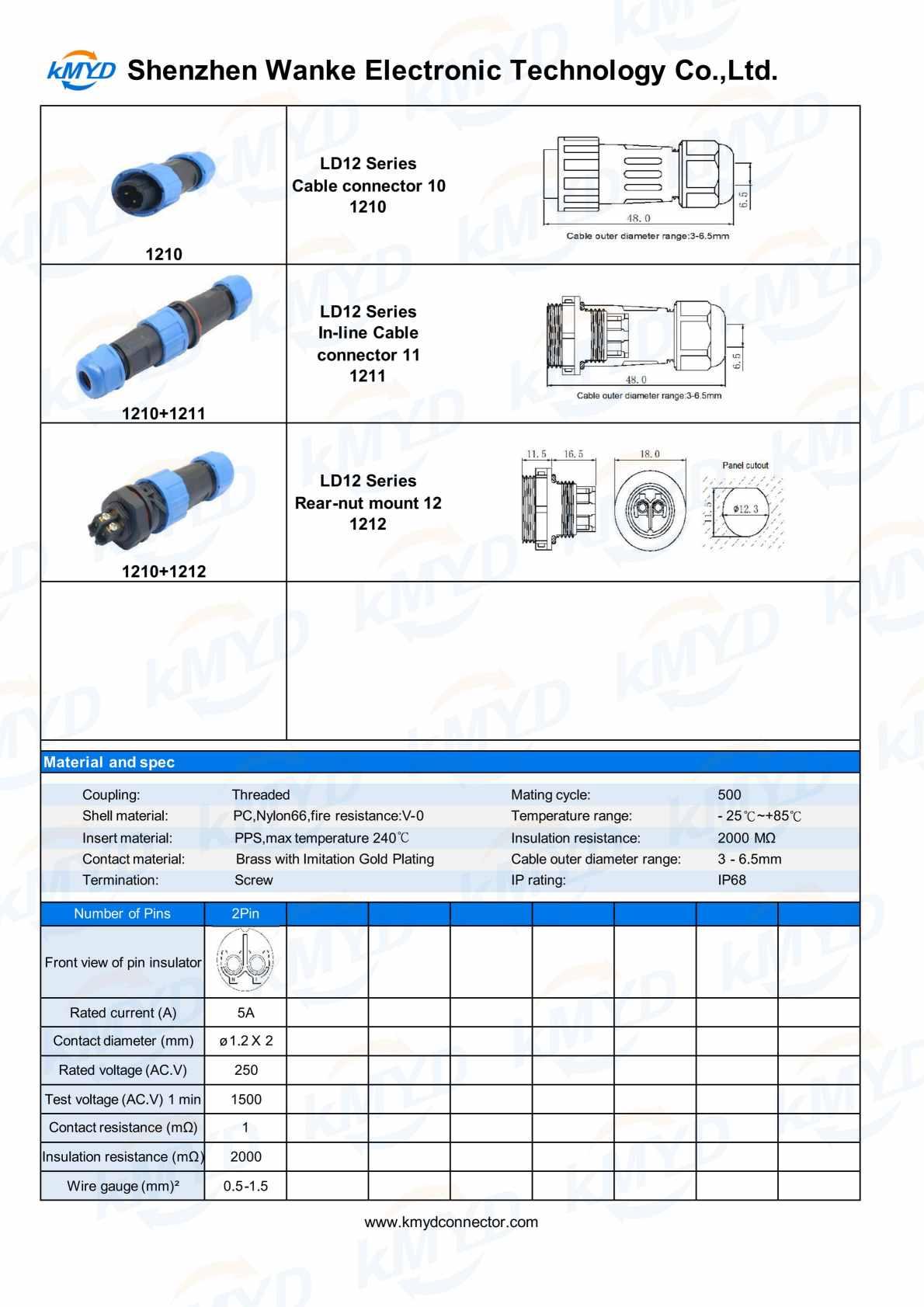

LD12 Waterproof Rear Nut Connector
