SP29 Connectors
< >

SP29 Docking Connector for Renewable Energy and Solar Systems

>Number Of CoresNumber Of Cores 2 - 26Pins
Contact DiameterContact Diameter(mm) 1.0mm - 3.5mm
IP RatingIP Rating IP68
Shell MaterialShell Material PC/PA66
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Welding
Rated CurrentRated Current(A) 5A - 50A
Rated VoltageRated Voltage(Ac.V) 400V-500V
Test VoltageTest Voltage(Ac.V)1Min 1000V-1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≥5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

Durable SP29 Docking Connector for Renewable Energy
Designed for solar panels and wind turbines, the SP29 Docking Connector ensures secure and reliable connections in renewable energy systems. Its robust construction withstands harsh outdoor conditions, guaranteeing long-term performance.

Waterproof and Weather-Resistant
With high-quality sealing and corrosion-resistant materials, this connector operates efficiently even in extreme weather, making it perfect for solar farms and other renewable energy installations.

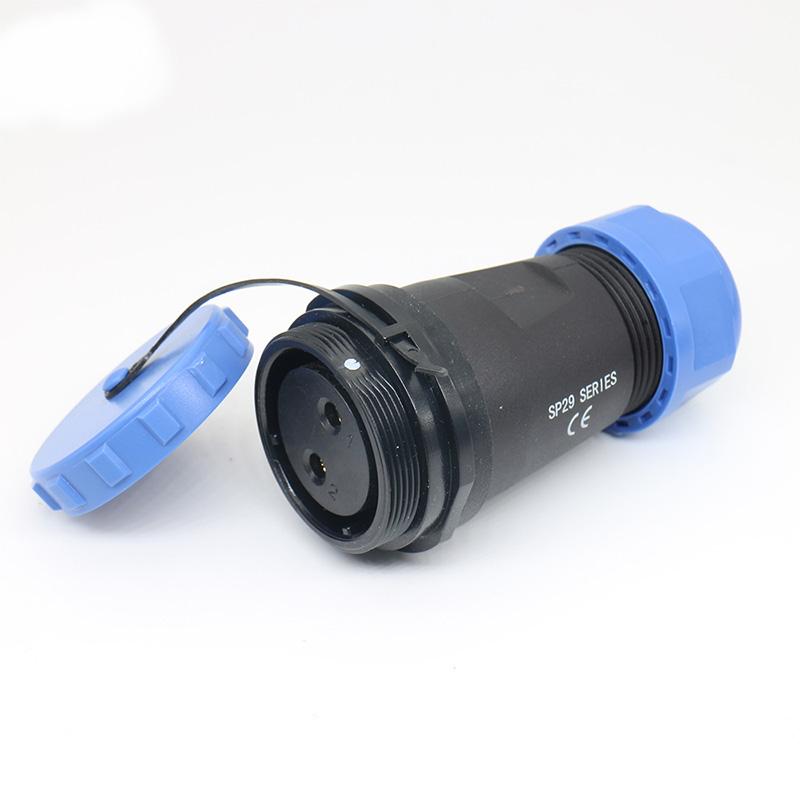

SP29 Connectors
Easy Installation for Efficient Energy Systems
The SP29 Docking Connector features a user-friendly design, simplifying installation and maintenance. Compatible with standard solar and wind energy equipment, it helps maximize uptime and energy efficiency.

High Performance and Safety
Engineered to handle high current loads and maintain a stable connection, the SP29 Docking Connector supports safe and reliable operation for all renewable energy applications.

Item

Parameters

Number of Cores

2-26Pin

Gender

Male/Female

Housing Material

PC/PA66

Cores Material

Brass Plated with Gold

Insulator Material

PPS

Locking System

Screw Locking

Temperature Range

-40℃, +85℃

Rated Current (A)

5A - 50A

Rated Voltage (AC.V)

400V - 500V

Test Voltage (AV.C)1Min

1000V - 1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≥5㏁

Termination

Welding


Related Products

More》

Related Resource

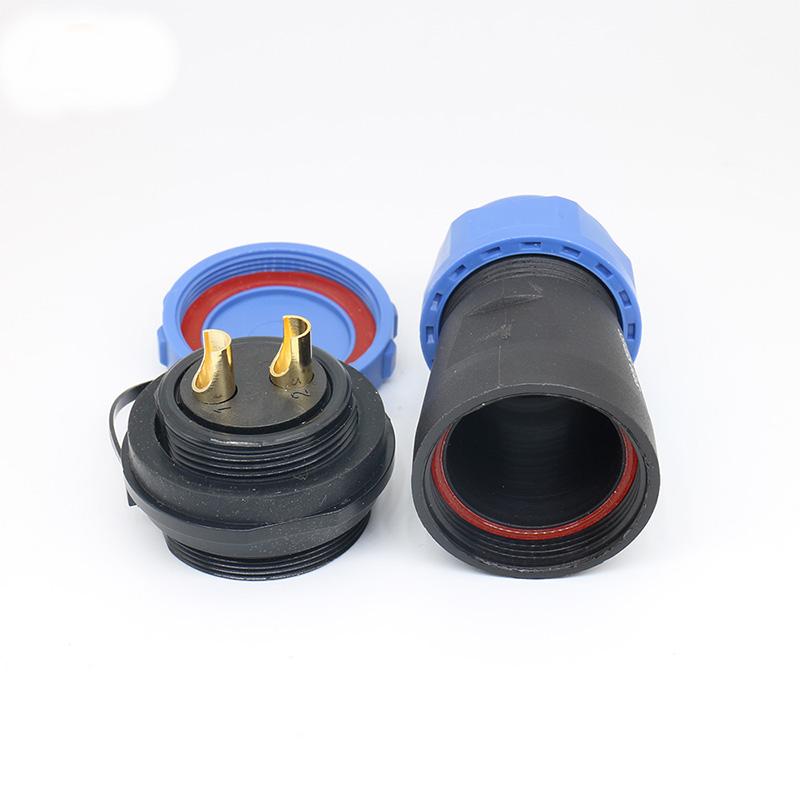

SP29 Docking Connector
Related Solutions
Related After-sales Questions KMYD Connectors is committed to providing solutions for SP29 Docking Connector for Renewable Energy and Solar Systems product manufacturing.
Connector Maintenance Guide – Keep Your Equipment Reliable

Regular connector maintenance ensures your equipment runs smoothly and extends the life of your connectors. Follow these easy steps to keep your connectors in top condition. Maintenance Steps: ...

MORE→

Connector Maintenance Guide – Keep Your Equipment Reliable
Connector Troubleshooting Guide – Quick & Easy

Ensure stable operation of your equipment with our connectors. This demo shows how to quickly identify and fix common connector issues. Step 1: Visual Inspection Check for dirt, dust, or ...

MORE→

Connector Troubleshooting Guide – Quick & Easy
How to Install an M12 IP68 Shielded Circular Connector (Crimp Termination Guide)

Correct installation of M12 circular connectors plays a critical role in ensuring stable electrical performance, effective shielding, and long-term reliability—especially in harsh industrial environm...

MORE→

How to Install an M12 IP68 Shielded Circular Connector (Crimp Termination Guide)
Related Catalog
Learn More

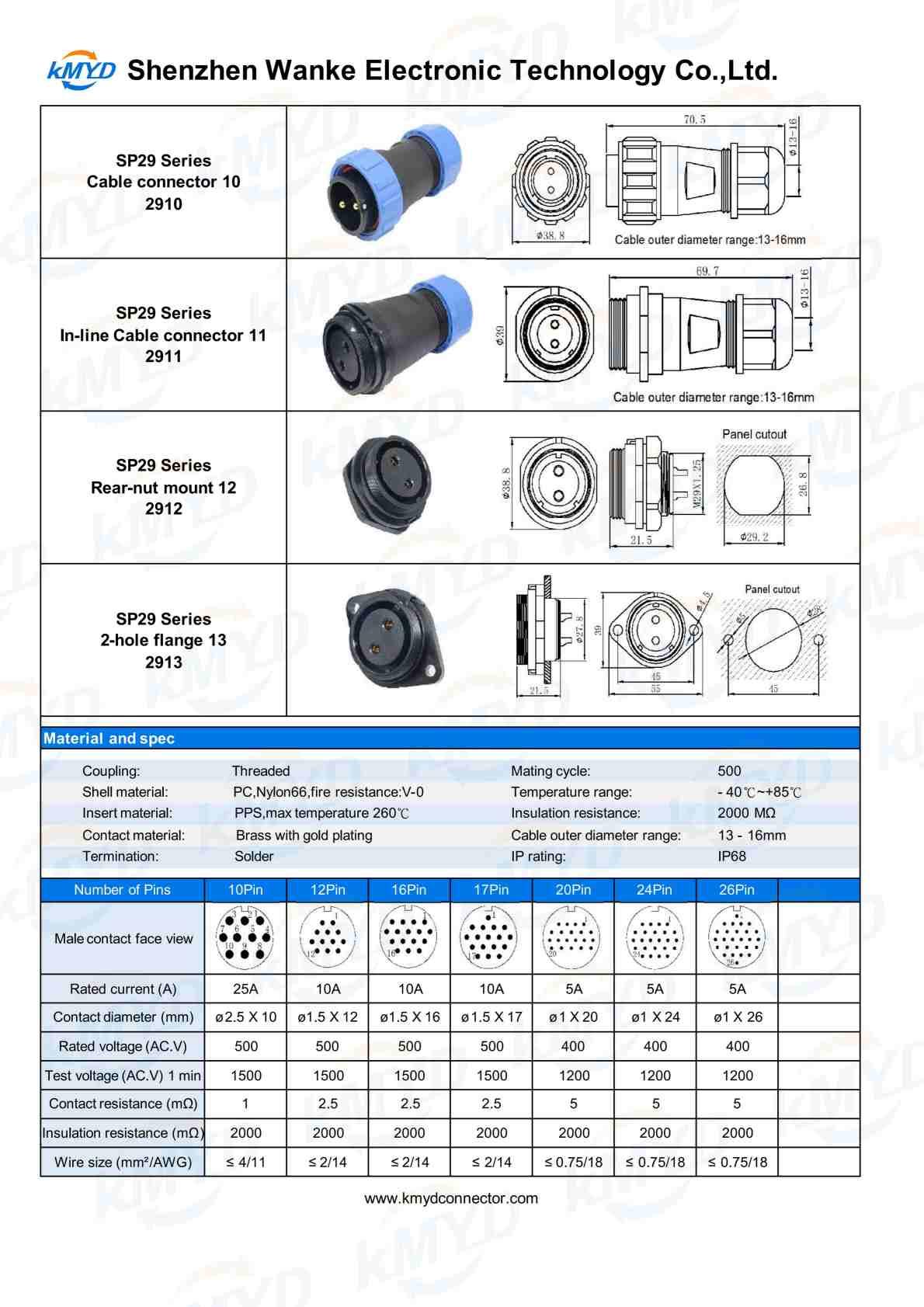

SP29 Docking Connector
