Project Background: XLR Connectors in Recording Studio Microphone Systems

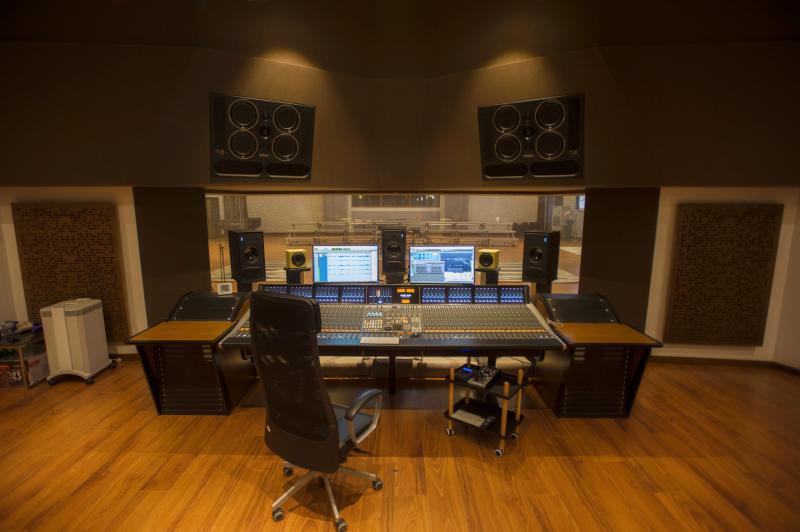

In professional recording studios, the reliability of the signal chain from microphone to mixing console or audio interface is critical. XLR connectors are the established interface for this application, supporting balanced audio transmission that rejects electromagnetic interference over long cable runs. Their robust mechanical design permits repeated mating cycles without signal degradation, making them suitable for the demanding environment of a working studio.

This case outlines the typical requirements for integrating XLR connectors into a studio microphone system, focusing on the electrical, mechanical, and environmental considerations that guide connector selection.

Interface and Environmental Requirements

The primary interface requirement is a 3-pin XLR configuration for balanced microphone signals. The connector must provide a secure, locking connection to prevent accidental disconnection during sessions. Key parameters for selection include:

• Contact configuration: 3-pin female (socket) for the microphone output and 3-pin male (plug) for the cable end.
• Electrical performance: Low contact resistance to preserve signal integrity, with a current rating suitable for microphone-level signals (typically below 1 A).
• Mechanical durability: A high mating cycle rating (e.g., over 1000 cycles) to withstand frequent patching and repatching.
• Environmental protection: While studio environments are typically dry and clean, the connector should offer a basic ingress protection (e.g., IP40) to guard against dust and incidental contact.

Connector Solution and Configuration

For this application, a standard 3-pin XLR connector series is specified. The cable-mounted plug connects to the microphone cable, while the chassis-mounted socket is installed on the mixing console or audio interface panel. The connector's metal shell provides shielding and a secure latch mechanism. The cable entry should accommodate the specific cable diameter used in the studio (e.g., 6-8 mm), and the solder or crimp contacts must match the conductor size.

It is important to verify the mating interface between the plug and socket from the same series to ensure a proper fit and reliable electrical contact. Compatibility should not be inferred from similar appearance alone.

Verification and Delivery Process

The validation process for this connector solution includes:

• Sample testing: Confirming the mechanical fit and electrical continuity of the plug-socket pair.
• Signal integrity check: Verifying that the balanced audio signal is transmitted without added noise or distortion.
• Durability test: Performing a series of mating cycles to confirm the connector meets the required lifespan.

Upon successful validation, the connectors are delivered for installation. The final step involves a functional test of the complete microphone-to-console signal path to confirm the system operates as expected.

Verified Result

The selected XLR connectors provide a stable, low-noise connection for the studio microphone system. The locking mechanism ensures a secure fit, and the robust construction supports the frequent handling typical of a professional recording environment. The solution meets the specified electrical and mechanical requirements, delivering reliable performance for audio capture.
