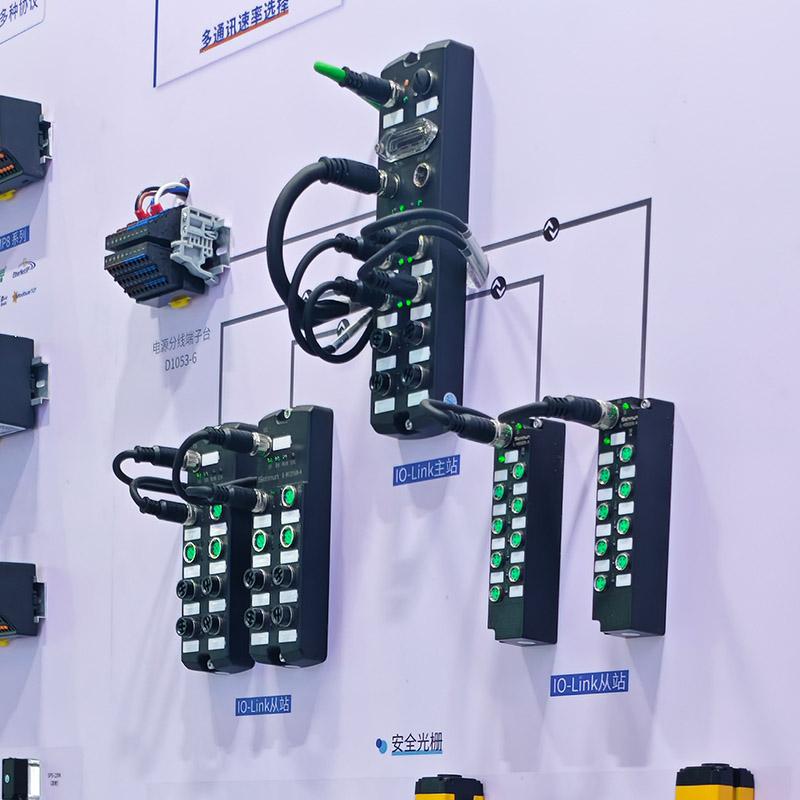

M12 Connectors for Reliable Sensor Connectivity in Industrial and Agricultural Systems

Sensors deliver real-time data on temperature, pressure, position, and environmental conditions across modern industrial and agricultural systems. M12 connectors link these sensors to control systems, PLCs, and data acquisition units, ensuring stable signal transmission and dependable power delivery in demanding applications.

Sensor installations often face vibration, dust, moisture, and electromagnetic interference. M12 connectors feature robust housings and secure threaded coupling mechanisms that maintain consistent connections under mechanical stress. Their high ingress protection ratings make them suitable for outdoor and industrial environments where reliable performance is critical.

Selection Criteria for M12 Connectors in Sensor Applications

Evaluate the following factors to match an M12 connector to your sensor requirements:

• Pin Count and Coding: Verify the required pin count (e.g., 3, 4, 5, 8) and coding (A, B, D, X) to prevent mismating with your sensor and control system.
• Electrical Ratings: Confirm current and voltage ratings meet the sensor's power and signal specifications.
• Environmental Protection: Check the IP rating (e.g., IP67, IP68) for dust and water ingress resistance suited to your installation environment.
• Cable and Mounting Style: Choose between field-wireable, molded, or panel-mount configurations based on installation and maintenance needs.

Installation and Maintenance Advantages

M12 connectors enable quick installation and simplified maintenance. When sensors require replacement or repositioning, these connectors allow fast, secure reconnection without complex rewiring. Reliable connectivity improves data accuracy, system stability, and operational efficiency across sensor-based applications.

For detailed specifications and performance data, refer to the SF Series Aviation Connectors Specifications and Performance Data page. For broader product options, explore the Aviation Plug Connectors catalog.

For specific requirements or connector selection assistance, contact our team or submit the inquiry form to discuss your application details.
