Project Background: M12 Connectors in Maglev Train Systems

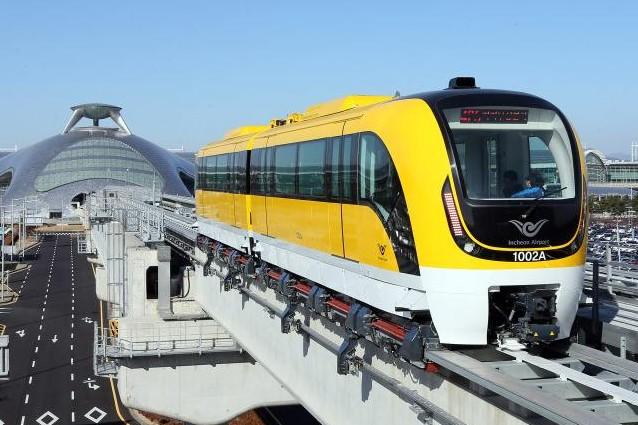

Maglev trains operate with no physical contact between the vehicle and the guideway, relying instead on powerful electromagnetic forces for propulsion and levitation. This operating principle creates a uniquely demanding environment for every electrical interconnection on board. Vibration from high-speed travel, electromagnetic interference from propulsion systems, and the need for absolute reliability in safety-critical control loops all place stringent requirements on the connectors used throughout the train.

Threaded connectors are critical for maglev train operation. They provide secure, vibration-resistant connections in high-speed and high-electromagnetic environments, ensuring reliable signal and power transmission to key systems such as propulsion, levitation, and train control. Designed to endure extreme conditions without loosening, they help maintain the safety, stability, and continuous high-speed performance of maglev trains.

Interface and Environmental Requirements

For a maglev application, the connector interface must satisfy several simultaneous conditions:

• Mechanical security: A threaded coupling mechanism that resists loosening under continuous vibration and acceleration forces.
• Environmental protection: Sealing against dust and moisture ingress, appropriate for the under-car and equipment-compartment environments where connectors are mounted.
• Electrical integrity: Stable contact resistance and insulation performance in the presence of electromagnetic fields generated by propulsion and levitation systems.
• Mating reliability: A defined mating cycle life and a positive locking indication so maintenance crews can verify connection integrity.

Connector Solution and Configuration

The M12 circular connector series is a suitable candidate for many of these signal and low-power interconnections. Its compact threaded coupling provides a vibration-resistant interface, while the standardized form factor supports multiple pin counts and coding options to prevent mismating between different circuits.

When selecting a specific configuration, the following parameters must be confirmed against the actual train system design:

• Pin count and contact layout for the signal or power circuit being connected.
• Coding or keying variant to ensure correct mating between plug and socket.
• Cable diameter range and termination method (field-wireable or molded).
• Rated voltage and current for the specific application.
• IP rating and temperature range for the mounting location.

For a broader view of available M12 configurations, see M12 Circular Connectors by Type and Core Count.

Verification and Delivery Process

A typical project flow for this type of connector application includes the following stages:

1. Configuration confirmation: Review of the train system's electrical drawings to confirm pin count, coding, cable specification, and mounting requirements.
2. Sample validation: Provision of sample connectors for fit-check and electrical testing against the actual mating interface.
3. Environmental testing: Verification of vibration resistance, temperature endurance, and sealing performance under simulated operating conditions.
4. Delivery and installation support: Supply of production quantities with documentation, followed by installation guidance for the assembly team.

For related interconnection needs in rail applications, the Aviation Plug Connectors range offers additional threaded options for higher-power or larger-form-factor circuits.

Result and Application Fit

The correct connector selection for a maglev train depends on matching the electrical load, environmental exposure, and mechanical mounting conditions of each specific circuit. A threaded M12 connector with the appropriate pin count, coding, and sealing rating provides a dependable interface for signal and control applications where vibration resistance and electromagnetic immunity are essential.

To confirm the right configuration for your project, please provide the following details in your inquiry:

• Signal type and electrical load (voltage, current, frequency).
• Number of contacts required and preferred coding.
• Cable type and outer diameter.
• Mounting style (panel mount, cable mount, or molded).
• Environmental requirements (IP rating, temperature range, vibration level).

Submit these specifications through the inquiry form or contact us via WhatsApp to begin the configuration review.
