SP13 Connectors
< >

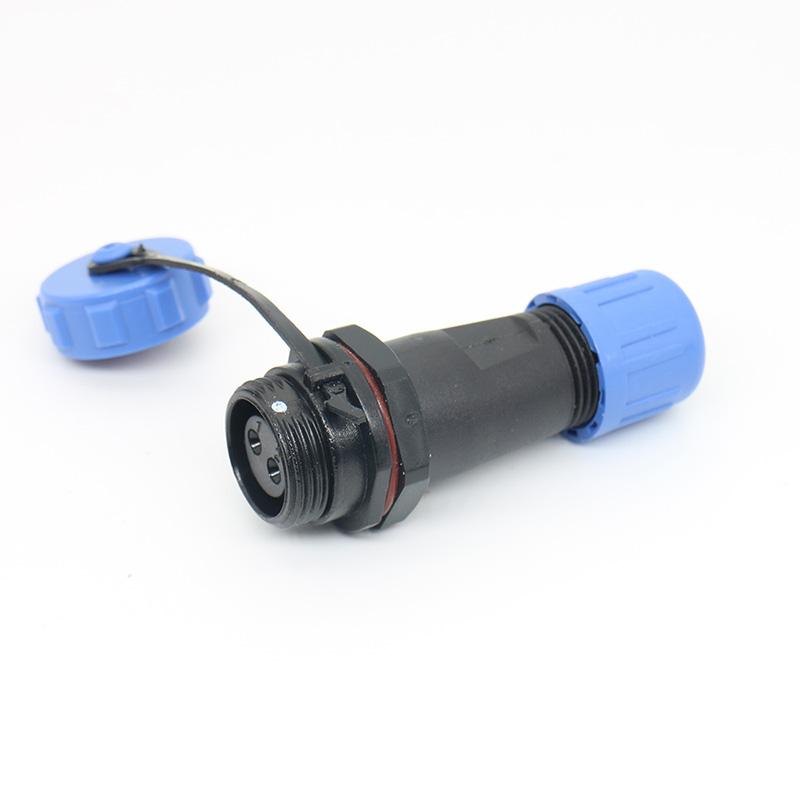

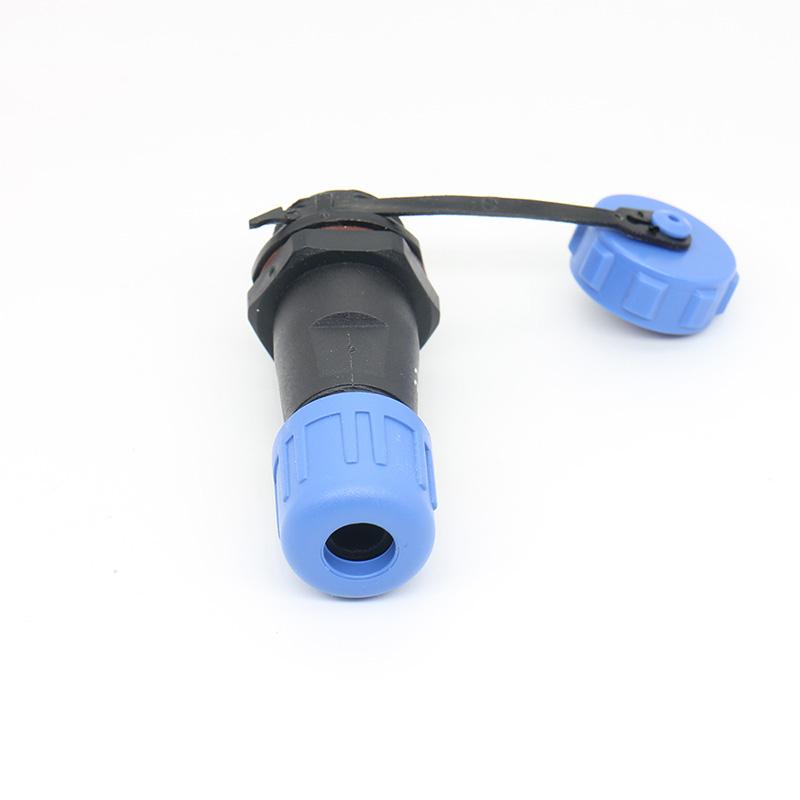

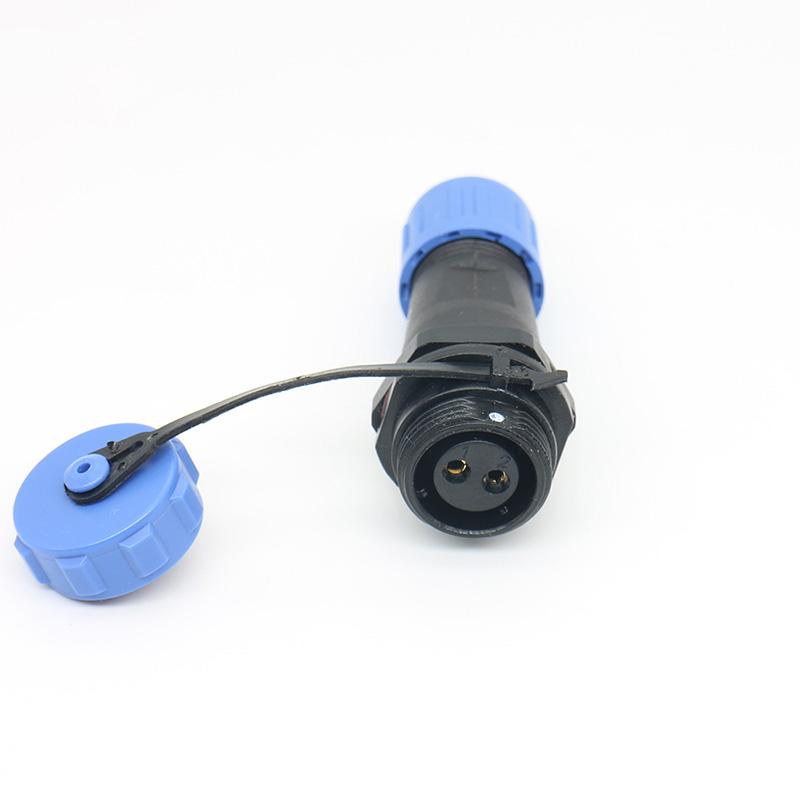

SP13 5 pin Docking Connector Waterproof and Dustproof

>Number Of CoresNumber Of Cores 2 - 9Pins
Contact DiameterContact Diameter(mm) 1.0mm/1.6mm
IP RatingIP Rating IP68
Shell MaterialShell Material PC/PA66
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Welding
Rated CurrentRated Current(A) 3A/5A/13A
Rated VoltageRated Voltage(Ac.V) 125V/250V
Test VoltageTest Voltage(Ac.V)1Min 1000V-1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≥10MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

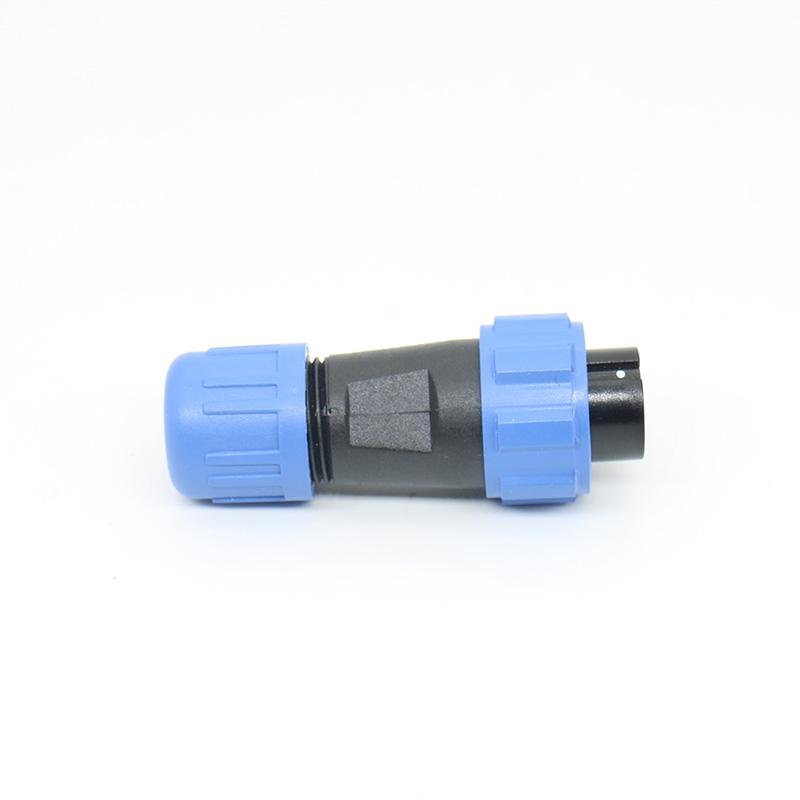

SP13 IP68 Waterproof Circular Connector - Compact Industrial Waterproof Solution
The SP13 IP68 waterproof connector is a compact circular connector designed for reliable electrical connections in harsh and outdoor environments. It provides a secure and stable connection while protecting against dust, moisture, and water immersion, making it ideal for industrial and outdoor applications.


Built with an IP68 protection rating, the SP13 series ensures complete dust-tight sealing and long-term waterproof performance even under challenging conditions. Its compact design allows installation in space-limited equipment without compromising durability or electrical stability.

SP13 Waterproof Connector

Key Features of SP13 Waterproof Connectors:
IP68 waterproof and dustproof protection
Compact and lightweight design for tight spaces
Secure threaded locking mechanism for stable connection
Multiple pin options (2 - 9 pins available)
High reliability under vibration and outdoor conditions

Suitable for both power and signal transmission

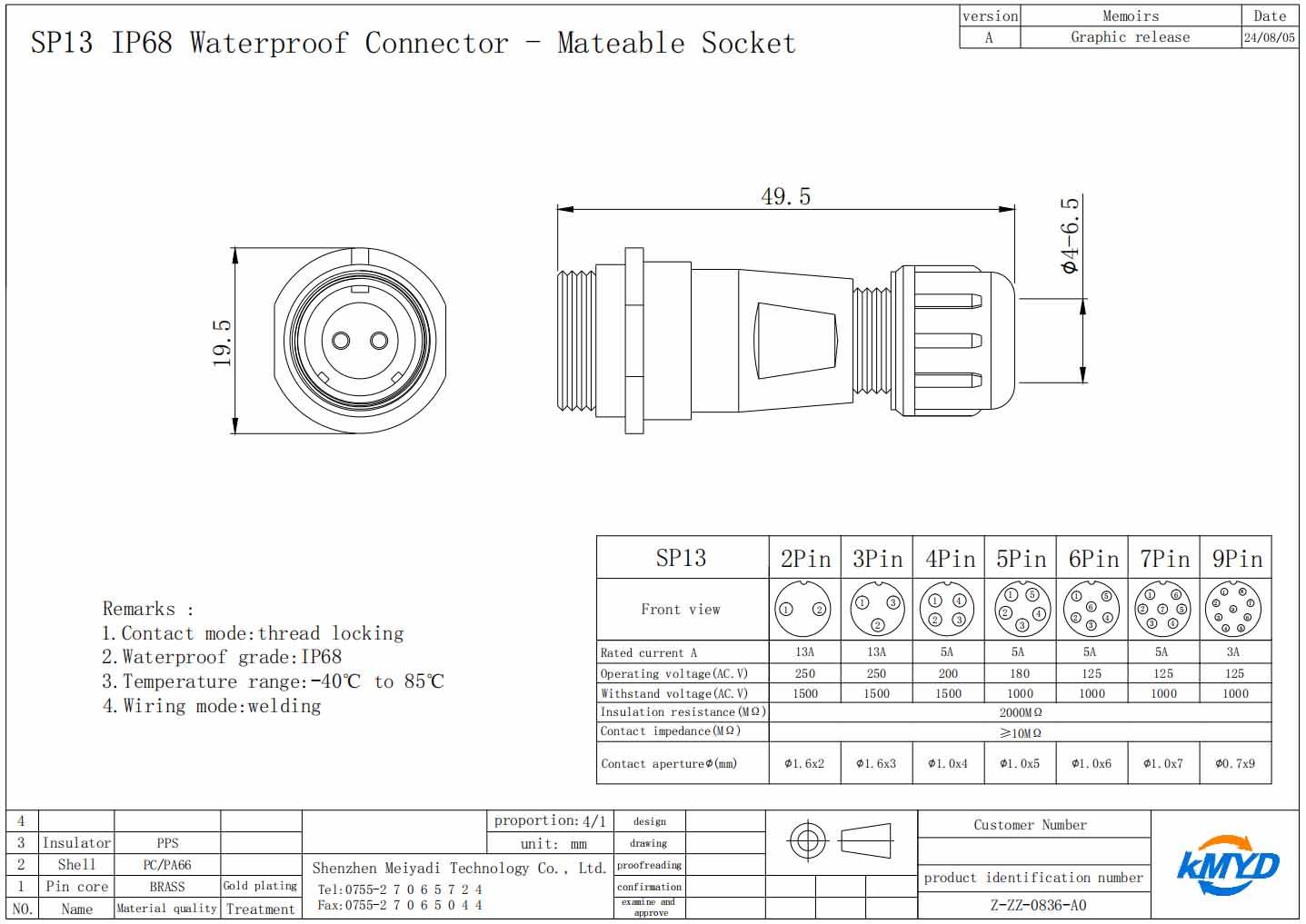

SP13 Connector Dimension Drawing


Technical Options for SP13 Waterproof Connectors:
SP13 circular connector supports various configurations including 2-pin, 3-pin, 4-pin, 5-pin, 6-pin, 7-pin, 9-pin, with both cable-to-cable, flange and panel mount versions available.


SP13 Waterproof Connectors' Applications:

Widely used in LED outdoor lighting, industrial automation, sensors, marine equipment, security systems, and renewable energy devices.


KMYD Connector's Factory Strength & Quality Assurance

We operate a professional manufacturing facility with strict quality control processes to ensure stable and consistent product performance. Every connector is produced under standardized production procedures and undergoes testing for waterproof performance, durability, and electrical reliability before shipment.
Certifications such as ISO 9001 and related compliance testing reports are available upon request. Factory inspection photos, production line images, and quality testing documentation can be provided to support supplier verification and project qualification.

IOS9001


Reliable Shipment & On-Time Delivery
Every order is carefully inspected, securely packed, and prepared for shipment directly from our factory. Our experienced logistics team ensures safe packaging and reliable global delivery to minimize transportation risks.
With stable production capacity and efficient order management, we are committed to delivering your connectors on time, supporting your production schedules and project timelines.
This shipment photo reflects our real daily operations and consistent supply capability, demonstrating our commitment to dependable delivery and long-term partnership.

IP68 Connector

Over the years, we have built a strong reputation for reliable quality, consistent performance, and responsive customer service. Our products are trusted by customers across various industries, and we remain committed to delivering dependable connectivity solutions that support long-term business success.

 Item

 Parameters

 Number of Cores

 2-9Pin

 Gender

 Male/Female

 Housing Material

 PC/PA66

 Cores Material

 Brass Plated with Gold

 Insulator Material

 PPS

 Locking System

 Screw Locking

 Temperature Range

 -40℃, +85℃

 Rated Current (A)

 3A/5A/13A

 Rated Voltage (AC.V)

 125V/250V

 Test Voltage (AV.C)1Min

 1000V - 1500V

 Insulation Resistance (㏁)

 2000㏁

 Contact Resistance (㏁)

 ≥10㏁

 Termination

 Welding


Related Products

More》

Related Resource


SP13 Docking Connector
Related Solutions
Related After-sales Questions KMYD Connectors is committed to providing solutions for SP13 5 pin Docking Connector Waterproof and Dustproof product manufacturing.
Connector Troubleshooting Guide – Quick & Easy

Ensure stable operation of your equipment with our connectors. This demo shows how to quickly identify and fix common connector issues. Step 1: Visual Inspection Check for dirt, dust, or ...

MORE→

Connector Troubleshooting Guide – Quick & Easy
How to Install an M12 IP68 Shielded Circular Connector (Crimp Termination Guide)

Correct installation of M12 circular connectors plays a critical role in ensuring stable electrical performance, effective shielding, and long-term reliability—especially in harsh industrial environm...

MORE→

How to Install an M12 IP68 Shielded Circular Connector (Crimp Termination Guide)
Connector Maintenance Guide – Keep Your Equipment Reliable

Regular connector maintenance ensures your equipment runs smoothly and extends the life of your connectors. Follow these easy steps to keep your connectors in top condition. Maintenance Steps: ...

MORE→

Connector Maintenance Guide – Keep Your Equipment Reliable
Related Catalog
Learn More

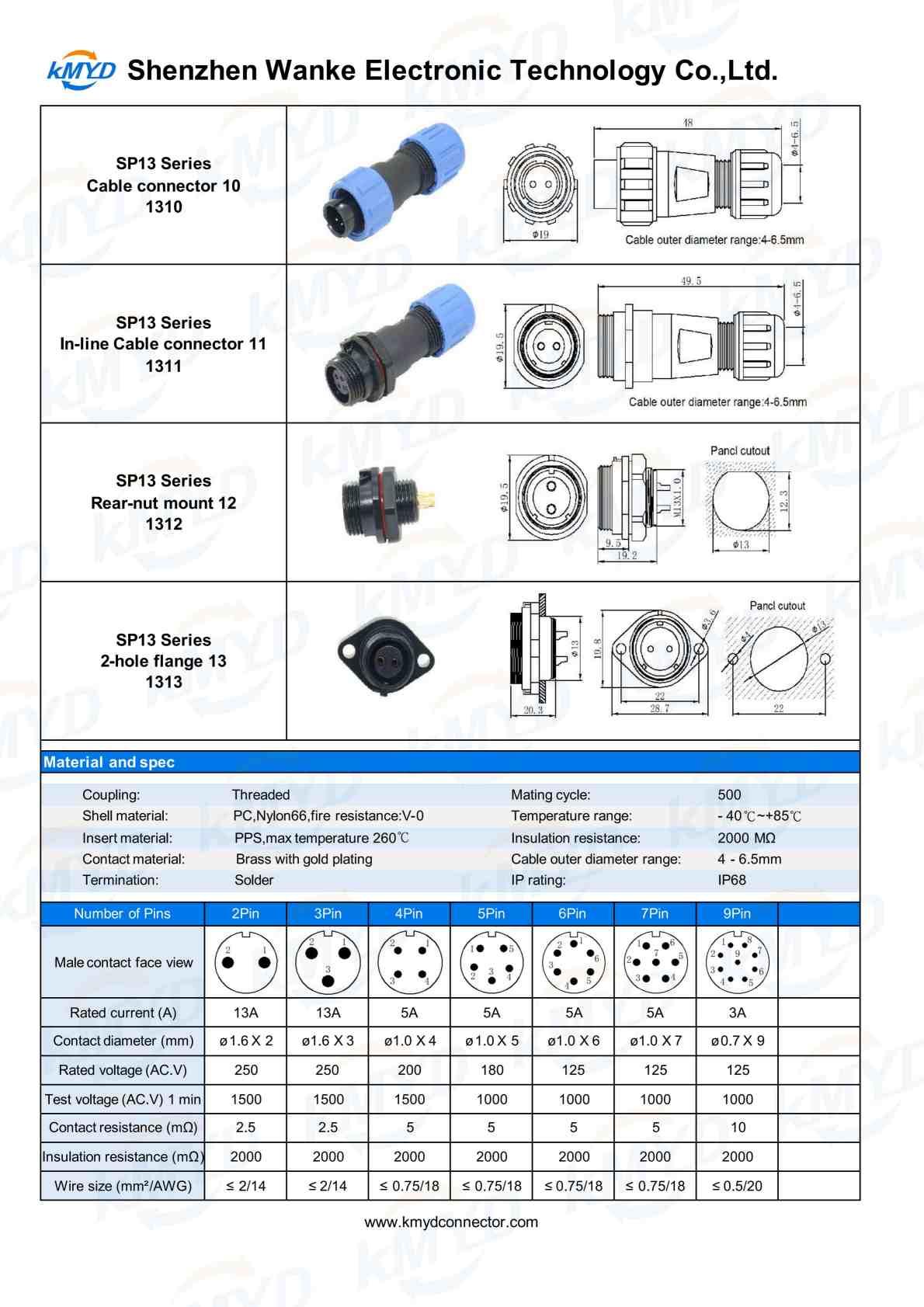

SP13 Waterproof Docking Connector
